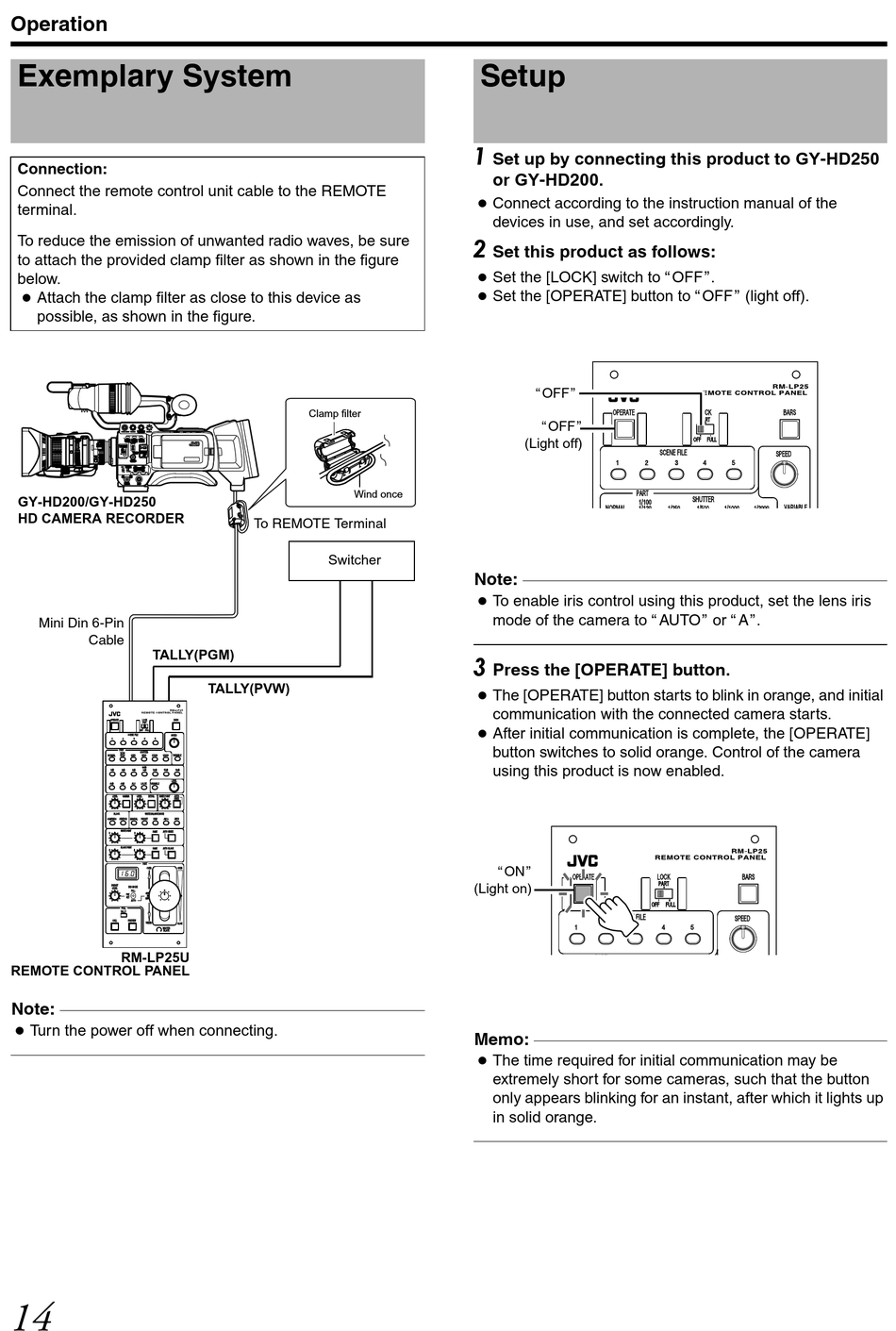

Operation

Exemplary System

Connection:
Connect the remote control unit cable to the REMOTE
terminal.
To reduce the emission of unwanted radio waves, be sure
to attach the provided clamp filter as shown in the figure
below.
● Attach the clamp filter as close to this device as
possible, as shown in the figure.
VF BRIGHT
USER 1 USER 2 USER 3
ND FILTER
2
1
MENU
STATUS
WHT.BAL
AUTO AUTO
AUDIO
CH-1 LEVEL CH-2
ON OFF
POWER REC
GY-HD200/GY-HD250
HD CAMERA RECORDER
Mini Din 6-Pin
Cable
TALLY(PGM)
OPERATE LOCK BARS
PART
OFF FULL
SCENE FILE
SPEED
1 2 3 4 5
PART
SHUTTER
1/100
NORMAL 1/120 1/250 1/500 1/1000 1/2000 VARIABLE
GAIN
0dB 3dB 6dB 9dB 12dB 15dB 18dB
LEVEL
-3dB -6dB ALC LOLUX VARIABLE
LEVEL GAMMA LEVEL DETAIL KNEE POINT AUTO
KNEE
BLACK WHITE BALANCE MODE
COMPRESS STRETCH MANUAL PRESET FAW AW A AW B
WHITE PAINT AUTO WHITE
PAINT
R B
BLACK PAINT
PAINT AUTO BLACK
R B
PART
OVER OPEN
PRESET
IRIS MODE
LEVEL
FULL
AUT
PRE
IR
SET
LEV
AUTO
FULL
TALLY
CALL PREVIEW
UNDER
CLOSE
MASTER
BLACK
RM-LP25U
REMOTE CONTROL PANEL
Note:
● Turn the power off when connecting.
Clamp filter
To REMOTE Terminal
Switcher
TALLY(PVW)
IS

Setup

1
Set up by connecting this product to GY-HD250
or GY-HD200.
● Connect according to the instruction manual of the
devices in use, and set accordingly.
2
Set this product as follows:
● Set the [LOCK] switch to OFF .
● Set the [OPERATE] button to OFF (light off).
Wind once
Note:
● To enable iris control using this product, set the lens iris
mode of the camera to AUTO or A .
3
Press the [OPERATE] button.
● The [OPERATE] button starts to blink in orange, and initial
communication with the connected camera starts.
● After initial communication is complete, the [OPERATE]
button switches to solid orange. Control of the camera
using this product is now enabled.
ON
(Light on)
Memo:
● The time required for initial communication may be
extremely short for some cameras, such that the button
only appears blinking for an instant, after which it lights up
in solid orange.
OFF
OPERATE
OFF
OFF FULL
(Light off)
