Panasonic TC-P65VT30 Service Manual

65 inch class 1080p plasma hdtv, gpf14du chassis
Hide thumbs Also See for TC-P65VT30:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
65 inch Class 1080p Plasma HDTV
TC-P65VT30
Model No.
GPF14DU Chassis
© Panasonic Corporation 2011.
Unauthorized copying and distribution is a violation
of law.
ORDER NO.MTNC110441CE
B34 Canada: B62

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TC-P65VT30

Summary of Contents for Panasonic TC-P65VT30

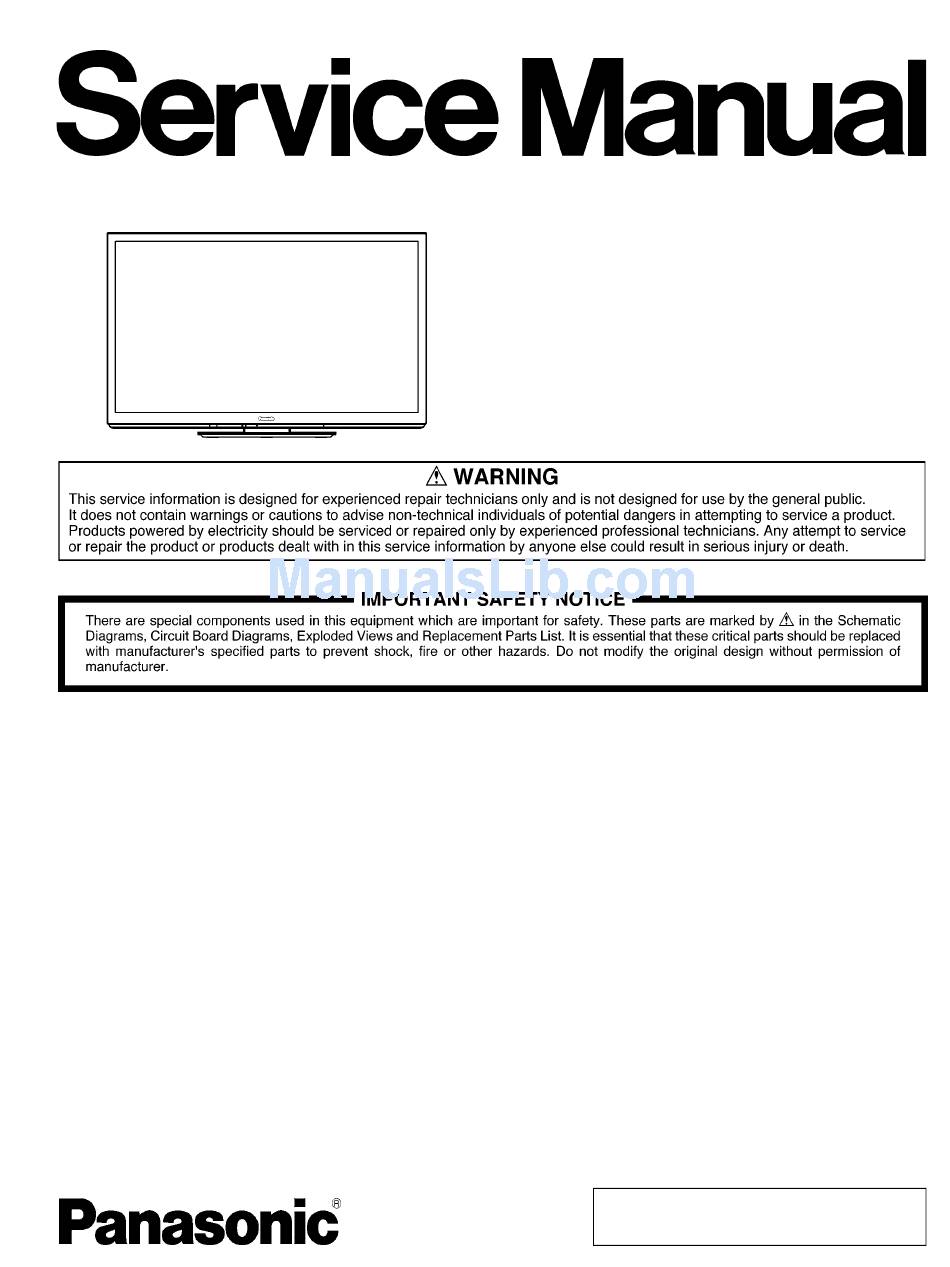

  • Page 1 ORDER NO.MTNC110441CE B34 Canada: B62 65 inch Class 1080p Plasma HDTV TC-P65VT30 Model No. GPF14DU Chassis © Panasonic Corporation 2011. Unauthorized copying and distribution is a violation of law.
