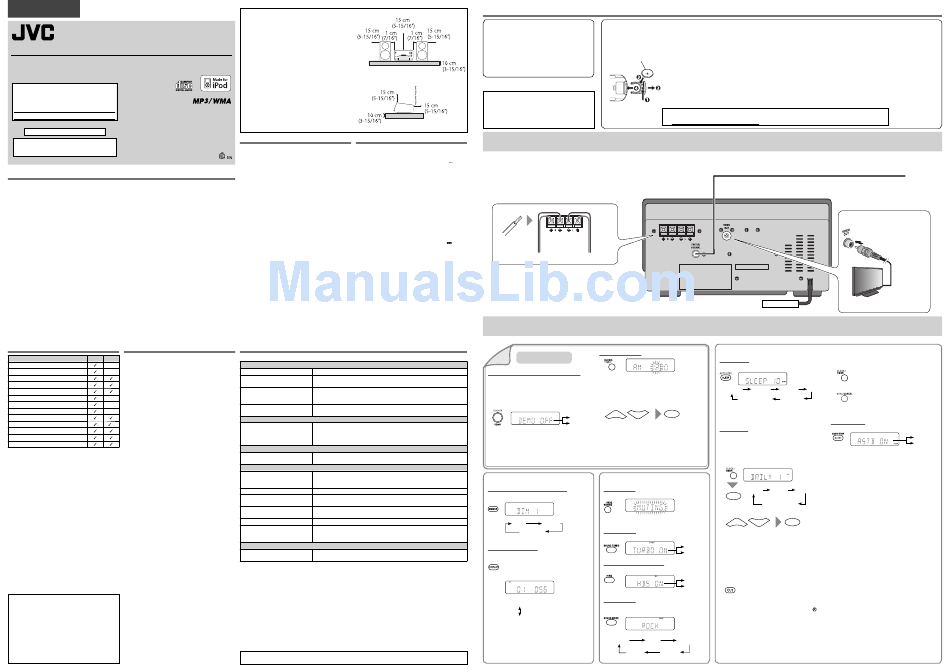

JVC LVT2121-001A Instructions

ENGLISH
MICRO COMPONENT SYSTEM
UX-F3B
INSTRUCTIONS
—consists of CA-UXF3B and SP-UXF3BJ
For customer use:
Enter below the Model No. and Serial No. which
are located either on the rear, bottom or side of the
cabinet. Retain this information for future reference.
Model No.
Serial No.
Thank you for purchasing a JVC product.
For turning off the demonstration display, see
"Canceling the display demonstration" in "Initial
settings. "
©2010 Victor Company of Japan, Limited
Precautions
Notes on the power cord Notes on installation
• When you go away for an extended period of time, • Select a place which is level, dry and neither too hot nor
remove the plug from the wall outlet. too cold—between 5˚C and 35˚C (41°F and 95°F).
• When unplugging the System from the wall outlet, • Do not install the System in a place subject to vibrations.
always pull the plug, not the power cord. • Do not put heavy objects on the System.
• Do not handle the power cord with wet hands.
To prevent malfunction or damage to the System
• Disconnect the power cord before cleaning the System or
• Do not insert any metallic objects, such as wires, hairpins,
moving the System.
coins, etc. into the System.
• Do not alter, twist or pull the power cord, or put anything
• Do not block the vents.
heavy on it, which may cause fire, electric shock, or other
accidents.
There are no user-serviceable parts inside. If anything
Avoid moisture, water, dust, and high temperatures goes wrong, unplug the power cord and consult your
• Do not place the System in moist or dusty places. dealer.
• If water gets inside the System, turn off the power and
remove the plug from the wall outlet, then consult your
dealer. Using the System in this state may cause a fire or
electrical shock.
• Do not expose the System to direct sunlight or place it
near a heating device.
Compatible iPod models Playable disc/file
• This System can play back...
iPod model Audio Video
– Audio CD and CD-R/CD-RW in Audio CD format.
iPod nano –
– MP3/WMA files on a CD-R/CD-RW (ISO 9660 format).
iPod nano (2nd Generation) –
• This System cannot play "packet write" discs.
iPod nano (3rd Generation) • This System can recognize up to 255 groups on a disc.
The total number of groups and tracks (on a disc) that can
iPod nano (4th Generation)
be recognized by the System is 512 (for MP3/WMA).
iPod nano (5th Generation)
• For MP3/WMA playback...
iPod mini –
– Some MP3/WMA files may not be played back due to
iPod mini (2nd Generation) –
their recording conditions.
iPod (4th Generation) – – This System can play only discs of ISO 9660 Level 1 or
Level 2.
iPod classic
– It is recommended to record each file at a sampling rate
iPod photo (4th Generation) *
of 44.1 kHz and at a data transfer rate of 128 kbps.
iPod video (5th Generation)
– This System cannot play back files made at a bit rate of
iPod touch less than 64 kbps.
– This System can show the Tag data (Version 1).
iPod touch (2nd Generation and Fall '09)
* Only for still picture
If iPod does not play correctly, update iPod software to the
latest version.
• For details about updating iPod, check on the Apple web
site <http://www.apple.com/>.
• Microsoft and Windows Media are either registered
trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
• iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
• "Made for iPod" means that an electronic accessory
has been designed to connect specifically to iPod and
has been certified by the developer to meet Apple
performance standards.
• Apple is not responsible for the operation of this
device or its compliance with safety and regulatory
standards.
Front view / Face
CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent
damage, locate the apparatus as follows:
1. Front: No obstructions and open spacing.
2. Sides/Top/Back: No obstructions should be placed
in the areas indicated by the dimensions in the
illustration.
Speaker
3. Bottom: Place on the level surface. Maintain an
Enceinte
adequate air path for ventilation by placing on a
stand with a height of 10 cm or more.
ATTENTION: Ventilation Correcte
Pour éviter tout risque de choc électrique et d'incendie,
placez l'appareil en respectant ce qui suit: Side view / Côté
1. Avant: Rien ne doit gêner le dégagement.
2. Flancs/Dessus/Arrière: Aucun obstacle ne doit être
placé dans les zones indiquées par les dimensions
dans l'illustration.
3. Dessous: Poser l'appareil sur une surface plate.
Laissez suffisamment d'espace pour que la ventilation
puisse s'effectuer correctement en plaçant l'appareil
sur un socle d'une hauteur de 10 cm ou plus.
Maintenance Specifications
LVT2121-001A[J/C]
To get the best performance of the System, keep your discs
0310YOMMDWCDT
Main unit (CA-UXF3B)
and the mechanism clean.
General
Handling discs
Power source:
• Remove the disc from its case by holding it at the edge
Power consumption (at operation):
while pressing the center hole lightly.
Power consumption (on standby):
• Do not touch the shiny surface of the disc, or bend the
Dimensions (approx.) (W x H x D) (including projecting
disc.
parts):
• Put the disc back in its case after use.
• Be careful not to scratch the surface of the disc when
Mass (approx.):
placing it back in its case.
Amplifier
• Avoid exposure to direct sunlight, temperature extremes,
Output Power:
and moisture.
Audio Input:
To clean the disc:
Speaker impedance:
• Wipe the disc with a soft cloth in a straight line from
Tuner
center to edge.
FM frequency:
Cleaning the System
iPod
• Stains should be wiped off with a soft cloth. If the System
Output power:
is heavily stained, wipe it with a cloth soaked in water-
Video out:
diluted neutral detergent and wrung well, then wipe
Speaker (SP-UXF3BJ)
clean with a dry cloth.
Speaker type:
• Since the System may deteriorate in quality, become
damaged or get its paint peeled off, be careful about the Tweeter:
Woofer:
following:
– DO NOT wipe it hard. Impedance:
– DO NOT wipe it with thinner or benzine. Dimensions (approx.) (W x H x D) (including projecting
parts):
– DO NOT apply any volatile substances such as
insecticides to it.
Mass (approx.):
– DO NOT allow any rubber or plastic to remain in contact
for a long time.
Supplied accessories
See "Supplied accessories" in "Getting started. "
Design and specifications are subject to change without
notice.
Troubleshooting
If you are having a problem with your System, check this list for a possible solution before calling for service.
General
\ Power plug is not inserted securely. Plug it in securely.
Power does not come on.
\ There is a time limit. Start the procedure again.
Adjustments or settings are
suddenly canceled before you finish.
\ The path between the remote control and the remote sensor on the System is
Unable to operate the System from
the remote control. blocked.
\ The battery is exhausted.
\ Speaker connections are incorrect or loose.
No sound is heard.
\ Headphones are connected.
FM radio
\ Antenna connection is incorrect or loose.
Hard to listen to broadcasts because
\ The FM antenna is not properly extended and positioned.
of noise.
\ Electrostatic discharge from your body may cause noise. If this happens, turn
the System off then on again.
iPod
\ The iPod battery is low or exhausted. Charge the iPod battery.
The iPod does not play, but
"CONNECT" appears on the display.
Disc
\ The disc is placed upside down. Place the disc with the label side facing up.
The disc does not play.
\ The disc is recorded using "packet writing (UDF file system). " It cannot be
played.
\ MP3/WMA files are not recorded on the disc.
"NO DATA" appears on the display.
\ There are two types of ID3 Tag—Version 1 and Version 2. This System can only
ID3 Tag on an MP3 file cannot be
shown. show ID3 Tag Version 1.
\ Playing order is determined when the groups and tracks are recorded. It
Groups and tracks are not played
back as you expect. depends on the writing application.
\ The disc is scratched or dirty.
The disc sound is discontinuous.
The disc tray does not open or close. \ The AC power cord is not plugged in.
\ Disc ejection is prohibited. "LOCKED" appears (see "Prohibiting disc ejection"
in "Disc" on page 2).
Timer
\ The System was turned on when the on-time came. The timer starts working
Daily Timer does not work.
only when the System is turned off.
• If the System does not work correctly, disconnect the AC power cord from the wall outlet, wait for a while, and
connect the cord again.
Getting started
❍
Supplied accessories
After unpacking, check to make sure that you have all
the following items:
• Remote control (× 1)
• Lithium coin battery CR2025 (× 1)
Speaker
– The battery has been installed in the remote
Enceinte
control when shipped from the factory.
• FM antenna (× 1)
Main unit
If anything is missing, consult your dealer immediately.
Appareil principal
In this manual...
• The remote control buttons are used for explaining
the operations unless mentioned otherwise. However,
if the System has the same or similar button names,
they can also be used for the operations.
Main unit
• "File" and "track" are used interchangeably.
Appareil principal
Connections
NOTES:
• Make sure the antenna conductors do not touch any other terminals, connecting cords or the power cord. Also, keep the antennas away
AC 120 V , 60 Hz
from metallic parts of the System, connecting cords, and the AC power cord. Otherwise, it could cause poor reception.
40 W
• When connecting the speaker cords, match the polarities of the speaker terminals: red to (+) and black to (–).
1.00 W or less
• DO NOT connect more than one speaker to each terminal.
• Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the System.
236 mm × 123 mm × 285 mm
• DO NOT allow the conductor of the speaker cords to come into contact with the metallic parts of the System.
(9-5/16" × 4-7/8" × 11-1/4")
2.0 kg (4.5 lbs)
60 W (30 W + 30 W) at 6 Ω (10% THD)
Black
AUDIO IN: Stereo mini (ø 3.5 mm)
6 Ω - 16 Ω
87.5 MHz – 108.0 MHz
DC 5 V 500 mA
Composite
Red
From right speaker
Bass-reflex type
4 cm (1-5/8")
12 cm (4-3/4")
6 Ω
141 mm × 250 mm × 181 mm
(5-9/16" × 9-7/8" × 7-3/16")
1.7 kg (3.8 lbs) each
Sound and other adjustments
Initial settings
Canceling the display demonstration
When you plug in and turn on the System, the display
demonstration starts automatically if no operation is
done for about 2 minutes.
To cancel the display demonstration
(On the main unit)
(Hold)
❍
Display settings
Display/illumination brightness
You can dim the display window and illumination.
DIM 1 DIM 2
DIM OFF
Display information
You can change the information shown on the
display.
Ex.: During playback of a CD...
Current track's elapsed time
Clock
• The information shown on the display differs
depending on the source.
• Tag information is shown on the display while an
MP3/WMA file is played back.
1
❍
Prepare the remote control
When you use the remote control for the first time, pull out the insulation sheet.
To replace the battery in the remote control
NOTES:
Lithium coin battery
• Store the battery in a place where children cannot reach. If a child accidentally swallows the battery, consult a doctor immediately.
(product number:
• To prevent the battery from overheating, cracking, or starting a fire:
CR2025)
– Do not recharge, short, disassemble or heat the battery or dispose of it in a fire.
– Do not leave the battery with other metallic materials.
– Wrap the battery with tape and insulate when throwing away or saving it.
– Do not poke the battery with tweezers or similar tools.
• Dispose of battery in the proper manner, according to federal, state, and local regulations.
• The battery (battery pack or battery installed) shall not be exposed to excessive heat source such as sunshine, fire or the like.
CAUTION:
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
For USA-California Only
This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material—special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate
Do not connect the AC power cord until all other connections have been made.
Black
Red
From left speaker
❍
Timers
Setting the clock
Sleep Timer
1
Specify the time (in minutes.)
• If you have already set the clock before, press and
hold CLOCK/TIMER until the current time is shown
SLEEP 10
on the display then press SET to activate the clock
setting mode.
SLEEPOFF
2
Adjust the hour and minute.
• To check the remaining time until the System shuts off,
UP SET
DOWN press SLEEP once.
DEMO
DEMO OFF
• To go back to the previous step, press MENU/
Daily Timer
CANCEL.
By using Daily Timer, you can wake up with your favorite
• The clock may gain or lose 1 to 2 minutes per month. music.
• You can store three Daily Timer settings.
You may need to readjust the clock periodically.
• Tune into a station, insert a disc or connect iPod to the
System beforehand.
1
Select a Daily Timer number.
❍
Sound adjustments
Fade muting
DAILY 1
To drop the volume in a moment SET
2
Set the timer contents.
• To restore the volume, press again or adjust the
UP
volume level.
Sound Turbo
– Hour and minute for the on-time and off-time
To emphasize the sound
– Playback source
– Volume
TURBO ON
• If you select "VOL – –, " the volume is set to the
TURBOOFF
same level as when the System was last turned off.
• To correct a misentry during the process, press
Hyper Bass Sound (HBS)
MENU/CANCEL. You can return to the previous step.
To reinforce the bass sound
• To exit from Daily Timer setting, press
CLOCK/TIMER repeatedly as required.
HBS ON
3 Turn off the System.
HBS OFF
Sound Mode The display disappears and the STANDBY lamp starts
flashing.
To select the sound mode suitable for your favorite
• While on standby mode, the timer indicator (
music
not displayed.
ROCK POP CLASSIC
FLAT JAZZ
(Canceled)
FM antenna (supplied): Extend it so that you can obtain the best reception.
For better FM reception
Disconnect the supplied FM antenna, and connect to an outdoor FM antenna
(not supplied) using a 75 Ω wire with coaxial type connector.
To view video/picture from the iPod
Monitor
Composite video
cord (not supplied)
To composite video input
To a wall outlet
To cancel a Daily Timer
1
Select a Daily Timer number.
2
Cancel the selected Daily Timer.
SLEEP 20 SLEEP 30 • • •
SLEEP180
The timer indicator is turned off.
Auto Standby
You can turn off the System automatically.
ASTB ON
ASTB OFF
(Hold)
• The A.STBY indicator starts flashing after playback
stops. If no operation is done for about 3 minutes, the
System is turned off.
• This function cannot be used when "TUNER FM" or
"AUDIO IN" is selected as the source.
DAILY 2 DAILY 3
Normal display
DOWN SET
) is
