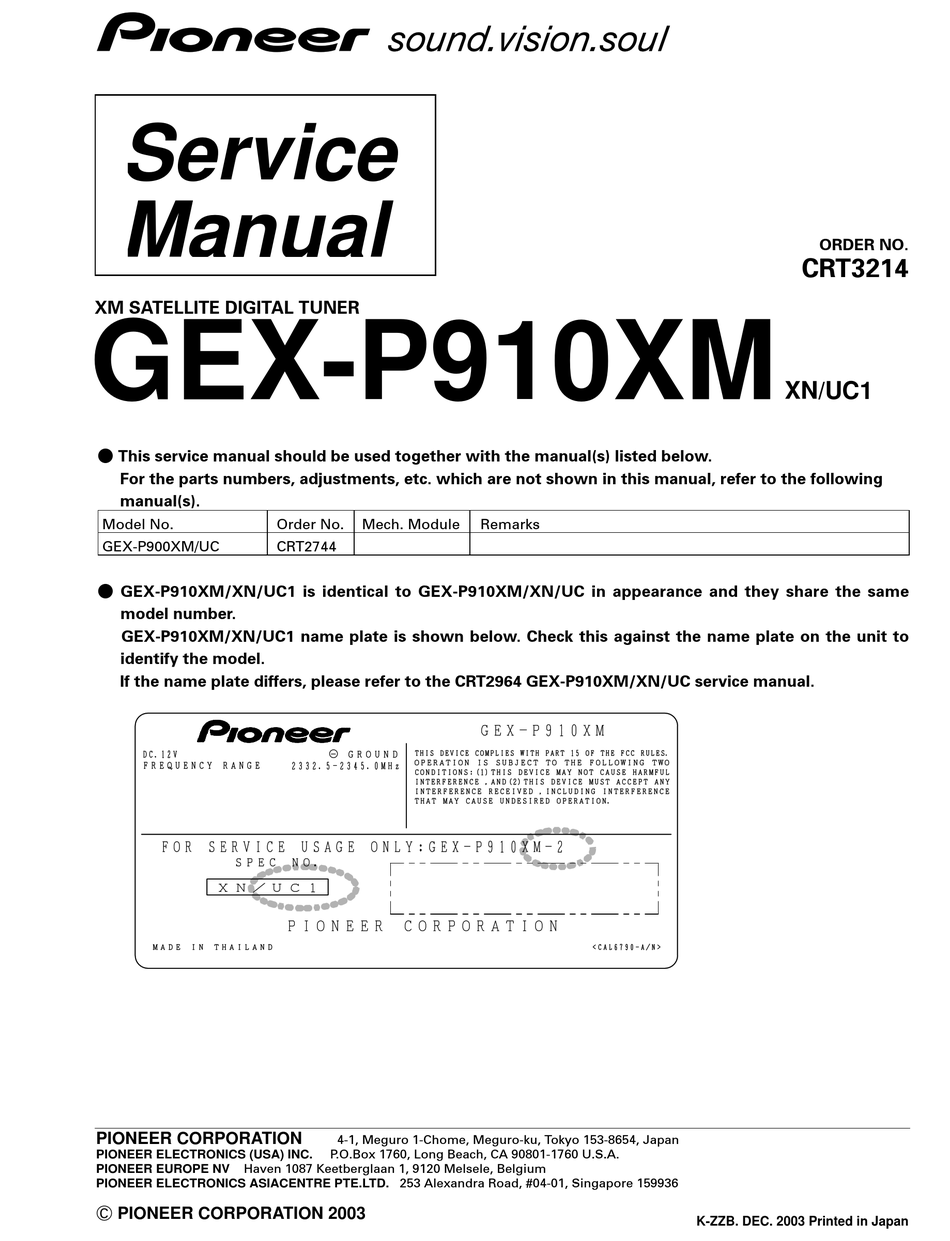

Pioneer GEX-P910XM Service Manual

Service
Manual
XM SATELLITE DIGITAL TUNER
GEX-P910XM
- This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following
manual(s).
Model No.
GEX-P900XM/UC
- GEX-P910XM/XN/UC1 is identical to GEX-P910XM/XN/UC in appearance and they share the same
model number.
GEX-P910XM/XN/UC1 name plate is shown below. Check this against the name plate on the unit to
identify the model.
If the name plate differs, please refer to the CRT2964 GEX-P910XM/XN/UC service manual.
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC.
PIONEER EUROPE NV Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936
C PIONEER CORPORATION 2003
Order No. Mech. Module
CRT2744
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
Remarks
ORDER NO.
CRT3214
XN/UC1
K-ZZB. DEC. 2003 Printed in Japan
