UHF FM TRANSCEIVER
TK-3201
SERVICE MANUAL

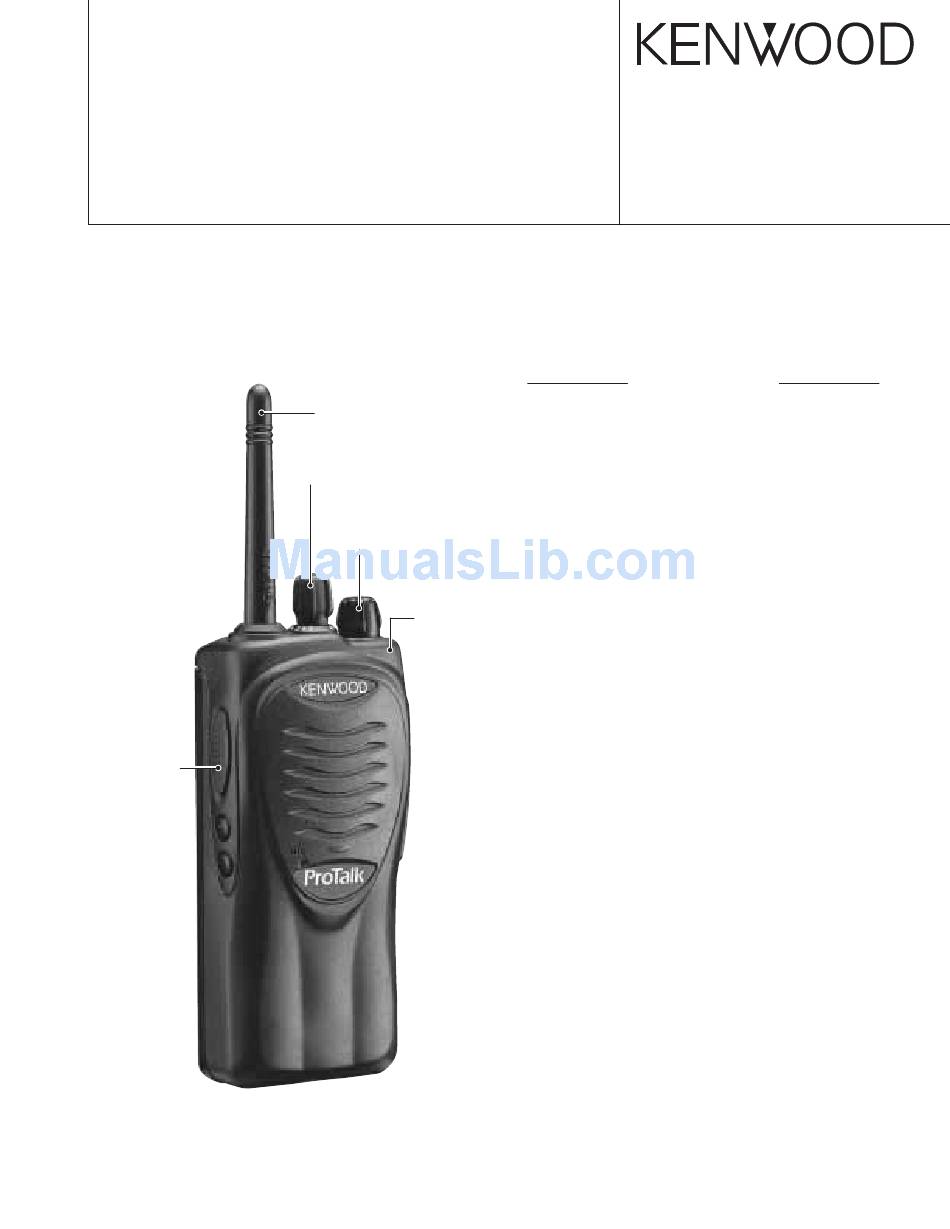

Knob (PTT)
(K29-9308-03)
Cover (ANT)
(F07-1882-03))
Knob (CH-SELECTOR)
(K29-9318-03)
Knob (VOLUME)
(K29-9309-03)
Cabinet assy
(A02-3888-03)
©
2004-7 PRINTED IN JAPAN
B51-8696-00 (S) 493
CONTENTS
GENERAL ............................................................. 2
REALIGNMENT .................................................... 3
DISASSEMBLY FOR REPAIR .............................. 4
CIRCUIT DESCRIPTION ....................................... 7
TERMINAL FUNCTION ...................................... 10
SEMICONDUCTOR DATA ................................. 10
COMPONENTS DESCRIPTION ......................... 11
PARTS LIST ........................................................ 12
EXPLODED VIEW ............................................... 18
PACKING ............................................................ 19
ADJUSTMENT ................................................... 20
TX-RX UNIT (X57-6972-70) .......................... 24
SCHEMATIC DIAGRAM ..................................... 28
BLOCK DIAGRAM .............................................. 32
LEVEL DIAGRAM ............................................... 34
SPECIFICATIONS ............................ BACK COVER
