Summary of Contents for Lightolier LyteMode
- Page 2 214-647-7880 Fax: 214-647-8032 www.lolcontrols.com Lightolier Controls is a Philips group brand. This manual is for informational use only and is subject to change without notice. Lightolier Controls assumes no responsibility or liability for any claims resulting from errors or inaccuracies that may appear in this manual.
-
Page 3: Table Of Contents
Table of Contents Customer Service ..............2 Classic Digital Keypads Overview ..........3 Quick Start ................4 Classic Digital Keypad Configurations ........5 Installation ................6 Setting ILS Network ID ............7 Basic Setup ................9 Mode .................9 ID Address ..............11 LED Intensity ..............12 Operation ................13 Selecting a Scene ............13 Factory Defaults and Troubleshooting ........14 Resetting Factory Defaults ..........14... -
Page 4: Customer Service
Customer Service Technical and Sales assistance for Lytemode products is available worldwide. Phone: +1-800-526-2731 (In the United States and Canada) +1-214-647-7880 (Worldwide) Customer Service... -
Page 5: Classic Digital Keypads Overview
Classic Digital Keypads are compatible with IntelliSight Occupancy Sensors, Photocells, and Power Packs, Lyteswitch Low-Voltage Lighting Control Panels, and Lytemode Architectural Dimming Systems including Optio and Capio Plus. The architecturally neutral appearance and robust construction provide years of trouble-free service. -
Page 6: Quick Start
To get a Classic Digital Keypad up and running quickly, use the following checklist: Step 1. Install unit (refer to “Installation” on page Step 2. Connect to Lytemode ILS Network or ITS Network (refer “Setting ILS Network ID” on page Step 3. Set the mode (refer to “Mode” on page The unit should now be ready for operation. -
Page 7: Classic Digital Keypad Configurations

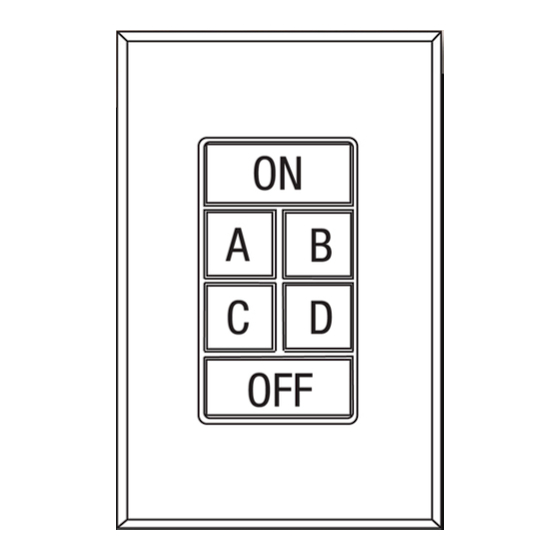

Classic Digital Keypad Configurations The Classic Digital Keypad is available in the following button configurations, and may be ordered as either White with a white screwless faceplate, or Black with a stainless-steel faceplate: 2 BUTTON 3 BUTTON 4 BUTTON 6 BUTTON 7 BUTTON 8 BUTTON Standard keypad labeling shown. -
Page 8: Installation
Installation The Lytemode ILS Network consists of a single CAT5e cable connecting all ILS modules in a daisy chain manner. All units connect to the network using a 9-pin connector (included). To install: Step 1. Unpack unit and inspect for any signs of shipping damage. -
Page 9: Setting Ils Network Id
Setting ILS Network ID Lytemode products are controlled by the Intelligent Lytemode System (ILS) protocol. All Lytemode ILS devices must be given an ID (or address), which identifies the device on the network and allows it to avoid network collisions when transmitting data. - Page 10 ILS Network Addressing: Remotely Device Sub-ID Devices / ID Notes * Polled? Remote 1-255 Multiple Global Remote 1-255 Multiple Remote Keypad 1-255 IntelliSight (ITS) 1-255 Channel Master 1-255 * Notes: 1 – Matches ILS Master ID. 2 – ILS Masters must be programmed to accept. 3 –...
-
Page 11: Basic Setup
Basic Setup This section describes how to program the unit’s Mode, Address, and LED Brightness. Mode The unit can be set to function in one of several Modes as follows: Step 1. Press and hold H and I for 3 or more seconds. - Page 12 Mode Function 0 – Remote Used to trigger Scenes and perform Master Raise/Lower on ILS Masters. 1 – Global Remote Same as Remote, but transmits a Global command used to link several ILS Masters. ILS Masters must be programmed to respond to the Global 2 –...
-
Page 13: Id Address
ID Address Because there are not enough buttons/LEDs to address the full 0- 255 ID range, the ID must be entered in two stages. The three most significant ID bits are entered first, followed by the five least significant ID bits. Step 1. -
Page 14: Led Intensity
While in the Addressing Mode, the device will transmit a Network Test Command every 2 seconds (E will blink). All devices on the network will blink an LED to indicate their reception of this command. If a receiving device matches the transmitted ID, it will blink all of its LEDs. -
Page 15: Operation
Operation Selecting a Scene An 8-button keypad provides access to eight Scenes (E-L). To select a Scene, press the appropriate button on the keypad. Classic Digital Keypad User’s Guide... -
Page 16: Factory Defaults And Troubleshooting
Factory Defaults and Troubleshooting Resetting Factory Defaults To set the unit back to its Factory Defaults, do the following: Step 1. Remove unit from wall and unplug ILS Network connector (if equipped) and ITS Network connector (if equipped). Step 2. Press and hold E and L. Step 3. -
Page 17: Troubleshooting
Troubleshooting In order to determine if all Lytemode ILS Network devices are communicating, a network test signal can be sent by initiating the Walk-Around-Programming mode from any Lyteswitch Lighting Control Panel. While in this mode, the the Lyteswitch relay panel will transmit a Network Test Command every 2 seconds. -
Page 18: Specifications
Specifications Electrical: • Input Power: +18-26 VDC (powered from Lytemode ILS Network or IntelliSight ITS Network) • Current: 20mA • Temperature - Storage: -25° to 85° C - Operating: 0° to 40° C - Relative Humidity: 30-90% (non-condensing) Specifications... - Page 19 Notes Classic Digital Keypad User’s Guide...
- Page 20 Notes Notes...
- Page 21 Philips Controls supplier which agrees in advance to handle the return and replacement by factory authorization). If the product or part is found by Philips Controls to have been defective in material or workmanship it will be repaired or replaced (as deemed necessary by Philips Controls), and the replacement will be returned to you free of charge.
- Page 22 P / N : 8 5 - 6 3 5 3 A 0 © 2 0 0 8 P h i l i p s G r o u p . A l l R i g h t s R e s e r v e d . Ma n u a l p r i n t e d i n t h e U S A .
