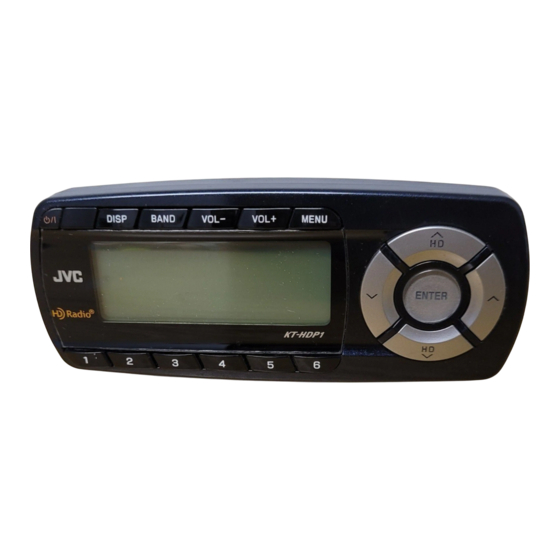

JVC HD RADIO KT-HDP1 Instructions Manual

Transpotable hd radio receiver
Hide thumbs Also See for HD RADIO KT-HDP1:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual, Installer and User Manual

Advertisement

Table of Contents
loading

Related Manuals for JVC HD RADIO KT-HDP1

Summary of Contents for JVC HD RADIO KT-HDP1

  • Page 2 However, there is no guarantee that interference will not occur in a particular installation.

  • Page 3: Cleaning And Maintenance

    Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to clean. These may cause damage to the receiver. Caution: Changes or modifications not approved by JVC could void the user’s authority to operate the equipment.

  • Page 4: Safety Precautions

    CAUTIONS This symbol means instructions. Failure to heed them can result in injury or material property damage. Liquid Crystal Precautions If the liquid crystal fluid comes in contact with your skin, wipe the skin area with a cloth and then wash the skin thoroughly with soap and running water.
  • Page 5 devices such as an airbag. Doing so may prevent the airbag from functioning properly in the event of an accident. sure receiver accessories installed described installation instructions which accompany each accessory kit. To avoid short circuits, do not open the receiver or accessories, and never put or leave any metallic objects (coins, tools, etc.) inside the receiver.

  • Page 6: Table Of Contents

    Installation for Home Use ... 18 Connecting the Cigarette Lighter Adapter ... 19 Controls ... 20 Getting to Know Your HD Radio Receiver ... 20 Getting to Know Your Remote Control... 23 On-Screen Information ... 26 During HD Radio Mode ... 26 During FM/AM Mode ...
  • Page 7 Operations ... 29 FM Transmitter ... 29 Display Options ... 30 Audio Control... 31 Equalizer... 32 Tone Control ... 32 Balance... 33 Loudness ... 33 Software Version... 34 Factory Default ... 34 Specifications ... 35...

  • Page 8: Package Contents

    Package Contents 1. HD Radio receiver 2. Cigarette lighter adapter 3. Remote control with battery For USA-California Only This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate...
  • Page 9 Warning Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode. Store the battery in a place where children cannot reach to avoid risk of accident. To prevent the battery from over-heating, cracking, or starting a fire; -Do not recharge, short, disassemble, heat the battery, or dispose of it in fire.

  • Page 10: Optional Accessories (Sold Separately)

    Optional Accessories (Sold Separately) 1. Car Kit [KV-K1017] “Professional” Installation Kit (Optional) Cable clip Connection unit Dash mount Audio cable...
  • Page 11 2. Car Kit [KV-K1018] “Do it Yourself” Installation Kit (Optional) (a) Input antenna (Sleeve type) (b) Output antenna (Sleeve type) (c) Cable clip (d) Suction cup (e) Audio cable...
  • Page 12 3. Home Kit [KV-K1019] (Optional) (a) Home (Input) antenna (b) AC adapter (c) Cable clip (d) Home stand (e) Audio cable...

  • Page 13: Installation For Car Use

    “Professional ” Installation- Type (A) Professional installation-type (A) is for car radios with an AUX-IN (audio input) function. Please locate the AUX-IN (audio input)’s location and determine whether it is in front or rear of the car radio.
  • Page 14 Note! Some motorized vehicle antennas will automatically retract down when AUX-IN mode is selected. Under the mentioned circumstances, signal reception will become poor and the sound quality will be poor. Vehicles equipped with a built-in windshield antenna, will automatically turn off when switching the car radio to AUX-IN mode.
  • Page 15 “Professional ” Installation- Type (B) Professional installation-type (B) is for car radios without Aux-in (audio input) and is using wired FM Transmitter’s function.

  • Page 16: Do It Yourself" Installation

    “Do it Yourself” Installation “Do it Yourself” installation facilitates you to set up your device in convenient and quick ways. “Do it Yourself” Installation- Type (A) Do it Yourself installation-type (A) is for car radios with Aux-in (audio input) connection.
  • Page 17 “Do it Yourself ” Installation- Type (B) Do it Yourself installation-type (B) is for car radios without Aux-in (audio input) and uses a wireless FM Transmitter connection. Do it Yourself installation-type (B) uses a sleeve type of antenna for FM signal reception.
  • Page 18 “Do it Yourself ” Installation- Type (C) Do it Yourself installation-type (C) takes advantage of receiver’s internal antenna and uses a wireless FM Transmitter for linking to the car radio.

  • Page 19: Installation For Home Use

    Installation for Home Use Your transportable HD Radio receiver can be also used while at home.

  • Page 20: Connecting The Cigarette Lighter Adapter

    Connecting the Cigarette Lighter Adapter Connect the provided cigarette lighter adapter (12V CLA) to the 12V DC connection at the side of the receiver. Changing Fuse Replace the fuse with one of the specified rating (2A).

  • Page 21: Controls

    Controls Getting to Know Your HD Radio Receiver...
  • Page 22 6. Screen: Indicates information of Artist/ Category/ Song Title, etc. 7. Preset Button: Holds your favorite radio stations in memory. Once a preferred station is tuned, press and hold one of the six preset keys (1-6) to set the station into memory.
  • Page 23 (2) In Menu settings mode, selects the option high lighted on the screen. Once an option is selected, this button functions as Save and Exit. (3) In seek mode, stops the “Seek” operation. 10. Seek Button: Seeks radio station downward/ upward. Press and hold will tune radio frequency up/down.

  • Page 24: Getting To Know Your Remote Control

    Getting to Know Your Remote Control 1. POWER Button: Turns the receiver On or Off. 2. VOL (Volume) Button: Adjusts the volume (down - or up +) of the receiver.
  • Page 25 5. BAND Button: Switches FM1, FM2, FM3, AM. 6. HD Radio Button: Seeks for an HD Radio station upward or downward. 7. Seek Button: Seeks radio station downward/ upward. Press and hold will tune radio frequency up/down.
  • Page 26 To return from any menu screen to the station display, press and hold the menu button. 10. Preset Button: Holds your favorite radio stations in memory. Once a preferred station is tuned, press and hold one of the six preset keys (1-6) to set the station into memory.

  • Page 27: On-Screen Information

    On-Screen Information During HD Radio Mode When your HD Radio receiver receives a digital (HD Radio) signal, the following information is indicated: Source indicator Equalizer HD indicator Frequency Station name Digital signal indicator Preset radio station Artist Program Type Song title...

  • Page 28: During Fm/Am Mode

    During FM/AM Mode When your HD Radio receiver receives a stereo or analog signal, the following information is indicated: Source indicator Stereo Frequency Preset radio station Equalizer...

  • Page 29: Menu Options

    Menu Options To enter the Menu Options page of the receiver, press the MENU button. The Menu Options list will be displayed. To select a menu option, use the HD Radio up and down buttons to highlight the option you wish to adjust.

  • Page 30: Operations

    FM Transmitter The FM Transmitter feature allows you to create suitable FM frequencies between your HD Radio receiver and the car radio. Set the FM Transmitter frequency setting to unused FM station frequency. You can also turn the FM transmitter On and Off.

  • Page 31: Display Options

    LCD display. Use the Seek buttons ( ), to adjust the brightness/contrast. The bar graph will move to indicate the change. Use the HD Radio up and down buttons, to select Positive or Negative for LCD display Type.

  • Page 32: Audio Control

    Audio Control The Audio Level setting adjusts the level of the audio output of the receiver. To adjust the audio level, use the Seek buttons ( ) to change the audio level. The bar graph will move to indicate the change. The Audio Level setting can also adjust Equalizer, Tone Control, Balance and Loudness.

  • Page 33: Equalizer

    Equalizer While choosing “User”, users can define the equalizer level between –7 and +3. The default value is 0. Tone Control You can adjust Bass and Treble for Tone Control settings. Use the Seek buttons ( or ) to change Bass or Treble level. The bar graph will move to indicate the change.

  • Page 34: Balance

    Balance Use the Seek buttons ( or ) to change Balance level. The bar graph will move to indicate the change. Loudness You can set Loudness On or Off.

  • Page 35: Software Version

    The Factory Default option will restore most features of the receiver to the original factory settings. When “ Restore Settings? ” is displayed, use the HD Radio buttons ( ) to select Yes to restore all factory settings, or select No to leave them as present and return to the Menu Options.

  • Page 36: Specifications

    Specifications Power Requirements...………………………...12Volt DC (10-16 Volts DC) Receiver Dimensions ...………….…….127mm x 52.3mm x 25.2mm (W x H x D) (5” x 2-1/16” x 1” (W x H x D)) Mass (approx.)..…………………………...121g (0.266 lbs) (excluding accessories) Remote Control Dimensions………………….50mm x 90mm x 9mm (W x H x D) (2”...
  • Page 37 HD Radio Technology Manufactured Under License From iBiquity Digital Corporation. iBiquity Digital and the HD Radio and HD Symbols are registered trademarks of iBiquity Digital Corporation. U.S. and Foreign Patents.
