Please read these instructions completely before operating
this LCD Projector.
By clicking on the red highlighted words in this document, you
can go directly to a support page.
Top page

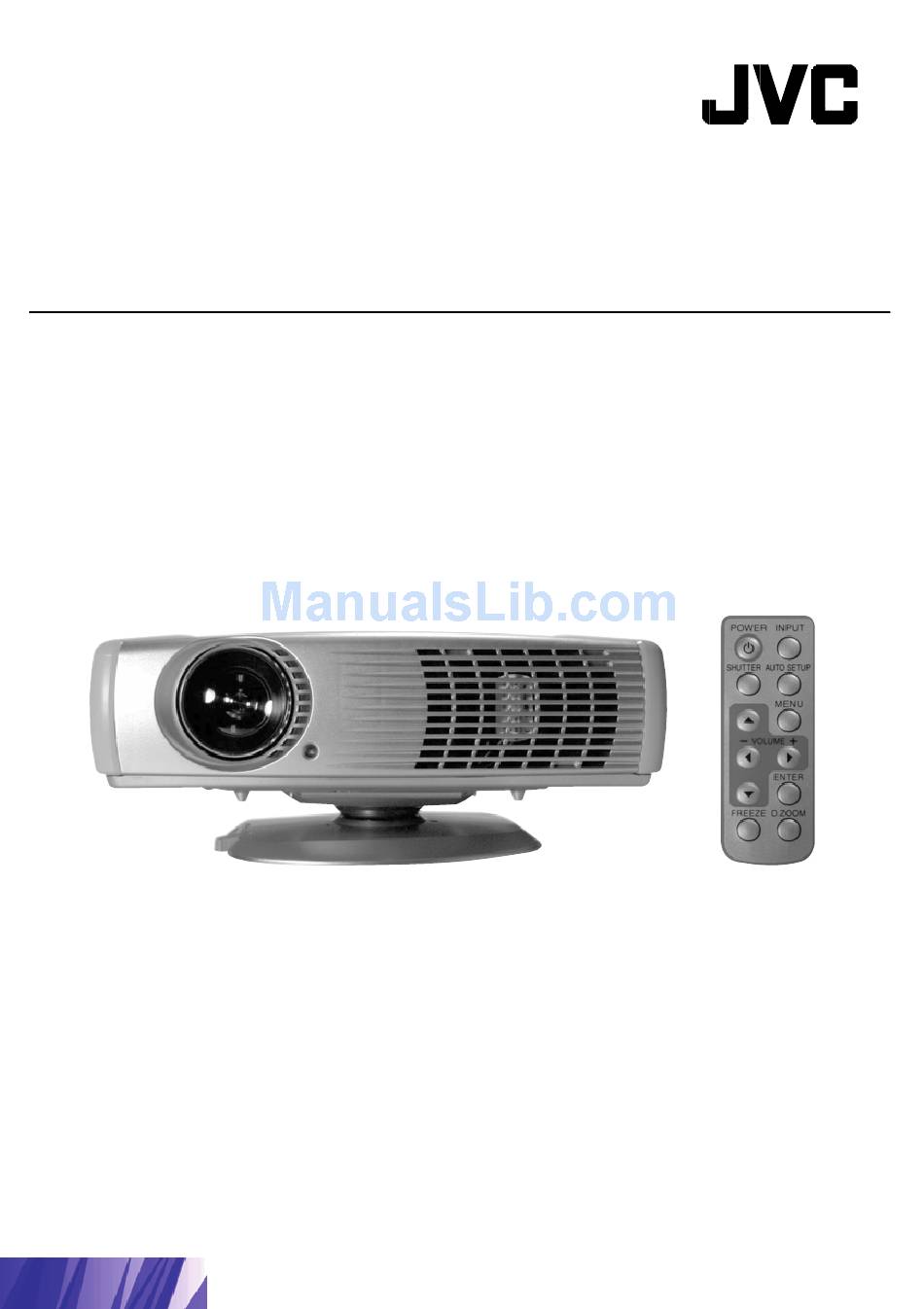

LCD PROJECTOR

Operating Instructions

Model No.
LX-P1010ZU/
LX-P1010ZE

Advertisement

Table of Contents
loading

Related Manuals for JVC LX-P1010ZE

Summary of Contents for JVC LX-P1010ZE

  • Page 1: Lcd Projector

    Please read these instructions completely before operating this LCD Projector. By clicking on the red highlighted words in this document, you can go directly to a support page. Top page LCD PROJECTOR Operating Instructions LX-P1010ZU/ Model No. LX-P1010ZE...

  • Page 2: Things You Should Know

    We hope it will help you to get the most performance out of your new product, that you will be pleased with your JVC LCD Projector. For your own protection and prolonged operation of your LCD Projector, please be sure to read the carefully, before use.
  • Page 3 Things You Should Know Declaration of Conformity Model Number: Trade Name: Responsible party: PSEL Dept. JVC America Corp. Address: Telephone number: (973) 315-5000 This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Important Safeguards

    Do not use a chemical duster or polisher-cleaner because it can adversely affect the unit and peel the paint coat. 3 Do not use attachments not recommended by JVC, as they may cause hazards. Previous screen Continued on the next page...
  • Page 5 Important Safeguards 4 Do not use the LCD Projector near water; for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool, etc. Never spill liquid into the LCD Projector. 5 Do not place the LCD Projector on an unstable cart, stand, or table.
  • Page 6 8 The LCD Projector should be operated only from the type of power source indicated on the back of the LCD Projector or in the specifications. If you are not sure of the type of power supplied to your home, consult your LCD Projector dealer or local power company.
  • Page 7 Important Safeguards 14 Never push objects of any kind into the LCD Projector through cabinet slots as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. 15 Do not attempt to service the LCD Projector yourself.
  • Page 8 19 Air filter should be cleaned every 100 lamp on hours. The LCD Projector may become too hot if filter is not cleaned when required. 20 If lens becomes dirty, or smudged, clean with a clean, dampened cloth.
  • Page 9 If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local JVC Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home, then the fuse should be removed and the plug cut off and disposed of safely.
  • Page 10 Important Safeguards WARNING: THIS APPLIANCE MUST BE EARTHED. IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Green-and-Yellow: Earth Blue: Brown: As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

  • Page 11: Lcd Projector Features

    LCD Projector Features Compact & Lightweight A compact, lightweight liquid crystal projector with the mobility for mobile presentations as well. Built-in Simple Stand The Built-in Simple Stand makes it possible to match the projection angle with the basic use environment of your office with one-touch ease.
  • Page 12 LCD Projector Features Accommodates all International Broadcast Video Signal Formats The LCD Projector accepts NTSC/PAL/SECAM/PAL-M/ PAL-N/NTSC4.43 video signal formats. Digital Zoom and Freeze Feature With remote control operation, you can display a enlarged portion of the screen up to 5 times. You can also display a freeze frame (paused) screen.
  • Page 13 14 Frontal Air Vent Design Vented air will not blow on persons located to the side or in rear of the projector and light leakage will not be a problem with the Frontal Air Vent design. Equipped with a variety of convenient functions A variety of functions such as the following have been provided.

  • Page 14: Contents Of Lcd Projector Box

    Contents of LCD Projector Box Please confirm that the following items are packed in the LCD Projector box. They are provided to help you use or set up your LCD Projector. (1) LCD Projector (2) Wireless Remote Control Unit (3) CR2025 Lithium Battery (Included with the remote control unit) (4) 2.44 m Power Cord (LX-P1010ZE only)

  • Page 15: Product Information

    Product Information LCD Projector Top, right and front Zoom Ring Focus Ring Air Filter Swivel Stand (Supplied) Back and bottom Speaker Air Inlet Port AC Socket Remote Control Sensor Hole for Swivel Stand Installation Previous screen Labels on the unit are omitted.
  • Page 16 Product Information LCD Projector Control panel POWER Indicator STANDBY(RED) ON(GREEN) INPUT Button KEYSTONE Button MENU Button Previous screen POWER Button POWER INPUT KEYSTONE ENTER MENU STATUS Code Indicator STATUS Adjust Buttons (Also used for Volume -/+) ENTER Button...
  • Page 17 The serial connector which is on the terminal board of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Consult your dealer or nearest JVC representative for details. Previous...
  • Page 18 Product Information Remote Control unit POWER Button SHUTTER Button , , , Buttons VOLUME - /+ Buttons FREEZE Button Previous screen Transmitter POWER INPUT SHUTTER AUTO SETUP MENU VOLUME ENTER FREEZE D.ZOOM Battery Holder INPUT Button AUTO SETUP Button MENU Button ENTER Button...

  • Page 19: Before Using The Remote Control Unit

    Before using the Remote Control Unit Remote Control comes with battery inside. Please remove white protective film before use. Replacing the battery Insert the new lithium battery making sure the polarities (+) and (-) are correct. WARNING: Replace battery with CR2025 only. Use of another battery may present a risk of fire or explosion.
  • Page 20 • If facing the remote control unit toward the screen to operate the projector, the operating range of the remote control unit will be limited by the amount of light reflection loss caused by the characteristics of the screen used.
  • Page 21 Attaching and Removing the Swivel Stand A swivel stand can be attached to or removed from the LCD Projector. When attached, you can fine-adjust the projection angle. To attach or remove the swivel stand, follow the steps below. •Attachment Place the unit upside down.

  • Page 22: System Configuration Example

    System Configuration Example Example of connection to audio-visual equipment Audio Cable (Supplied) AUDIO IN Audio Cable (Supplied) Note • Only one audio system circuit is available for the AUDIO IN jack, so if you wish to change the audio input source, you will need to remove and insert the appropriate plugs.
  • Page 23 • When using this projector, do not bind its power cable together with your computer cable, as this could cause it to malfunction.
  • Page 24 System Configuration Example Connecting D-sub15-BNC5 (female) Adaptor Cable The Component signal (YP with this LCD Projector. Please read the operating instructions regarding the output side of the component when connecting. BNC-RCA Adaptor (not included) BNC Cable (not included) (Connect to P...
  • Page 25 Please read the operating instructions included with the output device. • You need to change the input signal setting on this LCD Projector when inputting the Component signal. In this case, please refer to “Setting of the RGB/YP Selection”.
  • Page 26 Setting-up Positions There are two ways of installing this projector as shown next This section explains the standard case of the floor-mounted front projection. (The projection method can be set from the MENU screen. Refer to “Changing the Projection Caution: When you set up the LCD Projector •...
  • Page 27 Setting-up Positions Front projection Viewing a picture projected on the front of the screen from a floor. Rear projection Viewing a picture projected through the back of the screen from a floor installation. Previous screen Viewer Translucent screen Viewer...
  • Page 28 When possible, close all blinds, curtains, etc. and dim the lights. Also, the LCD Projector should be at a 90 angle to the screen for the best picture results. To determine the distance...
  • Page 29 Setting-up Positions LCD Projector /Screen Relative Position Chart The picture can be adjusted to the desired size within the range of the zoom lens. (The values in the table are reference values.) Screen type (4:3) Width Screen (SW) size 30 in 0.61 m...

  • Page 30: Turning The Power On And Off

    POWER Button STANDBY(RED) ON(GREEN) Note • Insert Power Cord into LCD Projector AC socket and connect to properly grounded wall outlet. • When power is turned off, the cooling fan continues to operate (approximately 2 minutes) in order to cool the projector interior.
  • Page 31 The power indicator will flash, then turn solid green and a picture will be projected onto the screen. Note The LCD Projector cannot be turned on for 2 minutes after turning it off. Turning off the power Press POWER Button on the LCD Projector or remote control unit.

  • Page 32: Adjusting The Lens

    • Adjustment procedure Turn the ZOOM Ring to adjust the size of the picture. • When facing the rear of the projector, turn the ring to the right for a smaller picture, or to the left for a larger picture.

  • Page 33: Menu Operations

    Menu operations This section explains how to reach the desired selection or setting screens from the MENU screen. When an RGB signal is being projected. (for white balance adjustment of the red component) Press the MENU Button. The Main MENU screen will be displayed.
  • Page 34 Menu operations Returning to the previous screen If you press the MENU Button while a menu screen is being displayed, the display will return to the previous screen. If you press the MENU Button while the Main MENU screen will be cleared.

  • Page 35: Changing The Projection Mode

    You may select from two direction types. At the time of shipment from the factory, the projector is set to the “Front” projection mode, but this can be changed if required. The procedure and on-screen display as shown below are based on RGB as the input signal from a personal computer.

  • Page 36: Setting The Screen Type

    Setting the Screen Type This LCD Projector is compatible with wide screen (16:9 ratio). If a wide screen is used and you set the screen type to 16:9 in order to project a wide (16:9) picture to fill the entire screen, pictures are correctly projected within the screen when projecting older (normal) 4:3 ratio pictures.

  • Page 37: Changing To 16:9 (Wide) Screen Format

    Changing to 16:9 (wide) screen format When a S-VIDEO/VIDEO or DTV Format (RGB, YP is input, the image can be displayed in 16:9 (wide) screen by the following procedure. This only applies for S-VIDEO/VIDEO and DTV Format signals. The procedure below describes the on- screen displays when the S-VIDEO signal or the VIDEO signal is being projected.
  • Page 38 Explanation of Screen Type 16:9 (Wide) Function OFF Screen Projected pictures (4:3) Screen Projected pictures (4:3) Note Even if the 16:9 (wide) screen feature is set to OFF, when an “S1” signal or DTV Format signal (720 p, 1 080 i) is input, the image is automatically displayed in 16:9 (wide) screen.

  • Page 39: Changing The Input Signal

    Changing the input signal The input source for picture signals can be changed by pressing the INPUT Buttons on the projector operating panel or on the remote control unit. INPUT (LCD Projector) R G B S - V I D E O...
  • Page 40 • The LCD Projector is shipped from the factory with the system format selection function set to “AUTO”. If the...

  • Page 41: Adjusting The Lcd Projector Projection Angle

    Adjusting the LCD Projector projection angle Adjusting the LCD Projection angle of the LCD Projector. When the projector is in the horizontal position, keystone correction is unnecessary and a correct image can be viewed. Using the simple stand While lifting up the front of the projector, pull down the simple stand located underneath the unit.

  • Page 42: Basic Lcd Projector Operation

    Basic LCD Projector Operation Adjusting the Volume The volume can be adjusted using the VOLUME -/+ Buttons on the remote control unit. VOLUME • Press VOLUME - Button to turn down the volume. • Press VOLUME + Button to turn up the volume.
  • Page 43 • When the screen goes black, the picture will not be shown on the screen. However, the picture continues to be sent from the personal computer or video source. • The projector uses less power in shutter mode than it does in normal projection mode. Previous...

  • Page 44: Using The Auto Setup Feature

    DTV format signal input, please press the AUTO SETUP Button on the remote control. • The LCD Projector detects whether the simple stand is down or up and automatically corrects keystone distortion. • Adjusted settings are saved as is even if power is turned off.
  • Page 45 Adjusting the Image Position, Dot Clock and Phase Confirm the picture position, Dot Clock, and Phase. If the picture is not correctly positioned within the display area of the screen (the edge of the picture does not appear), adjust the picture position. The items which can be adjusted will vary depending on the type of input signal.
  • Page 46 Press Button. Adjust the personal computer’s dot clock and Dot Clock the projector’s dot clock so that no bit interfer- ence (vertical stripes) appears on the screen. Adjust in order to remove any picture interfer- Phase ence or contour blurring which may occur in computer images.

  • Page 47: Selecting The Image Quality

    Selecting the Image Quality This LCD Projector can select Dynamic or Natural as the special characteristic of image quality. Follow the instructions below to select the image qualities you prefer. The procedure and on-screen display as shown below are based on RGB as the input signal from a personal computer.

  • Page 48: Adjusting The Picture To The Desired Setting

    Adjusting the Picture to the Desired Setting The items which can be adjusted will vary depending on the type of input signal. The adjustment procedure below describes the on-screen displays when the S-VIDEO signal or the VIDEO signal is being projected. •...
  • Page 49 Adjusting the Picture to the Desired Setting Depending on the adjustment item, the adjust procedure and adjustment will vary. Please refer to the chart below. Adjustment Button item Press Button. Color Press Button. Press Button. Tint Press Button. Press Button. Brightness Press Button.

  • Page 50: Adjusting The White Balance

    Adjusting the White Balance The picture may become over-saturated with red or blue colour, and the white colour may not be at the desired degree of whiteness. In such cases, adjust the white balance by the following procedure. The procedure and on-screen display as shown below are based on RGB as the input signal from a personal computer.
  • Page 51 Adjusting the White Balance Depending on the adjustment item, the adjust procedure and adjustment will vary. Please refer to the chart below. Adjustment Button item Press R Level Press Press G Level Press Press B Level Press Note Unless properly adjusted, none of the colour may display normally.
  • Page 52 Setting of the RGB/YP DTV Format Signal, such as DVD or digital broadcast, etc. can be input and projected with this Projector. When using this function, please refer to correctly connect to the output device of the DTV Format Signal and perform the following settings correctly.

  • Page 53: Turning Off The Input Signal Display

    Turning off the input signal display The function which displays the currently selected input signal on the screen can be turned off by the following procedure. Freeze displays will also be turned off. The procedure and on-screen display as shown below are based on RGB as the input signal from a personal computer.
  • Page 54 Auto Lamp Off The power save function operates as follows: If the projector continues projecting for 15 minutes or more while there is no input signal to be projected, the light source will shut off automatically to save power. And, the projector will enter standby mode.
  • Page 55 When a signal less than 800 X 600 dots signals is input, the LCD Projector automatically enlarges the image to 800 X 600 dots. This may cause picture quality degration. For better image, select Expansion: OFF by the following procedure.

  • Page 56: Keystone Correction Function

    Keystone correction function When the screen and projector are not level, a keystone (trapezoid) image may occur. This can be corrected by doing the following. • procedure Project a picture onto the screen. Press the KEYSTONE Button on the projector.
  • Page 57 ... Bottom becomes narrow. Note • When keystone is corrected, the screen becomes smaller. • The LCD Projector detects whether the Simple Stand is down or up and automatically corrects keystone distortion when the KEYSTONE Button is pressed. Previous screen...
  • Page 58 Selecting the Language for On-Screen Displays The language of the LCD Projector is set to English as the factory setting. To select one of seven different languages for on-screen display, follow the instructions below. The procedure below describes the on-screen display when the S-VIDEO signal or the VIDEO signal is being projected.

  • Page 59: Information Functions

    Information Functions You can display the input signal type and lamp run time. Display items differ depending on the input signal. The procedure and on-screen display as shown below are based on RGB as the input signal from a personal computer. •...
  • Page 60 Information Functions Display Item Input signal dot number is No. of Dots displayed. Horizontal frequency number is H Frequency displayed. Vertical frequency number is V Frequency displayed. Name of the input signal type is displayed. When AUTO is selected in the Signal Video System screen, the selected format will be...
  • Page 61 Digital Zoom Functions You can enlarge and project specific portions of the input picture and select the enlargement ratio for this portion using the D.ZOOM buttons on the remote control unit. X1.0 X1.5 X2.0 X3.0 X4.0 X5.0 Previous screen D.ZOOM (Remote Control unit) D.Zoom...
  • Page 62 Digital Zoom Functions VOLUME (Remote Control unit) Note • Position cannot be moved with arrow Buttons on the unit. • The volume cannot be adjusted while the digital zoom function is being used. Previous screen • Use the move the position up and down. •...

  • Page 63: Status Code Display Indications

    Status Code Display Indications Warning Indicators This LCD Projector has a STATUS Code Display which calls your attention to problem conditions existing inside the LCD Projector. The LCD Projector displays a status Code Indication each time an internal problem is detected.
  • Page 64 (32 F) and 40 C (104 F) and the humidity is between 20 % and 80 % (with no condensation.) • Request its repair from your dealer or JVC service repre- sentative. • Consult your dealer or JVC service representative on replacement of the lamp unit.

  • Page 65: Cleaning The Air Filter

    Remove the Air Filter unit Hold the indent on the Air Filter unit with your hands and pull the Air Filter unit out of the LCD Projector. Previous screen POWER Button Continued on the next page...
  • Page 66 • Using with the air filter sponge removed will result in dirt and dust being drawn in and lead to malfunction. Note If the dust cannot be removed by cleaning, it is time to replace the air filter. Consult your dealer or JVC service representative. Previous screen...
  • Page 67 Do not attempt to replace the lamp, as there is a risk of injury on broken lamp fragments. Call the JVC service center for repairs. STATUS Code display Lamp replacement period The LCD Projector lamp has a limited operating life of approximately 2 000 hours.
  • Page 68 We thus recommend that you keep a replacement lamp on hand. • Fluorescent lamps should be replaced by your retailer or the JVC service center. A lamp replacement fee may be charged in addition to the cost of the replacement lamp. Previous...

  • Page 69: Signals That Can Be Input

    Signals that can be Input The projection mode will be matched automatically to one of the modes which have been pre-set inside the Projector. If a signal which differs greatly from any of the types listed below is input, the picture image may not be displayed correctly, or a blue background may be displayed.
  • Page 70 Signals that can be Input Display mode name 1 152 X 864 (70 Hz) 1 152 X 864 (75 Hz) 1 152 X 864 (85 Hz) Macintosh 21˝ 1 280 X 960 (60 Hz) 1 280 X 960 (75 Hz) 1 280 X 1 024 (60 Hz) 1 280 X 1 024 (75 Hz) 480 i...
  • Page 71 Signals that can be Input Inputtable component signal (YP Display mode name 480 i 480 p 720 p 1 080 i 625 i Note • Changing the number of dots to be displayed to within 800 X 600 may cause a portion of information to be omitted, or the image quality to be degraded.
  • Page 72 Signals that can be Input Inputtable S-VIDEO/VIDEO signal Horizontal scanning Signal format frequency name AUTO NTSC NTSC4.43 PAL-M PAL-N SECAM Note • NTSC and PAL-M have the same scanning frequencies and color sub-carrier frequencies, but they have different colour modulation methods. Because of this, if the incorrect setting is selected, colour pictures may appear in black-and-white.
  • Page 73 VIDEO or S-VIDEO signal is being input, select the format by the following procedure. This function is set to “AUTO” at the time of shipment from the factory, so that the projector can normally be used with this setting. • Setting procedure Press MENU to display the menu.
  • Page 74 Blue (Black) Screen with No Input Signal The LCD Projector is equipped with an internal Blue (Black) Screen function which turns the screen blue black when the video or personal computer equipment connected to the input jack is turned off, or when there is nothing connected to the input jack.

  • Page 75: Specifications

    Specifications LCD panels Drive method No. of pixels Projection lens Projector lamp Contrast ratio Brightness No. of colours Screen size Projection (throw) distance Lens axis shift Color systems Video input signal S-Video input signal Audio input signal Audio out Video signal...
  • Page 76 Specifications Controls Cabinet Buttons/ Switches Remote Control Buttons Speaker Permissible operating temperature Permissible operating humidity Storage Temperature Storage Humidity Power Supply Power consumption Dimensions W x H x D (excluding projected portion) Weight Approvals Note Specifications and design subject to change without notice. Previous screen Power ON/OFF, Menu, Input,...

  • Page 77: Before Requesting Service

    • The lens may be dirty. • The LCD Projector may not be set up so that it is per- pendicular to the screen. • The VIDEO or R, G, B adjustments may not have been set correctly.
  • Page 78 Before Requesting Service Problem No sound can be heard. Remote Control does not operate. The colour is black-and white. Note • If normal picture can not be attained during RGB signal input or DTV format signal input, please press the AUTO SETUP button on the remote control.
  • Page 79 Previous screen...
