Napoleon Tureen GD82NT-T Installation And Operation Instructions Manual
Natural and propane vented gas fireplace heaters
Hide thumbs
Also See for Tureen GD82NT-T:
- Installation and operation instructions manual (31 pages) ,
- Installation and operating instructions manual (56 pages) ,
- Installation and operation instructions manual (32 pages)
Table of Contents
Advertisement
Quick Links
INSTALLER: THESE INSTRUCTIONS MUST BE CONVEYED TO AND REMAIN WITH THE HOMEOWNER.
CERTIFIED UNDER CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.33, ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.

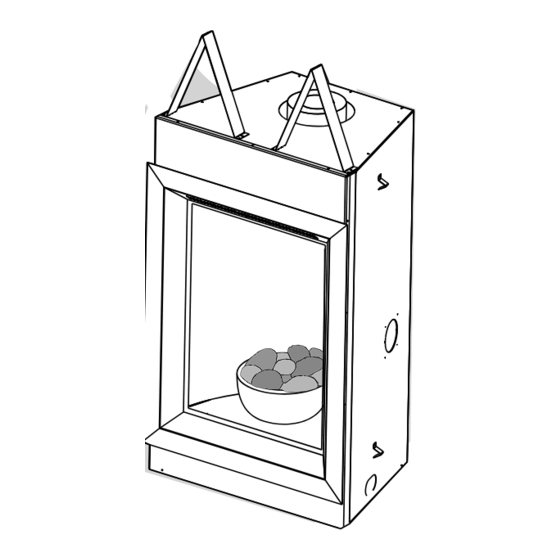

GD82NT-T
NATURAL GAS
GD82PT-T
PROPANE
CERTIFIED FOR CANADA AND UNITED STATES USING ANSI/CSA METHODS.
SAFETY INFORMATION
WARNING: If the information in these
instructions are not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do
not use any phone in your building.
Immediately call your gas supplier from
a neighbour's phone. Follow the gas
supplier's instructions.
If you cannot reach your gas supplier,
call the fire department.
-
Installation
and
performed by a qualified installer, service
agency or the supplier.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031
$10.00
OPERATION INSTRUCTIONS
service
must
be
www.napoleonfireplaces.com • ask@napoleon.on.ca
INSTALLATION AND
1
W415-0583 / D / 07.24.07
W415-0583 / D / 07.24.07
Advertisement
Table of Contents
Related Manuals for Napoleon Tureen GD82NT-T
Summary of Contents for Napoleon Tureen GD82NT-T
-
Page 1: Natural Gas
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 4Y8 Canada • (705)721-1212 • fax(705)722-6031 W415-0583 / D / 07.24.07 www.napoleonfireplaces.com • ask@napoleon.on.ca $10.00 W415-0583 / D / 07.24.07... -
Page 2: Table Of Contents
TABLE of CONTENTS PG 2-5 INTRODUCTION NIGHT LIGHT REPLACEMENT Warranty Dimensions 19-23 OPERATION / MAINTENANCE General Instructions Time Out General Information Fireplace Operation Care of Glass & Plated Parts Hand Held Remote Operation Dip Switch Number Chart VENTING Operating Instructions Vent lengths Venting Specifi... - Page 3 After the fi rst year, NAPOLEON® will not be responsible for installation, labour or any other costs or expenses related to the reinstallation of a warranted part, and such expenses are not covered by this warranty.
-
Page 4: General Instructions
FIGURE 1 58" 46" " " 4" DIA. 7" DIA. " 21" 5" " 2" " " 14" 24" 28" 28" Under extreme vent confi gurations, allow several minutes GENERAL INSTRUCTIONS (5-15) for the fl ame to stabilize after ignition. THIS GAS FIREPLACE SHOULD BE INSTALLED AND SER- Provide adequate ventilation and combustion air. -
Page 5: Venting
The glass is 3/16” ceramic glass available Expansion / contraction noises during heating up and cooling from your Napoleon® / Wolf Steel Ltd. dealer. DO NOT SUB- down cycles are normal and are to be expected. Change in STITUTE MATERIALS. - Page 6 DEFINITIONS ELBOW VENT LENGTH VALUES feet inches for the following symbols used in the venting calculations 1° 0.03 and examples are: 15° 0.45 > - greater than 30° 11.0 > - equal to or greater than 45° 1.35 16.0 < - less than 90°* 32.0 <...
- Page 7 TOP EXIT / HORIZONTAL TERMINATION = 6 ft when (H ) > (V = 3 ft Simple venting confi guration (only one 90° elbow) = 5 ft = 3 + 5 = 8 ft = .03 (two 90° elbows - 90°) = .03(180° - 90°) = 2.7 FIGURE 6 = 8 + 2.7 = 10.7 ft See graph to determine the required verti-...
- Page 8 TOP EXIT VERTICAL TERMINATION REQUIRED VERTICAL when (H ) < (V RISE IN FEET See graph to determine the required vertical rise HORIZONTAL VENT RUN PLUS OFFSET IN for the required FEET horizontal run H The shaded area within the lines represents ac- ceptable values for H and V For vent confi...
- Page 9 FIGURE 12 W415-0583 / D / 07.24.07...
-
Page 10: Wall & Ceiling Protection
11 1/2” x 11 1/2”. are available from your IMPORTANT: For optimum performance, The stove pipe Napoleon® dealer. See should rise ¼” per foot of run. Accessories to order the 1. Assemble the shield to the spacer as shown, using the specifi... -
Page 11: Using Flexible Vent Components
USING FLEXIBLE VENT COMPONENTS Use only approved aluminum fl exible liner kits marked: VERTICAL AIR TERMINAL INSTALLATION 1. Move the fi replace into position. 2. Fasten the roof support to the “Wolf Steel Approved Venting” as roof using the screws provided. identifi... -
Page 12: Fireplace Vent Connection
FIREPLACE VENT CONNECTION 1. Install the 4” diameter aluminium fl exible liner to the fi replace. Secure with 3 screws and fl at washers. Seal the joint and screw holes using the high temperature sealant FIGURE 20 (W573-0007 not provided). 2. -
Page 13: Gas Installation
6. Remove nails from the shingles, above and to the sides GAS INSTALLATION of the chimney. Place the fl ashing over the air terminal and Proceed once the vent installation is complete. slide it underneath the sides and upper edge of the shingles. Note : All gas connections must be contained within Ensure that the air terminal is properly centred within the fl... -
Page 14: Framing
FRAMING CLEARANCE TO COMBUSTIBLES It is best to frame your fi replace after it is positioned and the MAINTAIN THESE MINIMUM CLEARANCES TO COM- vent system is installed. Use 2x4’s and frame to local build- BUSTIBLES: ing codes. Fireplace framing - 0” to stand-offs (top, rear & sides) Note: In order to avoid the possibility of exposed insulation Fireplace fi... -
Page 15: Electrical Connection
MANTLE CLEARANCES Combustible mantle clearance FIRESTOP can vary according to the mantle depth. Use the graph SPACER 2" to help evaluate the clearance STUD needed. 1" GAP FROM INSULATION SLEEVE 2" GAP FROM VENTING FIGURE 32 INSULATION 2" SLEEVE STAND OFF 6"... -
Page 16: Finishing / Servicing
FINISHING / SERVICING OPTIONAL FRONT REMOVAL GLASS/DOOR REPLACEMENT 1a. Rectangular Front Removal 1. Place the door frame face down careful not to scratch the paint. Pull on the top of the optional front away from the fi replace until the male portion of the latch disengages. Tilt forward slightly and lift from the 2 shoulder screws near the bottom. - Page 17 BOWL, MESH & ROCK REPLACEMENT 1. Carefully slide the opening in the rear of the bowl over the burner making sure to line the holes in the bottom of the bowl with the 2 locating pins on the burner bottom. (Fig.
-
Page 18: Battery Replacement
BLOWER REPLACEMENT Your comes equipped with a heat circulating blower. 3. Remove optional front, glass door, bowl w/ rocks, burner, The blower is pre-wired and is controlled by the remote con- decorative panel, & burner bottom. trol supplied with the unit. For control details, see operation. 4. -
Page 19: Night Light
NIGHT LIGHT REPLACEMENT Yo u r comes equipped with our Night Light . The light has been pre-wired and is controlled from the remote control. If in the event the lamp or lens needs to be replaced, follow the instructions below. GASKET FIGURE 46 LENSE... -
Page 20: Hand Held Remote Operation
2. FLAME HEIGHT TIME OUT This function allows remote control of the fl ame height. Check that the Remote Control is on, otherwise, turn on If the appliance is turned on and the Receiver does not receive the Remote Control and wait 5 seconds. Select the manual any command for 24 hours, it automatically turns the appliance and the Remote Control off. - Page 21 FIGURE 52 CHILD SAFETY LOCK-OUT This function is to deactivate con- FIGURE 49 5. FAN SPEED SETTING trol button. The function is active This function controls the speed of the hot air circulating fan. when the lock icon is lit. To activate To change the fan speed, use the UP and Down button until this function press the ON / OFF the cursor (small triangle) is left of the fan icon.
- Page 22 ADDRESS SETTING PROCEDURE Use the UP and DOWN key on the transmitter until the cursor (small triangle) is left of the clock icon. From time 0:00 press the LEFT key ten times. The display will show then the trans- mitter address. Press the LEFT key to exit this function. The transmitter address is required to be equal to the Re- ceiver.
- Page 23 FIGURE 57 W415-0583 / D / 07.24.07...
-
Page 24: Operating Instructions
OPERATING INSTRUCTIONS slight odour for a few hours. This is caused by dust particles in When lit for the fi rst time, the fi replace will emit a slight odour the heat exchanger burning off. Open a window to suffi ciently for a few hours. -
Page 25: Adjustments
1. In order to properly clean the burner and pilot as- is satisfactory. If ignition takes longer, consult your sembly, remove the bowl and rockset to expose both Napoleon® dealer / distributor. assemblies. 7. Check that the gasketing on the sides, top and bot- 2. -
Page 26: Venturi Adjustment
3. Remove the glass VENTURI ADJUSTMENT door by pulling the two latch handles located Closing the air shutter Air Shutter Openings along the top front edge will cause a more yellow forward and then lift the ” flame, but can lead to hook out from the slot carboning. -
Page 27: Replacements
ERIAL UMBER OF FIREPLACE ability of replacement parts. Normally all parts can be ordered 2. I NSTALLATION DATE OF FIREPLACE through your Napoleon® dealer or distributor. 3. P UMBER When ordering replacement parts always give the following 4. D ESCRIPTION OF PART information: 5. - Page 28 0:00 FEATURE SELECT ON/OFF W415-0583 / D / 07.24.07...
-
Page 29: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE EFORE ATTEMPTING TO TROUBLESHOOT PURGE YOUR UNIT AND INITIALLY LIGHT THE PILOT AND THE MAIN BURNER WITH THE GLASS DOOR OPEN SYMPTOM PROBLEM TEST SOLUTION Main burner fl ame Blockage in vent. - remove blockage. In really cold conditions, ice buildup may occur on is a blue, lazy, the terminal and should be removed as required. - Page 30 SYMPTOM PROBLEM TEST SOLUTION - connect a jumper wire across the wall switch terminals; if main burner lights, Themostat or switch is defec- Pilot burning; no gas replace switch / thermostat. tive. to main burner; gas Wall switch wiring is defective. knob is on ‘HI’;...
- Page 31 W415-0583 / D / 07.24.07...
- Page 32 NOTES W415-0583 / D / 07.24.07...
