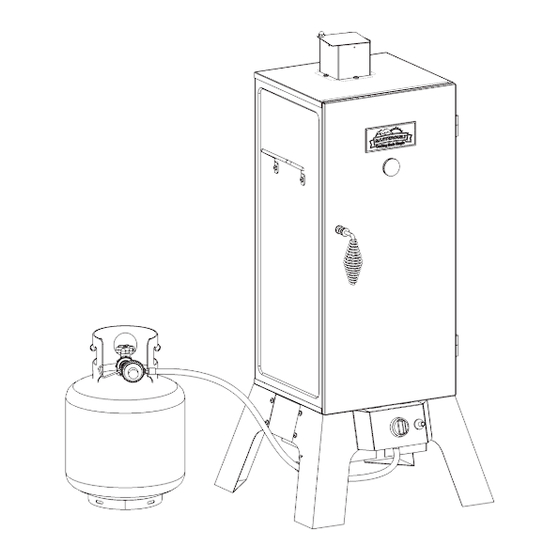

ASSEMBLY, CARE & USE MANUAL
WARNING & SAFETY INFORMATION
MODELs 20050106, 20050107, 20050207, 20050108, 20050208
Masterbuilt Manufacturing, Inc
A Georgia Company
VERTICAL GAS SMOKER
450 Brown Avenue
THIS PRODUCT IS FOR OUTDOOR USE ONLY
Columbus, Georgia 31906
Customer Service 1-800-489-1581
(LP Gas Cylinder not included)
Tools required for assembly: Adjustable Wrench, Phillips Head Screwdriver.
CARBON MONOXIDE HAZARD
WARNING
Burning wood chips gives off carbon
This manual contains important
information necessary for the proper
monoxide, which has no odor and can
assembly and safe use of the appliance.
cause death.
Read and follow all warnings and
instructions before assembling and using
DO NOT burn wood chips inside homes,
the appliance.
vehicles, tents, garages or any enclosed
areas.
Follow all warnings and instructions
when using the appliance.
Use only outdoors where it is well
Keep this manual for future reference.
ventilated.
Failure to follow these warnings and instructions properly could result in fire or explosion, which could
cause property damage, personal injury, or death.
