Panasonic Supplement for CDMA enabled computers.
Note

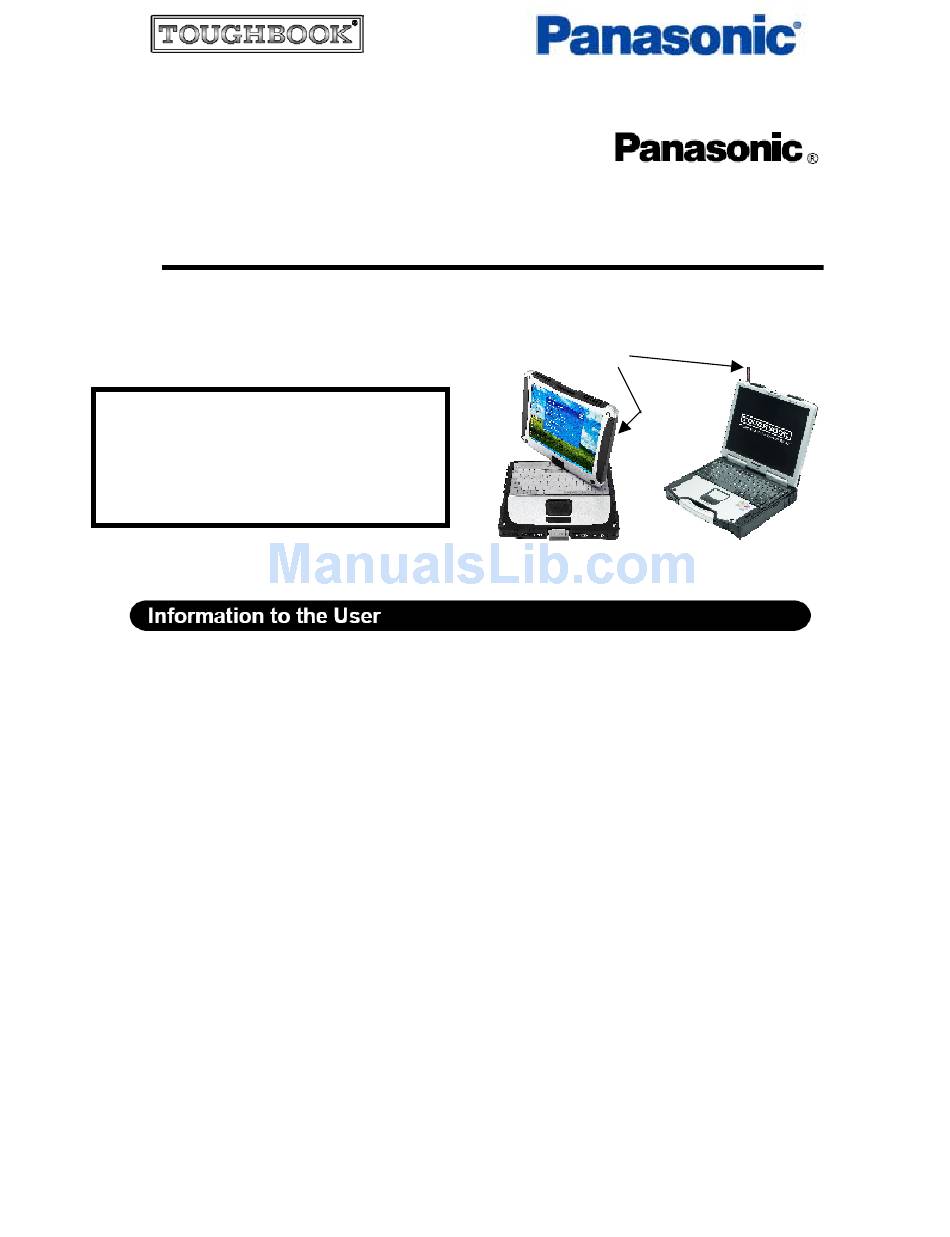

Wireless communications are done via an antenna.
When making a connection via wireless, raise the
antenna (if possible) as shown in the figures.
For optimum safety, it is recommended to keep the
antenna more than 20 cm. from your body.
This product and your Health
This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by this product is similar to the electromagnetic energy emitted by wireless devices like, for
example, mobile phones.
Because this product operates within the guidelines found in radio frequency safety standards and
recommendations, we believe this product is safe for use by consumers. These standards and
recommendations reflect the consensus of the scientific community and result from deliberations of panels
and committees of scientists who continually review and interpret the extensive research literature.
In some situations or environments, the use of this product may be restricted by the proprietor of the
building or responsible representatives of the organization.
These situations may, for example, include:
Using this product on board of airplanes, or
In any other environment where the risk of interference to other devices or services is perceived or
identified as harmful.
If you are uncertain of the policy that applies on the use of wireless devices in a specific organization or
environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning
on the product.
Regulatory Information
We are not responsible for any radio or television interference caused by unauthorized modification of this
product. The correction of interference caused by such unauthorized modification will be the responsibility
of the user. We and its authorized resellers or distributors are not liable for damage or violation of
government regulations that may arise from failing to comply with these guidelines.
Supplementary Instructions
For Panasonic Toughbook computers with CDMA
Antennas
