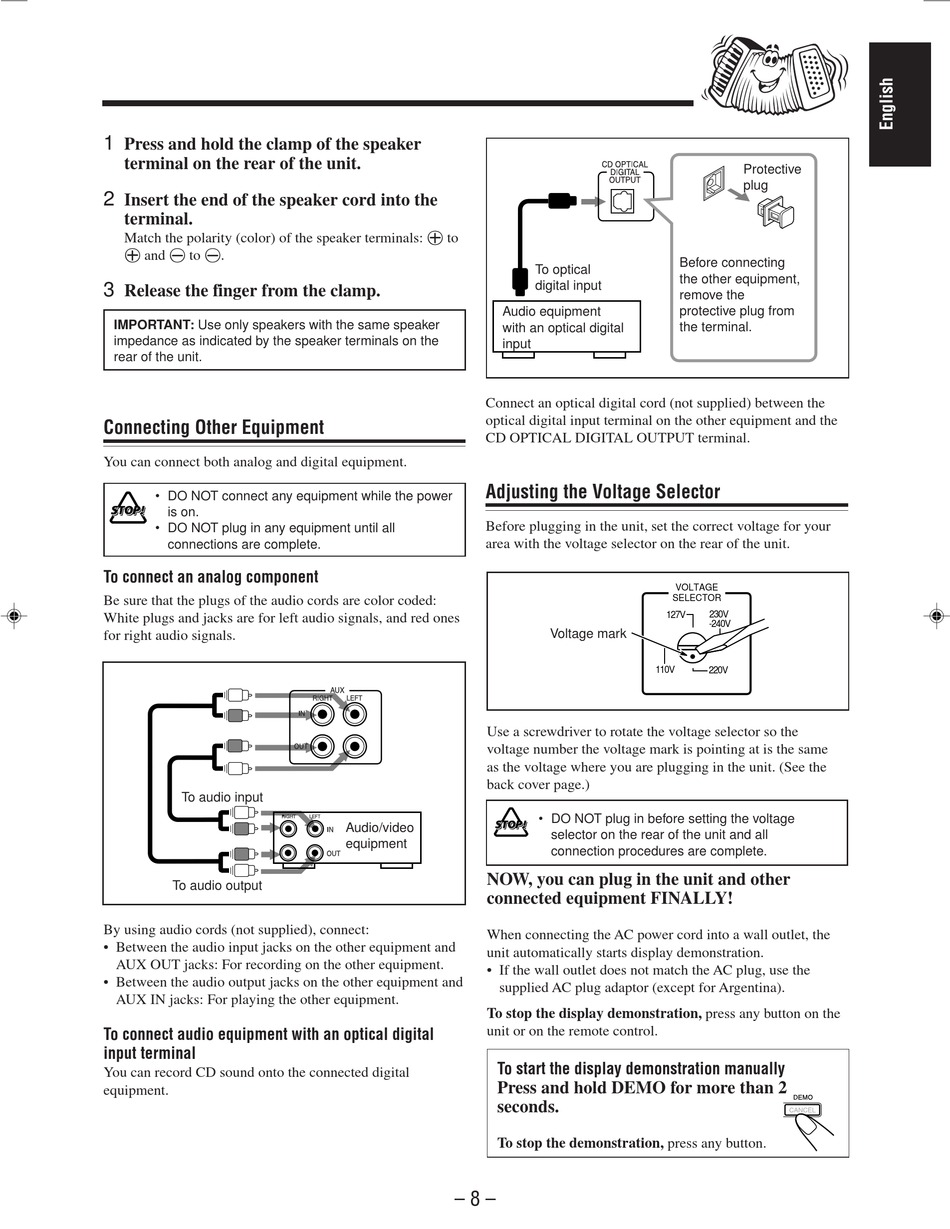

Connecting Other Equipment; Adjusting The Voltage Selector - JVC COMPACT COMPONENT SYSTEM CA-MXJ900 Instructions Manual

1
Press and hold the clamp of the speaker
terminal on the rear of the unit.
2
Insert the end of the speaker cord into the
terminal.
Match the polarity (color) of the speaker terminals: ª to
ª and · to ·.
3
Release the finger from the clamp.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.

Connecting Other Equipment

You can connect both analog and digital equipment.
• DO NOT connect any equipment while the power
is on.
• DO NOT plug in any equipment until all
connections are complete.
To connect an analog component
Be sure that the plugs of the audio cords are color coded:
White plugs and jacks are for left audio signals, and red ones
for right audio signals.
To audio input
To audio output
By using audio cords (not supplied), connect:
• Between the audio input jacks on the other equipment and
AUX OUT jacks: For recording on the other equipment.
• Between the audio output jacks on the other equipment and
AUX IN jacks: For playing the other equipment.
To connect audio equipment with an optical digital
input terminal
You can record CD sound onto the connected digital
equipment.
Audio equipment
with an optical digital
input
Connect an optical digital cord (not supplied) between the
optical digital input terminal on the other equipment and the
CD OPTICAL DIGITAL OUTPUT terminal.

Adjusting the Voltage Selector

Before plugging in the unit, set the correct voltage for your
area with the voltage selector on the rear of the unit.
Use a screwdriver to rotate the voltage selector so the
voltage number the voltage mark is pointing at is the same
as the voltage where you are plugging in the unit. (See the
back cover page.)
Audio/video
equipment
NOW, you can plug in the unit and other
connected equipment FINALLY!
When connecting the AC power cord into a wall outlet, the
unit automatically starts display demonstration.
• If the wall outlet does not match the AC plug, use the
supplied AC plug adaptor (except for Argentina).
To stop the display demonstration, press any button on the
unit or on the remote control.
To start the display demonstration manually
Press and hold DEMO for more than 2
seconds.
To stop the demonstration, press any button.
– 8 –
Before connecting
To optical
the other equipment,
digital input
remove the
protective plug from
the terminal.
VOLTAGE
SELECTOR
127V
Voltage mark
110V
• DO NOT plug in before setting the voltage
selector on the rear of the unit and all
connection procedures are complete.
Protective
plug
230V
-240V
220V
