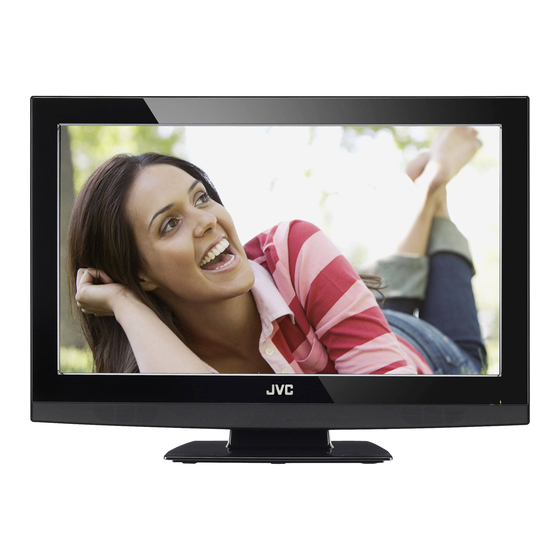

JVC LT-32D210 Owner's Manual

32” tft lcd digital tv with dvd player
Hide thumbs Also See for LT-32D210:
Table of Contents

Advertisement

Quick Links

32" TFT LCD DIGITAL TV WITH DVD PLAYER
TÉLÉVISEUR NUMÉRIQUE AVEC ÉCRAN TFT À CRISTAUX
LIQUIDES DE 32 PO ET LECTEUR DVD
LT-32D210
If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the
required programming code.
Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur),
consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique cor-
respondant au téléviseur.
When shipped from the factory, the Signal Type option is set to the "Cable" (Cable Television) mode.
If not using Cable TV, set this menu option to the "Air" position.
Lorsque l'appareil sort de l'usine, l'option « Signal Type » est en mode « Cable » (câblodistribution). Si vous
n'utilisez pas la câblodistribution, sélectionnez l'option « Air ».
Before operating the unit, please read this manual thoroughly.
Avant de faire fonctionner l'appareil, veuillez lire le présent guide attentivement.
(32" class/31.51 diagonal)
(32" classe/31,51 diagonale)
ATTENTION
ATTENTION
AIR/CABLE MODE SELECTION
SÉLECTION DU MODE AIR/CABLE
OWNER'S MANUAL
GUIDE D'UTILISATION
Please read the important notice for energy
efficiency on page 8.
Veuillez lire l'avis important d'efficacité
énergétique à la page 8.

Advertisement

Table of Contents
loading

Related Manuals for JVC LT-32D210

Summary of Contents for JVC LT-32D210

  • Page 1 32” TFT LCD DIGITAL TV WITH DVD PLAYER TÉLÉVISEUR NUMÉRIQUE AVEC ÉCRAN TFT À CRISTAUX LIQUIDES DE 32 PO ET LECTEUR DVD LT-32D210 If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code.
  • Page 2 ENGLISH CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT TIMES.
  • Page 3 15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on the apparatus. 16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

  • Page 5: Safety Precautions

    The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm (4 inches) free space around the entire unit. Notes when mounting the LCD TV/DVD on a wall If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice, and have the equipment professionally installed.

  • Page 6: How To Attach The Stand

    How to attach the stand NOTE: • Unplug the AC cord from the AC INPUT terminal. • Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit. •...

  • Page 7: Features

    LCD color TV With DVD/CD player Unique space saving design combines a 32” LCD color TV and a DVD/CD player. A DVD disc has much more capacity, but is the same size as an audio CD disc. The Picture/Audio quality of a DVD exceeds other software.

  • Page 8: Logos & Licenses

    Logos & Licenses This product incorporates copy protection technology that is protected by U.S. and other intellectual property rights. The use of Rovi Corporation’s copy protection technology in the product must be authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited. Manufactured under license under U.S.

  • Page 9: Table Of Contents

    Before using your unit IMPORTANT SAFETY INSTRUCTIONS ...3 SAFETY PRECAUTIONS ...5 IMPORTANT NOTICE ...5 How to attach the stand ...6 How to remove the stand ...6 Features ...7 Logos & Licenses ...8 Contents ...9 Disc...10 Location of controls ...12 Remote control ...14 Power source ...15 Antenna connections ...16 Cable TV connections ...17...

  • Page 10: Disc

    Disc Playable discs Disc type and logo mark DVD Video CD-DA The following discs are also available. • DVD-R/RW discs of DVD video format and MP3/ WMA/JPEG. • CD-R/RW discs of MP3/WMA/JPEG. Region Number Region number (Regional restriction code) is built-in to the unit and DVD video discs. Region number “1”...
  • Page 11 Disc ■ Title/Chapter/Track PC-created disc • You may not be able to play discs recorded using a personal computer or recorder for disc compatibilities, scratches or marks on the disc, dirty lenses of the unit or condensation and so on. •...

  • Page 12: Location Of Controls

    Location of controls Front Left side DISC slot To display the menu screen. Press MENU button to display the menu screen. CHANNEL / buttons, VOLUME +/– buttons and INPUT/ENTER button can be used to select the desired setting during the menu screen operations. Remote sensor EJECT button VOLUME +/–...
  • Page 13 Location of controls Rear side HDMI 2 IN jack AC INPUT jack HDMI 1/DVI IN jack PC/DVI AUDIO IN jack (for COMPONENT IN and LINE2 VIDEO IN) COMPONENT IN jack LINE2 VIDEO IN jack LINE1 IN jacks (VIDEO/S-VIDEO/AUDIO (L(MONO)/R)) AUDIO (L(MONO)/R) jacks (continued) PC MONITOR IN jack VAR (VARIABLE) AUDIO OUT jack...

  • Page 14: Remote Control

    Remote control POWER Power On/Off DISPLAY/– Call TV information Call DVD information Input “–” for digital channels TV/DVD Switch between TV and DVD (EJECT) Eject a disc Direct channel selection of TV Input setting Enter a password VOL +/– Adjust volume of TV MUTING Switch off the sound SLEEP...

  • Page 15: Power Source

    Remote control Inserting Batteries Open the battery compartment cover in the direction of the arrow. Operation • Aim the remote control at the remote sensor and press control buttons to operate. • Operate the remote control within a 30° angle on either side of the remote sensor, up to a distance of approximately 15 feet.

  • Page 16: Antenna Connections

    Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 17 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Antenna Jack 75 ohm...

  • Page 17: Cable Tv Connections

    This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

  • Page 18: Tv Operation

    Starting setup The Starting Setup menu appears the first time you turn on the TV, and assists you to specify the Air/Cable setting, and program your channels automatically. IMPORTANT: Make sure that the antenna or cable TV system connection is made! To turn on the TV, press POWER (POWER indicator on the front of the unit changes green.

  • Page 19: Quick Guide For Menu Operation

    DISPLAY Press DISPLAY to display the current information on the screen. When the TV receives a digital signal, the digital information will appear. 62-1 HDTV Moving Picture1 Sleep Timer CH-1 TV-MA Digital English No Program Information is available Full 1080i •...

  • Page 20: Convenience Functions

    Convenience functions You can change the default settings by pressing the Menu button on your remote, then select the one of the icons at the top of the menu - follow the On-Screen prompts to set your preferences. Icon Selected Items Picture Picture Brightness / Contrast...

  • Page 21: Memorizing Channels

    Memorizing channels This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Signal Type option to the Air mode.

  • Page 22: Checking The Digital Signal Strength

    Clear All All channels are deleted from the channel memory. Select “Channel”, then press ▶ or ENTER. Press ▲ or ▼ to select “Add/Delete”, then press ▶ or ENTER. Press ▲ or ▼ to select “Clear All”, then press ▶ or ENTER.

  • Page 23: Setting The V-Chip

    Setting the V-Chip An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to “TV Rating” and “Movie Rating” if this data is transmitted. You may set this restriction separately.

  • Page 24: Closed Caption

    Press ◀ or ▶ to set “V-Chip” to “On”. Press ▲ or ▼ to select “V-Chip Set (DTV)”, then press ▶ or ENTER. If the TV is not storing the additional rating system, the TV will begin downloading it, which may take some time to be completed.

  • Page 25: Setting The Picture Size

    Press ▲ or ▼ to select “Digital CC Preset”, then press ◀ or ▶ to select “Custom”. Press ▲ or ▼ to select “CC Advanced”, then press ▶ or ENTER. The CC Advanced menu will appear. Press ▲ or ▼ to select the desired item, then press ◀...

  • Page 26: Preparation

    Preparation The following pages describe the setup/ operation in DVD mode. Preparation Before DVD/CD operation, please make the following preparations. Insert the AC cord plug into a standard 120V 60Hz polarized AC outlet. • If the AC cord plug is plugged in for the first time, wait for about 5 seconds before pressing POWER.

  • Page 27: Special Playback

    Special playback Fast Forward Playback Press SEARCH (u u) during normal playback. Each press of SEARCH (u u) will increase the speed of the search. • To resume normal playback, press PLAY. Review Playback Press SEARCH (tt) during normal playback. Each press of SEARCH (tt) will increase the speed of the search.

  • Page 28: Marking Desired Scenes

    Marking desired scenes The TV/DVD stores the points that you want to watch again up to 12 points. You can resume playback from each scene. Marking the scenes Press MARKER during playback. Select the blank Marker using ▲/▼/◀/▶, then press ENTER at the desired scene. •...

  • Page 29: Using Home Menu

    Using HOME MENU Playing a disc Press SETUP during stop mode. HOME MENU will appear. Press ▲/▼/◀/▶ to select “Disc Audio Settings Navigator”, then Play Mode press ENTER Initial Settings Press ▲/▼ to select Disc Navigator Title desired option, then Chapter press ENTER.

  • Page 30: Audio Settings Menu

    Program playback Press PLAY MODE during playback or stop mode. Play Mode screen will appear. Press ▲/▼ to select “Program”, then press ENTER. Press ▲/▼ to select “Create/Edit”, then Program Step press ENTER. 01. 01 “Create/Edit” display differs, depending on discs or files.

  • Page 31: Video Adjust Menu

    Video Adjust menu From the Video Adjust menu you can adjust various settings that affect how the picture is presented. Press SETUP during stop mode. HOME MENU will appear. Press ▲/▼/◀/▶ to select “Video Adjust”, Audio Settings then press ENTER. Play Mode Initial Settings Press ▲/▼/◀/▶...

  • Page 32: Function Setup

    Function Setup Setting Option Digital Audio Out settings Digital Out Dolby Digital Out Dolby Digital Dolby Digital > PCM DTS Out 96kHz PCM Out 96kHz > 48kHz 96kHz MPEG Out MPEG MPEG > PCM Video Output settings TV Screen 4:3 (Letter Box) 4:3 (Pan &...

  • Page 33: Parental Control

    Parental Control Some discs are specified as not suitable for children. Such discs can be limited not to playback with the unit. How to into the Parental menu Press SETUP in stop mode. HOME MENU will appear. Press ▲/▼/◀ /▶ to select “Initial Audio Settings Settings”, then press Play Mode...

  • Page 34: Language Code List

    Language Code List Language (Language code letter), Language code Japanese (ja), 1001 Bhutani (dz), 0426 English (en), 0514 Esperanto (eo), 0515 French (fr), 0618 Estonian (et), 0520 German (de), 0405 Basque (eu), 0521 Italian (it), 0920 Persian (fa), 0601 Spanish (es), 0519 Finnish (fi), 0609 Chinese (zh), 2608 Fiji (fj), 0610...

  • Page 35: Connections To Other Equipment

    The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs. To connect the LCD TV/DVD to a VCR Rear of the unit To VIDEO/AUDIO IN...
  • Page 36 Connections to other equipment To connect a HDMI or a DVI device to the unit The HDMI 1 input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required.
  • Page 37 Connections to other equipment To connect an audio system This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see “Speakers”...

  • Page 38: Reception Disturbances

    Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

  • Page 39: Problems And Troubleshooting

    Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. SYMPTOMS POWER • Make sure the power cord is plugged in. TV/DVD does not operate.
  • Page 40 Problems and troubleshooting SYMPTOMS Playback doesn’t start. No picture. No sound. Picture is distorted during CUE or REVIEW. Stopping playback, search, slow-motion play, repeat play, or program play, etc. cannot be performed. No surround sound. The unit or remote operation key is not functioning.

  • Page 41: Specifications

    GENERAL Power supply: AC 120V 60Hz Power consumption: Operation: 108W Stand by: 0.3W Weight: 9.9 kg (21.8 lbs) Dimensions: Width: Height: 581 mm (22-7/8 inches) Depth: Operating temperature: 5˚C - 40˚C Operating humidity: Less than 80% TELEVISION Type: 80.04 cm (32” class/31.51” diagonal) Display method: Transmission TFT color LCD panel Number of Pixels:...
