LT-37DM6ZJ
WIDE LCD PANEL TV
INSTRUCTIONS
Trade Mark of the DVB Digital Video Broadcasting
Project (1991 to 1996) Number : 3716
LCT1951-001A-U

Advertisement

Table of Contents
loading

Related Manuals for JVC LT-37DM6ZJ

Summary of Contents for JVC LT-37DM6ZJ

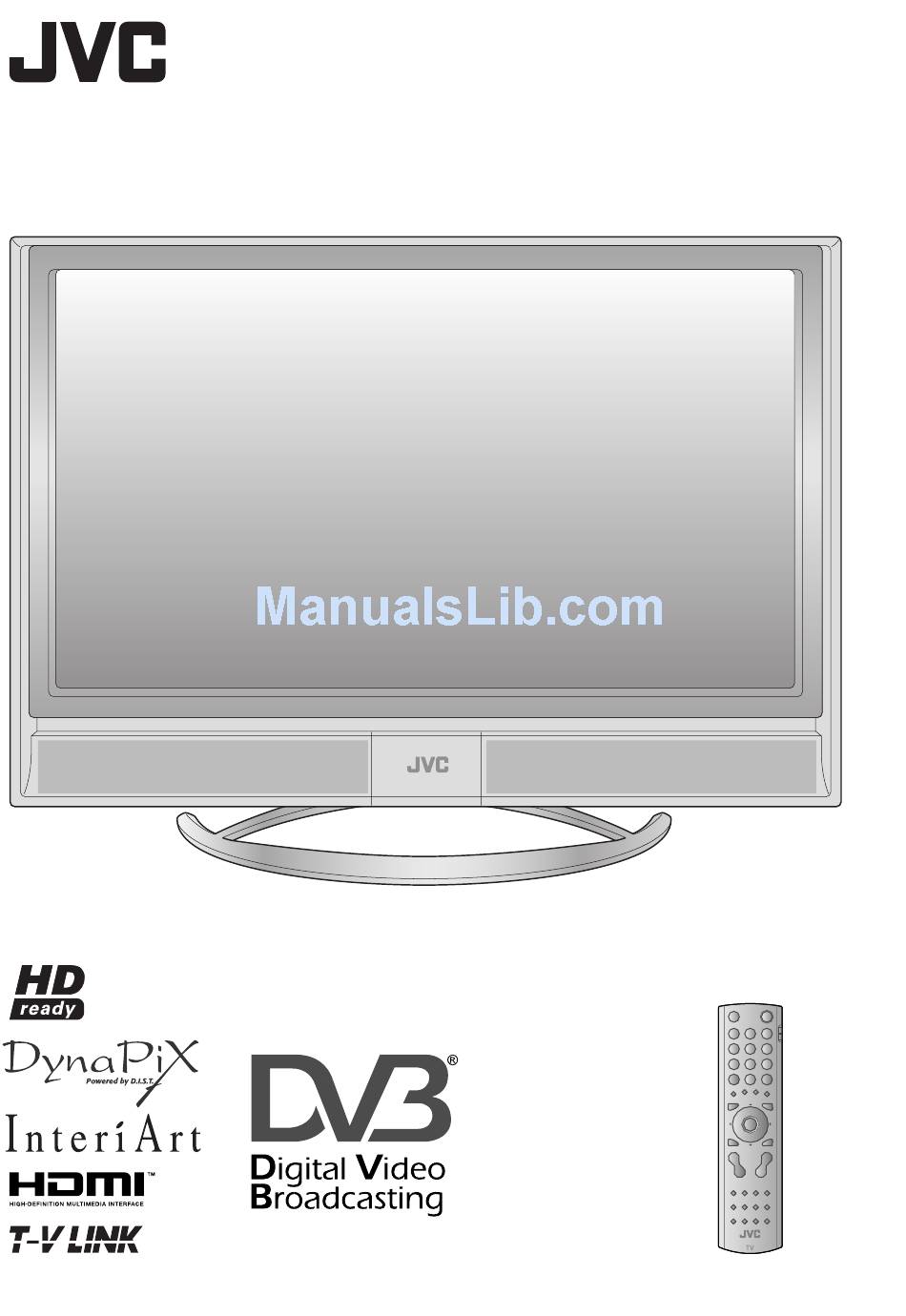

  • Page 1 LT-37DM6ZJ WIDE LCD PANEL TV INSTRUCTIONS Trade Mark of the DVB Digital Video Broadcasting Project (1991 to 1996) Number : 3716 LCT1951-001A-U...
  • Page 2 Expanding the world of...

  • Page 3: Table Of Contents

    Enjoy rich multi-media with JVC VHF / UHF / DVB-T broadcasting DVD player Audio components DVD recorder Contents *In this manual, ATV : analogue terrestrial broadcasting (VHF/UHF) DTV : digital terrestrial broadcasting (DVB-T) First things fi rst! Media Cards...

  • Page 4: Warning

    Warning Never cut or damage the power cord! If the AC plug is not the right shape, or the power cord is not long enough, use an appropriate plug adapter or extension cable. (Consult your retailer.) If you have cut or damaged the power cord. "Technical information"...
  • Page 5 JVC wall mounting unit! Consult a qualifi ed technician. See the included manual on mounting procedures. JVC assumes no responsibility for damage due to improper mounting. Never listen to headphones at high volume! It may damage your hearing.

  • Page 6: Names Of All The Parts

    Names of all the parts Remote control sensor Power lamp ON: Lit (Green) OFF: Unlit Press to remove. If the cover cannot be closed due to the cables being in the way Connecting terminals on the back of the TV Change the direction of TV Illumination lamp Illumination lamp lights...
  • Page 7 When watching DTV View subtitles (P. 20) View the electronic programme guide (EPG)(P. 22) When watching ATV (P. 16) when viewing teletext (P. 24) When choosing a favourite channel (P. 33) When operating a JVC VCR or DVD (P. 26)

  • Page 8: Basic Connections

    When attaching the TV to the wall, use the optional JVC wall mounting unit Consult a qualifi ed technician. See the included manual on mounting procedures. JVC assumes no responsibility for damage due to improper mounting. "Connecting external devices" (P. 10) Connect the aerial...
  • Page 9 Connect a VCR / DVD recorder Left side of back surface VCR / DVD recorder After all the connections have been made, insert the plug into an AC outlet. Connect T-V LINK compatible recording device to EXT-2. T-V LINK "What is T-V LINK?" (P. 12) Contract with a broadcasting company beforehand.

  • Page 10: Connecting External Devices

    Connecting external devices You can connect many different devices to the rear panel of the TV. Please read the user manuals of each device before setting up. (Connecting cables are not supplied with this TV.) Check for PC compatibility "Technical information" (P. 50) Satellite broadcast tuner VCR / DVD recorder (T-V LINK compatible)
  • Page 11 VCR / DVD / other devices : signal direction AERIAL EXT-5 (HDMI) Not available. (For service adjustments) CAM slot (“Watch pay-per-view” P.9) Media Card slot (“Using a media card” P.28) DVD player (HDMI compatible) Connect DVI devices (P. 50) T-V LINK (P.

  • Page 12: Initial Settings

    (In this manual, digital broadcasting is indicated as DTV, and analogue broadcasting as ATV.) To the previous screen Exit If the "JVC" logo does not appear or if you wish to make changes later DTV : "Automatic Seach" (P. 42) ATV : "AUTO PROGRAM"(P.
  • Page 13 Begin Shown only when powering on for the fi rst time. The power button on the remote control can also be used. Automatically register DTV channels Installation > Automatic Search Channels: BBC ONE BBC TWO BBC THREE BBC NEWS 24 BBCi CBBC Channel 100%...

  • Page 14: Editing Dtv Channels

    Editing DTV channels Edit the channels registered with "Automatic search" in "Initial settings" (P. 12). To the previous screen Exit Tips for operation Red: Page up Green: Pagedown MENU TV/DTV: Go to DTV Guide: Go to guide Back: Go to previous i: Exit help When coming from "Initial settings"...
  • Page 15 Select "Select" EDIT PR LIST BBC ONE select 1. BBC ONE 2. BBC TWO 7. BBC THREE 30. CBBC Channel 40. BBC NEWS 24 51. BBCi view Select Delete Edit Name Lock Favourites Select "Delete" EDIT PR LIST BBC ONE select 1.

  • Page 16: Editing Atv Channels

    Editing ATV channels Edit the channels registered with "AUTO PROGRAM" in "Initial settings" (P. 12). To the previous screen Exit When coming from "Initial settings" (P. 12), skip to Select ATV Display the menu bar Select "SET UP" Select "EDIT/MANUAL" SET UP AUTO PROGRAM EDIT/MANUAL...
  • Page 17 Begin Select a destination >EDIT BBC1 BBC2 move out Begin Enter a channel name >EDIT (red) BBC1 BBC2 Begin Enter a CH number >EDIT (green) BBC1 BBC2 CH/CC List (P. 49) In Ireland, slect CH/CC with Delete (yellow) >EDIT BBC2 Begin Search for a channel >MANUAL...

  • Page 18: Enjoying Your New Tv

    Enjoying your new TV! Using a PAGE media card View photos Watch videos Watching TV PAGE View channel information Change the aspect ratio Enjoy 3D sound Take snapshots of the screen Viewing teletext PAGE Enlarge the text To the index page Hold the current page Switch briefl...
  • Page 19 Watching PAGE videos / DVDs Watch high quality video (S-VIDEO) Name connected devices Dub videos Personal preferences Adjust the picture Adjust the sound Use DTV (timer-record / confi guration / channel settings, etc.) Basic settings (channel settings, etc.) Advanced settings (sleep-timer / child lock, etc.) PAGE...

  • Page 20: Watching Tv

    Watching TV Mute Volume Switch between stereo/mono/ bilingual broadcasting "STEREO/ · " ( P. 36) Note To completely turn off the TV, unplug the AC plug. Watch pay-per-view (P. 42) Add a new station (P. 42) Basic operations using the side buttons Power on Volume Power on...
  • Page 21 When DTV is selected Name of station Reception level Current ITV News CH61 Now: 13:00-14:00 Steve Scott programme 13:19 Next: 14:00-14:30 Steve Scott Time Following programme Channel When ATV is selected PR LIST PR LIST Channels registered in "Initial settings" BBC1 will appear here.

  • Page 22: Using Epg

    Using EPG You can fi nd a programme from an eight-day programme guide, check its information, and make a reservation. (Electronic Programme Guide) Select DTV Display EPG Find a programme select next Close EPG Search from a genre While EPG is Electronic Programme Guide displayed...
  • Page 23 Reservations After Reserve a programme to watch Programme- view setting Cancel the reservation After (red) Prepare for recording ·Set the recording device to external input mode before the start time. ·For T-V LINK incompatible devices, manually set the timer on the device. For details, refer to the manual of the recorder.

  • Page 24: Viewing Teletext

    Viewing teletext This TV can display TV broadcasts and teletext on the same channel in two windows. Bookmark your favourite page LIST MODE (ATV) Select ATV/DTV When DTV is selected Operate according to the screen indications When ATV is selected Enter a teletext page Move up or down a page down...
  • Page 25 Hold the current page Hold the current page HOLD (ATV) Release Display hidden information (answers to quizzes, etc) Reveal hidden pages REVEAL (ATV) Double the size of the displayed text Enlarge the text SIZE (ATV) To the Returns to page "100" index page or a previously designated page INDEX...

  • Page 26: Watching Videos / Dvds

    Turn on the device Select a channel (VCR mode) Record/Display DVD top menu Select a chapter (DVD mode) Some models of JVC devices cannot be operated with this remote control. E1 VCR AV (PR 0) *1 : Only appears when AV has been registered as a channel.
  • Page 27 Select "SET UP" Select the EXT connected to S-VIDEO Switch > EXT SETTING to S-VIDEO EXT-1 input/output EXT-3 S-IN S-OUT Cancel this mode (DTV) Set the S-OUT Select an EXT to assign a name to > EXT SETTING EXT-1 EXT-3 Edit names of connected Select a name from the list...

  • Page 28: Using A Media Card

    Do not use any media card that is not specifi ed. Otherwise, it may cause a malfunction. Please read the instruction in this chapter carefully. Improper handling may destroy the data on a card or cause other problems to the TV and the card. JVC will not be responsible for any problems due to improper handling.
  • Page 29 Close the door. MEDIA CARD VIEWER will start up. SELECT ONE AND PRESS OK: PHOTO VIDEO FILE Recognition of the card can take signifi cantly more time if the card contains a large number of fi les. When a message “NO MEDIA DETECTED” appears, insert the card again.
  • Page 30 *1: MPEG-2-PS fi les can only be read in slot for the Microdrive Hard Disk and CompactFlash. Only MPEG-2-PS recorded by JVC digital media camera “Everio” can be played back. *2: Audio must be Dolby Digital enable to playback the sound data.
  • Page 31 How to use MEDIA CARD VIEWER Select a photo PAGE 0001/ 0002 Rotate a photo During slide show pause Photos are shown in alphabetical order of the fi le names. Screen size is automatically adjusted. (Zoom function is not available.) The slide-show interval cannot be changed.

  • Page 32: Useful Functions

    Useful functions Watch in multi-picture mode MULTI-PICTURE Select the number of screens Selecting " " returns to normal viewing mode Not available in PC mode. Watch in dual-picture mode E.g. You can watch TV and video at the same time. (For wide aspect ratio signals) Main Main...
  • Page 33 While the channel is displayed (For 3 seconds) Recall the favourite channel Register a channel to a button FAVOURITE CHANNEL (ATV) Check your favourite channels Delete a favourite channel "MENU" FAVOURITE SETTING FAVOURITE SETTING "NOT AVAILABLE" is displayed: Already registered Disappears after PROGRAMMED! a few seconds...

  • Page 34: Sleep Timer / Child Lock

    Useful functions Set a time for the TV to turn itself off SLEEP TIMER FEATURES FEATURES FEATURES SLEEP TIMER CHILD LOCK APPEARANCE TYPE A BLUE BACK FAVOURITE SETTING ILLUMINATION BRIGHT MEDIA CARD VIEWER > SLEEP TIMER Cancel Set the time to "0" in step 4 Remaining time You can confi...
  • Page 35 Stop SLEEP TIMER CHILD LOCK children from APPEARANCE BLUE BACK FAVOURITE SETTING watching ILLUMINATION MEDIA CARD VIEWER specifi c channels CHILD LOCK (ATV) (blue) Release a channel View a locked channel FEATURES FEATURES select "FEATURES" next FEATURES select "CHILD LOCK" TYPE A BRIGHT >>...

  • Page 36: Customising Your Tv

    Customising your TV To the previous screen Exit The menu disappears after one minute of inactivity. Display the menu bar Select a menu select next Select an item select Adjust/Confi gure adjust/ select When adjusting with the sliding-bar Move When selecting from presets The item will change.
  • Page 37 Menu Item PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2 SHARP COLOUR COLOUR TEMP. FEATURES STEREO / I · II BASS TREBLE BALANCE 3D SOUND A.H.B. SLEEP TIMER CHILD LOCK APPEARANCE BLUE BACK FAVOURITE SETTING ILLUMINATION MEDIA CARD VIEWER AUTO PROGRAM EDIT / MANUAL DECODER(EXT-2) COMPONENT AUTO SELECT...

  • Page 38: Using Dtv

    Using DTV DTV original function and setting, such as a recorder-linked timer-record setting, can be selected from the DTV menu. To the previous screen Exit The menu disappears after one minute of inactivity. Timer-record setting Select DTV Display the menu bar Select "DTV"...
  • Page 39 Select an "Inactive" column REC TIMER Name Start BBC ONE 00:00 00:00 01/01/2000 BBC ONE 00:00 00:00 BBC ONE 00:00 00:00 BBC ONE 00:00 00:00 BBC ONE 00:00 00:00 Channels Start to End Input timer-record setting details REC TIMER Name Start BBC ONE 00:00 00:00 01/01/2004...
  • Page 40 Using DTV Available for changing subtitle languages for DTV, favourite channel selection, changing PIN code, and upgrading the tuner software. Also, you can upgrade the tuner software as newer versions become available. To the previous screen Exit The menu disappears after one minute of inactivity.

  • Page 41: Change Settings

    Select a confi guration item CONFIGURATION Audio Language Subtitle Favourite Mode Receiver Upgrade Enter PIN code Change settings : Change language Audio Language Subtitle : Channel selection method Favourite Mode Audio Language Subtitle Favourite Mode select : Upgrade tuner Receiver Upgrade Automatic Download Search for New Version : Change PIN code...
  • Page 42 Using DTV Available for registration of DTV channels, initialisation of all DTV settings, and downloading software to use pay-per-view. To the previous screen Exit The menu disappears after one minute of inactivity. Registration and setting Select DTV Display the menu bar Select "DTV"...
  • Page 43 Select an installation item Installation Automatic Search Manual Search Factory Settings Change setting : Reset channel registration Automatic Search Select "Yes" Start automatic search? Current PR list will be replaced. : Register a new channel Manual Search Enter a channel number Installation >...

  • Page 44: Advanced Picture Adjustment

    Advanced picture adjustment By default, the TV automatically adjusts itself for the best picture. To the previous screen Exit The menu disappears after one minute of inactivity. Display the menu bar Select "PICTURE" PICTURE Select "FEATURES" PICTURE STANDARD PICTURE MODE BRIGHT-1 CONTRAST BRIGHT-2...
  • Page 45 AUTO ( LOW ) AUTO To reduce AUTO noise AUTO ( LOW ) AUTO natural-looking AUTO outlines AUTO ( LOW ) AUTO For smooth AUTO cinema fi lm AUTO ( LOW ) AUTO natural-looking AUTO pictures AUTO ( LOW ) AUTO bright/dark AUTO...

  • Page 46: Troubleshooting

    Troubleshooting Severe noise or snow Is the TV connected correctly to the aerial? Change the direction of the aerial. Is the aerial or its cable damaged? Consult your retailer Patterns, stripes or noise Is the aerial receiving interference from high-voltage power lines or wireless transmitters? Consult your retailer Are connected devices too close...
  • Page 47 Problem Not displayed (black screen) Remote control stops working DTV screen is frozen Some functions do not work Aspect ratio changes unintentionally Black or white dots appear on the screen Poor picture quality Strange picture when using an external device Actions Is the ATV reception poor, too? Following the instructions in "Severe noise or snow"...
  • Page 48 Troubleshooting Problem Poor sound Wrong screen size No sound Green and distorted screen Some inputs are skipped in the sub-picture "FEATURE NOT AVAILABLE" "ACI ERROR" "NO RECORDING" "NO RECORDING POSSIBLE" "NO RECORDING MEDIA PROBLEM" "NO RECORDING DEVICE BUSY" Actions Adjust the BASS and TREBLE. If receiving a poor signal in "STEREO/ ·...

  • Page 49: Ch/Cc List

    Problem An error message does not disappear CH/CC List To use the INSERT function (P. 16), fi nd the CH/CC number corresponding to the TV's channel number from this table. If you want to know a particular TV channel's channel menu, look in TV listings magazines or contact the broadcaster.

  • Page 50: Technical Information

    Technical information T-V LINK allows the TV to share information easily with a connected T-V LINK compatible device. By using T-V LINK : You can send the ATV channel information programmed on the TV to the T-V LINK compatible device, so that both the TV and the external device have the same channel settings.

  • Page 51: Specifi Cations

    (See “Using a Media card”, P. 28-31) Slots Slot (Large) We may change the design and specifi cations without notice. Main unit LT-37DM6ZJ Terminal type Signal type (IN) Composite video, S-video, Analog RGB, AUDIO L / R Composite video, S-video,...
