Summary of Contents for Hifonics ODIN 2K

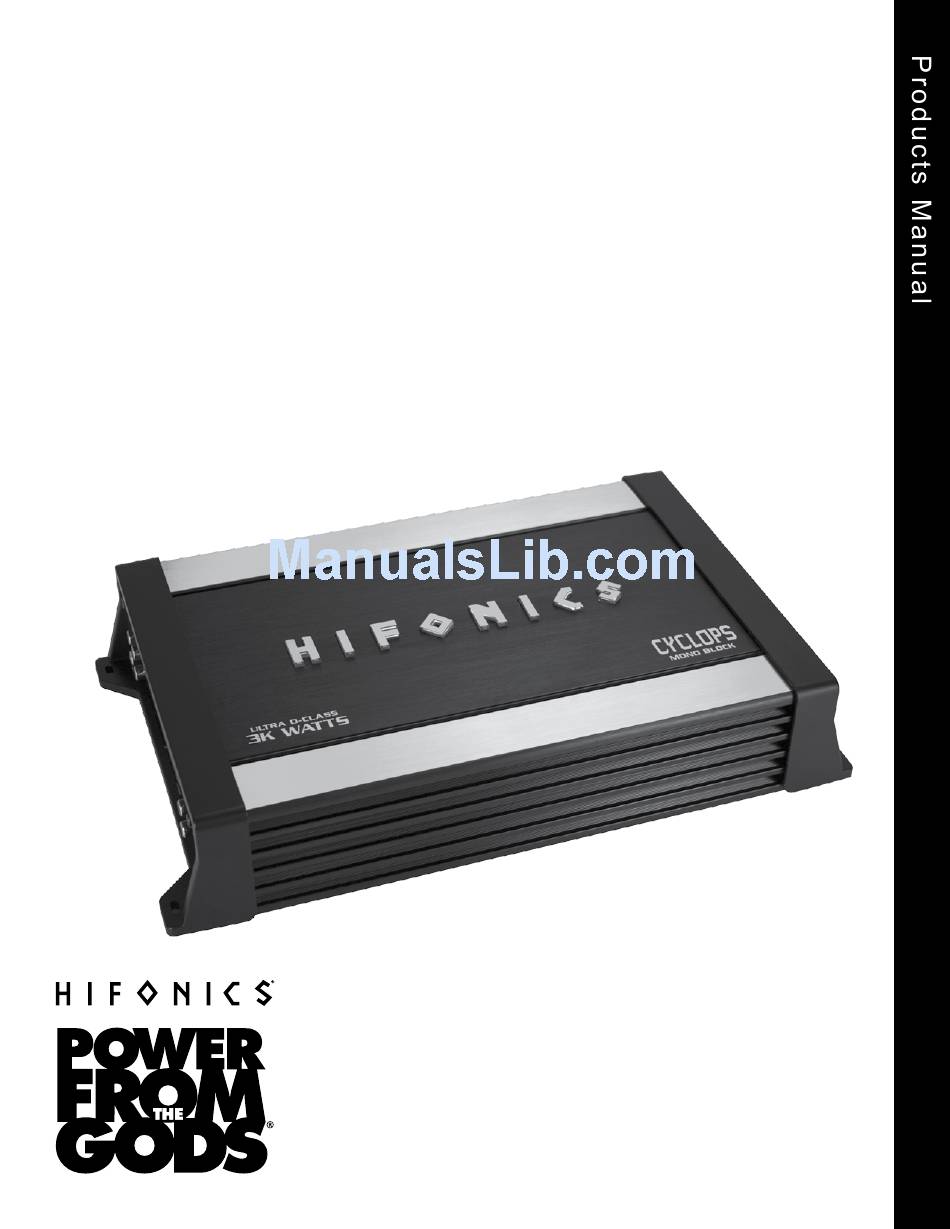

- Page 1 MT OLYMPUS AMPLIFIERS ODIN 2K & CYCLOPS 3K...
-
Page 2: Table Of Contents
Chassis ground - Never use factory screws or bolts to electrically ground amplifiers. Use a short » (less than 18”) 0-gauge wire for Cyclops 3K or a 4-gauge wire for Odin 2K with a ring terminal or grounding distribution block. Remove paint and secure amplifier grounds directly to the chassis of the a. - Page 3 INStaLLatION It is highly recommended that the amplifier be mounted to a board of MDF or other solid structure using the tIP: Use the same approach when installing head units, equalizers or any audio equipment for that 4 mounting screws provided. Avoid mounting the amplifier to metal as this can introduce noise and other matter - run short individual grounds from each piece directly to the vehicle chassis, to minimize unwanted issues.
-
Page 4: Amplifier Feature Descriptions
MSt (MASTER): Factory setting for the switch location when using the amp alone is always set to MST. Also used when linking a pair of either the ODIN 2K or CYCLOPS 3K amplifiers. When in MST position, a single RCA can be connected to the MASTER OUT RCA receptacle to provide signal to the SLAVE INPUT on the SLAVE amplifier. -
Page 5: Odin 2K & Cyclops 3K Mono Amplifier Applications
SPEAKER OUTPUT Route a power cable (4-gauge for Odin 2K / 0-gauge for Cyclops 3K) directly to the vehicle battery with an in-line fuse. Connect a ground (4 or 0-gauge) cable directly to chassis ground within 18” of the amplifier. - Page 6 Designed and Engineered in the U.S.A. FOR DIAGNOSTIC CODES MODE Master and Slave amps. The Slave amp crossover switches will be bypassed. Route two power cables (4-gauge for Odin 2K / 0-gauge for Cyclops 3K) directly to the vehicle battery MASTER REMOTE PROTECT...
-
Page 7: Setting Up Systems To Maxximize Performance
Bass Frequency value being the center. boost: ODIN 2K & CYCLOPS 3K This setting adjusts the amount of boost on the selected Bass Frequency and Bandwidth. This setting is variable from 0-10dB. -
Page 8: Troubleshooting A System
If the amplifier seems ok with RCA cables plugged in, connect the speakers, one at a time, and if one If the HIFONICS lettering is illuminated but you do not have Power or Protection illuminated, simply speaker or its wiring is faulty, it will activate the diagnostic system. -
Page 9: Fine Tuning: Signal Processing
For the supply from the in-dash wiring/fusebox. ultimate control of equalization in a vehicle, consider some of these Hifonics signal processors to continue A constant whine: improving the sound of your system. - Page 10 HfeQ - Hifonics eQ Hfxr - Hifonics electronic Crossover The HFEQ is the perfect addition to any system. If you have a multi-amplifier system and need more crossover The HFEQ is a ½ DIN ISO mount chassis which control than what is built into the amplifier, the HFXR is a means it needs a very narrow hole to be trimmed great solution for your system.
-
Page 11: Specifications
600/1200 2-Ohms 800/1600 1100/2200 As the manufacturer of Maxxsonics, MB Quart, Autotek, Crunch and Hifonics car audio products, Maxxsonics 1-Ohm 1000/2000 1500/3000 USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and Mono bridged @ 4-Ohms workmanship for one (1) Year from date of purchase. - Page 13 Maxxsonics® USA Inc. maxxsonics.com 1 290 Ensell Road Lake Zurich Illinois 60047 USA Phone: 847-540-7700 FAXX: 847-540-9776 ©2014 Maxxsonics USA, Inc. All Rights Reserved Specifications And Designs Are Subject To Change Without Notice.
