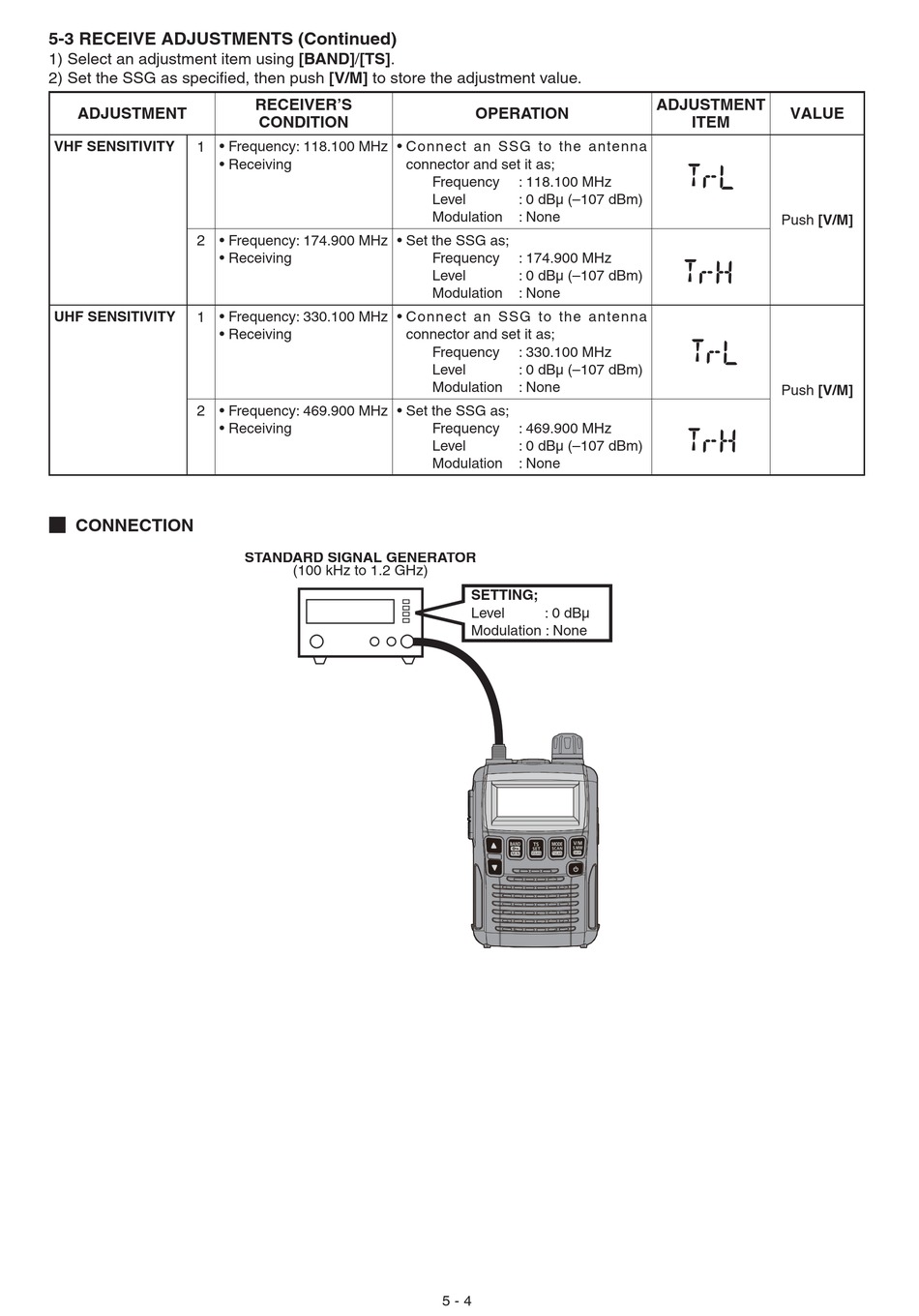

5-3 RECEIVE ADJUSTMENTS (Continued)
1) Select an adjustment item using [BAND]/[TS].
2) Set the SSG as specifi ed, then push [V/M] to store the adjustment value.
ADJUSTMENT
VHF SENSITIVITY 1 • Frequency: 118.100 MHz
• Receiving
2 • Frequency: 174.900 MHz
• Receiving
UHF SENSITIVITY 1 • Frequency: 330.100 MHz
• Receiving
2 • Frequency: 469.900 MHz
• Receiving
¤ CONNECTION
RECEIVER'S
CONDITION
• Connect an SSG to the antenna
connector and set it as;
• Set the SSG as;
• Connect an SSG to the antenna
connector and set it as;
• Set the SSG as;
STANDARD SIGNAL GENERATOR
(100 kHz to 1.2 GHz)
OPERATION
Frequency : 118.100 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
Frequency : 174.900 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
Frequency : 330.100 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
Frequency : 469.900 MHz
Level : 0 dBµ (–107 dBm)
Modulation : None
SETTING;
Level : 0 dBµ
Modulation : None
5 - 4
ADJUSTMENT
VALUE
ITEM
Push [V/M]
Push [V/M]
