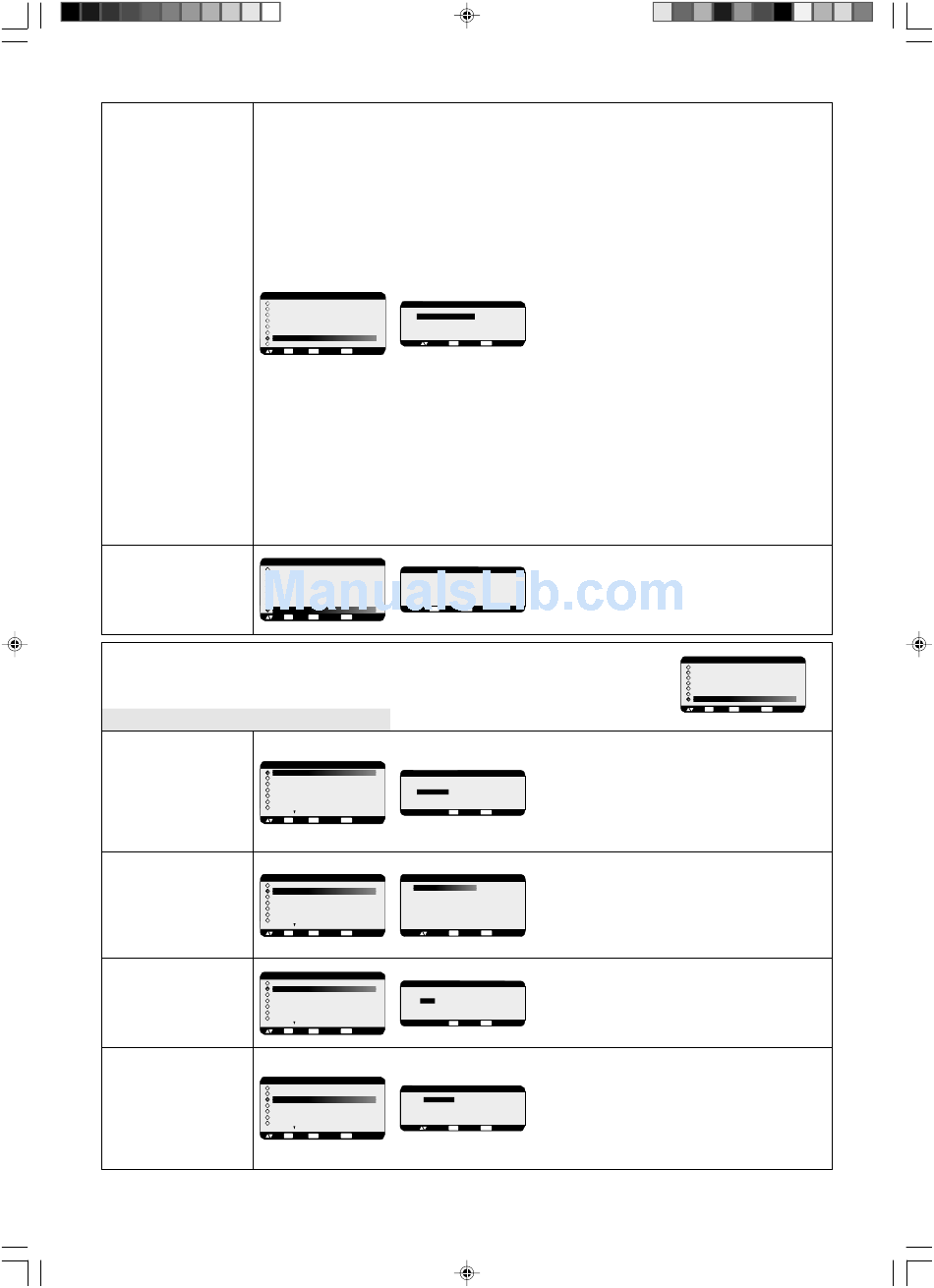

INPUT DETECT
MONITOR
INFORMATION
Main-Menu

ADVANCED OPTION

Sub-Menu
S-VIDEO MODE
INPUT RESOLUTION
*:INPUT RGB2/3 only
BLACK LEVEL
EXPANSION
*:INPUT VIDEO only
GAMMA SELECTION
01_English
CONFIGURATION 2
LONG CABLE ON/OFF
INPUT DETECT
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
CONFIGURATION 2
LONG CABLE ON/OFF MONITOR INFORMATION
LONG CABLE MANUAL
OSM TURN OFF
INFORMATION OSM
OFF TIMER
OSM POSITION
INPUT DETECT
MONITOR INFORMATION
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
ADVANCED OPTION
S-VIDEO MODE
S-VIDEO MODE
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
INPUT RESOLUTION
ADVANCED OPTION
S-VIDEO MODE
AUTO
INPUT RESOLUTION
1024 X 768
GAMMA SELECTION
1280 X 768
IMAGE FLIP
1360 X 768
MONITOR ID
TILE MATRIX
HEAT PROTECT
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
ADVANCED OPTION
S-VIDEO MODE
BLACK LEVEL EXPANSION
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
ADVANCED OPTION
S-VIDEO MODE
GAMMA SELECTION
BLACK LEVEL EXPANSION
GAMMA SELECTION
IMAGE FLIP
SCAN MODE
SCAN CONVERSION
FILM MODE
:SEL SET :NEXT EXIT :RETURN MENU :EXIT MENU
24
Selects the method of input detection when more than
two computers are connected.
FIRST DETECT: When the current video input signal is
not present, then the monitor searches for a video signal
from the other video input port. If the video signal is
present in the other port, then the monitor switches the
video source input port to the new found video source
automatically. The monitor will not look for other video
signals while the current video source is present.
This function is available at input RGB 1/2/3.
LAST DETECT: When the monitor is displaying a signal
from the current source and a new secondary source is
supplied to the monitor, the monitor will automatically
FIRST DETECT
LAST DETECT
VIDEO DETECT
switch to the new video source. When current video input
NONE
:SEL EXIT :RETURN MENU :EXIT MENU
signal is not present, the monitor searches for a video
signal from the other video input port. If the video signal
is present in the other port, then the monitor switches the
video source input port to the new found video source
automatically.
This function is available at input RGB 1/2/3.
VIDEO DETECT: DVD/HD or VIDEO inputs will have
priority over RGB1/2/3. When DVD/HD or VIDEO input
signal is present the monitor will change and keep to the
DVD/DH or VIDEO input.
NONE: The Monitor will not search the other video input
port.
MODEL NAME:
LCD5710
Indicates the model and serial number of your monitor.
SERIAL:
12315XXX
EXIT :RETURN MENU :EXIT MENU
Selects the S-Video input port function.
PRIORITY:
If cable is connected to the S-Video input, it will have
priority the composite input port.
PRIORITY / SEPARATE
SEPARATE:
+ -:SEL EXIT :RETURN MENU :EXIT MENU
S-Video port and Composite port are selectable as
independent input port.
Selects to decision of input signal about below timings,
1024x768, 1280x768 and 1360x768.
AUTO: Determines the resolution automatically.
1024x768: Determines the resolution as 1024x768
1280x768: Determines the resolution as 1280x768
:SEL EXIT :RETURN MENU :EXIT MENU
1360x768: Determines the resolution as 1360x768
Selects a level of black expansion.
HIGH / MIDDLE / OFF
In case of go under the black cut-off level, please adjust
the "Black level" in moderation on OSM menu.
+ -:SEL
EXIT :RETURN MENU :EXIT MENU
Selects a display gamma.
2.2
2.4
2. 2
2. 4
S gamma
S GAMMA
NATIVE
Native
:SEL :RETURN MENU :EXIT MENU :EXIT MENU
EXIT
NOTE: sRGB picture mode is standard and cannot be
changed.
