Operation pane in External Storage, right-click on the desired ports, and select Change to External.
Figure 60 illustrates this step.

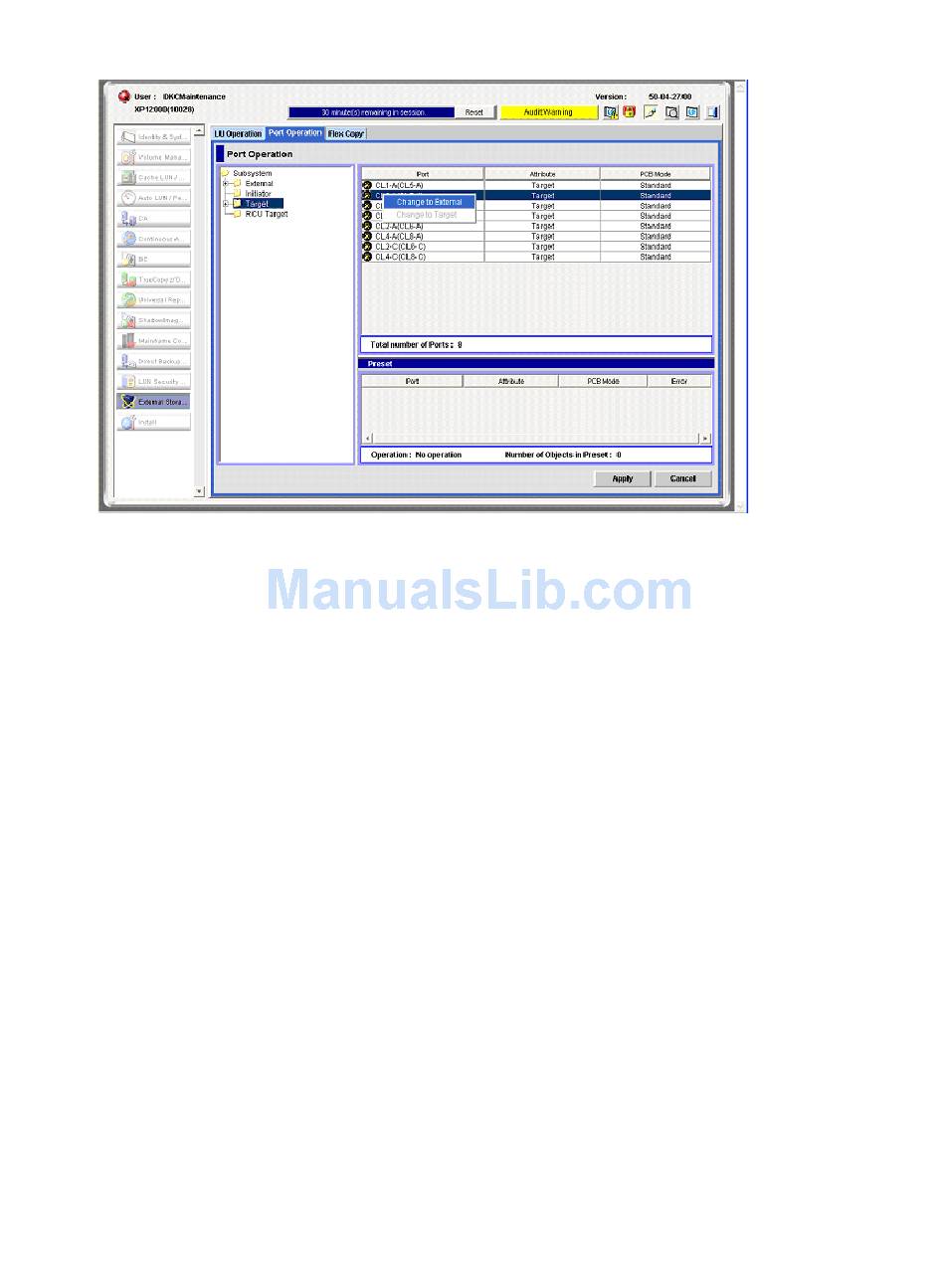

Figure 60

Defining XP12000 external ports

After external ports are defined, EVA LUs presented to the XP12000 can be defined as XP external storage
LDEVs.

Defining XP12000 external storage LDEVs

Use Command View XP or XP Remote Web Console to define external storage LDEVs. On the LU
Operation pane in External Storage, select one of the two EVA controller port world wide port names in
the Device tree. In the Device list, right-click on one or more EVA LUs being presented through the controller
previously selected, and select Add LU.
124 Using XP12000 disk arrays with EVA GL disk arrays attached as subordinated external storage disk arrays
Figure 61 illustrates this step.
