ELPHB800
I
nstallation Instructions
The entire installation instructions should be fully read and understood, including all of the safety
precautions, before beginning installation. The installation instructions should be read, understood
and followed to prevent personal injury or property damage. Keep these installation instructions in
an easily accessible location for future reference.
Installation methods:
—
° Fixed Height Ceiling Installation
Best for short ceilings, eight (8') or lower. Removal of the
center adjustable suspension in needed.
—
° Adjustable Height Ceiling Installation
Best for high ceilings, nine (9') feet or higher.
—
° Wall Mount Installation
For installing the Digital Projector Mount on a rear wall.
—
° ELPMBAPL
(Optional) 26" to 47" Adjustable height ceiling adapter.
Before Installation
The wall or ceiling where you want to install the digital projector must be capable of supporting a weight that is
five (5) times the weight of the projector you are installing. Consult the projector's documentation for weight
specifications. The ceiling structure must be capable of supporting a max weight of 25 lbs., the weight of the
projector. If not, the ceiling must be reinforced. Proper installation procedure by qualified personnel as
outlined in the installations instructions must be adhered to. Failure to do so could result in serious personal
injury.
1

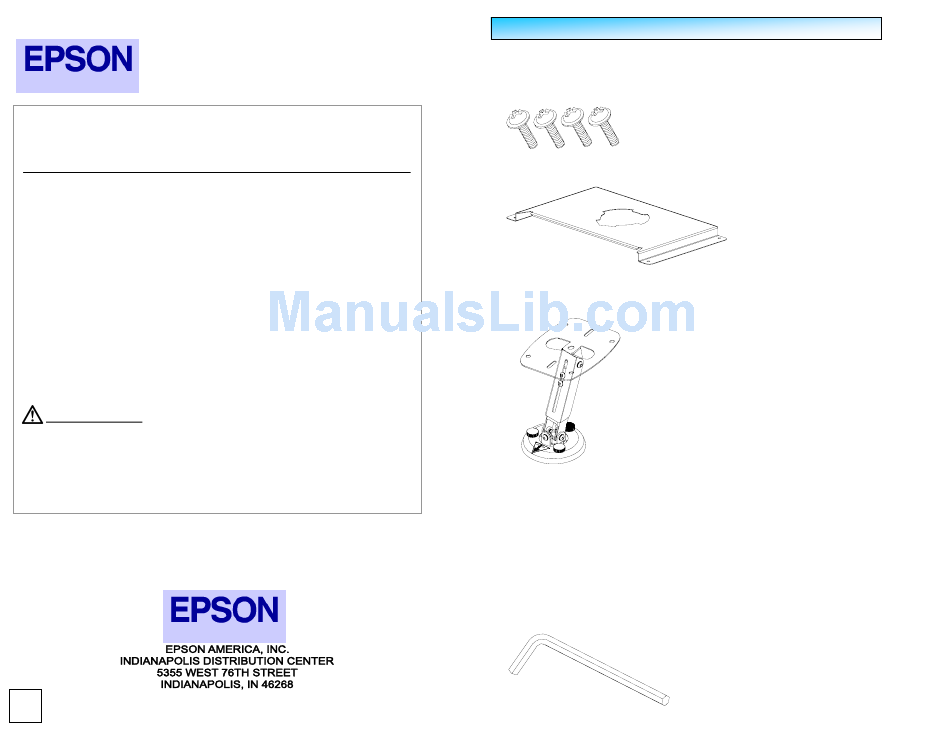

Hardware description
The Projector Mount utilizes the following hardware. Note that the letters associated with the hardware on this
list correspond to the letters listed in the instructions for each installation method. If any of the following
hardware is missing STOP. Contact Epson for proper hardware.
A. Four (4) M4 x 10 (mm) Phillips screws (supplied)
B. One (1) mounting bracket (supplied)
C. Digital Projector (not included)
D. Assembly mount (supplied)
NOTE: Hardware item (E) is what secures the Digital Projector Mount to a simple wood stud on your wall
ceiling. For all installations other than single wood mounting make sure you consult with your local hardware
store staff for the type of hardware that works best for your installation environment.
E. SINGLE WOOD STUD: If mounting on a single wood stud use the three (3) #14 x 2" Lag screws (supplied)
Use the mounting points on the center of the plate as indicated in the assembly diagram.
° SOLID STRUCTURE: If mounting to a solid structure use four (4) 5/16" x 2" Lag screws or commercially
available hardware (depending on the installation requirements). Use the mounting points found on the outer
points of the mounting plate as indicated in the assembly diagram.
F. Allen wrench (supplied)
Advertisement
Related Manuals for Epson ELPHB800
Summary of Contents for Epson ELPHB800
- Page 1 The Projector Mount utilizes the following hardware. Note that the letters associated with the hardware on this list correspond to the letters listed in the instructions for each installation method. If any of the following hardware is missing STOP. Contact Epson for proper hardware. A. Four (4) M4 x 10 (mm) Phillips screws (supplied)
- Page 2 Tools Needed for Installing the Projector Mount Getting the projector ready You need the following tools to install the Projector Mount: Before you start the installation process, prepare your Digital Projector by performing the following steps IGURE • Phillips head screwdriver (not included) Turn the projector (C) upside down and place it on a clean flat surface, preferably on a towel.
- Page 3 Ceiling plate Wood stud IGURE Center of wood stud Remove (M8) Hex head screws, flat washers and star lock washers Ceiling structure Remove the center extension from the Insert and rotate 180° assembly lock down the safety screw NOTE: The shape of each mount is different.
- Page 4 Adjustable Height ceiling Installation IGURE Complete the following steps to install the projector mount and projector on your ceiling with the optional Wood stud suspension adapter. This installation works best with high ceilings (F IGURE Center of wood stud Note: Look at the bottom of the upper assembly (D) and locate the arrow. Make sure you install the projector Ceiling structure mount with the arrow pointing toward your screen.
-
Page 5: Wall Mount Installation
Wall Mount Installation IGURE Complete the following steps to install the projector mount and projector to your wall. (F IGURE Wall wood stud Note: Look at the bottom of the upper assembly (D) and locate the arrow. Make sure you install the projector mount with the arrow pointing toward your screen.
