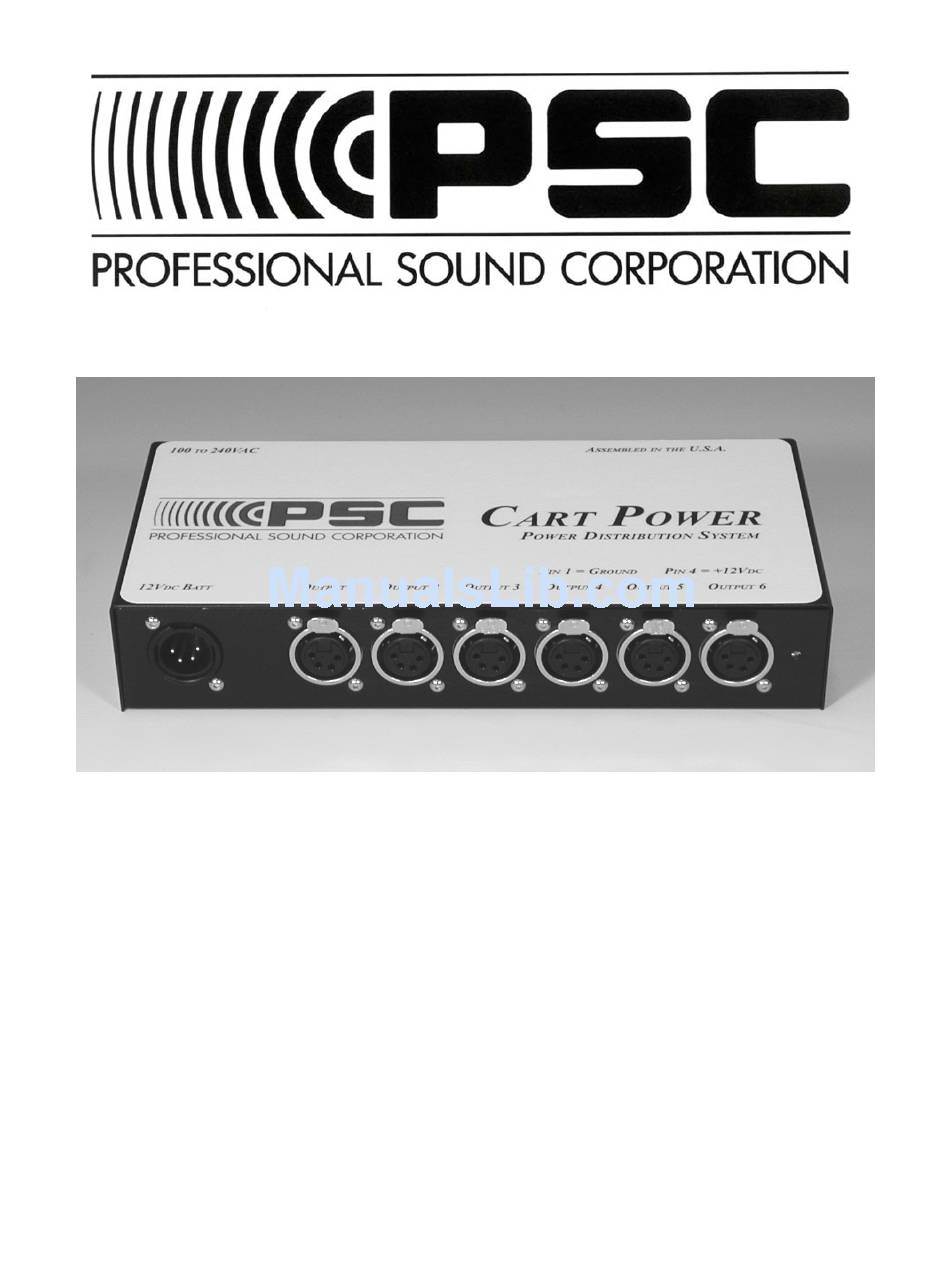

- Page 1 Cart Power Power Distribution System Operation Manual Version 1.0 Copyright 2003 Professional Sound Corporation Printed in the U.S.A.
- Page 2 Thank you for purchasing the Professional Sound Corporation Cart Power distribution system. PSC is confident that the Cart Power has set new standards for clean, quiet powering of your portable audio equipment. Please feel free to contact us at the address below if you have any comments, suggestions, or questions about your new PSC Cart Power.
- Page 3 Please note that the Polyswitch should not trip during normal use of the Cart Power! If you experience tripping of this device on any continuing basis, something is wrong and a qualified technician should check your equipment and cables immediately.
- Page 4 It is highly recommended that you have your cables built by qualified personnel and tested prior to use with your Cart Power. All power cables should be clearly labeled on both ends as to what they are to be connected to. For example, label one end “Cart Power”...
- Page 5 SPECIFICATIONS: Size: 9” x 4.5” x 1.5” (23cm x 11.5cm x 3.8cm) Weight: 4Lbs (1.8Kg) AC Input Power: 100 to 240Vac, 44 to 400Hz DC Input Power: SLA batteries, 12Vdc Pins 1&2 Ground Pins 3&4 +12Vdc Output Power: Pin 1 = Ground Pin 4 = +12Vdc @ at up to 8 amps Warranty: Limited, One Year, Parts and Labor.
