Summary of Contents for ProScan 42LC55S240V87

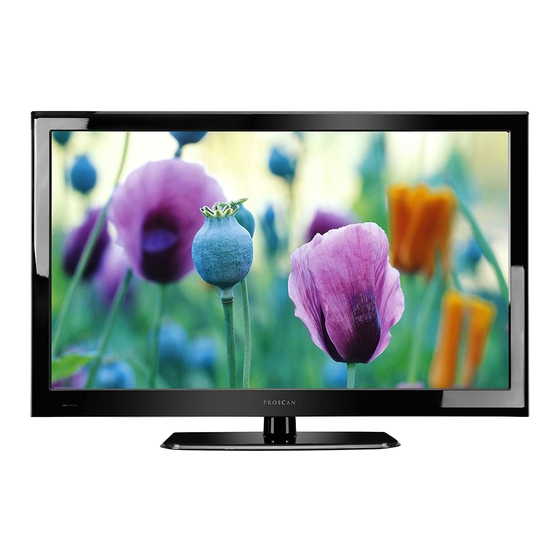

- Page 1 LCD FULL HD TV USER'S MANUAL 42LC55S240V87 English English 47LC55S240V87 55LC55S240V69 Français Français Part No.:IES091015 Español Español...
-
Page 2: Important To User
Important to user FCC Statement NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority. NOTE: This equipment has been tested and found to comply with the limits for a class B digital Device, pursuant to part 15 of the FCC Rules. -
Page 3: Important Safety Precautions
Important safety precautions Safeguards The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product’s RISK OF ELECTRIC SHOCK DO NOT OPEN! enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. - Page 4 Important safety precautions Safeguards 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, when liquid has been spilled or when objects have fallen into the apparatus, or when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 5 Important safety precautions Safeguards 20. OVERLOADING: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 21. OUTDOOR USE: Do not install this TV outdoor. If the TV is exposed to rain, it may result in a fire or an electric shock.
-
Page 7: Table Of Contents
Table of Contents Table of Contents 1.Important to user..................2.Important safety precautions..............Safeguards..................Safety Strap..................5 3.Table of Contents..................4.Setting Up....................Installing the Stand..............Wall mount specifications..............Wall mount..................TV Front................... TV Rear.................... Connect to other devices..............5.Using the Remote Control............... -
Page 8: Setting Up
• Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. • Proscan is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. -
Page 9: Wall Mount
Setting Up Wall mount Wall mount 47LC55S240V87 42LC55S240V87 55LC55S240V69 Unit Dimension(Unit:mm) 400 400 400 200 400 400 Screw Diameter Screw Length(Unit:mm) 400mm... -
Page 10: When Installing The Tv Against A Wall Or Enclosed Area
Setting Up Wall mount Wall mount Wall mount When Installing the TV Against a Wall or Enclosed Area Make sure that your TV has adequate air circulation. Allow enough space around the TV as shown below. Avoid operating the TV at temperatures below Inadequate air 45° F (5 ) Instand with stand 12 inches 30cm... -
Page 11: Tv Front
42LC55S240V87 47LC55S240V87 INPUT 55LC55S240V69 Blue The light is off when TV is turned on. -
Page 12: Tv Rear
Setting Up TV Rear TV Rear DIGITAL AUDIO OUT HDMI4 HDMI3 HDMI2 COMP2 S-VIDEO VIDEO AUDIO OUT Note: The appearance of 42LC55S240V87 47LC55S240V87 and 55LC55S240V69 are similar, the picture above is for reference only. -
Page 13: Connect To Other Devices
Setting Up Connect to other devices Warning: Before connecting the TV to any other electronic device, unplug the TV and electronic device AC cords from the AC input. Note: Not all following terminals are included on your TV. The actual one refer to "TV Rear". 1. - Page 14 Setting Up Connect to other devices 3. Connecting Component Devices (DVD, DVR (digital video recorder), Blu-Ray) Component video(Y, Pb, Pr)transmits video as separate Y, Pb, Pr signals. Use this connection for high-definition video signals from a DVD or other equipment. - Connect Component video and audio cables to Component inputs (“PR/CR”, “PB/CB”, “Y”) of your set and the other ends to corresponding component video out connectors on the PVR or DVD.
- Page 15 Setting Up Connect to other devices 5. Connect to PC - Connect the D- Sub cable to “VGA” on the side of your set and the other end to the Video Card of your computer. - Connect the stereo audio cable to “PC AUDIO ” on the side of your set and the other end to “Audio Out”...
-
Page 16: Using The Remote Control
Using the remote Control Installing batteries Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the “+” and “-” signs on the batteries to the signs on the battery compartment. 3. -
Page 17: Learning About The Remote Control Panel
Using the Remote Control Learnin g about the remote control panel Remote Control Panel Buttons instructions (1) Power On/Off. (2) Power indicator. (3) INPUT: Switch among TV, Video, Component, HDMI and VGA. (4) 0-9 Numbers: For direct channel access. (5) Last: Return to previous channel. (6) —... -
Page 18: Quick Starts
Using the Remote Control Quick starts Basic Operation Connecting power cord to the TV 1. Connect the power cord to the connector on the back of the TV, if the power cord in accessories. Note:When connecting the power cord to the connector of the TV, make sure the power cord is fully inserted in the place. - Page 19 Using the Remote Control Quick starts Use [EXIT] button Press the [EXIT] button to exit the OSD menu. Select channels by numbers To select a channel: Press the channel number you would like to go to. For example, to select channel number 120, press buttons 1, 2 and 0, respectively and then press [ENTER] to confirm.
-
Page 30: Appendix
Appendix Trouble shooting... - Page 31 Appendix Appendix Specifications Model 42LC55S240V87 47LC55S240V87 55LC55S240V69 Screen Diagonal Size 42 inches 47 inches 55 inches Screen Resolution 1920X1080 Pixels 1920X1080 Pixels 1920X1080 Pixels Power Consumption 205W 250W 350W M6X12mm (4 pcs) M8X12mm (4 pcs) Wall-mount screws pattern M6X12mm (4 pcs)
