PAC L.O.C.PRO LP3-2 Installation Instructions

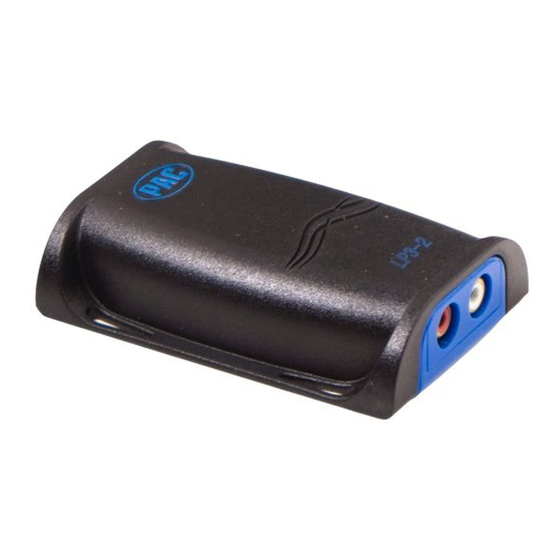

L.O.C.PRO™ LP3-2
Line Output Converter
The professional way to integrate
your new amplifier.

Before You Start

Replacing your radio? PAC also produces RadioPRO
control retention built-in. This greatly expedites the installation of a new radio into your vehicle.
To see if there is a RadioPRO
Install It Right with L.O.C. PRO
Don't cheat yourself out of all the performance your new radio or amplifier can deliver. Proper audio line level
matching is critical when replacing your vehicle's factory (OEM) radio or amplifier. It can be the difference
between a great sounding system that you enjoy every day and a buggy, noisy mess that drives you crazy.
PAC L.O.C.PRO™ interfaces have been professionally designed for those who want the very best.

General Overview

The L.O.C.PRO™ LP3-2 can be used for adding amplifiers to a system that does not have RCA outputs. Level
matching is achieved using precision stereo gain dials and will enable proper adjustment of audio output of the
radio for optimum system performance. Included in these instructions are the most common applications for the
L.O.C.PRO™ LP3-2.
For specialty applications not covered in this manual, please visit
vehicle specific wiring diagrams.
Direct url - www.pac-audio.com/products/locpro
Speaker Level Input to RCA Level Output
Speaker level input to RCA level output is the most commonly used scenario for the LP3-2.
Use this when you need to create RCA level outputs from a source that only has speaker level outputs.
The RCA input connectors on the main harness will not be utilized for this type of installation, we suggest
cutting them off the harness 3 inches from the RCA end so they can be saved and used for a future installation.
After all the connections are made, skip to the level adjustment section of this manual.
Front Left Audio Input -
Audio Ground Input -
Audio Ground Input -
Front Right Audio Input
Note:
If using large RCA connectors that are difficult to insert into housing, unsnap the
L.O.C.PRO™ cover and remove end panel insert around RCA outputs.
interface for your vehicle, visit
™
™
( )
+ + + + + + + + + + +
OPTIONAL
( )
OPTIONAL
+ + + + + + + + + + +
Copyright 2013 Pacific Accessory Corporation. Content subject to change without notice.
Installation Instructions
which is a radio replacement solution, with steering wheel
™
www.pac-audio.com
www.pac-audio.com
+
+
and search "Radio PRO".
for more comprehensive,
Front Left Output
Front Right Output
1
