Panasonic EY3544-U1 Service Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual

SPECIFICATIONS

CONTENTS
EY3544-U1
Page
2
3
6
© 2003 Matsushita Electric Works Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
ORDER NO.PTD0310U42C1
Reciprocating Saw
F16
Page
7
8
9

Advertisement

loading

Related Manuals for Panasonic EY3544-U1

Summary of Contents for Panasonic EY3544-U1

  • Page 1: Table Of Contents

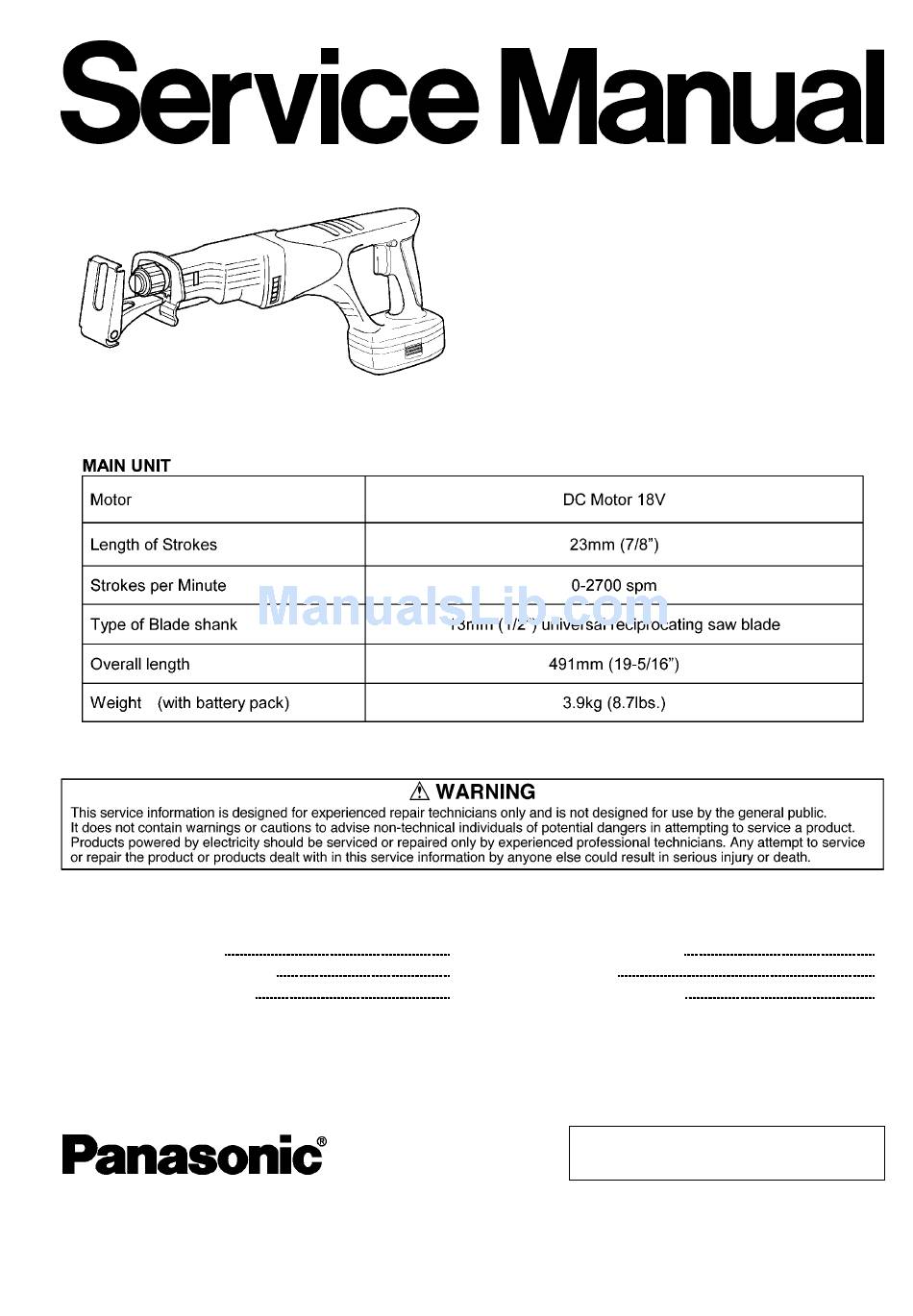

    ORDER NO.PTD0310U42C1 Reciprocating Saw EY3544-U1 SPECIFICATIONS CONTENTS Page Page 1 SCHEMATIC DIAGRAM 4 TROUBLESHOOTING GUIDE 2 DISASSEMBLY INSTRUCTIONS 5 EXPLODED VIEW 3 ASSEMBLY INSTRUCTIONS 6 REPLACEMENT PARTS LIST © 2003 Matsushita Electric Works Ltd. All rights reserved. Unauthorized copying and distribution is a...

  • Page 2: Schematic Diagram

    EY3544-U1 1 SCHEMATIC DIAGRAM...

  • Page 3: Disassembly Instructions

    EY3544-U1 2 DISASSEMBLY INSTRUCTIONS IHOW TO DISASSEMBLE BLADE CLAMP ASSEMBLY. Ref. No. 1A Procedure 1A Removal of the shoe. 1. Loosen a screw (M4X10) with washer tightened on the rear side of shoe lock lever. 2. Remove the shoe lock lever and loosen the hexagonal head bolt.
  • Page 4 EY3544-U1 Ref. No. 1C Procedure 1A → → → → 1B → → → → 1C Removal of the blade clamp block. 1. Loosen four screws (M5X18) where tightening on the gear housing. IHOW TO DISASSEMBLE GEAR CASE or MOTOR ASSEMBLY.
  • Page 5 EY3544-U1 Ref. No. 1E Procedure 1A → → → → 1B → → → → 1D → → → → 1E Removal of the motor housing. 1. Remove the holder cap and take out the carbon brush on right and left side.

  • Page 6: Assembly Instructions

    EY3544-U1 3 ASSEMBLY INSTRUCTIONS I HOW TO ASSEMBLE SWITCH. Ref. No. 1A Procedure 1A Attachment of the brush holder. 1. Insert the brush holders on both right and left side. 2. Press fit the lead wires into the lead guide A.

  • Page 7: Troubleshooting Guide

    EY3544-U1 4 TROUBLESHOOTING GUIDE < TROUBLE > < CHECK > < REMEDY > Does not operate. <CHECK BATTERY PACK.> NO Replace battery pack. → If no less than 18V DC is available across the (+) and (-) terminals → after charging for the rated charging time (approx.

  • Page 8: Exploded View

    EY3544-U1 5 EXPLODED VIEW...

  • Page 9: Replacement Parts List

    EY3544-U1 6 REPLACEMENT PARTS LIST NOTE: *B=only available as set *C=available individually Ref.No. Part No. Part Name & Description Remarks Per Unit WEY3544K6708 SCREW M5*18 WEY3544S1168 BLADE CLAMP BLOCK WEY3544K0228 SHOE WEY3544H3648 INSULATED RUBBER BOOT WEY3544K6278 SCREW M4*10 WEY3544K0478 SLEEVE...

This manual is also suitable for:

Ey3544-x8
