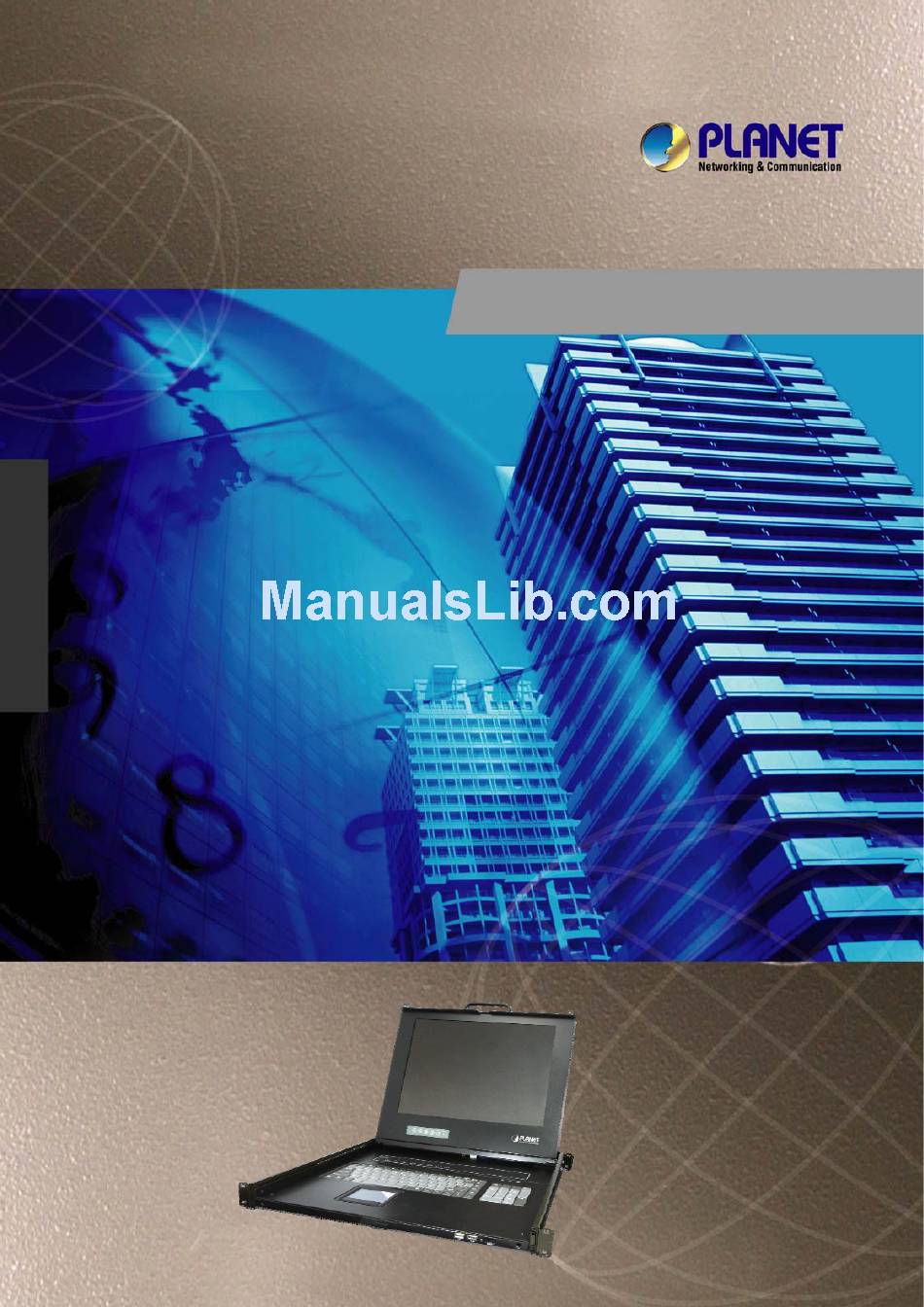

- Page 1 User’s Manual DKVM-1708 / DKVM-1716 17”LCD Drawer KVM Console with 8/16 Ports Combo-Free Module...
- Page 2 PLANET. PLANET assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. PLANET makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without...
-
Page 3: Safety Instructions
Safety Instructions 1. Please disconnect this equipment from AC outlet before cleaning. Don’t use liquid or sprayed detergent for cleaning. Use moisture sheet or clothe for cleaning. 2. For pluggable equipment, the socked-outlet shall be installed near the equipment and shall be easily accessible. 3. -
Page 4: Table Of Contents
Index of Contents Safety Instructions............................I Index of Contents ............................II General Information ..........................1 1.1 Packing List ..........................1 1.2 Product Feature..........................2 1.3 Features ............................2 1.4 Product Specification........................3 2. Installation .............................4 2.1 Before Installation........................4 2.2 Hardware Kits Contents....................... 5 2.3 LCD Components........................ -
Page 5: General Information
1. General Information The PLANET DKVM-1708 / DKVM-1716 is the drawer KVM with single-rail console design offering industrial level input solution, which optimizes your space utilization by controlling your systems in just 1U space on the rack. The separate rail design helps users install the KVM console more easily. You don’t have to prop the heavy console during the installation but just lock the rails into the rack and then pull the KVM console into the rails. -
Page 6: Product Feature
1.2 Product Feature Easy to install, single rail design Supports high resolution up to 1280 x 1024 @ 75Hz Support 6 keyboard languages Heavy-Duty Electroplate Steel OSD function for LCD display and KVM switch Complies with EIA RS-310C 19”... -
Page 7: Product Specification
Unicorn series User’s Manual 1.4 Product Specification Model Name DKVM-1708 / DKVM-1716 Display Size 17 inches Panel Type 4CCFL LCD Panel Resolution Capabilities Maximum Resolution up to 1280 x 1024 (SXGA) Pixel Pitch Supports 0.264(H)x0.264(V)/ 0.294(H)x0.294(V) Operating System Windows 98SE/ME/2000/XP/2003/Vista/7 Server,Linux, Mac OS9/OSX and Sun Microsystems. -
Page 8: Installation
Unicorn series User’s Manual 2. Installation 2.1 Before Installation 1. Please check all peripherals according the list before installation. To make sure of the whole unit was not damaged and lost during shipping process. If you encountered any problem, please contact your dealer. 2. -
Page 9: Hardware Kits Contents
Unicorn series User’s Manual 2.2 Hardware Kits Contents 1. Adjust rail with pull or push to fit your cabinet 2. Install front and rear bracket on cabinet. 3. Repeat step 1~2 for the other side. 4. Pull the console until rails automatically are locked. When users hardly push the console and it can be unlocked by the power is over 4kg. - Page 10 Unicorn series User’s Manual Put the KVM module into the console form the back. There are two ways to install the KVM module in suitable position, users can fix KVM module with the KVM accessories (Both sides) or the extra Rack- mounted Screws (Bothsides).
-
Page 11: Lcd Components
Unicorn series User’s Manual 2.3 LCD Components No. Component Function Description Handle Holder Pull to Slide the LCD console in or out LCD Display Panel Display LCD Panel OSD Buttons Controls Display Required Quality LED Indicators Switching Operation for KVM Module ( Optional ) Slide Rail Single Slide Rail USB Ports x 2 (K/B, Mouse) -
Page 12: Connecting The Console
Unicorn series User’s Manual 2.4 Connecting the Console To connect an LCD console to a computer, perform the following steps 8 Port of KVM 16 Port of KVM 1. Turn off your computer. You should always turn off your computer before connecting or disconnecting a device. -
Page 13: Osd Operation
Unicorn series User’s Manual 3. OSD Operation 3.1 Panel Controls and LCD OSD Function Controls Description Soft power on/off button. Adjacent LED is lit when To access the main menu. This button also acts as Menu the “Enter” button. Auto-synchronize and scale down display to any Auto valid factory preset timings. - Page 14 Unicorn series User’s Manual Espanola, and Nederland SPEAKER Volume control Adjust operation of up/down on the screen V.POSITION Adjust operation of right/left on the screen H.POSITION OSD OFF TIME OSD “time of staying” on the screen RECALL Returns all controls back to factory sorting SOURCE Analog/Digital signal choice EXIT/SAVE...
-
Page 15: Kvm Osd Function
Unicorn series User’s Manual KVM OSD Function 3.2.1 Manual Key It is the simplest switching method. You just need to press the Port Selection Switch on the front panel of the KVM. The Selection LED (Red) is on, indicating that you are switching to the corresponding port. - Page 16 Unicorn series User’s Manual Start Press the NumLock twice or the Port Selection Switches 1 and 2 on the panel to enter the OSD. If you have modified the Hot Key for starting the OSD and are unable to enter the OSD by pressing NumLock, then you can start the OSD by using Port Selection Switch first, and then press F9 to enter into the System Setting to modify the options of the OSD Entry Hot Key.
- Page 17 Unicorn series User’s Manual Switch Menu Master List 03-04:Mail Ser 4 LIST: MASTER NAME ● Admin ♁ ● Θ ● Mail Group Ο Press Enter Θ ● Peter ♁ ● Web Group Ο ● Data Group Ο Θ : Move Space: Edit Esc: Exit...
- Page 18 Unicorn series User’s Manual 2、This field shows the list of the Master KVM or a certain set of Slave KVM currently displayed on the OSD. We recommend you to give a name to the Slave KVM, or else the display after LIST: will be blank. 3 、...
- Page 19 Unicorn series User’s Manual press the “Space BAR” to start editing the name. Press F4 to enable/disable the SVS option. 4、Instruction Hint Field: Use the ↑↓ keys on the keyboard or the mouse to ↑↓: (Move) move the selection bar SPACE: The “Space BAR”...
- Page 20 Unicorn series User’s Manual ‧System Setting Menu System Setting Channel Display Full Mode Channel Display Tim 5 Sec Auto Scan Time 5 Sec OSD Entry Hot Key Number Lock Hot Key Switching Mouse Clicking Beeper Sound Offline Skip Manual OSD Language English...
- Page 21 Unicorn series User’s Manual Turn on/off the “Ctrl” hot keys on Hot Key the keyboard for switching Switching computer functions. Turn on/off the keys of the Mouse Clicking mouse for switching computer functions. Turn on/off the beeper sound Beeper Sound function.
- Page 22 Unicorn series User’s Manual Auto Scan Mode: You can start the OSD first and press “F4” to enter the Auto Scan Mode. If you want to scan the PC, you must use the Smart View Setting to select the Auto Scan Time in the System Setting for the residing time, which includes 5 sec, 10 sec, 20 sec, 30 sec and 60 sec.
- Page 23 EC Declaration of Conformity For the following equipment: 17" LCD Drawer KVM Console with 8/16 Port Combo-Free Module *Type of Product: *Model Number: DKVM-1708 / DKVM-1716 * Produced by: Manufacturer‘s Name : Planet Technology Corp. Manufacturer‘s Address: 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231,.
