Summary of Contents for Eneo DTR-6108/xxxD

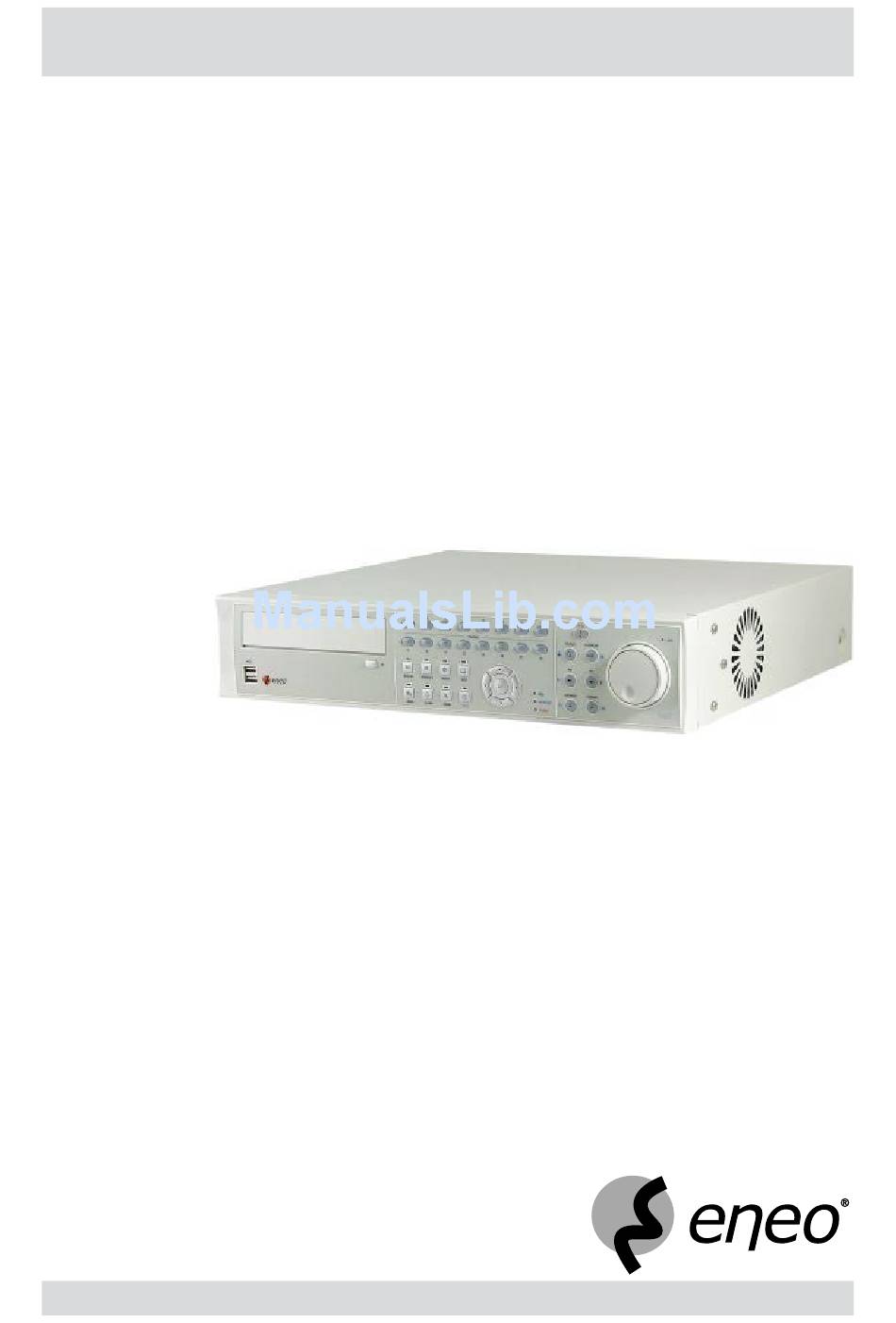

- Page 1 Operating Instructions Digital Video Recorder Models: DTR-6108/xxxD DTR-6116/xxxD...
-
Page 3: Safety Instructions
Safety instructions EMC class ► This video recorder (DVR) is a class A device in accordance with EN 55022. ► This device may cause interference to other equipment in domestic use. In such cases the persons opera- ting the DVR are required to provide appropriate countermeasures, for which they themselves bear the cost. Importance of these Operating Instructions ►... -
Page 5: Table Of Contents
Table of contents Overview Package contents Basic functions Features Requirements for operation Control options Connections on the rear Front panel controls Key to controls Function buttons PTZ camera functions Playback functions Remote control functions Playback functions Menu overview Accessing the menus Accessing the Display menu Accessing the PTZ menu Accessing the Setup menu... - Page 6 Table of contents Menu descriptions – Setup menu System – Information System – Date/Time System – Storage System – User System – Shutdown System – Log out user1... Network – Network Network – Notification Devices – Camera Devices – Audio Devices –...
-
Page 7: Overview
Audio and alarm inputs / outputs ● Max. recording speed DTR-6108/xxxD: 200 field images per sec (PAL) / D1: 50 field images per sec (PAL) ● Max. recording speed DTR-6116/xxxD: 400 field images per sec (PAL) / D1: 100 field images per sec (PAL) ●... -
Page 8: Connections On The Rear
Connections on the rear Note: Connections optionally for NTSC or PAL operation. VIDEO OUT SPOT 1 SPOT 2 VIDEO IN SVHS OUT SPOT 3 SPOT 4 LOOP RS-485 AI1 AI2 AI3 AI4 AI5 AI6 AI7 AI8 GND AI10 AI11 AI12 AI13 AI14 AI15 AI16 NC COM NO AO2 AO4 AO5 AO6 AO7 AO8... -
Page 9: Front Panel Controls
Front panel controls The following diagram and table set out the controls on the front panel of the DVR: PANIC CAMERA SEARCH PLAY/PAUSE DISPLAY SEQUENCE FREEZE SPOT BACKWARD FORWARD NETWORK POWER MENU ALARM ZOOM Designation Function USB ports Open built-in DVD-RW writer ●... -
Page 10: Key To Controls
Key to controls Function buttons Element Function Change display mode Sequence On/Off ● Freeze On/Off ● Copying recordings in Search menu by pressing and holding down button Spot monitor assignments PTZ camera functions On/Off Zoom On/Off PTZ camera functions Element Function Zoom in Zoom out... -
Page 11: Remote Control Functions
Remote control functions The following diagram and table set out the functions on the remote control: Designation Function SPOT 1 - 4 Spot monitor assignments Select System ID SPOT ● Reset alarm ALARM DISPLAY SEQUENCE FREEZE ALARM ● View event list CAMERA ●... -
Page 12: Menu Overview
Menu overview The following illustration shows the structure of the complete menu tree that is accessible using the mouse control: Display Camera 1. CAM1 2. CAM2 . CAM Left-Top Left-Bottom Right-Top Right-Bottom Size 1/16 Size 1/9 Size 1/4 Previous Group Next Group Edit Group Camera... - Page 13 Menu overview (continued) The following illustration shows the structure of the complete menu tree that is accessible using the mouse control: Setup Menu... System Information Date/Time Storage User Shutdown... Log out user1... Network Network Notification Devices Camera Audio Alarm-Out Display Remote Control Record Record...
-
Page 14: Accessing The Menus
Accessing the menus Accessing the Display menu Requirement: ● The current camera image is shown in full image or quad image. Step Action Access using Key sequence/menu path Device Open Display menu... Remote Control Mouse Display Access to submenu via Device/Remote Control Submenu Camera image Key sequence... -
Page 15: Accessing The Setup Menu
Accessing the menus, continued Accessing the Setup menu Requirement: ● The current camera image is shown in full image or quad image. Step Action Access using Key sequence/menu path Device Open Setup Menu... Remote Control MENU Result: Prompt for user name and password. -
Page 16: Getting Started
Getting started Checklist for DVR operation Step Action Menu path Connect peripheral devices as per planned setup. Specify menu language. Setup Menu... > System > Information Adjust date and time. Setup Menu... > System > Date/Time Set up user. Setup Menu... > System > User Set up network and desired notification channels Setup Menu... -
Page 17: Switching On The Dvr
Getting started (continued) Switching on the DVR Requirement: ● At least 1 camera (PAL) connected. ● The start-up preparations are complete. Step Action Plug in DVR mains plug. Result: The video recorder starts up automatically, checking the connected video inputs. Switch on monitor. -
Page 18: Administration
Administration Saving your system setup You can save your DVR’s setup data, including its network configuration. Requirement: ● USB memory stick ● Software versions must be compatible Step Action Menu path Insert a USB memory stick into one of the USB ports. -
Page 19: Deleting Recordings
Administration (continued) Deleting recordings You can only delete all your recordings together. It is not possible to delete recordings from a specific time period. Step Action Menu path Setup Menu... > System > Information > Clear All Data... Delete all recordings. Setup Menu... -
Page 20: Restoring Factory Defaults
Administration (continued) Restoring factory defaults Before restoring the factory defaults, you should export your current system settings in case you need to re- import them later. (see Saving your system setup and Loading your system setup) Step Action Shut down the system. Disconnect the mains plug. -
Page 21: Mirroring Of Hard Disks
Administration (continued) Mirroring of hard disks Mirroring of hard disks prevents the loss of records in the event of a hard disk defect. Requirements: ● The Digital Video Recorder has at least 2 or hard disks installed ● The destination hard disk is identical to the source hard disk in type and memory capacity ●... -
Page 22: Determining The Memory Requirement Of A Recording
Administration (continued) Determining the memory requirement of a recording The amount of memory recorded video sequences will take up depends on the following factors: ● Picture quality ● number of images per second ● duration The memory requirement is calculated by this formula: Memory requirement = picture size x duration of recording x images per second Calculation example: CIF resolution (PAL): Approx. -
Page 23: Searching For Recordings
Searching for recordings Find first stored recording Search Go to... First Find last stored recording Search Go to... Last Find recording by date and time Search Go to... Date/Time Calendar search For each camera the calendar search indicates: ● the days from which there are recordings ●... -
Page 24: Motion Search
Searching for recordings, (continued) Motion search The motion search function can detect movements in recordings within defined zones for one camera. 2 types of motion search are possible: ● Motion search: Search for movement in a defined zone. ● Museum search: Search for movement of a defined object. Search Motion Search... -
Page 25: Using Calendar Search
Using calendar search Performing a calendar search Step Action Menu path Open calendar search. Search > Calendar Search... Result: Calendar and time line are displayed. Select day and time Confirm input. Search Calendar Search... Term Symbol Meaning Date display ● Grey: No recording available ●... -
Page 26: Using Record Table Search
Using record table search Performing a record table search Step Action Menu path Open record table search. Search > Record Table Search... Result: The recording table (standard view) is displayed. Locate recordings. Result: The current seach position is shifted. Search Record Table Search... -
Page 27: Using Event Log Search
Using event log search Performing an event log search Step Action Menu path Open event log search. Search > Event Log Search... Result: The result of the last search is displayed. Define criteria. Option... Confirm input. Search Result: List of search results is displayed. Select desired entry from list. -
Page 28: Using Text-In Search
Using text-in search Performing a text-in search Step Action Menu path Open text-in search. Search > Text-In Search... Result: The result of the last search is displayed. Define text inputs. Option... Confirm input. Search Result: List of search results is displayed. Select desired entry from list. - Page 29 Using text-in search (continued) Search Text-In Search… Option... Term Symbol Meaning From First Start date To Last End date Channels Text input devices on which to search for events Type of text input: Any Text-In Product Generic Text Epson Numbers of text elements to search for Linking operator for different query conditions: (blank) Name...
-
Page 30: Using Motion Search 0
Using motion search Performing a motion search Step Action Menu path Display desired camera in single frame. Display > Camera > ... Open motion search. Search > Motion Search... Enter settings for motion search. Option... Confirm input. Search Result: List of search results is generated. Select desired entry from list. -
Page 31: Copying Recordings 1
Copying recordings Copying recordings to CD or USB memory stick Step Action Menu path Find desired recordings. Search > ... Note: Make a note of the data of the recordings you want to copy. Define settings. Search > Clip-Copy... Start copying. Start Result: The recordings are copied. -
Page 32: System Menu
Menu descriptions – Setup menu The Setup menu has the following sub-menus: System menu On the “System” menu ● the basic settings are made ● users are administered ● the system is shut down. Network menu On the “Network” menu the network settings are made. Network access provides access to all the functions of the DVR via ●... -
Page 33: Setup Menu
Setup menu System – Information On the “Information” menu ● basic information is entered and displayed ● software updates are installed ● recorded data are deleted as required Setup Menu... System Information Term Symbol Meaning Site Location of DVR Identifier for remote control ●... -
Page 34: System - Date/Time 4
Setup menu (continued) System – Date/Time On the “Date/Time” menu ● time and date settings are made ● dates of public holidays are entered ● time synchronisation is configured. Setup Menu... System Date/Time Date/Time Symbol Meaning Term Date Date Format Date display format Time Time... -
Page 35: System - Storage 5
Setup menu (continued) System – Storage On the “Storage” menu the status and usage of the available storage media is displayed. Setup Menu... System Storage Information Term Symbol Meaning Type Type of storage medium Capacity Size of storage medium Format Storage medium usage >>... - Page 36 Setup menu (continued) Information Term Symbol Meaning Recorded Data From Start date of recorded data End date of recorded data Don't Use Don't use USB hard disk drive Clear Delete all recordings Setup Menu... System Storage Status Term Symbol Meaning Type Memory type Disk Bad...
-
Page 37: System - User 7
Setup menu (continued) System – User On the “User” menu the user groups and individual users are set up. Setup Menu... System User Term Symbol Meaning Group & User Assignment of group access privileges Group field Table of possible group access privileges >> Group &... -
Page 38: System - Shutdown 8
Setup menu (continued) System – Shutdown Setup Menu... System Shutdown... System – Log out user1... Setup Menu... System Log out user1... Network – Network On the “Network” menu all settings required to ensure network access are made. Setup Menu... Network Network Network Term... - Page 39 Setup menu (continued) Setup Menu... Network Network Term Symbol Meaning Type of connection to DVR: Manual connection required input of: ● IP Address Manual ● Gateway ● Subnet Mask Type Automatic assignment of IP address of DNS DHCP server Requires following input as specified by provider: ADSL (with ●...
- Page 40 Setup menu (continued) Setup Menu... Network Network DVRNS Term Symbol Meaning Use DVR Name Service Enables the DVR name service IP address or domain name of DVRNS server DVRNS Server DVRNS = Digital Video Recorder Name Service Port Port for DVRNS Use NAT Enables NAT (Network Address Translation) use Name by which the DVR is to be registered with the DVRNS...
-
Page 41: Network - Notification
Setup menu (continued) Network – Notification On the “Notification” menu the method of notification is defined. Setup Menu... Network Notification Mail Term Symbol Meaning Enable Enables notification by e-mail SMTP Server IP address or domain name of SMTP server Port for SMTP server Port Default is port 25. -
Page 42: Devices - Camera
Setup menu (continued) Devices – Camera On the “Camera” menu the cameras are configured. Setup Menu... Devices Camera Settings Term Symbol Meaning Activates the cameras Title Name of camera Visibility of recordings and camera data depending on user access privileges: Normal All users see all camera data and all recordings Users without relevant access see camera title, status... -
Page 43: Devices - Audio
Setup menu (continued) Devices – Audio On the “Audio” menu the audio outputs are assigned to the cameras. Setup Menu... Devices Audio Term Symbol Meaning Number of audio output Associated Camera Assignment of camera Enable Audio-Out Enables all audio outputs DTR-61XX... -
Page 44: Devices - Alarm-Out
Setup menu (continued) Devices – Alarm-Out On the “Alarm-Out” menu the alarm outputs are configured. ● “Settings” tab: The alarm outputs are configured. ● “Schedule” tab: Time slots are defined in which the alarm outputs respond in specific ways. Setup Menu... Devices Alarm-Out Settings... -
Page 45: Devices - Display
Setup menu (continued) Devices – Display On the “Display” menu the mode of on-screen display is configured. ● “OSD” tab: Specify what additional information is displayed on-screen. ● “Main Monitor” tab: Specify how the camera images are displayed on the main monitor. ●... - Page 46 Setup menu (continued) Term Symbol Displayed symbol Meaning Transparency Transparency of menu screens Distance of displayed symbols from screen OSD Margin... margin Setup Menu... Devices Display Main Monitor Term Symbol Meaning Modes of sequences in multiple playback: Full All cameras are switched through sequentially. Sequence Mode Only the image at the bottom right is switched...
-
Page 47: Devices - Remote Control
Setup menu (continued) Devices – Remote Control On the “Remote Control” menu the remote control function is configured. Setup Menu... Devices Remote Control Term Symbol Meaning Port Interface type of remote control Setup as specified by manufacturer: Baud Rate Setup… Data Bit Stop Bit Parity... -
Page 48: Record - Record
Setup menu (continued) Record – Record On the “Record” menu the basic settings for recordings and their quality are made. Setup Menu... Record Record Term Symbol Meaning Enables automatic overwriting of the oldest recordings when the hard disk is full Recycle Note: If not enabled, recording ends when the hard disk is full. -
Page 49: Record - Schedule
Setup menu (continued) Record – Schedule On the “Schedule” menu the schedule for recording is defined. Setup Menu... Record Schedule Term Symbol Meaning Enables schedule entries Schedule On Note: A recording is made only if schedule entries are enabled. Otherwise only panic recording is possible. Time schedule mode for events: Simple Mode Advanced Mode... -
Page 50: Record - Pre-Event
Setup menu (continued) Term Symbol Meaning Delete schedule entry Set up schedule entry Picture data defaults in Time and Event modes: Default... Number of recorded images per second Quality Picture quality of recorded images Record – Pre-Event On the “Pre-Event” menu the settings for recording prior to the event are made. Setup Menu... -
Page 51: Record - Archive
Setup menu (continued) Record – Archive On the “Archive” menu the schedules and settings for archiving are entered. Setup Menu... Record Archive Term Symbol Meaning Archive On Enables the archiving settings Schedule Day of week from which to archive recordings Range Time range Archive Data Range... -
Page 52: Event - Alarm-In
Setup menu (continued) Event – Alarm-In On the “Alarm-In” menu the alarm inputs and responses to events are configured. Setup Menu... Event Alarm-In Settings Term Symbol Meaning Enables the alarm inputs Title Name of alarm input Contact method of alarm input: Type Normally Open Normally Closed... - Page 53 Setup menu (continued) Setup Menu... Event Alarm-In Actions 2 Term Symbol Meaning Number of alarm input Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DTR-61XX...
-
Page 54: Event - Motion Detection
Setup menu (continued) Event – Motion Detection On the “Motion Detection” menu the motion-sensitive zones are defined and responses to events configured. Setup Menu... Event Motion Detection Settings Term Symbol Meaning Enables motion detection for the camera Sensitivity of motion detection: Sensitivity Daytime Nighttime... - Page 55 Setup menu (continued) Setup Menu... Event Motion Detection Actions 1 Term Symbol Meaning Number of alarm input Assignment of cameras to record in event of alarm These cameras must be in “Event” or “Time and Event” mode within Record the time slot: Setup Menu...
-
Page 56: Event - Video Loss
Setup menu (continued) Event – Video Loss On the “Video Loss” menu checking for covert cameras and the responses to events are configured. Setup Menu... Event Video Loss Settings Term Symbol Meaning Sensitivity of check as to whether camera is covert: Check Obscuration Never not checked... - Page 57 Setup menu (continued) Setup Menu... Event Video Loss Actions 2 Term Symbol Meaning Number of covert camera Select PTZ cameras to record in event of alarm and select the desired settings Select spot monitor on which camera image is displayed in event Spot Monitor of alarm DTR-61XX...
-
Page 58: Event - Text-In
Setup menu (continued) Event – Text-In On the “Text-In” menu the text input device is defined and the responses to text input are configured. Setup Menu... Event Text-In Settings Term Symbol Meaning Number of text input device Setup Configuration of text input >> Title Name of text input DTR-61XX... - Page 59 Setup menu (continued) Setup Term Symbol Meaning Port Interface Setting as specified by manufacturer of text input device (ATM, cash-till etc.): Baud Rate Setup… Data Bit Stop Bit Parity Type of text input: Text-In Product Generic Text Epson Character string with which text input must start for the DVR to Transaction Start respond Any Character...
- Page 60 Setup menu (continued) Setup Menu... Event Text-In Actions 1 Term Symbol Meaning Number of alarm input Assignment of cameras to record in event of alarm These cameras must be in “Event” or “Time and Event” mode within Record the time slot: Setup Menu...
-
Page 61: Event - System Event
Setup menu (continued) Event – System Event On the “System Event” menu the self-diagnostics and corresponding messages are configured.. Setup Menu... Event System Event Health Check Term Symbol Meaning System System self-diagnostics interval Check Recording Setup..Configuration of schedule >> Check Alarm-In Interval for checking Alarm Inputs Setup…... - Page 62 Setup menu (continued) Setup Menu... Event System Event Actions Term Symbol Meaning Events (based on checks): System System check failed Panic Record Panic recording in progress Check Recording Recording check failed Check Alarm-In Check of alarm inputs failed Preset limit value for hard disk capacity Event Disk Almost Full reached...
-
Page 63: Event - Event Status
Setup menu (continued) Event – Event Status The “Event Status” menu indicates the status of all possible events: ● Grey text: Event detection not enabled ● White text: Event detection enabled ● Flashing border: Message – acute event for 5 sec ●... -
Page 64: Webguard - Webwatch Controls
WebGuard – WebWatch controls The following diagram and table set out the functions on the Web Watch: Designation Function WebGuard Logging out Open Search (WebSearch) Date/Time, IP Address, User Name Image display modes Camera image Camera name, Enable Audio, Image Aspect Ratio, Anti-Aliasing Select cameras Image optimisation PTZ camera functions... -
Page 65: Webguard - Websearch Controls
WebGuard – WebSearch controls The following diagram and table set out the functions on the Web Search: Designation Function WebGuard Logging out Open Display (WebWatch) Date/Time, IP Address, User Name Zoom On/Off and image optimisation Camera image Camera name, Image Aspect Ratio, Deinterlacing, Anti-Aliasing Playback functions Image display modes Time bar... -
Page 66: Using Webguard
Using WebGuard WebGuard permits the following, using an Internet connection ● View current video images ● Search and view recorded records Requirements: ● The Internet connection is set up and the WebGuard service is activated. ● A PC with Internet access to the DVR must be available. ●... -
Page 67: Specifications Dtr-6108
Playback Frame image, 4-/8-channel split Post-alarm recording Up to 15 minutes RS-485 port for PTZ control (verified logs: eneo-Fastrax, Pelco P/D) or Control interface keyboard connection for remote control Activity detection Programmable 16 x 16 (256) grid, 5 sensitivity settings... - Page 68 Specifications DTR-6108 (continued) Model DTR-6108/250D (Additional models upon request) Basic: 2/2.4 kB; Standard: 4/4.8 kB; High: 8/9.6 kB; Very high: 12/14.4 kB Picture size (NTSC/PAL). 2 times larger in High Resolution mode 250 GB SATA hard disk, expandable to as many as internal hard disks Hard disk capacity Models with higher hard disk capacity upon request Playback speed...
-
Page 69: Specifications Dtr-6116
Playback Frame image, 4-/9-/16-channel split Post-alarm recording Up to 15 minutes RS-485 port for PTZ control (verified logs: eneo-Fastrax, Pelco P/D) or Control interface keyboard connection for remote control Activity detection Programmable 16 x 16 (256) grid, 5 sensitivity settings... - Page 70 Specifications DTR-6116, continued Model DTR-6116/250D (Additional models upon request) Basic: 2/2.4 kB; Standard: 4/4.8 kB; High: 8/9.6 kB; Very high: 12/14.4 kB Picture size (NTSC/PAL). 2 times larger in High Resolution mode 250 GB SATA hard disk, expandable to as many as internal hard disks Hard disk capacity Models with higher hard disk capacity upon request Playback speed...
-
Page 71: Accessories
Accessories EDP No. Short description 74088 System keyboard with -axis joystick 74092 System keyboard with joystick, 5” monitor 71902 USB mouse for DVR series DXR, DLR on request Hard disks with different storage capacities Note: Please refer to www.videor.com for further information. DTR-61XX... -
Page 72: Supported Ptz Cameras
Pacom 206 Dongyang Unitech DRX-500 Dongyang Power Controller Dongyang DY-255RXC Sungjin Receiver/MPU Sensormatic Delta Dome II/Ultra IV Costar SIC722V Eneo Fastrax Samsung Techwin SPD 1600 Samsung Samsung Dome Eneo Fastrax FIIE Pelco Spectra Dome Philips G Basic AutoDome Samsung Techwin... -
Page 73: Index
Index Controls Front panel 9 Accessories 71 Remote Control 11 Alarm WebSearch 65 Configuring inputs 52 WebWatch 64 Configuring outputs 44 Copying recordings 1 Connecting inputs 8 Covert mode 19, 42 Connecting outputs 8 Motion Detection 55 Resetting 9 Date setting 4 Setting schedule for outputs 44 Defining group access rights 7 Setting signal duration 44... - Page 74 Index (continued) Getting started Recording Video recorder , 16 Copying 1 delete 19 Memory requirement 22 Search 2 Hard disks Setting schedule 49 Mirroring 21, 5 Recreate factory settings 20 Health Check 61 Recycling the device 76 Remote Control Controls 11 IP Address 9, 40 Setting system ID 16, Reset 8, 20...
- Page 75 Index (continued) Spot Monitor Assigning a camera 46 Connecting 8 Storage media Displaying status 5 Displaying usage 5 Setting automatic overwrite 48 Switching off 17 Switching on 17 System Export setup Import setup Logging out as USER 8 Shutdown 8 System events Configuring 61...
-
Page 76: Notes On Disposal
Notes on disposal Correct disposal of this DVR WEEE (Waste Electrical & Electronic Equipment) Applicable in the member states of the European Union and other European coun- tries with a separate collection system The marking on the DVR and on the documentation stipulates that it must not be thrown away in normal domestic waste at the end of its useful life. - Page 78 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Operating Instructions version 06/2009 (V1.2) Carl-Zeiss-Str. 8 · 622 Rödermark, Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 (0) 6074 / 888-100 Subject to technical change without notice.
