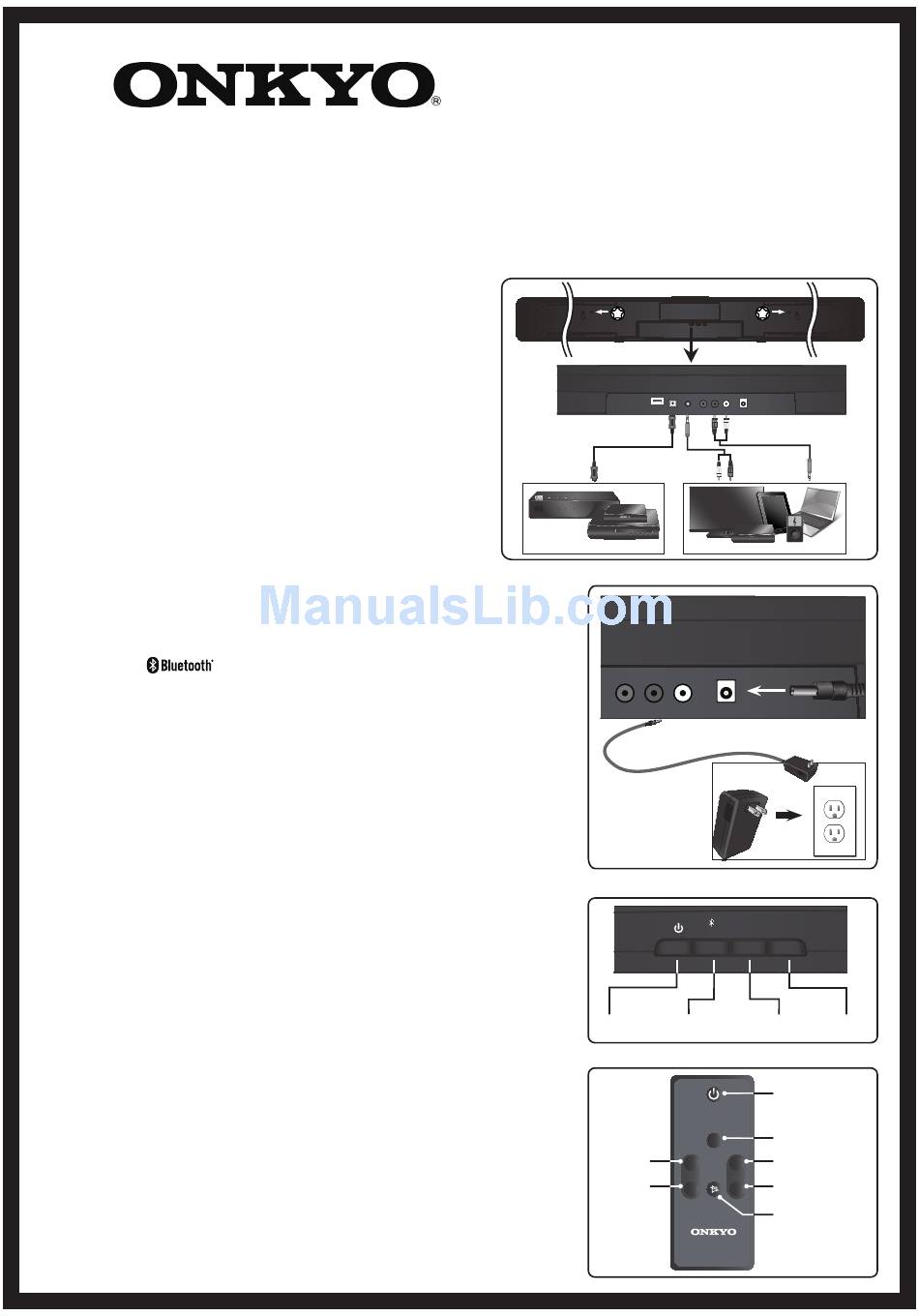

Onkyo SB3220 Quick Manual

Quick GUIDE
Sound bar location
There are two options to locate your sound bar for optimum performance.
●
On the table top located in front of your TV
●
On the wall mounted below the TV using size(4x30mm) screws
Connecting audio sources your sound bar
Connecting via RCA-3.5mm Stereo Jack cable (provided)
●
Using the RCA-3.5mm Stereo jack cable provided, connect the
matching color (red/white) plug to your source device's composite
(red/ white) RCA audio out jack. Then connect the 3.5mm connector
plug into the 3.5mm input connector jack on the back of the sound bar.
●
You can also use the RCA - 3.5mm stereo jack cable provided to
connect to the output port of any device that has a 3.5mm "audio out"
port and then connect the other end of the cable (RCA red/white)
connectors to the back of the sound bars component (red/white) RCA input jacks.
Connecting via the Toslink digital optical cable (provided)
●
Using the Toslink optical cable, plug one end into your source device's optical
output jack and the other end into the digital input jack on the back of your sound bar.
Connecting via
●
Press and hold the Input button for 3-5 seconds to place the sound bar in the BT
search mode. The blue LED on the front of the sound bar will blink rapidly until the
device searched for is paired to the sound bar.
Connecting external powered subwoofer (optional)
●
Connect external (powered) subwoofer with an RCA subwoofer cable (not provided)
from the subwoofer's Sub-Out (or Sub-In depending on the external subwoofer) RCA
jack to the Sub-Out RCA jack on the rear of the sound bar. The Bass +/- buttons on
the remote control can be used to increase/decrease the bass level of the overall
sound bar/subwoofer system.
Connecting power to your sound bar
●
Connect the DC(18V/2.5A) power connect to the back of your sound bar, then plug
in the wall supply into an AC (100~240V 50/60Hz) outlet
Sound bar controls
Sound bar buttons
1. Power Turns the sound bar On/Off.
2. Input Toggles through all 4 inputs (RCA/AUX/OPTICAL/BT).
3. Vol -- Decrease the volume level of the sound bar.
4. Vol+ Increases the volume level of the sound bar.
Note: Press and hold both Vol +/- at the same time will Mutes the bar. To un-Mute,
press the Vol- or Vol+ buttons on the sound bar or the remote control.
Remote control buttons
Power Turns the sound bar On/Off.
Input Toggles through all 4 inputs (RCA/AUX/OPTICAL/BT).
Vol - Decreases the volume level of the sound bar.
Vol+ Increases the volume level of the sound bar.
Mute Mute all the sound from sound bar.
Bass-- Decreases the bass level of the sound bar.
Bass+ Increases the bass level of the sound bar.
SB3220
to your sound bar

Sound Bar

STB/DVD/BD/Network Media Player
USB
OPTICAL AUX IN SUB
Power
Volume
Increase
Volume
Decrease
SERVICE
DC IN
OPTICAL AUX IN SUB R L
18V 2.5A
OR
TV/STB/Tablet/MP3, etc...
DC IN
R L
18V 2.5A
Vol - Vol +
Input
Input Volume
Decrease
Power
Input
INPUT
Bass
+
+
Level Increase
VOL VOL
BASS
Bass
-
-
Level Decrease
VOL
VOL
Mute
RC3220ONK
Volume
Increase
