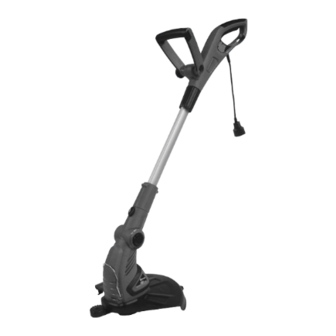

- Page 1 KING CANADA 14” ELECTRIC GRASS TRIMMER/EDGER MODEL: 8514GT INSTRUCTION MANUAL COPYRIGHT © 2010 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
LIMITED TOOL WARRANTY King Canada makes every effort to ensure that this product meets high quality and durability standards. King Canada warrants to the original retail consumer a 2-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS FOR ELECTRIC GRASS TRIMMERS 1. KNOW YOUR TOOL watch) which may get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair. Read and understand the owners manual and labels affixed to the Roll up long sleeves above the elbows.
- Page 4 16. Spool & lines. 9. Foldable edge guide/vegetation guard. Prevents damaging 17. Spool & lines cover. trees, flower beds, etc... MODEL 8514GT Cutting width 14” Line thickness 0.065” Spool & line Double 2 x 16ft. x 0.065”...
-
Page 5: Electrical Information
ELECTRICAL INFORMATION WARNING! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THIS POWER TOOL DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POWER SUPPLY WARNING: YOUR ELECTRIC GRASS TRIMMER IS WIRED AT THE FACTORY FOR 110-120V OPERATION, IT MUST BE CONNECTED TO A 110-120V/15-AMP. -
Page 6: Assembly And Adjustments
ASSEMBLY & ADJUSTMENTS ASSEMBLING YOUR GRASS TRIMMER Assembling Control Handle Place the control handle (A) Fig.4 over the handle hub (B), some force may be required. Feed the locking bolt (C) through the handle hub and secure control handle using the lock knob (D). Assembling Safety Guard Align the installation arrow (A) Fig.5 on the safety guard (B) with the installation arrow FIGURE 4... - Page 7 FIGURE 10 Installing a New Double Spool & Line Warning! Only use identical replacement 0.065” pre-wound double spool & line (King mod. KW-135). 1) Unplug the extension cord from the power source. 2) Depress the spool cover tabs (A) Fig.11, lift and remove the spool cover (B) from the housing.
-
Page 8: Operation And Maintenance
WARNING: All repairs, electrical or mechanical, should be attempted only by trained repairmen. Contact the nearest King Canada Service Center. Use only identical replacement parts, any other may create a hazard. If the power cord is worn or dam- aged in any way, have it replaced immediately.
