Rear Panel – Wireless Camera

1. Antenna

2. Power port
IMPORTANT
3. Ethernet port
IMPORTANT
4. Reset Button

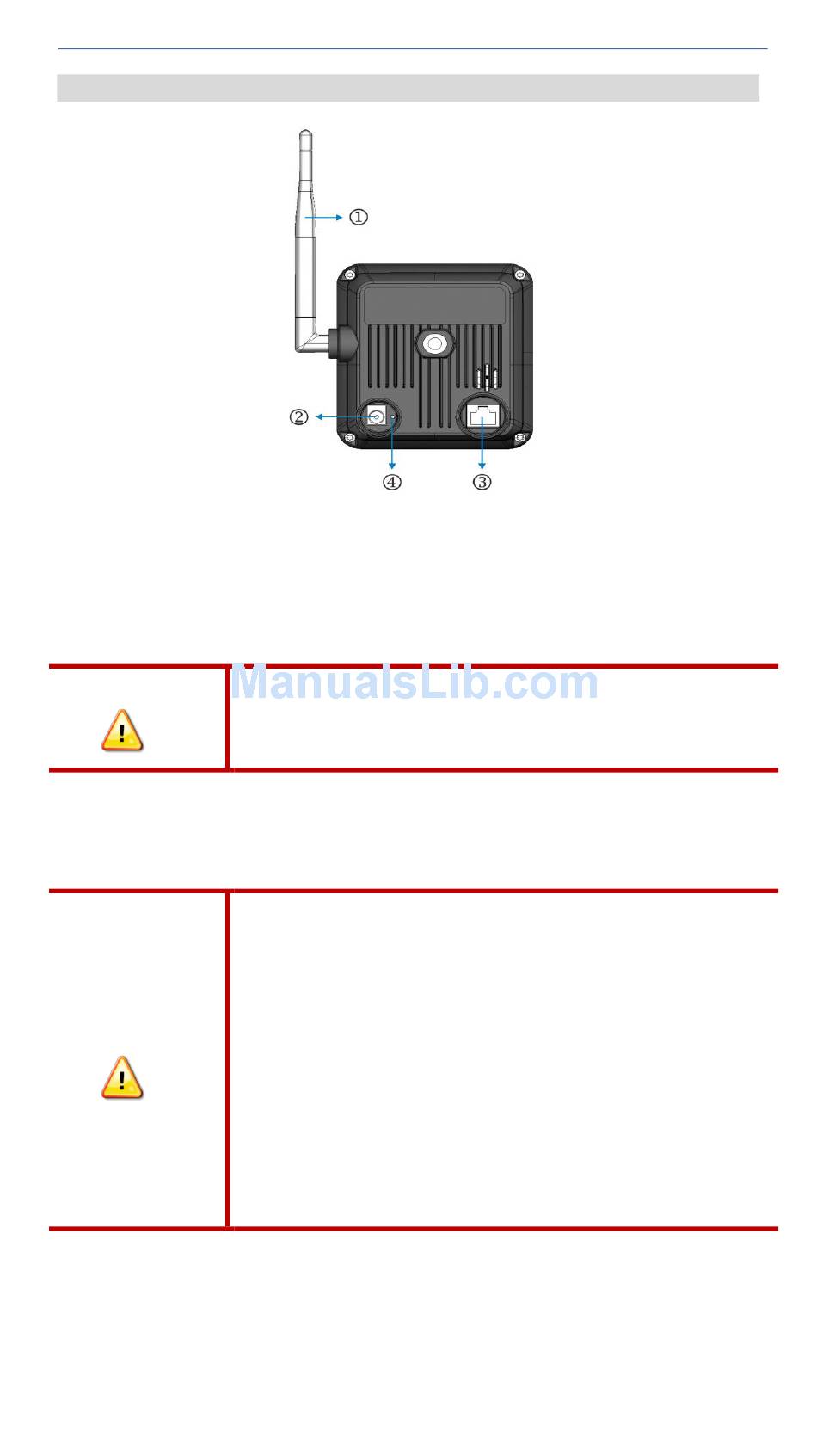

Figure 2: Rear Panel
The antenna is adjustable with best results typically obtained
with the antenna positioned vertically.
The supplied 12V power adapter plugs power to the wireless
camera's power port.
DO NOT USE ANY POWER ADAPTER OTHER THAN
THE ONE SPECIFIED FOR THIS CAMERA. DOING SO
MAY DAMAGE THE WIRELESS CAMERA.
The Ethernet port allows connectivity of the wireless camera
to your ADT Pulse gateway.
PLUGGING IN THE ETHERNET CABLE WILL DISABLE
THE WIRELESS INTERFACE. (ONLY ONE INTERFACE
CAN BE ACTIVE AT ANY TIME.)
THE ETHERNET CABLE SHOULD ONLY BE
CONNECTED OR DISCONNECTED WHEN THE
OUTDOOR DIGITAL CAMERA IS POWERED OFF.
ATTACHING OR DETACHING THE ETHERNET CABLE
WHILE THE CAMERA IS POWERED ON DOES NOT
SWITCH THE INTERFACE BETWEEN WIRED AND
WIRELESS.
DETACHING THE ETHERNET CABLE WHEN THE
OUTDOOR DIGITAL CAMERA IS POWERED ON WILL
DISCONNECT THE OUTDOOR DIGITAL CAMERA
FROM THE NETWORK.
When pressed and held for ten (10) seconds, the
communication configuration of the wireless camera will be
reset to the default manufacturer settings.
