Lindy 3.5” IDE Installation Manual

USB 2.0 HDD Enclosure
3.5" IDE / SATA
Installation Guide
Installationsanleitung
Manuel Utilisateur
Manuale d'uso
Lindy No. 42793
www.lindy.com
For Home and Office Use
Tested to Comply with FCC Standards
© LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - First Edition (OCT 2009)

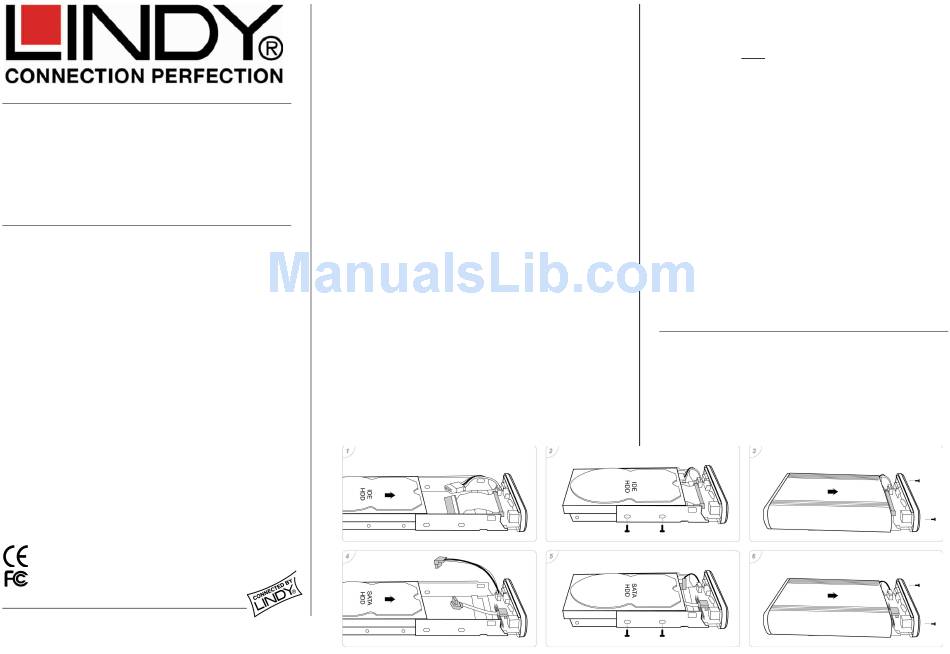

INSTALLATION
Slide the drive tray out of the housing. If present, set the
jumper on your IDE/ATA hard drive to the MASTER setting.
Attach the drive to the IDE (or SATA) and the power
cables. Slide the drive into the tray and secure using the
supplied screws. Slide the tray back into the housing and
reinstall the two screws
Lösen Sie die beiden Schrauben am Gehäusedeckel mit
den integrierten Anschlüssen und ziehen Sie den Einschub
English heraus. Jumpern Sie Ihre IDE/ATA Festplatte als MASTER
sofern die Platte diese Möglichkeit anbietet. Stecken Sie
Deutsch
das IDE- bzw. SATA-Datenkabel sowie das jeweilige
Français
Stromkabel auf und befestigen Sie die Festplatte mit
Italiano
Schrauben vorsichtig am Einschub. Schieben Sie den
Einschub wieder ins Gehäuse und schrauben Sie ihn fest.
Retirez les deux vis de la partie arrière et faites glisser le
capot. Si présent, réglez le cavalier du disque dur en mode
MASTER. Connectez le disque au connecteur IDE (ou
SATA) et son alimentation. Insérez doucement le disque
dur dans le boîtier et ne forcez pas sur les petites vis.
Refermez ensuite le capot et revissez-le à l'arrière.
Rimuovete la copertura in plastica dall'astuccio. Se
presente, impostate il Jumper dell'hard disk in modalità
MASTER. Collegate il drive al connettore a 44 poli ou al
connettore SATA. Fate scivolare con cautela il disco
all'interno dell'astuccio e serrate le due viti. Fate attenzione
a non stringere eccessivamente!
English
.
Deutsch
Français
Italiano
OPERATION
Power Requirements
This enclosure must always be used with the supplied
power supply. It can be connected to any USB port.
Driver Installation
Modern operating systems such as Windows 7, Vista, XP,
2000 and ME already include the necessary USB drivers
(as long as the drivers for your USB 2.0 ports are up to
date!) If the external hard drive is recognized correctly as a
USB 2.0 device then there is no need to install any other
drivers. Otherwise, obtain updated drivers for your USB
controller from your computer manufacturer's web site.
Hard Drive Partitioning
If you use a brand new hard drive it may not have been
partitioned and your operating system will not show the
drive. Use the partitioning program from your operating
system (FDISK or similar). Find information on this topic
from the HELP section of your operating system, or get
help from an experienced technician.
ANSCHLUSS & BETRIEB
Stromversorgung
Verwenden Sie dieses USB Festplattengehäuse nur
und immer mit dem mitgelieferten Netzteil!
(English)
(Deutsch)
