CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER

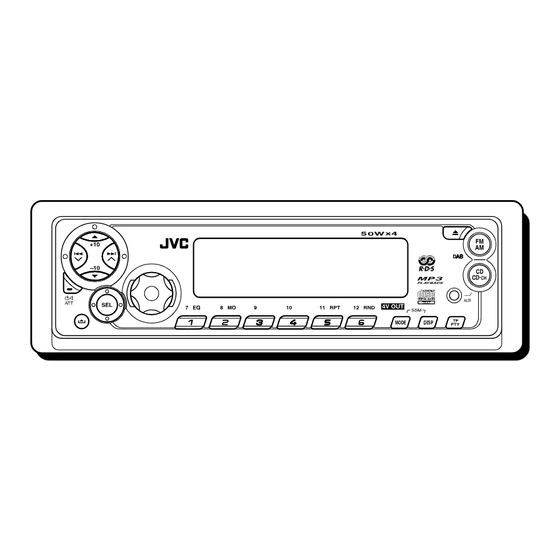

KD-SX998R/KD-SX997R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de
desbetreffende handleiding.
ATT
SOUND
U
R
SOURCE
F
D
VOL
VOL
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
GET0125-001A
[E/EX]
Advertisement
Table of Contents
Related Manuals for JVC GET0125-001A
Summary of Contents for JVC GET0125-001A
- Page 1 Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding. INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS GEBRUIKSAANWIJZING SOUND GET0125-001A [E/EX]...
-
Page 2: How To Reset Your Unit
Position And Reproduction Of Labels Bottom panel of the main unit Name/Rating plate Caution: This product contains a laser component of higher laser class than Class 1. How to reset your unit While holding SEL (select), press (standby/on/attenuator) for more than 2 seconds. This will reset the built-in microcomputer. -
Page 3: Table Of Contents
Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the MODE button ... -
Page 4: Location Of The Buttons
LOCATION OF THE BUTTONS Control panel Display window (standby/on/attenuator) button 2 5 (up) button +10 button /¢ buttons 4 Remote sensor 5 Display window 6 0 (eject) button 7 FM/AM (DAB) button 8 CD CD-CH (CD changer) (AUX: auxiliary) button (control panel release) button p ∞... -
Page 5: Remote Controller
Remote controller SOUND SOURCE 1 • Turns on the unit if pressed when the unit is turned off. • Turns off the unit if pressed and held until “SEE YOU” appears on the display. • Drops the volume level in a moment if pressed briefly. -
Page 6: Preparing The Remote Controller
Preparing the remote controller Before using the remote controller: • Aim the remote controller directly at the remote sensor on the main unit. Make sure there is no obstacle in between. Remote sensor • Do not expose the remote sensor to strong light (direct sunlight or artificial lighting). -
Page 7: Basic Operations
Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 9 –... -
Page 8: Setting The Clock
Setting the clock You can also set the clock system to either 24 hours or 12 hours. Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.) Set the hour. -
Page 9: Radio Operations
Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: FM 1 FM 2... -
Page 10: Manual Search
Searching a station manually: Manual search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: FM 1 FM 2 (F1) (F2) Note: This receiver has three FM bands (FM1, FM2, FM3). You can use any one of them to listen to an FM broadcast. -
Page 11: Storing Stations In Memory
Storing stations in memory You can use one of the following two methods to store broadcasting stations in memory. • Automatic preset of FM stations: SSM (Strong- station Sequential Memory) • Manual preset of both FM and AM stations FM station automatic preset: SSM You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3). -
Page 12: Tuning In To A Preset Station
Press and hold the number button (in this example, 1) for more than 2 seconds. Selected band/preset number and “MEMO” (memory) appear alternately for a while. Repeat the above procedure to store other stations into other preset numbers. Notes: • A previously preset station is erased when a new station is stored in the same preset number. -
Page 13: Rds Operations
What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc. -
Page 14: Using Ta Standby Reception
Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see pages 32 and 33.) Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display. Select the desired mode—“AF,” “AF REG,”... - Page 15 Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, CD, or other connected components). • PTY Standby Reception will not work if you are listening to an AM station.
- Page 16 Searching your favorite programme You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).
-
Page 17: Other Convenient Rds Functions And Adjustments
To search your favorite programme type Press and hold TP/PTY for more than 2 seconds while listening to an FM station. The last selected PTY code appears. To select one of your favorite programme type To select any one of the twenty-nine PTY codes Preset number appears only if you select a PTY code using the number buttons. -
Page 18: Automatic Clock Adjustment
Changing the display mode while listening to an FM station You can change the initial indication on the display to station name (PS NAME) or station frequency (FREQ) while listening to an FM RDS station. • See also “Changing the general settings (PSM)”... - Page 19 PTY codes NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology...
-
Page 20: Cd Operations
CD OPERATIONS Refer “MP3 OPERATIONS” on pages 26 to 29 for operating MP3 discs. Playing a CD Open the control panel. Notes: • When an external component is connected to the AUX input jack on the control panel, be careful of handling a CD. •... -
Page 21: Locating A Track Or A Particular Portion On A Cd
To stop play and eject the CD Press 0. CD play stops and the control panel flips down. The CD automatically ejects from the loading slot. The source changes to the previously selected source. • If you change the source, CD play also stops (without ejecting the CD). -
Page 22: Selecting Cd Playback Modes
How to use the +10 and –10 buttons • Ex. 1: To select track number 32 while playing track number 6 (Three times) \ 10 \ 20 \ 30 Track 6 • Ex. 2 : To select track number 8 while playing track number 36 (Three times) \ 30 \ 20 \ 10... -
Page 23: Playing A Cd Text
Playing a CD Text In a CD Text, some information about the disc (its disc title, performer, and track title) is recorded. This CD Text information will be shown automatically when you play a CD Text. To change the CD Text information manually, select text display mode while playing a CD Text. -
Page 24: Mp3 Introduction
MP3 INTRODUCTION What is MP3? MP3 is an abbreviation of Motion Picture Experts Group (or MPEG) Audio Layer 3. MP3 is simply a file format with a data compression ratio of 1:10 (128 Kbps*). That means, by using MP3 format, one CD-R or CD-RW can contain 10 times as much data volume as a regular CD can. - Page 25 MP3 folder/file configuration : Root ROOT : Folders : MP3 files Note: There is no limit on the number of the hierarchy levels (nested folders). However, up to 8 hierarchy levels is recommended for stable operations. MP3 playback/search order • The numbers in circles below the MP3 files ( the MP3 files.
-
Page 26: Mp3 Operations
MP3 OPERATIONS Refer also to “CD OPERATIONS” on pages 20 to 23. Playing an MP3 disc Open the control panel. Notes: • When an external component is connected to the AUX input jack on the control panel, be careful of handling a disc. •... -
Page 27: Locating A File Or Particular Portion On An Mp3 Disc
To stop play and eject the disc Press 0. Playback stops and the control panel flips down. The disc automatically ejects from the loading slot. To change the display information While playing back an MP3 file, you can change the MP3 disc information shown on the display. Each time you press DISP (display), the display changes to show the following:... - Page 28 Press +10 or –10. To skip 10 files* forwards to the last file To skip 10 files* backwards to the first file * The first time you press +10 or –10 button, the file skips to the nearest higher or lower file with a file number of multiple ten (ex.
-
Page 29: Selecting Mp3 Playback Modes
Selecting MP3 playback modes To play back files at random (Folder Random/Disc Random Play) You can play back all files of the current folder or all files on the MP3 disc at random. Press MODE to enter the functions mode while playing an MP3 disc. “MODE”... -
Page 30: Sound Adjustments
SOUND ADJUSTMENTS Selecting preset sound modes (C-EQ: custom equalizer) You can select a preset sound mode (C-EQ: custom equalizer) suitable to the music genre. • There is a time limit in doing the following procedure. If the setting is canceled before you finish, start from step 1 again. -
Page 31: Adjusting The Sound
Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) (fader) WOOFER (subwoofer) (volume) Indication To do: BAS* Adjust the bass. -
Page 32: Other Main Functions
OTHER MAIN FUNCTIONS Changing the general settings (PSM) You can change the items listed in the table below and on page 33 by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. - Page 33 Indications PTY STBY PTY standby TA VOL Traffic announcement volume P-SEARCH Programme search DAB AF* Alternative frequency search DAB VOL* DAB volume adjustment LEVEL Level display DIMMER Dimmer mode Telephone muting BEEP Key-touch tone SCROLL Scroll mode EXT IN* External component AUX ADJ Auxiliary adjustment TAG DISP...
- Page 34 To set the clock display—CLOCK You can set the clock to be shown on the display when the unit is turned on. When shipped from the factory, the clock is set to be shown on the display. • ON: Clock display is turned on. •...
- Page 35 To turn on/off the key-touch tone—BEEP You can deactivate the key-touch tone if you do not want it to beep each time you press a button. When shipped from the factory, the key-touch tone is activated. • ON: Activates the key-touch tone. •...
-
Page 36: Assigning Names To The Source
Assigning names to the source You can assign names to CDs (both in this unit and in the CD changer). After assigning a name, it will appears on the display when you select the source. Maximum number of Source characters CDs* Up to 32 characters (up to 40 discs) -
Page 37: Detaching The Control Panel
Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power. -
Page 38: Cd Changer Operations
CD CHANGER OPERATIONS We recommend that you use the JVC MP3- compatible CD changer with your unit. By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format. - Page 39 • When the current disc is a CD: Playback starts from the first track of the current disc. Selected disc number* Current track Elapsed playing time number * When “CLOCK” is set to “ON” (see page 34), the current indication will soon change to the clock time.
- Page 40 (only for MP3 discs) To show the disc information for CD Text and MP3 discs This is possible only when connecting a JVC CD changer equipped with CD Text and/or MP3 disc information reading capability. Select text display mode while playing a CD Text or an MP3 disc.
-
Page 41: Selecting The Playback Modes
Selecting the playback modes To play back tracks/files at random (Folder Random/Disc Random/Magazine Random Play) Press MODE to enter the functions mode during play. “MODE” flashes on the upper part of the display. Press RND (random), while “MODE” is still flashing on the display. -
Page 42: External Component Operations
EXTERNAL COMPONENT OPERATIONS * Not compatible with digital signals. Playing an external component You can connect two external components to this unit. Connect one to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied), and the other to the AUX (auxiliary) input jack on the control panel. -
Page 43: Dab Tuner Operations
We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer. • Refer also to the Instructions supplied with your DAB tuner. What is DAB system? DAB is one of the digital radio broadcasting systems available today. -
Page 44: Storing Dab Services In Memory
Start searching for an ensemble. Press 4 to search for ensembles of lower frequency. When an ensemble is received, searching stops. To stop searching before an ensemble is received, press the same button you have pressed for searching. Select a service (either primary or secondary) you want to listen to. -
Page 45: Tuning In To A Preset Dab Service
Tune in to an ensemble you want. Select a service of the ensemble you want to listen to. Press 5 (up) to select the next service. Press ∞ (down) to select the previous service. Press and hold the number button (in this example, 1) you want to store the selected service into for more than 2 seconds. -
Page 46: What You Can Do More With Dab
What you can do more with Tracing the same program automatically (Alternative Reception) You can keep listening to the same program. • While receiving a DAB service: When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same program. -
Page 47: Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work. - Page 48 Symptoms • Disc cannot be played back. • Noise is generated. • A longer readout time is required (“CHECK” keeps flashing on the display). • Files cannot be played back as you have intended them to play. • Elapsed playing time is not correct.
- Page 49 Symptoms • “NO DISC” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display. • “RESET 1” – “RESET 7” appears on the display. • The CD changer does not work at all. About mistracking: Mistracking may result from driving on extremely rough roads.
-
Page 50: Maintenance
MAINTENANCE Handling discs This unit has been designed to reproduce CDs, CD-Rs (Recordable), CD-RWs (Rewritable), and CD Texts. • This unit is also compatible with MP3 discs. How to handle discs When removing a disc from its case, press down the center holder of the case and lift the disc out, holding it by the edges. -
Page 51: Specifications
AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 50 W per channel Rear: 50 W per channel Continuous Power Output (RMS): 19 W per channel into 4 Ω, 40 Hz Front: to 20 000 Hz at no more than 0.8% total harmonic distortion. 19 W per channel into 4 Ω, 40 Hz Rear: to 20 000 Hz at no more than... - Page 52 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...
-
Page 53: Problemen Oplossen
Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert. (déblocage Voordat u aan de montage van het apparaat... -
Page 54: Electrical Connections
Als het geluid niet verdwijnt, moet u contact opnemen met uw JVC car audio dealer. • Het maximum ingangsvermogen van de speakers moet achterin meer dan 50 W zijn en voorin 50 W, met een impedantie van 4 Ω... - Page 55 (+) van de accu verbinden. • In dit geval wordt de gele draad (A4) niet gebruikt. Nous vous recommandons de Sluit bij voorkeur de JVC, MP3 connecter le changeur de CD compatibele CD-wisselaar aan. U kunt compatible MP3 JVC. Vous pouvez tevens bepaalde andere CD-wisselaars uit aussi connecter d’autres...
- Page 56 If your car is equipped with the steering wheel remote controller, you can operate this receiver using the controller. To do it, a JVC’s OE remote adapter (not supplied) which matches with your car is required. Consult your JVC IN-CAR ENTERTAINMENT dealer for details.
