Datalogic F732-E Wizard User Manual

Hide thumbs Also See for F732-E Wizard:
Table of Contents

Advertisement

Quick Links

Download this manual
TM

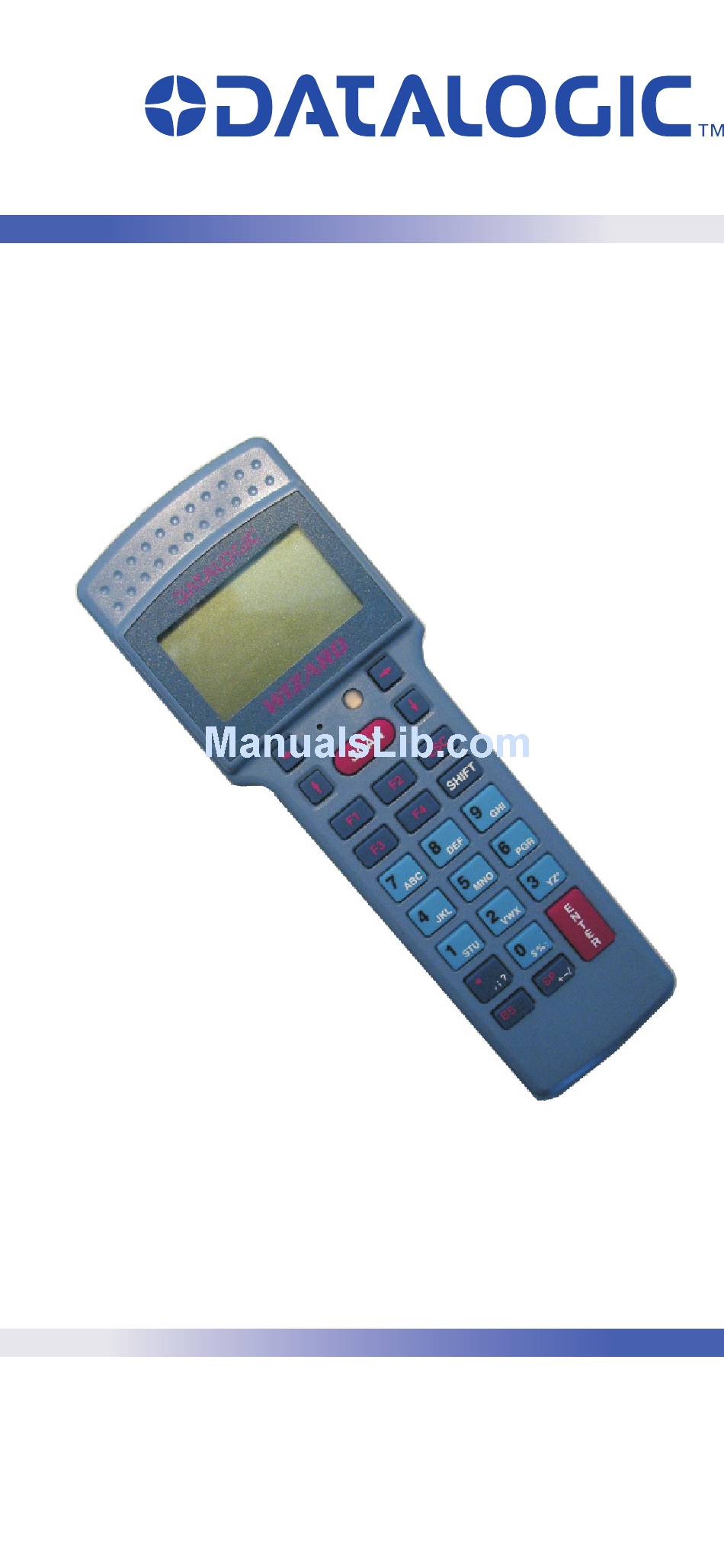

F732-E Wizard
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Datalogic F732-E Wizard

Summary of Contents for Datalogic F732-E Wizard

  • Page 1 F732-E Wizard User's Manual...
  • Page 2 Datalogic Mobile reserves the right to make modifications and improvements without prior notification. Datalogic Mobile shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the use of this material.

  • Page 3: Table Of Contents

    CONTENTS REFERENCES ..............iv Conventions..............iv Reference Documentation ..........iv Services and Support ............iv SAFETY REGULATIONS..........v General Safety Rules............v Laser Safety..............vi FCC Compliance .............. x WEEE Compliance ............x GENERAL VIEW ............xiii QUICK START .............. xiv INTRODUCTION ..............

  • Page 4: References

    For further details refer to the Manuals of the various programs provided on CD-ROM. SERVICES AND SUPPORT Datalogic Mobile provides several services as well as technical support through its website. Log on to www.mobile.datalogic.com and click on the links indicated for further information including: •...

  • Page 5: Safety Regulations

    SAFETY REGULATIONS Read this manual carefully before performing any type of connection or repair on the terminal. The user is responsible for any damages caused by incorrect use of the equipment or by inobservance of the indication supplied in this NOTE manual.

  • Page 6: Laser Safety

    LASER SAFETY The laser light is visible to the human eye and is emitted from the window indicated in the figure. Laser beam output window AVOID EXPOSURE LASER LIGHT IS EMITTED FROM THIS APERTURE LASER LIGHT DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT MAX.
  • Page 7 LA LUCE LASER DIE LASER- LE RAYON LASER A LUZ LÁSER È VISIBILE STRAHLUNG IST FÜR EST VISIBLE À ES VISIBLE AL ALL'OCCHIO DAS MENSCHLICHE L'OEIL NU ET IL OJO HUMANO UMANO E VIENE AUGE SICHTBAR UND EST ÉMIS PAR LA Y ES EMITIDA EMESSA DALLA WIRD AM...
  • Page 8 ITALIANO Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del terminale. NORMATIVE STANDARD PER LA SICUREZZA LASER Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 e EN 60825-1.
  • Page 9 FRANÇAIS Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du terminal. NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 et EN 60825-1. Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien.

  • Page 10: Fcc Compliance

    FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic Mobile could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference which may cause undesired operation.
  • Page 11 Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.mobile.datalogic.com. Information for the user in accordance with the European Commission Directive 2002/96/EC At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste.
  • Page 12 Auswirkungen für die Umwelt und die Gesundheit der Menschen ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter www.mobile.datalogic.com.

  • Page 13: General View

    GENERAL VIEW Figure 2 - F732-E Terminal Overview Key: Laser beam output window Reset key (protected) Two color LED Cradle communications window Battery charger contacts xiii...

  • Page 14: Quick Start

    QUICK START Verify that the F732-E and all the parts supplied with the equipment are present and intact when opening the packaging. Keep this package should it be necessary for shipping to a technical assistance center. When using the F732-E terminal for the first time: Install the battery pack by correctly inserting it into the F732- E terminal (refer to par.

  • Page 15: Introduction

    Formula Wizard™ package represents the simplest and most cost- effective solution for entering the world of barcode data acquisition. The F732-E Wizard™ portable terminal is at the heart of the Formula Wizard™ solution. It is a lightweight, pocket-sized, fully programmable terminal with an integrated laser scanner. Fast and...

  • Page 16: Bundled Software

    F732-E WIZARD™ BUNDLED SOFTWARE The EasyGen™ Demo Version CD-ROM with five ready-to-use example applications is included in the package. These applications cover the most common operating requirements in data collection, assisted sales, inventory and goods picking, thus making the Formula Wizard™ solution immediately productive. Refer to Appendix A of the EasyGen™...
  • Page 17 MS-DOS environment and developed specifically for the type of terminal processor. The libraries, developed by Datalogic Mobile, permit direct management of the terminal functions. For example, the management of barcode reading devices is immediate and rational thanks to interaction with functions that automatically start up the barcode acquisition procedure.

  • Page 18: Package Contents

    F732-E WIZARD™ PACKAGE CONTENTS The F732-E terminal package includes: − n. 1 F732-E terminal complete with batteries − n. 1 cradle F952 with power supply − n. 1 cable 94A054000 for serial connection − n. 1 EasyGen™ Demo Version CD-ROM −...

  • Page 19: Accessories

    DS for Formula™ - order number 94A104860 Development system for Formula Basic Line CA51 - order number 94A104890 "C" Compiler 8051 Compiler kit V7 for F6XX and F7XX EasyGen™ - order number 94A104850 Easy application generator package for Formula batch terminals: F660-E, F725-E, F732-E Wizard™, F734-E...

  • Page 20: Connections

    F732-E WIZARD™ CONNECTIONS CRADLE To make the F732-E terminal operative, it is necessary to insert it in the Formula 952 Transceiver charger cradle which has been previously connected to the power supply and to a host computer with an available RS232 serial line.

  • Page 21: Connection To The Host Computer

    CONNECTIONS CONNECTION TO THE HOST COMPUTER Before proceeding with this phase, make sure that both the computer and the terminal are switched off. CAUTION 2.2.1 RS232 Connection To connect the F952 cradle to the host computer, proceed as indicated below: Connect the cable to the serial port of the host computer.
  • Page 22 F732-E WIZARD™ Figure 5 - RS232 Single Cradle Connection Key: Host computer Serial cable F952 cradle Power supply...

  • Page 23: Connection Cable

    CONNECTIONS CONNECTION CABLE The serial cable provided in the F732-E WIZARD™ package has the following characteristics: RS232 Connection with PC/AT or compatible: cable 94A054000 (included with terminal) Host/PC side Cradle side 9-pin D-sub RJ45 (female) Figure 6 - RS232 Cable Pinout Other cables are available depending on the type of computer and connection.

  • Page 24: Use And Operation

    F732-E WIZARD™ USE AND OPERATION The F732-E terminal is fully programmable with 512 KB of RAM memory to manage large databases and 512 KB of Flash memory for application programs of large dimensions. It is necessary to load an application program onto the terminal to exploit its features.

  • Page 25: Description Of Keys Using Easygen

    USE AND OPERATION QUICK START of this Manual or to par. 2.4 of the EasyGen™ User's Manual for details on loading these applications. The following descriptions assume the terminal is loaded with an EasyGen™ application. If however, a custom application is loaded then refer to the specific documentation for terminal operation.
  • Page 26 F732-E WIZARD™ SHIFT KEY: Enables entry alphabetical characters (written in white on keyboard) when followed by the pressing of a numeric key: for example if you want to enter the alphabetical character “A”, you have to press <SHIFT>+<7>. The number of times the SHIFT key is...
  • Page 27 USE AND OPERATION ENTER KEY: allows validation of what has been typed. PROTECTED RESET KEY: it is activated by inserting a blunt object in the slot while simultaneously pressing the <SCAN> key.

  • Page 28: Barcode Scanning

    F732-E WIZARD™ BARCODE SCANNING When reading a barcode point the terminal laser beam at the code from an appropriate distance and simultaneously press the <SCAN> key. The beam emitted by the laser must completely cover the barcode; the LED (and the acoustic signal, if activated) will indicate if the scan was carried out correctly.

  • Page 29: Downloading Data To Host

    USE AND OPERATION DOWNLOADING DATA TO HOST Data can be downloaded from the terminal to the host PC in different ways, depending on the application loaded on it. The application software allows downloading data onto the PC by simply inserting the terminal into the cradle or by direct operator intervention on the terminal or host computer.

  • Page 30: Maintenance

    "BATTERY LOW", wait until the it is turned off before inserting it in the cradle. CAUTION Recharge the terminal by simply inserting it into its cradle; Datalogic Mobile S.r.l. recommends a minimum uninterrupted recharging time of eight hours. When using the NiMh battery a standard recharge does not allow taking fully advantage of the improved battery technology.

  • Page 31: Replacing The Batteries

    MAINTENANCE During the battery recharge the color of the LED positioned on the cradle changes from red to green. If using the NiCd battery pack, the LED color changes when 70-80% of the complete charge is reached. If using the NiMh battery pack, the LED color changes when 50-60% of the NOTE complete charge is reached due to the battery...
  • Page 32 F732-E WIZARD™ Lift the battery cover as shown in the figure and extract the old battery pack. Replace the battery pack, making sure the batteries are inserted in the right direction as indicated within case. Before inserting the battery pack into the terminal, ensure the battery polarity matches with the one indicated within the case.

  • Page 33: Cleaning The Terminal

    MAINTENANCE Close the battery cover and tighten the screws incinerate, disassemble, short terminals or expose to high temperature. Risk of fire, explosion. Use specified charger only. Risk of explosion if the battery is replaced by an incorrect type. Dispose of the batteries as WARNING required by the relevant laws in force.

  • Page 34: Troubleshooting

    The application terminal displays the program. The terminal message FAULT displays an error CODE P21CO4. message FAULT CODE P21CO4. Other faults. The Contact your terminal displays an Datalogic Mobile error message other representative for than FAULT CODE technical P21CO4. assistance.

  • Page 35: Technical Features

    TECHNICAL FEATURES TECHNICAL FEATURES Optical Features Light source laser scanner, VLD source, 630 - 680 nm Scan rate 36 ± 3 scan/sec Minimum resolution 0.15 mm (5.90 mils) Skew angle ± 65° Pitch angle ± 55° Depth of field 3 to 70 cm (1.18 to 27.55 in) (depends on code density) Electrical Features Micro-controller...
  • Page 36 F732-E WIZARD™ Programming Barcodes decoded Standard 3/9 Extended 3/9 Italian pharmaceutical Interleaved 2/5 ITF 14 Industrial 2/5 Matrix 2/5 UPC - EAN UPC only UPC/EAN + Addon 2 UPC/EAN + Addon 5 UPC-E only UPC 8 only UPC-A & EAN 13 only...

  • Page 37: Glossary

    GLOSSARY Barcode A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in binary form. The general format of a barcode symbol consists of a leading margin, start character, data or message character, check character (if any), stop character, and trailing margin.
  • Page 38 Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read. This memory is volatile and therefore data is lost when power is not present. Real Time Clock. Terminal A Datalogic portable computer product.

  • Page 39: Index

    INDEX Glossary; 22 Accessories; 5 Application Development Maintenance; 15 Programs; 2 Quick Start; xiv Barcode Scanning; 13 Reference Documentation; Charging the Batteries; 15 Cleaning the Terminal; 18 Replacing the Batteries; 16 Connections; 6 Cradle; 6 RS232 Connection; 7 Technical Features; 20 Terminal Description;...
  • Page 40 Datalogic Mobile S.r.l., Via S. Vitalino 13 40012 - Lippo di Calderara Bologna - Italy dichiara che declares that the déclare que le bescheinigt ,daß das Gerät declare que el F732- E, Wizard Laser Terminal e tutti i suoi modelli and all its models et tous les modèles...
  • Page 41 World wide Sales Network available from: www.mobile.datalogic.com/contacts Datalogic Mobile S.r.l. Via S. Vitalino, 13 40012 Lippo di Calderara di Reno Bologna - Italy Telephone: (+39) 051-3147011 Fax: (+39) 051-3147561 822000174 (Rev. E) ©1997 - 2008 Datalogic Mobile S.r.l. 01/08...
