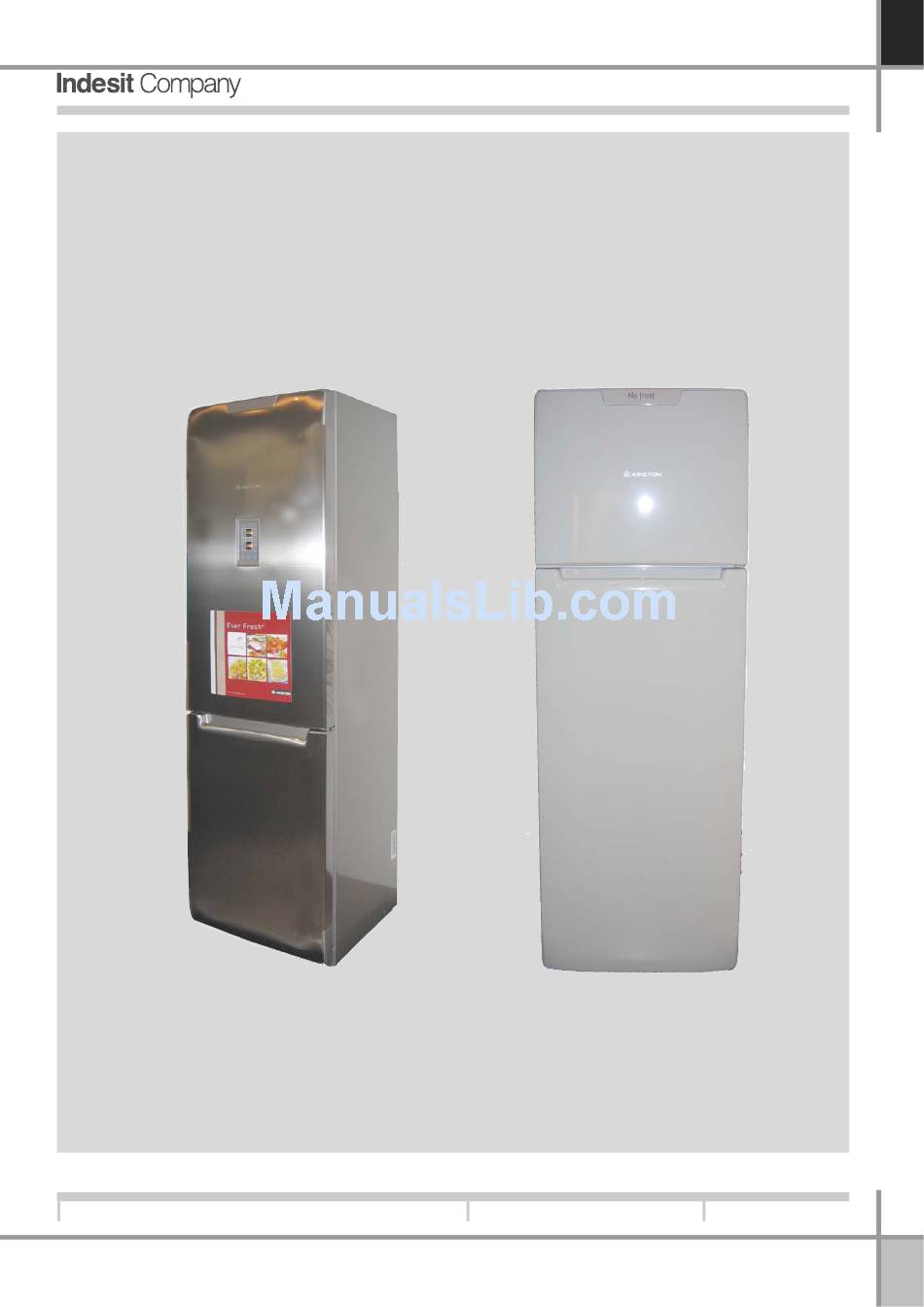

SERVICE MANUAL
NEW ARISTON 60 cm PLATFORM
All the parts included in this document are the property of Indesit Company S.p.A.
All rights reserved. This document and all the information contained in it are supplied without
responsibility for possible errors or omissions and no part of it can be reproduced, used or removed
without written permission or a contractual clause.
Service Manual
NEW ARISTON 60 cm PLATFORM
Edition
2006.06.15
E
Language
English
N
1

Advertisement

Table of Contents
loading

Related Manuals for Ariston 60 cm

Summary of Contents for Ariston 60 cm

  • Page 1 SERVICE MANUAL NEW ARISTON 60 cm PLATFORM All the parts included in this document are the property of Indesit Company S.p.A. All rights reserved. This document and all the information contained in it are supplied without responsibility for possible errors or omissions and no part of it can be reproduced, used or removed without written permission or a contractual clause.

  • Page 2: English

    Technical personnel should, in any case, consult the specific model on (www.servicenet. indesitcompany.com) to access data and updates of electrical diagrams, technical bulletins and spare parts. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 3: Table Of Contents

    5. ASSISTANCE 23-25 Demo Mode Auto Test 23-26 Faults and Solutions 27-30 Troubleshooting Dismantling the TOUCH interface 32-34 6. EXPLODED VIEWS 35-45 7. APPENDIXES Probes Table (Temperature / Resistance) Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 4: Product Type

    T = TOUCH + Ele + Air 18 = 187cm 1 = A steel I = Integrated Everfresh P = BUTTONS + Ele + Air 20 = 200cm 3 = Silver V = Ventilated Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 5: Legend

    6. “HOLIDAY” button 13. FRIDGE display COMPARTMENT temperature 7. “RESET ALARM” button 14. VARIABLE TEMPERATURE selector 8. “SUPER FRIDGE” button COMPARTMENT display 3. FREEZER COMPARTMENT 9. “SUPER FREEZE” button temperature selector Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 6: Energy Label

    1.3. ENERGY LABEL: Energy Label for appliances: Ariston Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 7: Operating Logic

    Consult Indesit New Cold Platform Manual. Consult Indesit New Cold Platform Manual. Operation is identical or similar to equivalent Appliance operation is the same as the Indesit Indesit appliance. brand appliance. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 8: Explanation Of Setting And Operation Of Control Knob Interfaces

    Note.: to activate the I CARE function, the control knob. fridge and freezer knobs must both be set to The first half of the knob’s range activates the the I CARE position. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 9 The Super Freeze function cannot be activated To activate the 48 hour Super freeze function, together with the Holiday function. press and hold the button for 3 seconds. The led Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 10 Another function of the Leds is to alert the user the 48 hour Super Freeze function (only and/or technician to any Faults (see Assistance available on static appliances). chapter - Fault Table). Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 11: Explanation Of Setting And Operation Of Touch Control Interfaces

    Those functions having a duration parameterised in the EEPROM memory will end once the exit conditions are met or, when the function button is pressed again. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 12 The function is activated by pressing the corresponding function button. The function is deactivated at the end of the set time or by pressing the function button again, after which the appliance will continue with normal operation. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 13 In the event of a power failure, when power is restored the function will be reactivated automatically. I CARE: For appliances with control knob interface, the I CARE function, featured on the Ariston New Electronic Cold Platform, is identical to the ECO function on the Indesit New Electronic Cold Platform.
  • Page 14 Note.: entering alarm mode automatically results in deactivation of the function. This function does not interact with other appliance functions and cannot be activated when the appliance is switched off. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 15: Product Characteristics

    2.5 PRODUCT CHARACTERISTICS: SURROUND: The innovative SURROUND refrigeration system featured on all Ariston Full No Frost refrigerators guarantees a uniform temperature throughout the refrigeration compartment thanks to numerous ventilation cells. It is easy to identify since inside the fridge an extension of the multiflow which reaches to the very roof of the compartment is clearly visible.

  • Page 16: Static Appliances

    In this case, the gas is sent first to the variable temperature compartment and then to the freezer compartment. 2 flags Capillary 3: TVZ+Fz Capillary 2: Fz Gas in Capillary 1: Fr+Fz 1 flag Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 17: Full No Frost Appliances

    Cold air from damper to vents Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 18: Components

    3. COMPONENTS: ELECTRONIC THERMOSTAT NO FROST COMBI. Damper Display PCB Variable temperature compartment separator panel Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 19: Wiring Diagrams

    Power supply Compressor Starter relay Running condenser (where fitted) Klixon thermoprotector NF freezer fan R1, R2 Defrosting element Thermo fuse Thermoprotector Fridge door button/magnetic reed Fridge light Fridge air probe Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 20 Freezer fan Wiring Diagram Double Door No Frost Thermo fuse Thermoprotector Evaporator element Drip tray element Freezer fan COMBI DOUBLE DOOR CONNECTIONS NO-FROST NO-FROST MECHANICAL MECHANICAL YES WITHOUT IF PROBES Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 21: Full Wiring Diagram

    (J13 pin 3-4 power supply 12V, with ref. to 220V do not touch the powered card) Evaporator probe (fridge for static models, freezer for NF) Fridge air probe Freezer air probe Variable temperature compartment air probe Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 22 J 10 ---- ---- VACUUM SWITCH VACUUM SWITCH (5-6) (5-6) J 11 J 12 VS AIR PROBE VS AIR PROBE VS AIR PROBE ---- (3-4) (3-4) (3-4) J 13 Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 23: Assistance

    The Autotest function is activated by carrying out the following movements with the thermostat knob: 1. Turn the thermostat knob to the minimum 2. Turn the knob from OFF to the maximum setting (applianceOFF) setting. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 24 (pressing the On/Off button) or by disconnecting and reconnecting the mains power supply. The buzzer emits a beep to signal activation and deactivation. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 25 Autotest activation, the freezer fan switches on and runs until the end of the procedure. Fault signalling: Any faults are signalled by a specific combination of leds on the interface. In the event of Probe faults, the fridge lamp will also flash. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 26 Fault signalling: Any faults are signalled on the fridge and freezer displays (e.g. F01). In the event of Probe faults, the fridge lamp will also flash. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 27: Faults And Solutions

    LED 3 Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Flashing Table. Led Faults Blocking Faults Non-blocking Faults Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 28 - In the case of a production PCB, renew PCB and EEPROM; File setup error (EEPROM not - In the case of replacement PCB and EEPROM, check correct insertion of EEPROM in programmed or faulty) PCB socket. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 29 - Check continuity of connector J13 / LED PCB 5-way and 7-way connectors; - Renew main PCB; - Renew display PCB; For Indesit digit interface PCB and Ariston LED interface PCB on appliances with CCZ and/or Ever Fresh System: - Check effi ciency of contacts on connector J13 on PCB;...
  • Page 30 FRIDGE “-” button - Renew Touch display PCB CCZ button - Renew Touch display PCB FREEZER “+” button - Renew Touch display PCB FREEZER “-” button - Renew Touch display PCB Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 31: Troubleshooting

    - Ice has formed in the duct between the refrigerator and freezer enough. compartments. For No-Frost: Refrigerator - Check temperature probes. compartment too cold - - Damper does not close properly food tends to freeze. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 32: Dismantling The Touch Interface

    2. Using a screwdriver, prise the PCB off at the 5. Pull to remove the PCB and disconnect the bottom on each side. terminals. 3. Remove the surround carefully. 6. PCB disconnected. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 33 5. Remove the damper housing, taking care not 2. Release the screws of the shelf of the variable to damage the connection. temperature compartment. 3. Remove the shelf Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 34 Removing components of the Variable Temperature Compartment: 2. Remove the shelf. 1. Release the screws of the shelf of the variable temperature compartment. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 35: Exploded Views

    CENTRAL HINGE CHROME FINISH STEEL CRISPER COVER PROFILE PW 504X93(PINS 6.5MM) CONDENSATION DRAIN PIPE D.14.5X950 MM “IND” RUBBER SHEET COVER PW FRIDGE CLEANING BRUSH (D.6X120) “RF-ROUND” GLASS CRISPER FLAP (L.491X164) Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 36 BOTTLE RETAINER PROFILE POLARW L=452X63 CONTROL PANEL COVER ALUM. DOOR 586X47(NSPIE BOTTLE HOLDER DOOR TRAY 500X183 GLASS /PW MAGNET. SWITCH 15X10X5 DOOR CLOSED DOOR CLOSURE BUSHING RT GREY 40ø 60219... Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 37 3-WAY SOLENOID BITRON 220/50 R134-R600 CONDENSER 576X1200x48 (R600) RUNNING CONDENSER 4MF (ATT.RAP.8MM) WALL MOUNTED SPACER X CONDENSER “IND.00” POWER CORD 3X0.75 EU MM 2500 POWER CORD HOOK COMPRESSOR CROSSPIECE 586X110 MM UNIT. Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 38 SOLENOID VALVE WIRING (EV2) WIRING-AMP FRIDGE LAMP MODULE HOLDER-SMD LAMP 220-240V/15W (E14) MODULE HOLDER COVER-SMD LAMP COVER (MAX 15W) COLOUR 44 SERIAL PLUG FAN MOTOR SUPPORT-AIR (PW) RUBBER STOP FAN MOTOR “NO-FROST” Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 39 FINISH COVER 56-GREY D.4.5X3M “HINGE” DRAWER RUNNER/CHILLER RT POLARW 370X200 CENTRAL HINGE CHROME FINISH STEEL FRIDGE SEPARATOR PANEL POLARW 497X282X30 CENTRAL HINGE ZAMAK CRISPER COVER PROFILE PW 504X93(PINS 6.5MM) Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 40 CAN HOLDER PW/LIGHT GREEN (361X83) ARISTON LOGO BUTTER DISH (152X50X93) KIT CONTROL PANEL COVER ALUM. DOOR 586X47(NSPIE BOTTLE RETAINER PROFILE POLARW L=423X39 MAGNET. SWITCH 15X10X5 DOOR CLOSED BOTTLE-HOLDER DOOR TRAY 500X104(GLASS/PW) Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 41 ADHESIVE SPONGE L=500X12 POWER CORD HOOK ADHESIVE SPONGE L=1300x12x5 CONDENSER SPACER FREEZER BASE KIT PW (NF) 401X530 DEFROSTING ELEMENT 220V 28.3W (AMP) VACUUM PUMP SUPPORT WIRING COMBY NF (AMP) X SAT Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 42 PROBES 4-WAY CONNECTOR (AMP) KIT RUNNING CONDENSER 4MF (pin M8) PROBES 6-WAY CONNECTOR (AMP) KIT RUNNING CONDENSER 4MF (8MM) ROHS ADHESIVE SPONGE L=1300x12x5 POWER CORD 3X0.75 EU MM 2500 Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 43 CENTRAL HINGE CHROME FINISH STEEL SUPER DRAWER POLARW (LXP 434X394x123) CONDENSATION DRAIN PIPE D.14.5X950 MM “IND” SUP. DRAWER FRONT (429X155) GLASS/PW FRIDGE CLEANING BRUSH (D.6X120) “RF-ROUNDED” ADHESIVE SPONGE L=500X12 Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 44 CONTROL PANEL COVER AL. DOOR 586X47 (3-LEDS BOTTLE-HOLDER DOOR TRAY 500X104(GLASS/PW) LED INDICATOR LENS (A+ CLASS) DOOR CLOSURE BUSHING RT GREY 40ø 60219... MAGNET.SWITCH 15X10X5 DOOR CLOSED DOOR CLOSURE BUSHING LT GREY 40ø 60219... Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 45 WHITE PROFILE L=443.5 MM “FIX.EVAP” POWER CORD HOOK FREEZ.EVAP.CONDENSER L407X473(10PIPELINES+ROUND PROBES 6 WAY CONNECTOR (AMP) KIT EEPROM COMBY2005 SW 28347950000 ST-STRIP PROBES 4-WAY CONNECTOR (AMP) KIT FULL POWER BOARD WITHOUT EEPROM Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...

  • Page 46: Appendixes

    68565,90983 22971,03419 64868,25279 21881,36283 61391,83683 20849,53175 58122,21121 19872,16807 55045,94375 18946,11223 52150,54393 18068,4035 49424,39237 17236,26649 46856,67575 16447,09875 44437,32697 15698,45915 42156,97006 14988,05714 40006,86932 14313,74275 37978,88256 13673,49734 36065,41784 13065,42494 34259,39368 12487,74426 32554,20227 Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
  • Page 47 Indesit Company viale Aristide Merloni, 47 60044 Fabriano - Italy tel. +39 0732 66 11 - telex 560196 - fax +39 0732 66 2954 - www.indesitcompany.com Service Manual Edition Language NEW ARISTON 60 cm PLATFORM 2006.06.15 English...
