Summary of Contents for JVC GR-AX247UM

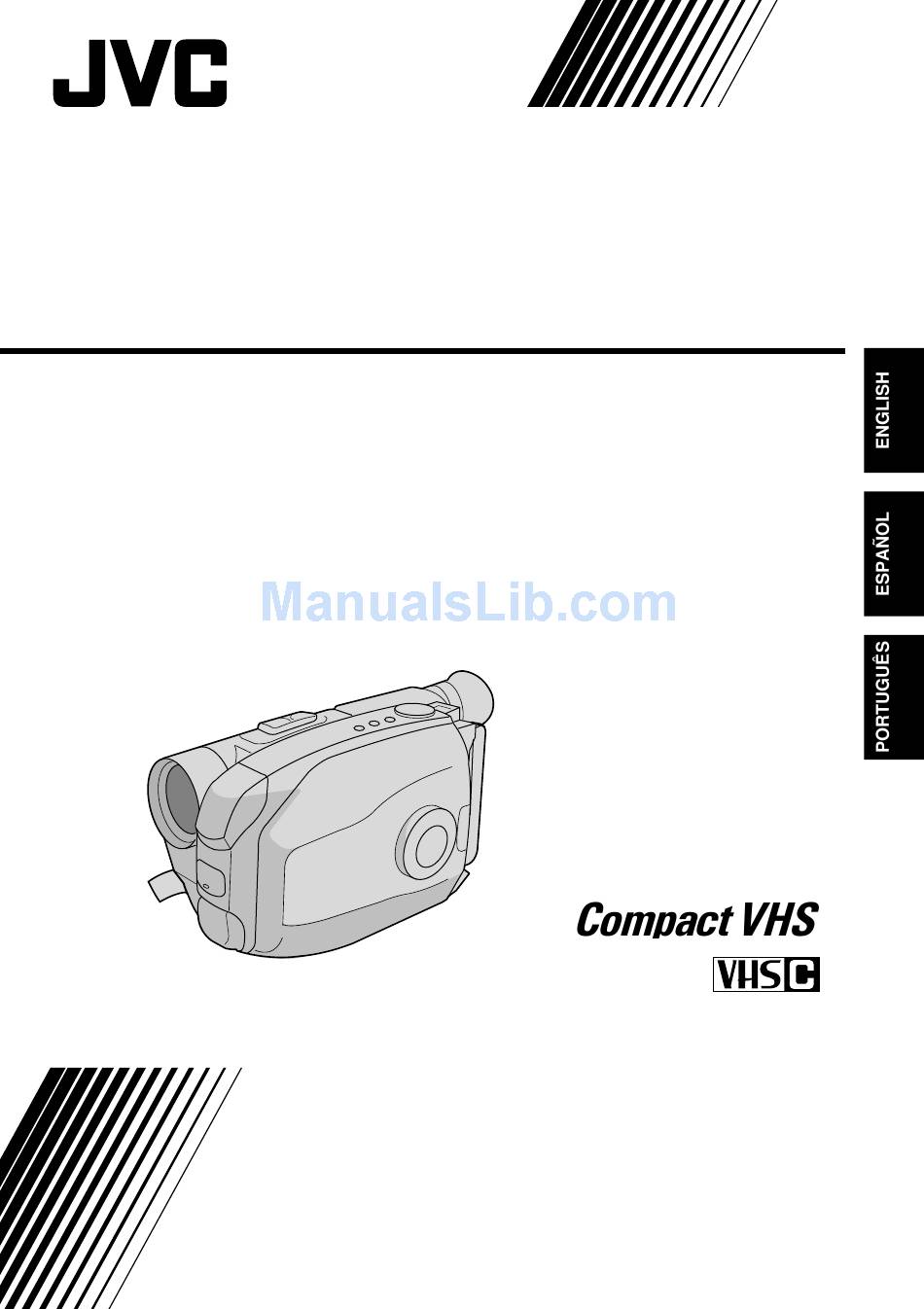

- Page 1 COMPACT VHS CAMCORDER CAMARA DE VIDEO VHS COMPACTO CÂMERA VHS COMPACTA GR-AX847UM GR-AX247UM INSTRUCTIONS MANUAL DE INSTRUCCIONES INSTRUÇÕES LYT0105-001B...
- Page 2 Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents ( pg.
-
Page 3: Important Product Safety Instructions
IMPORTANT PRODUCT SAFETY INSTRUCTIONS Electrical energy can perform many useful func- tions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing. - Page 4 1. Accessories To avoid personal injury: • Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product. • Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
-
Page 5: Quick Operation Guide
Hook on. BATT. RELEASE Using the battery pack Hook-on the battery pack’s top end to the camcorder. (Charging procedure, Push in the battery pack until it locks into place. To remove the battery pack Slide BATT. RELEASE and pull out the battery pack. -
Page 6: Major Features
1/2000 sec. High Speed Shutter PROVIDED ACCESSORIES •AC Power Adapter/ Charger AA-V15U • DC Cord Cassettes marked can be used with this camcorder. Integrated Auto Light (GR-AX847 only) ( 5Sec.-Rec (5 sec. Recording) 22x Optical Hyper Zoom Zoom-in ND Effect... -
Page 7: Table Of Contents
CONTENTS GETTING STARTED Power ... 8 Clock (Lithium) Battery Insertion/Removal ... 10 Date/Time Setting ... 11 Recording Mode Setting ... 12 Tape Length Setting ... 12 Loading/Unloading A Cassette ... 13 Grip Adjustment ... 14 Viewfinder Adjustment ... 14 Shoulder Strap Attachment... 15 Tripod Mounting ... -
Page 8: Getting Started
BN-V25U USING THE BATTERY PACK Hook on. ATTACH BATTERY PACK Hook its top end to the camcorder and push the battery pack in until it locks in place. DETACH BATTERY PACK Slide BATT. RELEASE and pull out the battery pack. - Page 9 The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should blink during recharging. If not, contact your nearest JVC dealer. DC OUT...
-
Page 10: Clock (Lithium) Battery Insertion/Removal
GETTING STARTED Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. SWITCH OFF POWER Switch off the unit’s power and remove the power supply unit. OPEN COVER Open the clock battery compartment cover while pressing the release tab. -
Page 11: Date/Time Setting
Select Dial MENU Jog Dial Viewfinder MENU MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 1. 98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT Menu Screen DATE TIME 1998 YEAR MONTH 12-hour TIME PM 12:00 indication with AM or PM EXIT... -
Page 12: Recording Mode Setting
SP/EP Recording Mode Button Select Dial Viewfinder MENU MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25.98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT Menu Screen TAPE LENGTH EXIT TAPE LENGTH Setting Menu MENU MENU END FOCUS AUTO EXPOSURE... -
Page 13: Loading/Unloading A Cassette
Make sure the Erase Protection tab is in the position that allows recording. If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape. The cassette holder can’t be opened while the camcorder is in the record mode. -
Page 14: Grip Adjustment
Power Zoom Button Recording Start/Stop Button Set POWER to “CAMERA”. GETTING STARTED Grip Adjustment EXPAND LOOP Separate the Velcro strip. INSERT HAND Pass your right hand through the loop and grasp the grip. ADJUST STRAP LENGTH Adjust so your thumb and fingers can easily operate the Recording Start/Stop Button and Power Zoom Button. -
Page 15: Shoulder Strap Attachment
Then tighten the screw. CAUTION: When using a tripod, be sure to open and extend its legs fully to stabilize the camcorder. To prevent damage to the unit caused by falling over, do not use a small-sized tripod. , then fold it back... -
Page 16: Recording
Slide the LENS COVER Open/Close Switch to open the lens cover, then set the Power Switch to CAMERA. •The power indicator lights and the camcorder enters the Record-Standby mode. •The scene you’re aimed at appears on the viewfinder screen, with the word “PAUSE”... - Page 17 Retake function ( the end of the last recording so you don’t erase any of The LENS COVER warning blinks for about 5 seconds when the camcorder is turned on when the cover is closed. pg. 12).
-
Page 18: Basic Features
Zoom-in Zoom indicator bar Power Zoom button Select Dial Viewfinder MENU MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT Menu Screen ZOOM SPEED FAST SLOW EXIT ZOOM SPEED Setting Menu FEATURE: PURPOSE: OPERATION:... - Page 19 FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1) Make sure the camcorder is in the Record-Standby mode. 2) Press either RETAKE button to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses 3) Press Recording Start/Stop Button to start recording.
- Page 20 To recall the display, engage the Record-Standby mode and press DATE/TIME repeatedly until the desired display appears. AUTO DATE RECORD Your camcorder automatically records the date for about 5 seconds after recording is initiated in the following situations: After changing the date.
- Page 21 30 cm. (1 ft.) between the video light and people or objects. Do not use near flammable or explosive materials. It is recommended that you consult your nearest JVC dealer for replacing the video light. FEATURE: Video Light (GR-AX847 only) PURPOSE: To brighten the scene when natural lighting is too dim.
-
Page 22: Advanced Features
1 second later, the mode is activated. After 1 sec. SEPIA Viewfinder Select Dial RECORDING Program AE With Special Effects All you have to do to access any of the variety of shooting effects is to turn the Select Dial. SELECT MODE Turn the Select Dial until the symbol of the function you want is aligned with the mark. - Page 23 LOCK AUTO LOCK Auto Mode Lock Auto Mode Lock Locks the camcorder in Full Auto mode, preventing incorrect operation due to accidental button pressing during shooting. • In this mode the following controls are disabled; DATE/TIME display select, and the Menu Jog Dial.
- Page 24 Fade-in Viewfinder EFFECT After 2 sec. FADER EFFECT WIDE Viewfinder NOTE (for Fader, Wide, Super LoLux, and Instant Titles) When the Select Dial is turned to AUTO LOCK, the above functions will be set to the Factory settings (Fade-standby : “OFF”, Wide mode : off, Super LoLux : “MAX”, Instant Title : off). Then when the Select Dial is returned to any position except AUTO LOCK, the above functions return to the settings you selected before turning it to AUTO LOCK.
-
Page 25: Instant Titles
: Allows you to shoot dark scenes with no picture brightness adjustment. Instant Titles The camcorder has eight preset titles in memory. You can superimpose one of them above a previously stored title as shown in the illustration to the left. -
Page 26: Using Menu For Detailed Adjustment
MENU END Normal Screen RECORDING Using Menu For Detailed Adjustment This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO LOCK, then press the MENU Jog Dial. - Page 27 Allows you to select the language (ENGLISH, FRENCH, SPANISH or PORTUGUESE) of Instant Titles ( JLIP ID NO. This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07.
- Page 28 ( pg. 18). If zoomed-in in the auto focus mode, the camcorder could automatically zoom out depend- ing on the distance between the camcorder and the subject. When Tele Macro ( camcorder will not zoom out automatically. ” appears.
- Page 29 Select Dial MENU Jog Dial Viewfinder MENU MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25. 98 TELE MACRO TAPE LENGTH No indication M. W. B. AUTO ZOOM SPEED FAST during NEXT recording Menu Screen FOCUS AUTO MANU No indication EXIT during Focus Menu Screen...
-
Page 30: Exposure Control
Select Dial Viewfinder MENU MENU END FOCUS AUTO EXPOSURE AUTO DATE TIME 25.98 TELE MACRO TAPE LENGTH M. W. B. AUTO ZOOM SPEED FAST NEXT Menu Screen EXPOSURE AUTO MANU EXIT Exposure Menu Screen Manual Exposure Screen To brighten the image –... -
Page 31: Manual White Balance Adjustment
PREPARE WHITE OBJECT Point the camcorder at a white, flat object such as a sheet of white paper. SELECT MWB Follow step 1 through 3 of the above, select “MWB”. - Page 32 Self-Timer You can set the delay between pressing the Recording Start/Stop Button and the actual start of recording. If you secure the camcorder, you (or whomever is operating the camcorder) can enter the scene before recording starts. NOTE: Make sure the camcorder is in the Record-Standby mode before performing the following steps.
-
Page 33: Start Recording
NOTE: Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps. ACCESS MENU SCREEN Turn the Select Dial to any position except AUTO LOCK, then press MENU Jog Dial. -
Page 34: Playback
PLAYBACK Cassette Adapter (VHS Playpak) Use this to play back a VHS-C video cassette recorded with this camcorder. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading. -
Page 35: Basic Connections
VIDEO OUT connectors on the camcorder and those on the VCR. SUPPLY POWER Turn on the camcorder, the VCR and the TV. SELECT MODE Set the VCR to its AUX input mode, and set the TV to its VIDEO mode. -
Page 36: Basic Playback
Press REW to rewind, or FF to fast-forward the tape during Stop mode. NOTE: The camcorder shuts off automatically after about 5 minutes in Stop mode. To turn on again, set the Power Switch to “POWER OFF”, then to “PLAY”. -
Page 37: Features
Dial. “AT” blinks. When Auto Tracking finishes, the indication disappears. NOTES: When noise bars appear during playback, the camcorder enters the Auto Tracking mode and “AT” is displayed. Manual Tracking may not work with tapes recorded on other VCRs or camcorders. - Page 38 STOP FEATURE: PURPOSE: COUNTER R/M OPERATION: PLAY/PAUSE NOTE: FEATURE: PURPOSE: OPERATION: NOTE: FEATURE: PURPOSE: OPERATION: NOTES: PLAYBACK Features (cont.) Still Playback To pause during playback. 1) Press PLAY/PAUSE during playback. 2) To resume normal playback, press PLAY/PAUSE again. Noise bars appear and pictures may become monochrome during Still Playback.
-
Page 39: Tape Dubbing
VCR. SELECT VCR MODE Engage the VCR’s AUX and Record-Pause modes. FIND EDIT-IN POINT Engage the camcorder’s Play mode to find a spot just before the edit-in point. Once it’s reached, press PAUSE on the camcorder. START EDITING Press PLAY on the camcorder and engage the VCR’s... - Page 40 USING REMOTE CONTROL UNIT (GR-AX847 only) The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional recording functions possible.
- Page 41 Transmitted beam effective area Remote sensor When using the remote control, be sure to point it at the remote sensor. The above illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.
-
Page 42: Using Remote Control Unit (Gr-Ax847 Only) Random Assemble Editing
REC STBY (you don’t need to press VCR CTL for this one). You’re now ready to try Random Assemble Editing. IMPORTANT Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions. NOTES: If the VCR’s power doesn’t come on in step 1, try... -
Page 43: Make Connections
CONNECT TO . . . JVC VCR EQUIPPED WITH REMOTE PAUSE TERMINAL Connect the editing cable to the Remote PAUSE terminal. JVC VCR NOT EQUIPPED WITH REMOTE PAUSE TERMINAL BUT EQUIPPED WITH R.A. EDIT CONNECTOR Connect the editing cable to the R.A.EDIT connector. - Page 44 USING REMOTE CONTROL UNIT (GR-AX847 only) PLAY/PAUSE PLAY IN/OUT 0:00:25 --: -- : -- COUNTER 0:00:25 TOTAL 0:00:00 0:00:25 0:01:05 0:03:18 0:03:31 0:02:33 0:02:53 0:04:11 --: -- : -- COUNTER 0:04:11 TOTAL 0:01:13 SELECT SCENES ACCESS R.A. EDIT COUNTER DISPLAY STOP Press PLAY/PAUSE, then press ON/OFF and the counter display appears in the viewfinder and the...
- Page 45 VCR REC STBY, or manually engage the VCR’s Record-Pause mode. BEGIN AUTOMATIC EDITING Press the MENU Jog Dial on the camcorder, and the previously selected scenes are copied to the VCR in the specified order. While editing, the R.A. Edit counter of the scene which is beging copied is shown with a blinking highlight.
-
Page 46: Insert Editing
ENGAGE INSERT EDITING MODE Press and hold INSERT, and without releasing INSERT, press and release PAUSE. The Insert mode is engaged. When the scene the camcorder is aimed at appears on the screen, go to the next step. BEGIN INSERT EDITING Press START/STOP. -
Page 47: Audio Dubbing
A. DUB, press and release PAUSE. BEGIN AUDIO DUBBING Press PLAY. When the counter reaches “0:00:00”, Audio Dubbing stops automatically and the camcorder enters the Audio Dub-Standby mode. END AUDIO DUBBING Press STOP. NOTES: Do not press FF or REW during Audio Dub-Standby, or the edit points will not be accurate. -
Page 48: User Maintenance
PUSH. Slide BATT. RELEASE to remove the battery pack. Slide the LENS COVER open/close switch to close the lens cover. Cleaning The Camcorder CLEAN EXTERIOR Wipe gently with a soft cloth. CLEAN LENS Blow it with a blower brush, then wipe gently with lens cleaning paper. -
Page 49: Troubleshooting
Remove the cassette and disconnect the power source, then after a few minutes, try turning the power back on. If it still doesn’t come on, consult your nearest JVC dealer. Make sure the Erase Protection tab is in the position that allows recording. - Page 50 Lens Cover Warning indicator blinks. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.
-
Page 51: Index
INDEX 30MIN REC SP Viewfinder Indications Cassette Warning/ Tape Remaining Time ... When no cassette is inserted: the cassette ( warning blinks. When Erase Protection tab is not in the position that allows recording: the cassette ( lights. Otherwise, the tape remaining time is displayed and the tape remaining time warning blinks when the tape is about to reach its end. -
Page 52: Controls
q w e r & INDEX Controls... -
Page 53: Connectors
25 • It is used to connect the camcorder to a device pg. 13 such as a personal computer. pg. 12 For further details consult your nearest JVC dealer. pg. 20 • JLIP-controlled editing from camcorder to VCR pg. 38 is not possible if the VCR is not equipped with pg. -
Page 54: Terms
AC Power Adapter ... pg. 8 Animation Recording ... pg. 33, 41 Audio Dubbing ... pg. 47 Auto Date Record ... pg. 20 Auto Focus ... pg. 28 Auto Mode Lock Mode ... pg. 23 Auto Mode Release Mode ... pg. 23 Battery Pack ... -
Page 55: Cautions
AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer. General Battery Precautions • When the C-P6U or C-P7U (cassette adapter) is not functioning even when correctly operated, the battery is exhausted. -
Page 56: Main Unit
Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself. Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer. (cont.) -
Page 57: Specifications
•Compact VHS-C Cassettes TC-40/30/20 •Active Carrying Bag CB-V7U •Remote Control Unit RM-V700U Some acccessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability. Specifications shown are for SP mode unless otherwise indicated. - Page 58 VICTOR COMPANY OF JAPAN, LIMITED Printed in Japan COPYRIGHT© 1998 VICTOR COMPANY OF JAPAN, LTD. 0198MKV...
