Lenovo G70-70/G70-80/Z70-80 Hardware Maintenance Manual

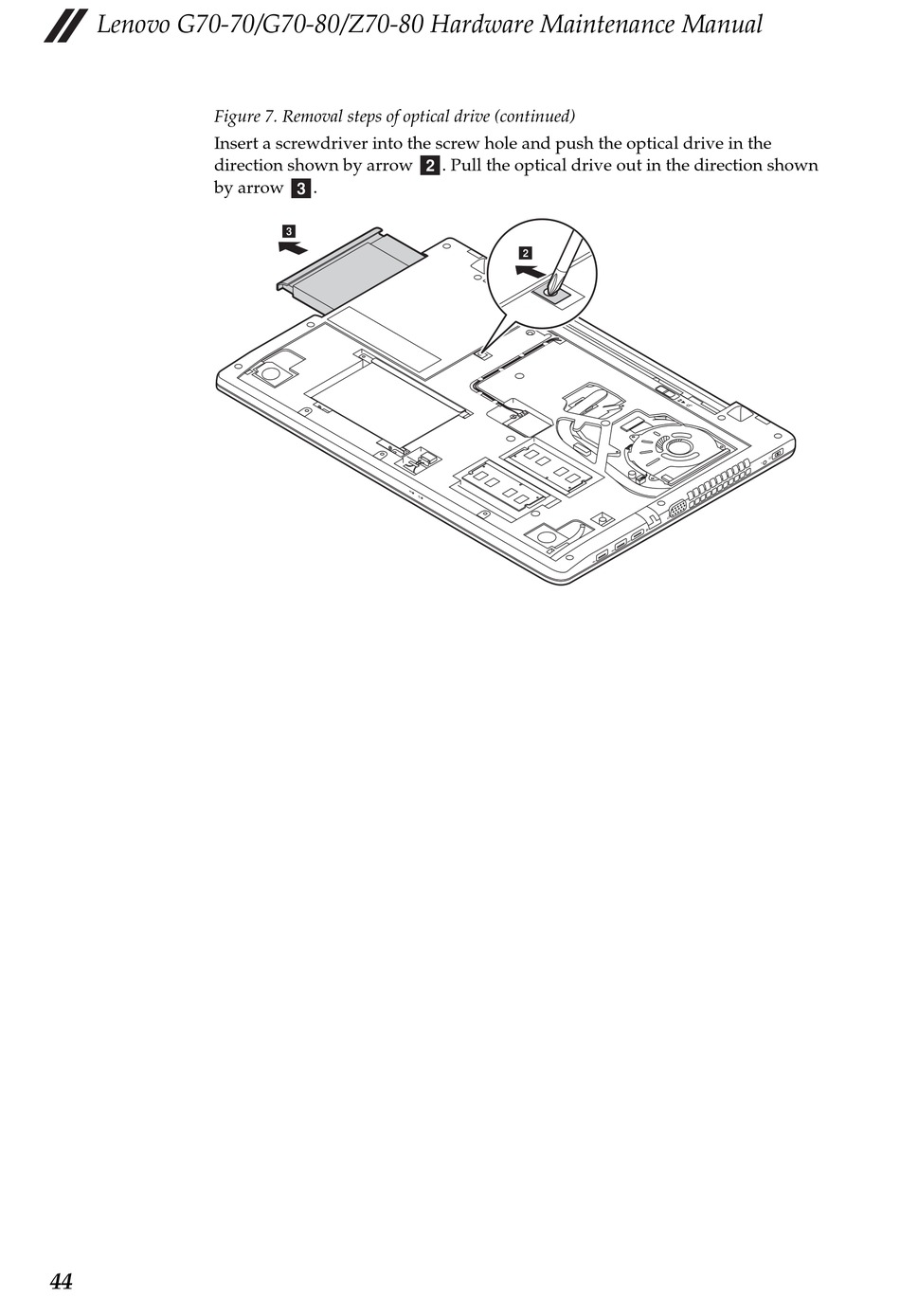

Figure 7. Removal steps of optical drive (continued)
Insert a screwdriver into the screw hole and push the optical drive in the
b
direction shown by arrow . Pull the optical drive out in the direction shown
c
by arrow .
c
b
44
