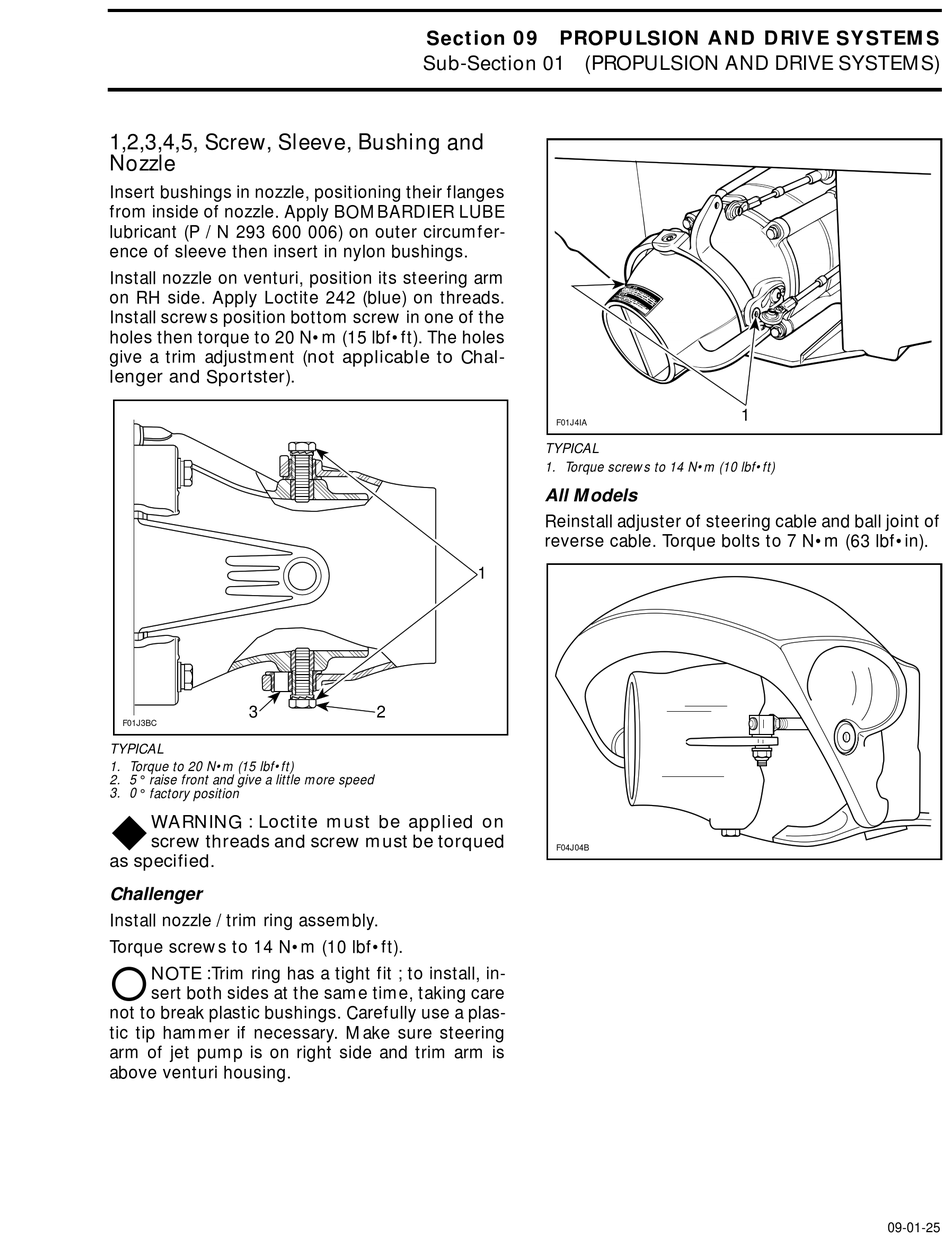

1,2,3,4,5, Screw, Sleeve, Bushing and
Nozzle
Insert bushings in nozzle, positioning their flanges
from inside of nozzle. Apply BOMBARDIER LUBE
lubricant (P / N 293 600 006) on outer circumfer-
ence of sleeve then insert in nylon bushings.
Install nozzle on venturi, position its steering arm
on RH side. Apply Loctite 242 (blue) on threads.
Install screws position bottom screw in one of the
holes then torque to 20 N•m (15 lbf•ft). The holes
give a trim adjustment (not applicable to Chal-
lenger and Sportster).
3
F01J3BC
TYPICAL
1. Torque to 20 N•m (15 lbf•ft)
2. 5 ° raise front and give a little more speed
3. 0 ° factory position
;
WARNING : Loctite must be applied on
screw threads and screw must be torqued
as specified.
Challenger
Install nozzle / trim ring assembly.
Torque screws to 14 N•m (10 lbf•ft).
'
NOTE :Trim ring has a tight fit ; to install, in-
sert both sides at the same time, taking care
not to break plastic bushings. Carefully use a plas-
tic tip hammer if necessary. Make sure steering
arm of jet pump is on right side and trim arm is
above venturi housing.
Section 09 PROPULSION AND DRIVE SYSTEMS
Sub-Section 01 (PROPULSION AND DRIVE SYSTEMS)
TYPICAL
1. Torque screws to 14 N•m (10 lbf•ft)

All Models

Reinstall adjuster of steering cable and ball joint of
reverse cable. Torque bolts to 7 N•m (63 lbf•in).
