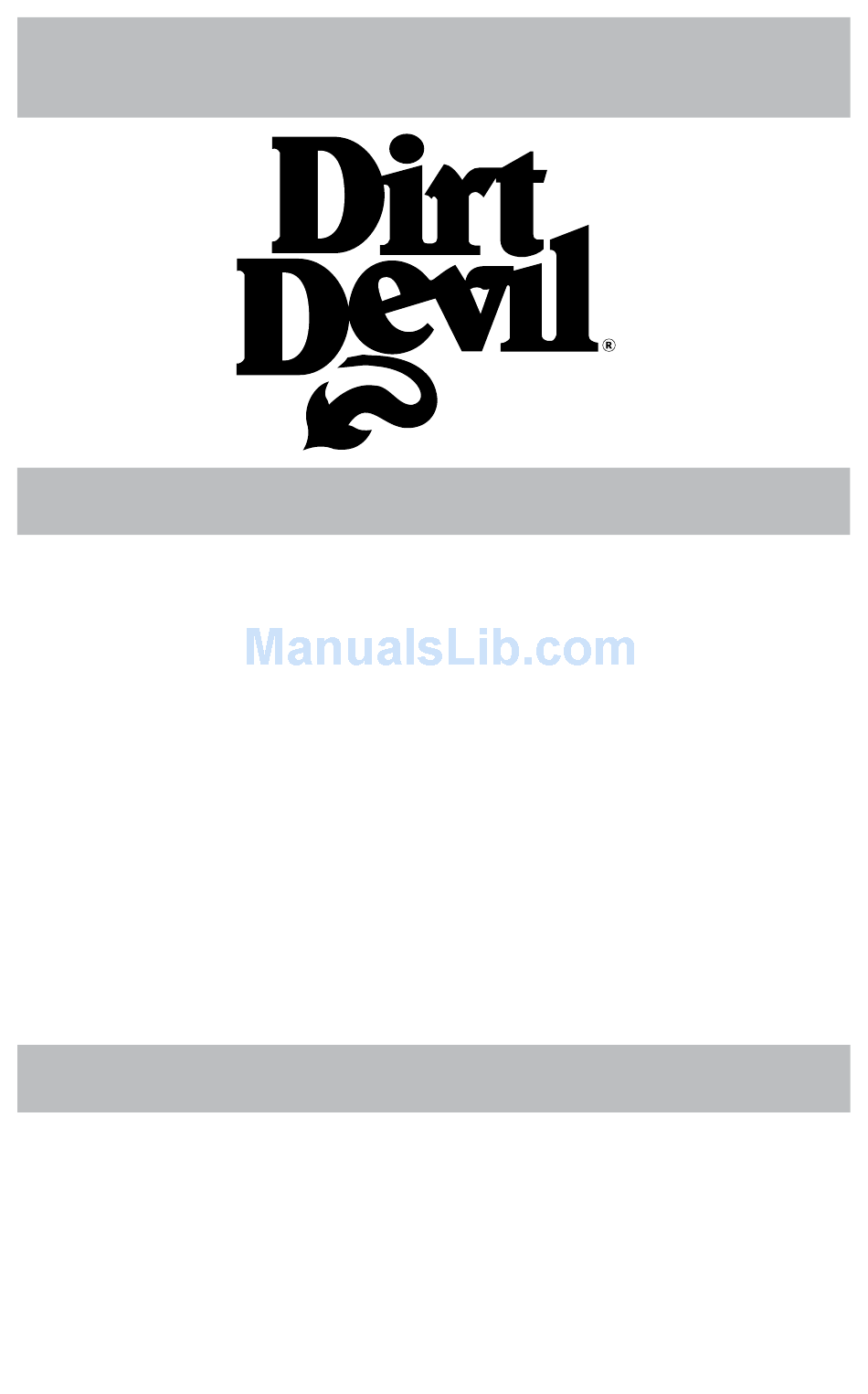

Dirt Devil 390 Operating Instructions Manual
Pro series
Hide thumbs
Also See for 390:
- Operating instructions (2 pages) ,
- Operating instructions manual (16 pages) ,
- Operating instructions manual (16 pages)
Advertisement
Table of Contents
READ MANUAL BEFORE OPERATING SYSTEM
Read the owner's manual thoroughly before operating to ensure
ATTENTION INSTALLER: Please be sure this manual and warranty information are
left with the power unit or customer when installation is complete.
Operating Instructions For
390, 690, 990 & 1490
512 West Gorgas Street • P.O. Box 3912 • Louisville, OH 44641-3912
1-800-822-8356 • www.dirtdevilproseries.com
Dealer Name _____________________________________________
Dealer Phone _____________________________________________
Serial Number ____________________________________________
the most efficient use of the system.
Dirt Devil
Pro Series
MODELS
Pro Series
®
P/N 8788 • 09/11
Advertisement
Table of Contents
Related Manuals for Dirt Devil 390
Summary of Contents for Dirt Devil 390
- Page 1 Operating Instructions For Dirt Devil ® Pro Series MODELS 390, 690, 990 & 1490 512 West Gorgas Street • P.O. Box 3912 • Louisville, OH 44641-3912 1-800-822-8356 • www.dirtdevilproseries.com Dealer Name _____________________________________________ Dealer Phone _____________________________________________ Serial Number ____________________________________________...
-
Page 3: Important Safety Instructions
MODELS: 390, 690, 990 & 1490 • Dirt Devil Pro Series ® IMPORTANT SAFETY INSTRUCTIONS Read These Instructions Before Using This Vacuum System When using an electrical appliance, basic precautions should always be followed, including the following: WARNING: To reduce the risk of fire, electric shock or injury: • Unplug and disconnect power before servicing. -
Page 4: Grounding Instructions
MODELS: 390, 690, 990 & 1490 • Dirt Devil Pro Series ® Connect To A Properly Grounded Outlet Only. GROUNDING INSTRUCTIONS This appliance must be grounded. If it should malfunction or break down, grounding provides Grounding Method: a path of least resistance for electric current to 390, 690, 990 reduce the risk of electric shock. This appliance is equipped with a cord having an equipment grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person Figure A if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided... -
Page 5: General Information

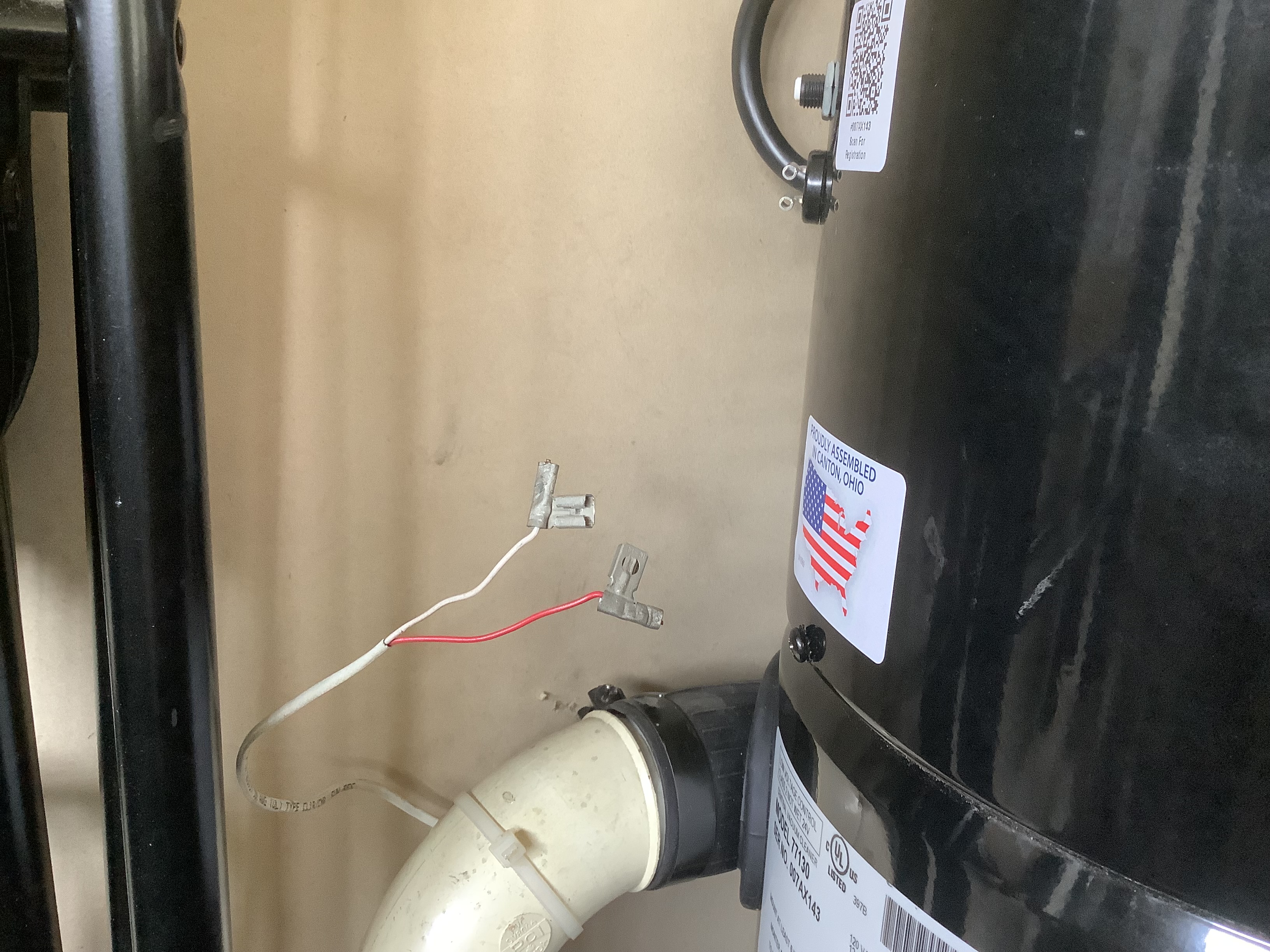

General Information Do not store objects on top of the power unit. This will block the motor cooling ventilation. Restricting the cooling airflow may shorten the motor life. The central vacuum is designed to vacuum ordinary household dirt and dust. The system is designed for dry pickup. A WetVac accessory is needed if the system will be used for liquid pickup. The central vacuum system is a network of inlet valves, 2” PVC tubing, and low voltage wiring installed in the walls of your home. To operate the system, simply plug the hose into an inlet valve, attach the cleaning tool to the curved hose end and begin vacuuming. The dirt is transported through the in-wall tube system back to the dirt canister (located on the power unit). Caution: Do not allow the motor to remain turned on, unless a hose is connected or an inlet valve is open. -
Page 6: Follow These Steps
MODELS: 390, 690, 990 & 1490 • Dirt Devil Pro Series ® Emptying the Dirt Canister & Replacing the Filter Cartridge The dirt canister – where the vacuumed dirt is deposited – is the removable lower portion of the power unit. The canister needs to be Illustration #1 removed and emptied when it is 2/3 full. The filter cartridge should be replaced once a year. NOTE: When the dirt canister is removed the Cyclonic Cone will be visible. The cone is held in place with a friction seal designed to hold the cone to the body of the power unit when the canister is removed. The cone can be removed by pulling on it. This allows access to the replaceable pleated filter. Follow these steps (refer to Illustration #1, #2, #3 and #4) -
Page 7: Troubleshooting The System
Troubleshooting the System Motor Fails to Turn On: • Check the main fuse or circuit breaker at the main power supply panel of your home. Reset breaker or replace fuses if necessary. • Check the Power Unit reset button located above the power cord. Pressing the button should restore operation. • If the circuit protector continues to trip off after a short period of time, the motor brushes may be worn out. Contact the qualified servicing dealer written on the front of this manual or locate an authorized dealer on-line at www.dirtdevilproseries.com for service. Loss of Vacuum If the system shows a loss of vacuum power, check the following: • The dirt receptacle may need cleaned or the filter may need replaced – follow instructions in this guide. • The hose may be clogged – To check if there is an obstruction, unplug the hose and insert an object that is smaller then the diameter of the hose (A butter knife works well). Pass the object completely through the hose, if it stops that will indicate where the obstruction is located. A dry garden hose can be inserted into the hose to help push the obstruction through. • The Dirt Canister may not be properly seated to the gasket – Follow instructions for replacing the dirt canister. • Tube lines may be obstructed – First check the 90 degree elbow located directly behind the inlet valves, if an obstruction occurs it will usually not make it past this elbow. If the obstruction is not visible at the elbow, attempt to purge the tubing at each inlet valve. To do this, connect the hose and use your hand to stop airflow at the end of the hose for a couple seconds, let airflow resume. Repeat if necessary. • If necessary, contact the qualified servicing dealer written on the front of this manual or locate an authorized dealer on-line at www.dirtdevilproseries.com to perform required maintenance. -
Page 8: Importantes Mesures De Securité
MODELS: 390, 690, 990 & 1490 • Dirt Devil Pro Series ® IMPORTANTES MESURES DE SECURITÉ Lisez Complètement Le Mode D’emploi Avant D’utiliser Ce Système D’aspirateur. En employant un appareil électrique, des précautions fondamentales devraient toujours être prises, y compris: AVERTISSEMENT Pour réduire les dangers de feu, d’électrocution,... -
Page 9: Instructions De Mise À La Terre
Ne brancher l’appareil qu’à une prise avec mise à la terre. INSTRUCTIONS DE MISE À LA TERRE Cet appareil doit avoir une mise à la terre. Si METHODE DE MISE Á LA TERRE une défectuosité ou autre survenait, la mise à la terre offre une voie de moindre résistance au 390, 690, 990 courant électrique, d’où un risque moins élevé d électrocution. Cet appareil est équipé d’ un cordon électricque ayant un conducteur et une fiche de mise à la terre. Cette fiche doit être branchée dans une prise appropriée qui a été installée et mise à la terre convenablement en accord avec le code électrique de votre région. AVERTISSEMENT Un branchement incorrect de l’équipement de mise à la terre peut causer un risque d’électrocution. Si Modéle A vous avez un doute concernant la mise à la terre de... -
Page 10: Limited Warranty
(c) any Dirt Devil central vacuum system ® or attachment which has been altered or modified in any way; (d) any Dirt Devil central vacuum system ® or attachment which has been damaged due to misuse, negligence, accident, or improper operation; (e) any damage due to shipping and handling;...
