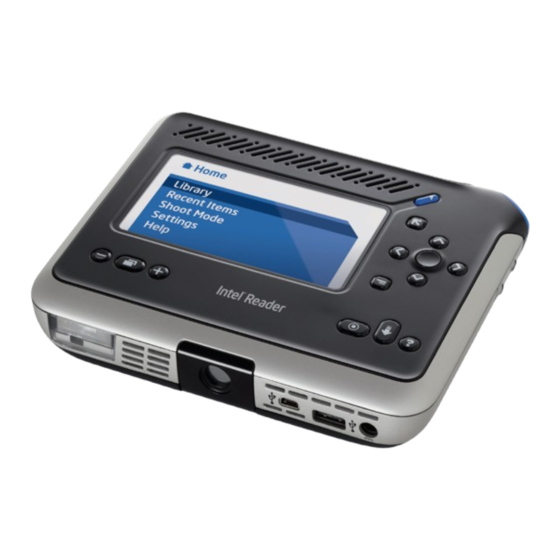

Intel® Reader

Quick Start Guide

Read Me First

Advertisement

Table of Contents
loading

Related Manuals for Intel Reader

Summary of Contents for Intel Reader

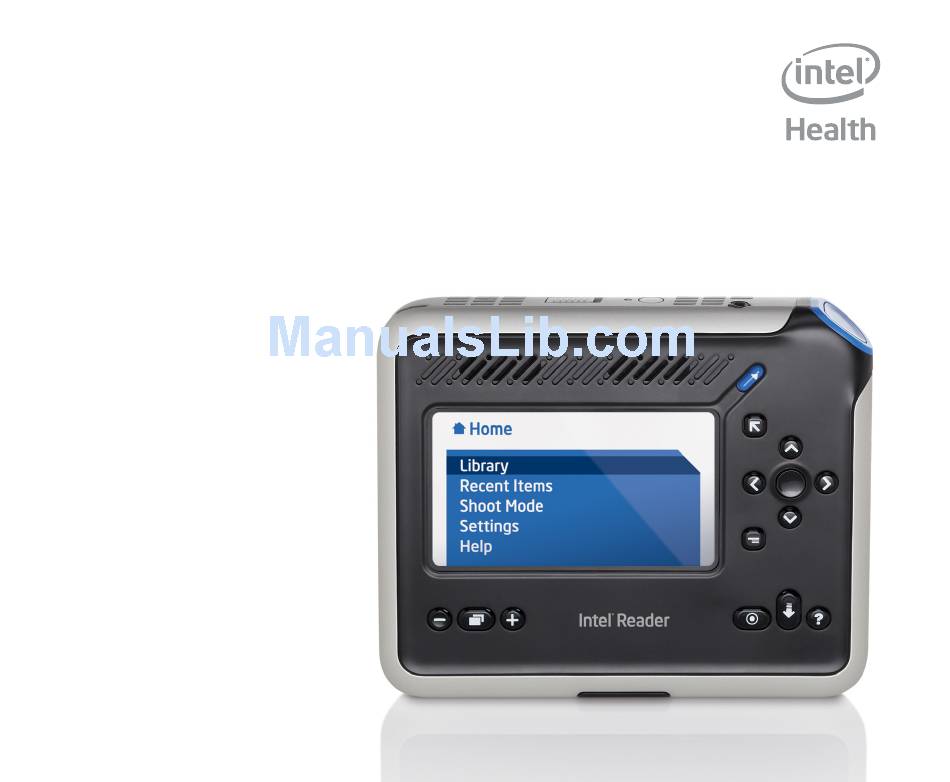

  • Page 1: Quick Start Guide

    Intel® Reader Quick Start Guide Read Me First...
  • Page 3 WARNING: Do not rely on the Reader as a sole means of reading safety or hazard warnings, medication labels or instructions, food labels or ingredient lists, or financial or legal documents, when a reading inconsistency or misreading of written text might put you at risk of personal injury or economic harm.
  • Page 5 The Reader can convert a variety of materials, including books, magazines, and even daily mail. The Reader is small enough to take with you, and discreet enough to use anywhere, anytime.

  • Page 6: Box Contents

    Box Contents The Reader box includes a Reader, battery, carrying case, power cord and power adapter, a USB cable, earphones, a safety and warranty booklet, a Practice Page, and a Quick Start Guide. It also includes an audio CD that contains the User Manual and Quick Start Guide in PDF format, and in audio and digital talking book formats.

  • Page 7: Getting Started

    Hold the battery pack with the angled corner at the top left. Lay the battery on top of the Reader, aligning the left and right edges of the battery with the left and right edges of the Reader.

  • Page 8: Charge The Battery

    3. Charge the battery. Turn the Reader over so that the display screen is facing up and the camera is pointing toward you. Attach the power cord to the power adapter. Then, insert the power adapter plug into the power port. When the Reader's display screen is facing up and the camera is pointing toward you, the power port is at the far right of the camera.
  • Page 9 Press the Power button for 1 to 3 seconds. Power is the round button near the center of the top edge of the Reader. If the Reader is plugged into a power outlet, the LED light beside the Power button is amber after you press Power. If the Reader is not plugged in, the LED is green.

  • Page 10: Point, Shoot, Listen

    Point, Shoot, Listen Capturing and playing text with the Reader is as easy as point, shoot, listen. You use two buttons on the Reader to capture and play text: Shoot and Play. The Shoot button is the large button on the angled corner of the Reader. To capture text, you press the Shoot button twice.
  • Page 11 Place the Reader into Shoot mode by pressing the Shoot button once. 2. Point. Hold the Reader in front of you and above the text you wish to capture. Do not pull the Reader toward you. When you are seated, the Reader should be at approximately nose level.
  • Page 12 If you are using the display screen, a small gear icon appears at the upper left of the screen, to indicate that the Reader is converting the image into text. Several factors affect the speed of the conversion, including the size of the printed text, whether it contains images, and what fonts it uses.
  • Page 13 When the entire first page is ready to be played, the Reader announces, "Page one of one processed," if you have the menu reading option turned on. At the same time, a tone plays, to alert...
  • Page 14 4. Listen. Press the Play button to listen to the text. Play is the diagonal button above the upper right corner of the display screen. When you want to pause the playback, press Play again. o o o o o o o o o o o o o o o o o o o o o o...

  • Page 15: Tips For Good Results

    • To ensure proper focus, hold the Reader at approximately nose level when you are seated in front of the printed material. If the Reader is too close to or too far from the text being captured, the results will vary. Be sure to hold the Reader still when capturing an image, and allow the device to adjust to lighting conditions for a few seconds before shooting the first image.
  • Page 16 For more information about any feature, refer to the Reader User Manual. This section describes the top edge of the Reader as the edge that is on top when the display screen is facing you and the angled corner is at the top right.
  • Page 17 Reader Controls Hold Power Shoot Play Back Volume Navigation Arrows View Toggle Options Zoom Out Zoom In Voice Speed Location Guide...
  • Page 18 This sequence can take up to 60 seconds. • To place the Reader in Sleep mode when the Reader is on, press Power for 1 to 3 seconds. To start the Reader when it is in Sleep mode, press Power for 1 to 3 seconds.
  • Page 19 When you pause a text reading, you can press OK for more than one second to have the Reader spell a word aloud. Navigation Arrows (Up, Down, Left, and Right): Four round, raised buttons surrounding the OK button.
  • Page 20 want to view a diagram or picture on one of the pages. When the playback moves to a subsequent page, the image of the new page appears. You can enlarge the image to get a better look at any portion of it. View Toggle: A horizontal, oval button in the middle of the three buttons at the lower left of the display screen.
  • Page 21 • Open the Device Status screen to view the current date and time, check the battery's charge, and see the Reader's storage capacity. • Access the Help menu to play an introduction to the Reader, or to play the Quick Start Guide or the User Manual. The Quick Start Guide and User Manual are text e-Books that you can navigate as you do other e-Books.
  • Page 22 For More Information You can listen to this Quick Start Guide and the Reader User Manual on the CD that comes with your Reader, or by accessing Help files on the Reader itself. The Help files also contain a short introduction to the Reader.

  • Page 23: Frequently Asked Questions

    Keep the Reader away from overhead lights, desk lamps or windows. Question: I backed my Reader files up on a computer but it is difficult to find a file in the backup folder on the computer. How can I make files easier to find? Answer: When you back up files, copy the files as a group so that they are organized in the same way on the computer as they are on the Reader.
  • Page 24 Here are examples of some differences that can occur: Mathematical, currency, and scientific symbols can be misinterpreted. The Reader is designed to convert text into speech, and is not intended for reading primarily mathematical, scientific, or financial data. In time stamps, such as 9:00, the colon can be ignored, so that the number reads as nine hundred.
  • Page 25 Question: Will I damage the Reader by leaving it plugged in? Answer: You cannot over-charge the Reader by leaving it plugged in for an extended period. However, you should unplug the Reader if there is danger of an electrical storm, to prevent damage to the Reader.
  • Page 28 United States & Canada Copyright © 2010, Intel Corporation. All rights reserved. Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries. Other names and brands may be claimed as the property of others.
