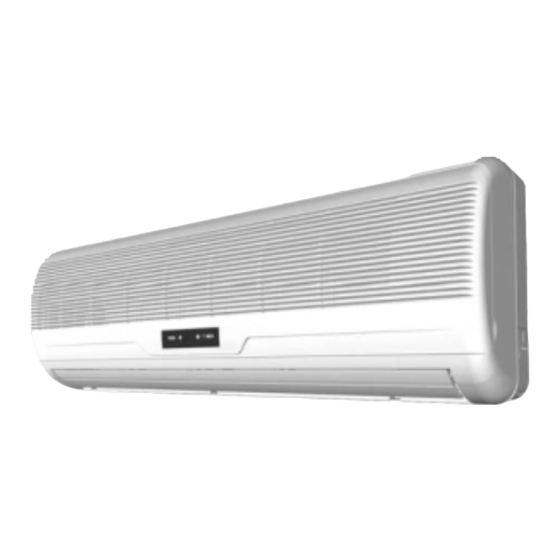

- Page 1 Installation Guide Amcor Split Air Conditioners Andrew Ziegler Dir. Product Management Amcor USA...
-
Page 2: Step 1. Getting Started
Compressor should be mounted either on level base slab, or squarely on wall bracket. Remove AC blower unit for inside installation from shipping box.* *Any visible damage to Amcor products must be reported directly to manufacturer within twenty four hours of delivery, in order to claim damage for replacement unit or component... - Page 3 Step 2. Remove Metal Shield Remove metal electrical plate cover as shown.
- Page 4 Step 3. Remove Plastic Shield See plastic shield cover.
- Page 5 Step 4. Remove Plastic Shield Remove plastic shield cover screw.
- Page 6 Step 5. Ready to Wire Now you are ready to wire up the unit.. It is best not to put these parts on delicate filter. This just shows removal of (2) parts..
- Page 7 Step 6. Care In Turing Unit Over After exposing the front wiring panel, carefully flip the unit over, resting it on cardboard box or other protective surface.
- Page 8 Step 7. Remove Wall Bracket Remove the wall mounting bracket and set aside.
- Page 9 Step 8. Remove Wire Mgt Cover See wire cable management cover at lower left. Remove single screw as shown by arrow.
- Page 10 Step 9. Remove Wire Mgt Cover Remove the wire management cover.
- Page 11 Step 10. Threading Wire Harness BACK VIEW OF UNIT Thread wire harness Through the hole in the Wire management cover.
- Page 12 Step 11. Wire Harness Clamp Remove the plastic wire clamp screw. FRONT VIEW OF UNIT Thread wire harness up through the interior cavity of the part, pulling harness to front of the unit as shown..
- Page 13 Step 12. Wire Harness Clamp Remove the plastic wire clamp part. FRONT VIEW OF UNIT...
-
Page 14: Step 13. Wiring Schematics
Step 13. Wiring Schematics AHW164 AHW162 C N C C N B S (N ) F U S E... - Page 15 Step 14. Replace Wire Harn. Clamp...
- Page 16 Step 15. Replace Wire Mgt. Cover...
- Page 17 Step 16. Replace M. Wire Mgt Cover...
- Page 18 Step 17. Flip Cover Back Down...
- Page 19 Step 18. Back Preparation Remove shipping galvanized hose clamp from AC lines, and swivel lines to come out of left or right hand side, or back, as desired. This is accomplished by selectively punching out “PUNCH OUT” slot provided at desired location.
- Page 20 Step 19. Back Preparation Rotate electrical conduit and outflow pipe to either left, right, or bottom left (as shown). If desired to come our left or right side of unit, see next slide for punch out detail.
- Page 21 Step 20. Back Preparation Bottom Punch Out Side Left Punch Out Rotate electrical conduit and outflow pipe to either left, right, or center (as shown). If desired to come our left or right side of unit, see next slide for punch out detail.
- Page 22 Step 20. Balance of Installation Refer to your Owners Manual for further instructions for guidance in installing your Amcor Splits AHW162 or AHW164 air conditioner. FAQ: These units come pre-charged. The lines are also charged with Nitrogen to prevent condensation in the lines during overseas shipping.
