System Layout - Kia Sorento 2003 Technical Highlights

Section 5 • Transmission

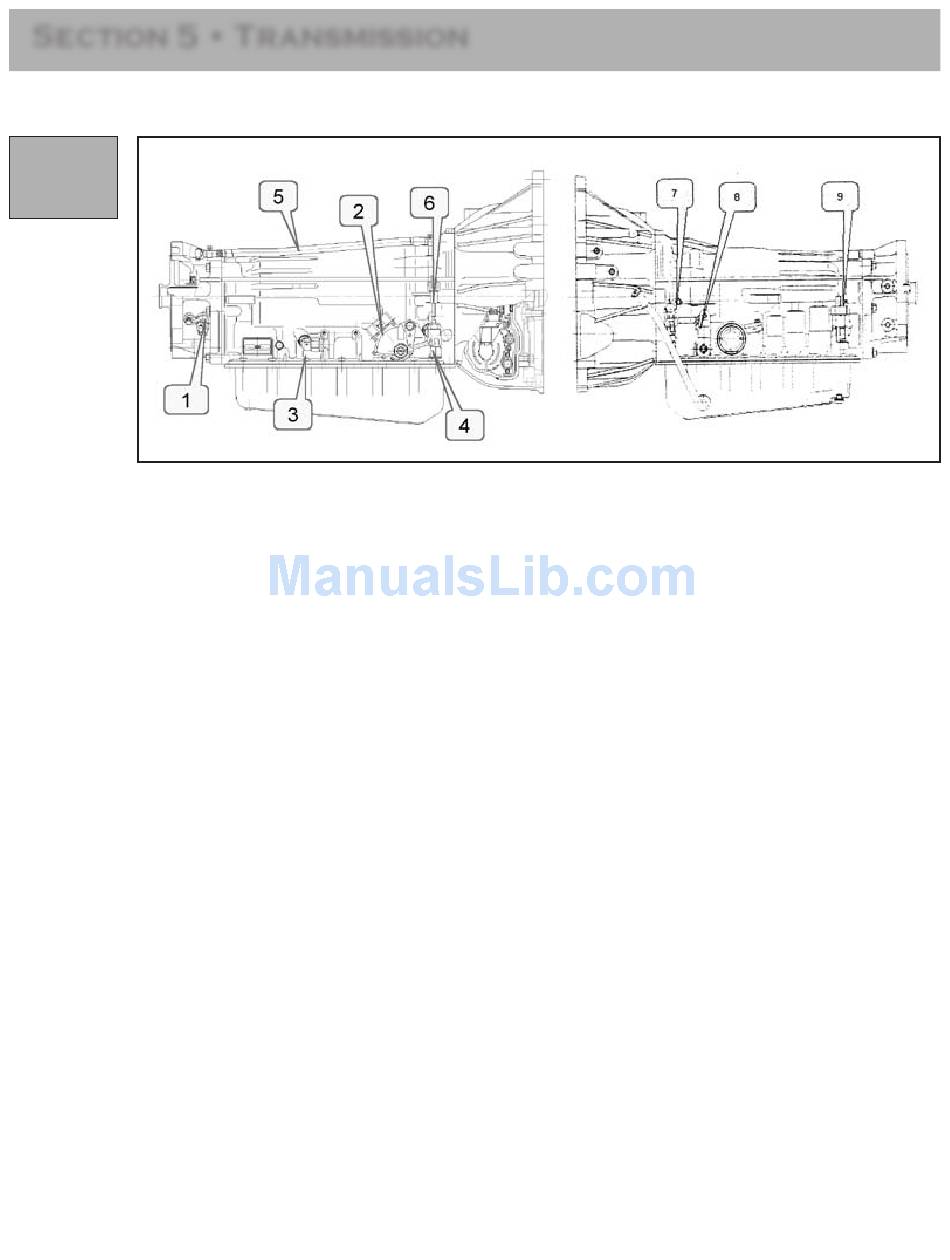

System
Layout
Item
1 Output speed sensor
2 Neutral switch
3 A/T inlet tube
4 A/T outlet tube
5 Air breather hose
6 Oil temperature sensor
7 Input speed sensor
8 Outer lever
9 T/M wire
2 revised version 3
Function
Detects output shaft revolution
Detects "N" range (A/T) or "Neutral" range (M/T)
From cooler to A/T
From A/T to cooler
For air ventilation inside transmission
Detects the oil temperature
Detects input shaft revolution
Connected to the control cable to change driving range
Solenoid valves and sensors connection
