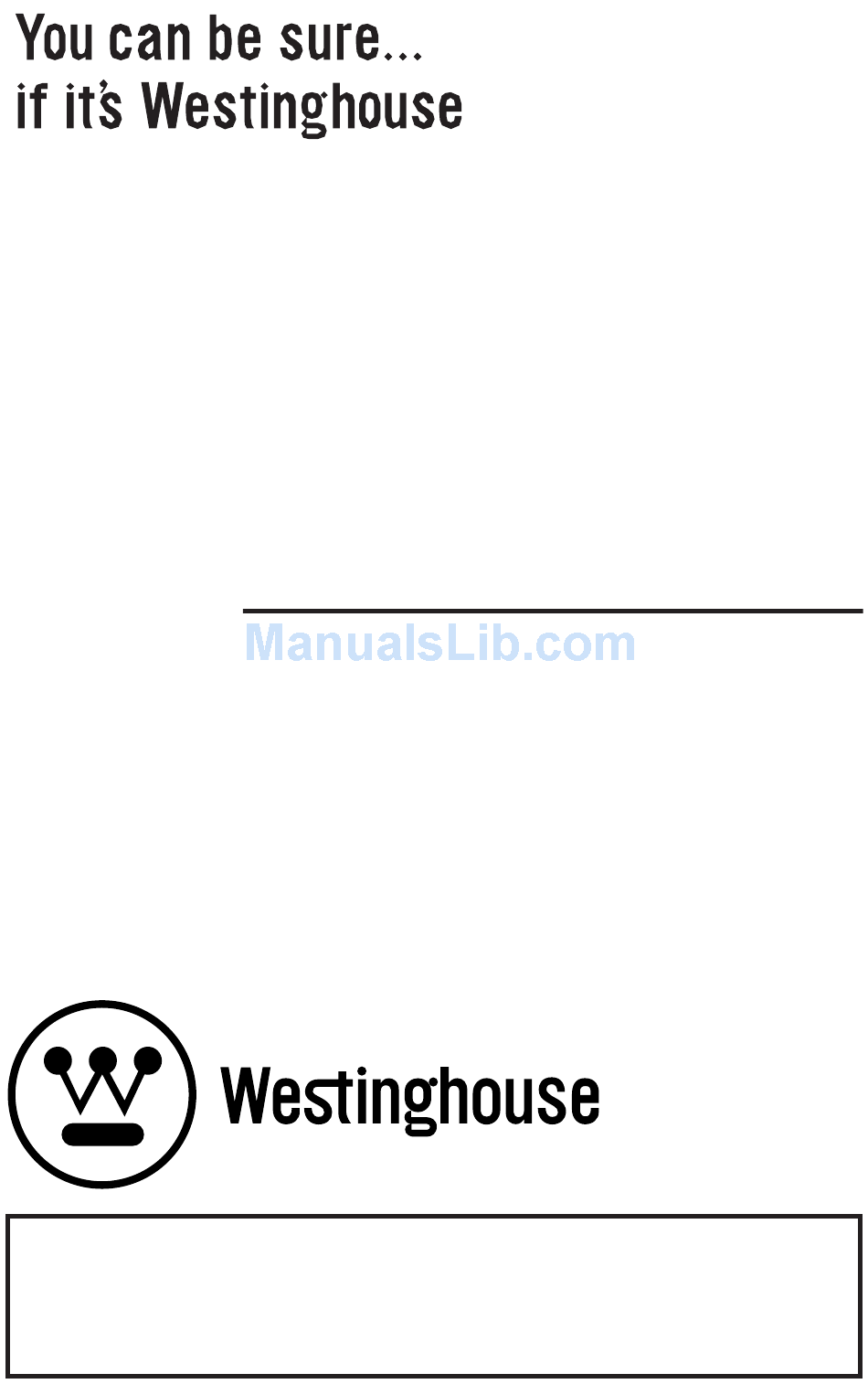

- Page 1 Owner’s Manual Indoor Lighting Fixture Installation Instructions W-011 01/14/04 Please write model number here for future reference: / Veuillez noter le numéro de mod- èle aux fins de référence ultérieure: / Por favor, incluya el número del modelo aquí para...
-
Page 2: Warranty Information
If this fixture fails for any reason covered by this warranty, simply return the fixture with a copy of the original sales receipt, freight prepaid and Westinghouse Lighting, at its option, shall repair or replace the fixture or refund the purchase price. - Page 3 FIGURE 1. GROUND *OUTLET WIRE BOX (C) MOUNTING BAR (B) SIDE HOLE (G) WIRE CONNECTORS (E) *OUTLET BOX SCREWS (D) GREEN MOUNTING GROUNDING SCREWS (A) SCREW (F) CANOPY (H) KEY SLOTS (I) NIPPLE (K) GLASS SHADE (J) WASHER (L) HEX NUT (O) CAP (M) FINIAL (N) Line art shown may not exactly match the fixture enclosed.
- Page 4 MOUNTING AND WIRING INSTRUCTIONS NOTE: Underwriters Laboratories (UL) does not require all fixtures to have ground wires. These fixtures meet all UL specifications. 1. Turn off power at circuit box to avoid possible electric shock. 2. Thread mounting screws (A) into mounting bar (B) (see fig. 1) approximately inch.
-
Page 5: Garantie Limitée De Cinq Ans
(voir fig. 1). GARANTIE LIMITÉE DE CINQ ANS Cet appareil d'éclairage Westinghouse est assorti d’une garantie de 5 ans contre les défauts de matériaux et de fabrication, qui entre en vigueur à partir de la date d'achat. La présente garantie se substitue à... - Page 6 FIGURE 1. FIL DE MISE *BOITE DE SORTIE A LA TERRE DE COURANT (C) TROU LATERAL (G) CONNECTEURS DE FIL (E) BARRE DE FIXATION (B) *VIS DE LA BOITE DE SORTIE DE COURANT (D) VIS DE MISE A LA TERRE VIS DE (VERTE) (F) FIXATION (A)
- Page 7 INSTRUCTIONS DE MONTAGE ET DE RACCORDEMENT NOTA : Underwriters Laboratories (UL) n’exige pas que tous les appareils d’éclairage comportent des fils de mise à la terre. Ces appareils satisfont cependant à toutes les spécifications UL. 1. Mettez l’interrupteur de la boîte à fusibles à « OFF » afin d’éviter le risque d’électrocution.
- Page 8 Si este artefacto sufre un desperfecto causado por cualquiera de las razones cubiertas por esta garantía, simplemente envíe el artefacto con una copia del comprobante original de compra, fran- queo prepago, y Westinghouse Lighting, a su criterio, reparará o reemplazará el artefacto o le rein- tegrará el precio de compra.
- Page 9 FIGURA 1. *CAJA DE CABLE DE EMBUTIR (C) TIERRA ORIFICIO LATERAL (G) CONECTORES DE ROSCA (E) BARRA DE MONTAJE (B) *TORNILLOS CAJA DE EMBUTIR (D) TORNILLO VERDE DE TORNILLOS TIERRA (F) DE MONTAJE (A) DOSEL (H) RANURAS (I) NIPLE (K) PANTALLA DE VIDRIO (J) ARANDELA (L)
- Page 10 INSTRUCCIONES DE MONTAJE Y CABLEADO NOTA: Underwriters Laboratories (U.L.) no requiere que todos los artefactos tengan cables de tierra. Estos artefactos cumplen con todas las especificaciones U.L. 1. Desconecte el suministro eléctrico en la caja de fusibles para evitar la posibilidad de descarga eléctrica.
- Page 11 FIGURE 2. WARNING CONNECT TO BLACK CONNECT TO WHITE GROUP A: GROUP B: HOUSE WIRE HOUSE WIRE Turn off electricity to the BLACK WHITE mounting site before beginning installation. WHITE OR GREY WITH TRACER WHITE OR GREY WITHOUT TRACER Mounting instructions must be followed exactly BROWN, GOLD OR BLACK BROWN, GOLD OR BLACK WITH TRACER...
-
Page 12: Cleaning And Care
Westinghouse Lighting Corporation Philadelphia, PA 19154-1099, U.S.A. Westinghouse Lighting Corporation, a Westinghouse Electric Corporation licensee www.westinghouselighting.com “Westinghouse” and “You can be sure...if it’s Westinghouse” are registered trademarks of Westinghouse Electric Corporation © 2004 WESTINGHOUSE LIGHTING CORPORATION...
