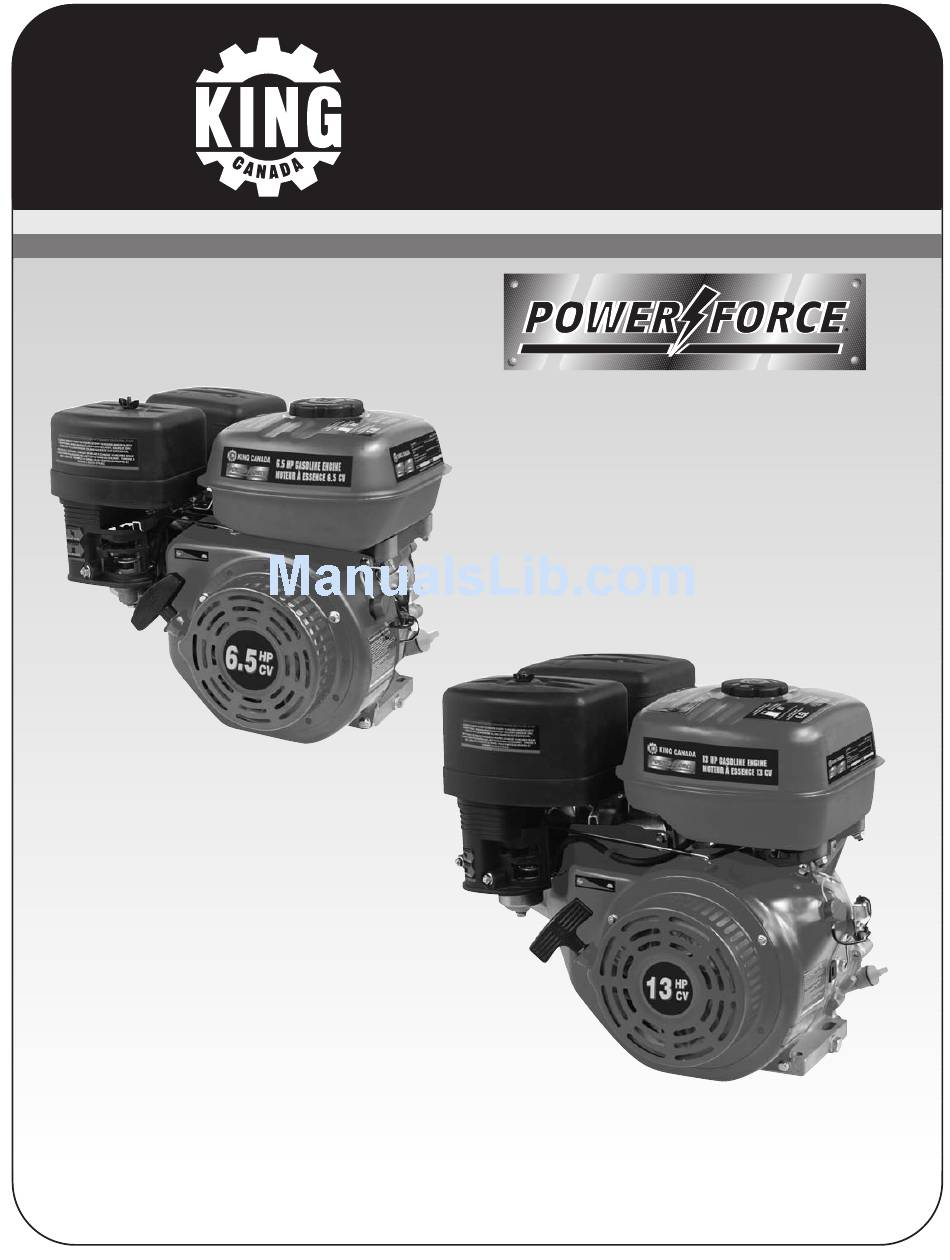

KING CANADA
GASOLINE ENGINES

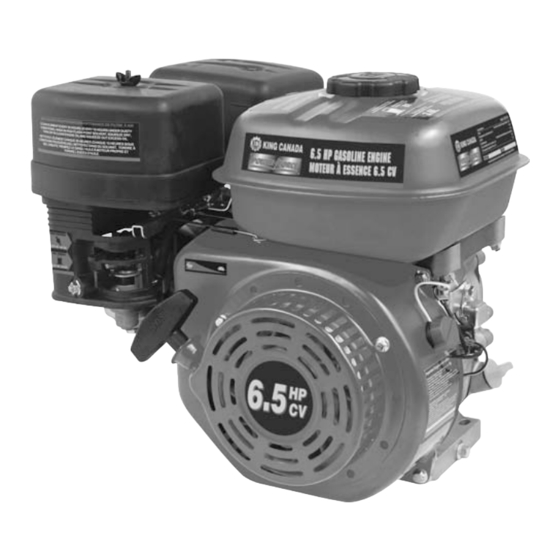

MODEL: KCG-65
(6.5 HP)
MODEL: KCG-130
(13 HP)
Read this manual. Do not attempt to operate engine until you have read and understood the safety,
operation, and maintenance instructions in this manual.
INSTRUCTION MANUAL
COPYRIGHT © 2011 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
Advertisement
Table of Contents
Summary of Contents for King Canada KCG-65
- Page 1 MODEL: KCG-130 (13 HP) Read this manual. Do not attempt to operate engine until you have read and understood the safety, operation, and maintenance instructions in this manual. INSTRUCTION MANUAL COPYRIGHT © 2011 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty And Service Information
KING CANADA shall in no event be liable for death, injuries to persons or property or for incidental, special or consequential damages arising from the use of our products. Shipping and handling charges may apply. If a defect is found, KING CANADA will either repair or replace the product. - Page 3 BASIC & SPECIFIC SAFETY PRECAUTIONS BASIC SAFETY INFORMATION INADEQUATE VENTILATION EXHAUST FUMES ARE DANGEROUS Materials placed against or near the engine or operating in areas •Never operate the engine in a closed area or it may cause uncon- where the temperature exceeds 40° C ambient (such as storage sciensness and death within a short time.
-
Page 4: Getting To Know Your Engine
GETTING TO KNOW YOUR ENGINE DRIVE SHAFT INFORMATION KCG-65 (6.5 HP) KCG-130 (13 HP) Diameter: 3/4” Diameter: 1” Length: 2-1/4” Length: 2-3/4” Key: 5 x 5 x 44mm Key: 6 x 6 x 54mm The following information applies to both engines. -
Page 5: Pre-Start Check
When refueling, keep in mind all safety precautions and make sure to add enough fuel based on usage. Use clean unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Fuel tank capacity: 3,6 litres (KCG-65), 6,5 litres (KCG-130). -
Page 6: Starting Procedures
STARTING & STOPPING PROCEDURES STARTING PROCEDURES STARTING YOUR ENGINE WARNING! Do not adjust or attempt maintenance of engine without consulting an authorized service center. Never run engine indoors or in enclosed, poor ventilated areas, engine exhaust contains carbon monoxide, an odorless and deadly gas! To safely start your engine, follow these steps (Fig.5). -
Page 7: Maintenance
MAINTENANCE MAINTAINING YOUR ENGINE Engine Oil Replacement Oil crankcase capacity: 0.6 litres (KCG-65), 1.1 litres (KCG-130). Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil;... -
Page 8: Maintenance, Storage & Troubleshooting
Engine stops suddenly 1. Low oil shutdown. 1. Fill with engine oil to proper levels. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
