Summary of Contents for Jensen Sirius JBX100SR

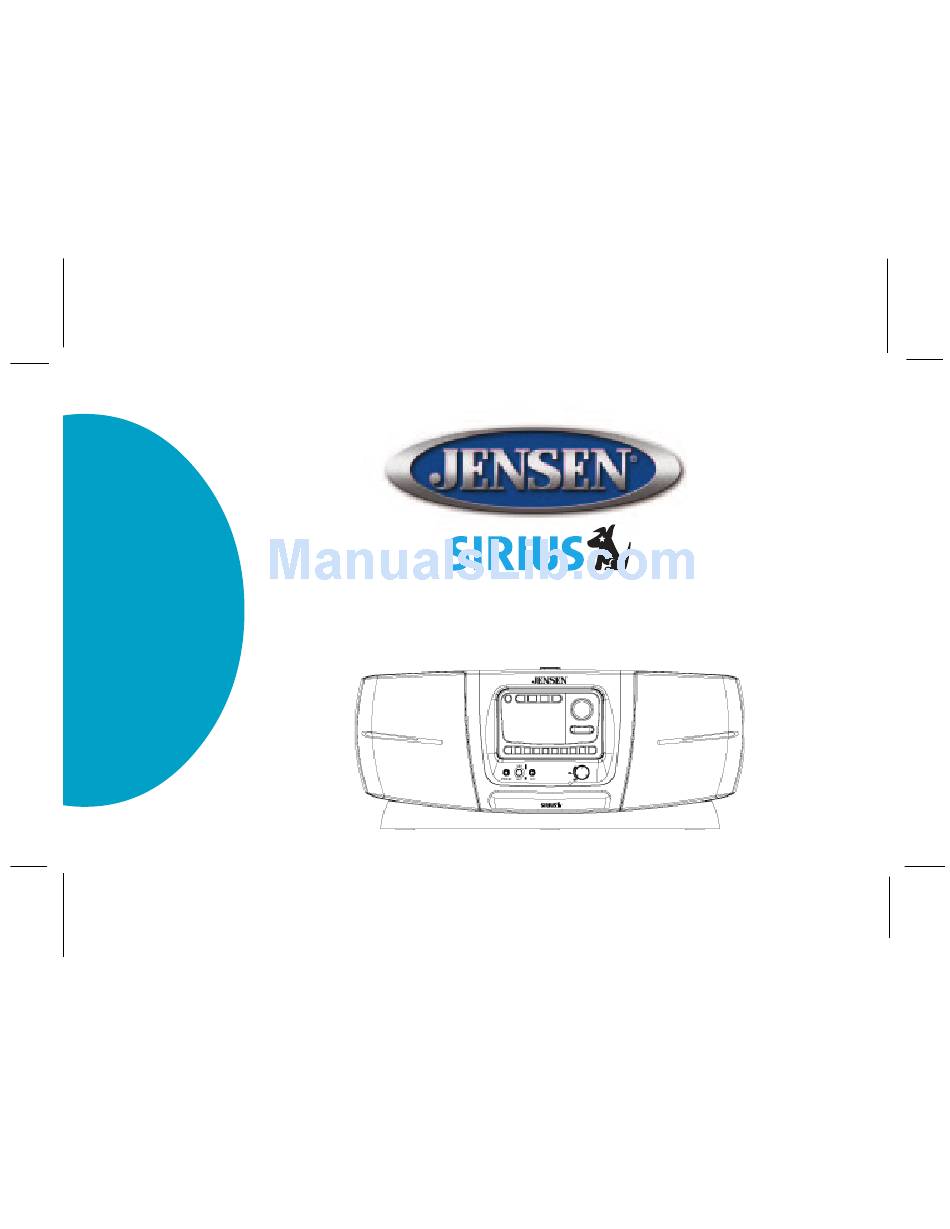

- Page 1 SHUTTLE BOOM BOX JBX100SR User Guide 128-7041 128-7041 1 of 12...
- Page 2 ESPN, ABC, CNBC, Bloomberg, Discovery and Radio Disney are developing news, sports and entertainment programming. Your Jensen Boom Box must be used with Shuttle Receiver Model JPNPR1 (sold separately). Op- tional kits are available at retailers where Jensen main units are sold.
-
Page 3: Fcc Regulations
Television, or stereo system indicators and displays. 2. Do not install or use the JBX100SR in locations exposed to direct sunlight, or in areas subject to extreme temperatures; do not operate the unit in moist areas, in rain, or in areas adjacent to water such as pools, hot tubs, etc. -
Page 4: Installation/Wiring Precautions
Contents JBX100SR User/Install Manual (P/N 128-7041) (P/N 118C1129) AC/DC Power Adapter 1 pc. (P/N 136C3585) AC Power Cord 1 pc. Boom Box (P/N JBX100SR) 1 pc. Installation/Wiring Precautions 1. If using the adapter, make sure the adapter cable Antenna is not connected to an AC wall outlet until all inter- connections have been made and verified. -
Page 5: Battery Installation
Adjust the volume level of the external audio device to obtain audio output from the JBX100SR. The volume control on the external audio device should be set to mid-range. 4. Power On/Low Battery LED: The LED lights green when the Power On/Off Switch-VOL control i s rotated clockwise (CW) to the On position. - Page 6 BOTTOM OF Place the Shuttle in the cradle so that the Shuttle BOOM BOX guides are lined up with the JBX100SR cradle. Then push the Shuttle forward to engage the connectors. The Shuttle will snap into place. Apply power to the JBX100SR by rotating the VOL control clockwise from the off position;...
-
Page 7: Interconnect Diagram
Interconnect Diagram SHUTTLE BOOM BOX JBX100SR ANTENNA JACK (ANT) DC POWER ADAPTER (DC 12V 2.2A) TO AC WALL OUTLET SHUTTLE ANTENNA 5. Installing/Positioning the Antenna For best reception, the supplied antenna should be placed near a window if in the house or, if outdoors, in an open area and as high as possible;... -
Page 8: Antenna Placement Considerations
(if indoors) and disconnect the antenna cable. d. Plan the routing of the antenna cable to the JBX100SR ANT input when indoors. Make sure you avoid any obstructions that could crimp, kink or twist the cable;... -
Page 9: Specifications
Headphone Output Impedance Headphone Output Level Headphone Connector Type Auxiliary Input Impedance Auxiliary Input Level Auxiliary Connector Type Equalizer Frequency Overall JBX100SR Dimensions Overall AC Adapter Dimensions JBX100SR Weight 5.0 Watts Rms 0.3% at 1 Watt 30Hz to 20kHz >... -
Page 10: Maintenance
Maintenance Periodic Inspection The JBX100SR Boom Box should be inspected periodically for external damage. At least once every 30 days of use, perform the following checks: Inspect the 16-pin Shuttle connector for loose, bent or broken pins, misalignment, etc.; make sure the SAT connector is intact and exhibits no apparent damage. -
Page 11: Troubleshooting
Troubleshooting FAULT System does not turn on Shuttle power is set to “off” Batteries not installed or installed incorrectly System does not operate using batteries As long as the AC power connector is attached to the rear panel of the unit, battery operation is disabled Intermittent operation Low battery level... -
Page 12: 12 Month Limited Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
