Monogram Component Cooktop System
Models
offers cooking flexibility with modular
Available
cooktops in a variety of cooking technologies
to meet any cooking need.
ZEW145
Radiant Cooktop Component
ZEW155
Updraft Grill Cooktop Component,
ZEW166
Downdraft Grill Cooktop Component
ZEW176
Downdraft Vent Component

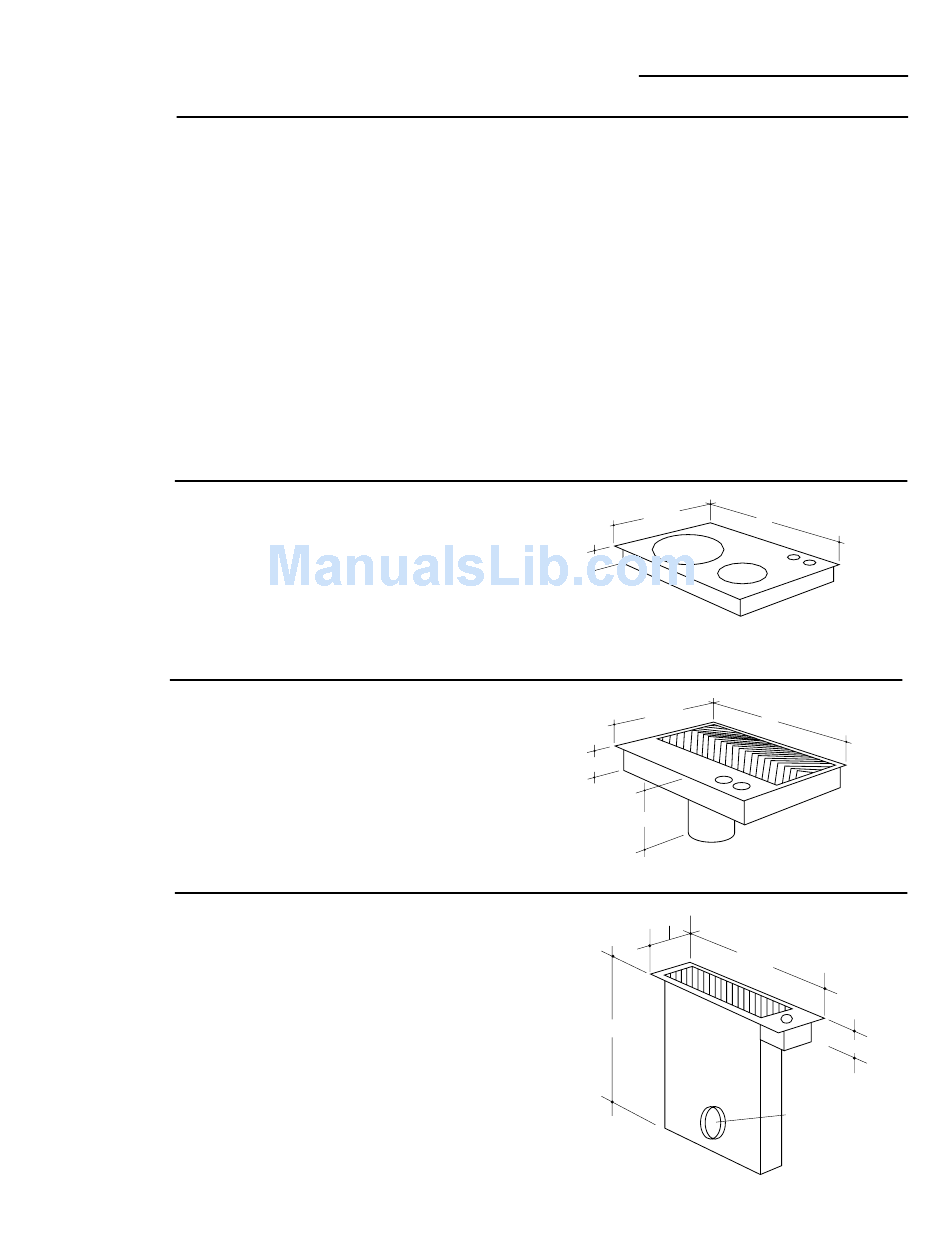

Product ZEW145
Radiant Cooktop Component
Dimensions
(240 and 208 volt, dual rated)
Parts supplied:
• 44" flexible conduit
• One joiner strip
• Two sets clamping screws
• One chassis support brace
ZEW155
Updraft Grill Cooktop Component
(240 volt)
Parts supplied
• Grease collection jar
• 48" flexible conduit
• One joiner strip
• Two sets clamping screws
• One chassis support brace
ZEW176
Downdraft Vent Component
Install next to gas or radiant components.
(Cannot be installed next to an updraft grill)
(120 volt)
Parts supplied:
• 48" flexible conduit
• Two downdraft joiner strips
• One downdraft endcap
• JXBA55 blower motor assembly
NOTE: The downdraft plenum is shipped with the discharge
outlet on the left side. It can be changed to the right side.
Design Information
Component Cooktop System
ZGW124
Gas Cooktop Component,
with right hand controls
ZGW125
Gas Cooktop Component,
with left hand controls
JXBA55 blower motor assembly is supplied
for the downdraft vent and downdraft grill.
JXBC55 optional outdoor cover accessory
may be ordered for installation of blower and
motor assembly on an outside wall.
15-1/2"
*3-1/4"
*Allow additional 1" depth for clearance
of flexible conduit
16-3/8"
5-3/8"
10"
5-1/2"
14-1/2"
21"
21"
21-5/16"
2-1/4"
Shipped With
Discharge On
Left Side
3
