Kodak EasyShare C643 Service Manual

Zoom digital camera
Hide thumbs Also See for EasyShare C643:
Table of Contents

Advertisement

Quick Links

See also: User Manual
{ServiceManual}{Production}{KodakServiceSupport}{ExternalAndInternal}

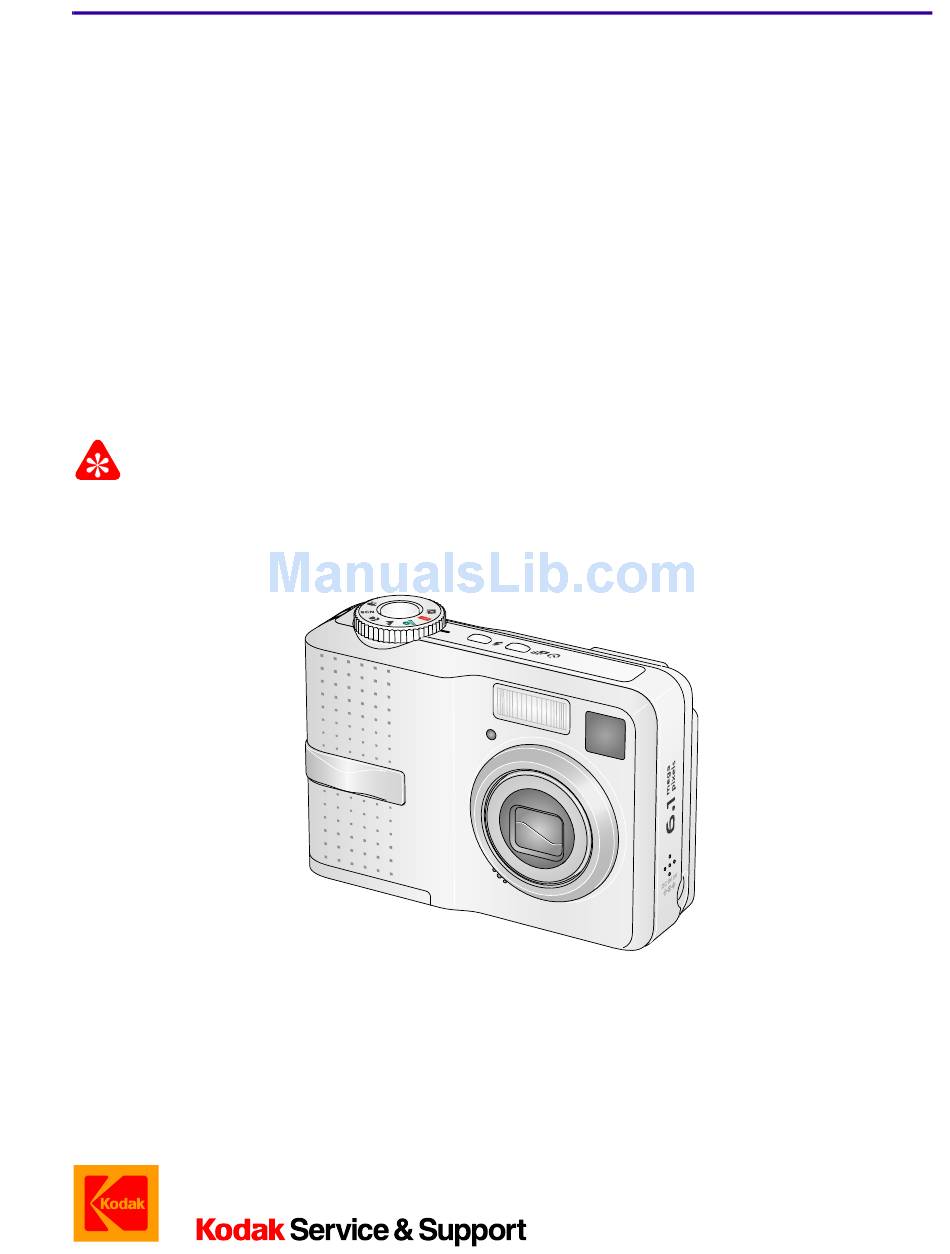

Kodak EasyShare C643 ZOOM DIGITAL CAMERA
Kodak EasyShare C603 ZOOM DIGITAL CAMERA
Important
Qualified service personnel must repair this equipment.
SERVICE MANUAL
for the
Service Code: 1399
and the
Service Code: 1417
Publication No. SM1399-1
Confidential
Restricted Information
© Eastman Kodak Company, 2006
19JUN06
