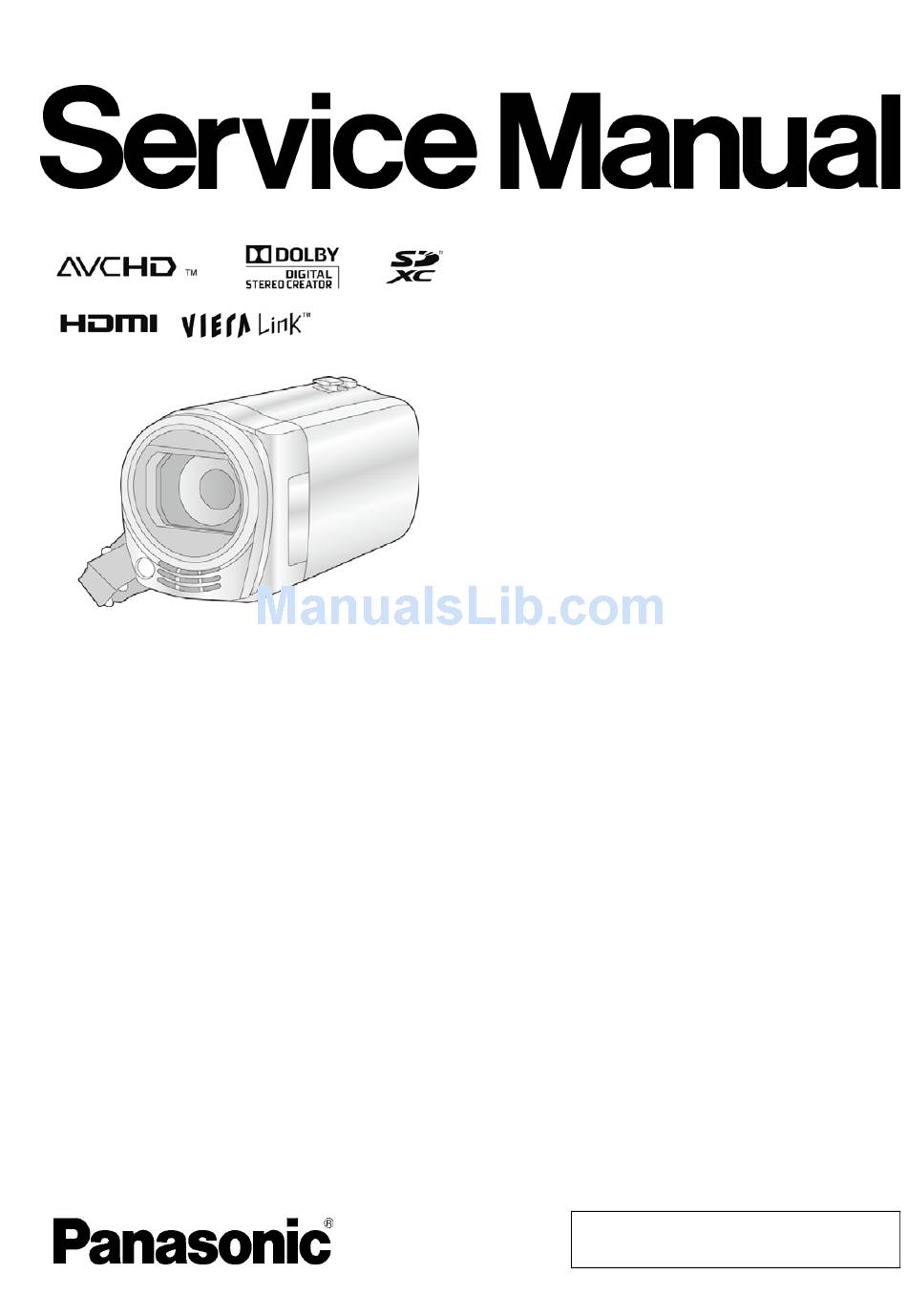

- Page 1 High Definition Video Camera HDC-SD40P Model No. HDC-SD40PC HDC-SD40PU HDC-SD40EB HDC-SD40EC HDC-SD40EE HDC-SD40EF HDC-SD40EG HDC-SD40EP HDC-SD40GA HDC-SD40GC HDC-SD40GK HDC-SD40GN HDC-SD40GW HDC-SD41EB HDC-TM40P HDC-TM40PC HDC-TM40PU HDC-TM40EB HDC-TM40GD HDC-TM40GK HDC-TM41P © Panasonic Corporation 2011 Unauthorized copy- ing and distribution is a violation of law.
-
Page 2: Table Of Contents
Vol. 1 Colour [HDC-TM40] [HDC-SD40] (K)...Black Type (K)...Black Type (W)..White Type (only EB/EC/EE/EF/EG/EP) [HDC-TM41] (H)...Glay Type [HDC-SD41] (H)...Glay Type TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 1.1. General Guidelines ----------------------------------------3 1.2. Leakage Current Cold Check ---------------------------3 1.3. Leakage Current Hot Check (See Figure 1.)--------3 2 Warning --------------------------------------------------------------4 2.1. -
Page 3: Safety Precautions
1 Safety Precautions 1.1. General Guidelines 1.3. Leakage Current Hot Check 1. IMPORTANT SAFETY NOTICE (See Figure 1.) There are special components used in this equipment 1. Plug the AC cord directly into the AC outlet. Do not use which are important for safety. These parts are marked by an isolation transformer for this check. -
Page 4: Warning
2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"... -
Page 5: Caution For Ac Cord (For Eb
2.3.2.3. How to Replace the Fuse A replacement fuse cover can be purchased from your local Panasonic Dealer. 1. Remove the Fuse Cover with a screwdriver. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety. -
Page 6: How To Replace The Lithium Battery
NOTE: This Lithium battery is a critical component. (Type No.: ML-614S/DN Manufactured by Energy Company, Panasonic Corporation) It must never be subjected to excessive heat or discharge. It must therefore only be fitted in requirement designed specifically for its use. -
Page 7: Service Navigation
When a part replacement is required for repairing MAIN P.C.B., replace as an assembled parts. (Main P.C.B.) 2. The following category is /are recycle module part. Please send it/them to Central Repair Center. - MAIN P.C.B. (VEP03J14BN: HDC-SD40P/PC/PU) - MAIN P.C.B. (VEP03J14BP: HDC-SD40EB/EC/EF/EG/EP, SD41EB) - MAIN P.C.B. -
Page 8: How To Define The Model Suffix (Ntsc Or Pal Model)
3.4. How to Define the Model Suffix (NTSC or PAL model) There are seven kinds of HDC-SD40/SD41/TM40/TM41. • a) HDC-SD40P, TM40P, TM41P • b) HDC-SD40PC, TM40PC • c) HDC-SD40EB/EC/EF/EG/EP/GN, SD41EB, TM40EB • d) HDC-SD40EE • e) HDC-SD40GK, TM40GK • f) HDC-TM40GD •... -
Page 9: Formatting
3.5. Formatting... -
Page 10: Specifications
4 Specifications... -
Page 12: Location Of Controls And Components
5 Location of Controls and Components Power button [ 1 2 3 4 Delete/Video light button /LIGHT] Intelligent auto/Manual button [iA/MANUAL] Optical image stabilizer button O.I.S.] Recording start/stop button Battery holder HDMI mini connector [HDMI] USB terminal [ AV MULTI AV multi connector Use the AV multi cable (only the supplied cable). - Page 13 23 Tripod receptacle If you attach a tripod which has a 5.5 mm (0.22 ) screw or larger, it may damage this unit. 24 Battery release lever [BATT] 25 Photoshot button [ 26 Zoom lever [W/T] (In Recording Mode) Thumbnail display switch [ Volume lever [ VOL ] (In Playback Mode) 27 Mode switch...
-
Page 14: Service Fixture & Tools
6 Service Fixture & Tools 6.1. When Replacing the Main P.C.B. After replacing the MAIN P.C.B., be sure to achieve adjustment. The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in “TSN system”, together with Maintenance software. 6.2. -
Page 15: Disassembly And Assembly Instructions
7 Disassembly and Assembly Instructions 7.1. Disassembly Flow Chart 7.3. Disassembly Procedure This is a disassembling chart. When assembling, perform this chart conversely. Item Removal Top Ornament Unit (Fig. D1) 1 Screw (A) (Fig. D2) 2 Locking tabs 2 Hanging parts Top Ornament Unit Side Case-L- Unit (Fig. - Page 16 7.3.1. Removal of the Top Ornament Unit (Fig. D2) 7.3.2. Removal of the Side Case-L Unit (Fig. D1) (Fig. D3)
- Page 17 7.3.3. Removal of the Front Case Unit (Fig. D5) (Fig. D4)
- Page 18 7.3.4. Removal of the Lens Unit 7.3.5. Removal of the Main P.C.B. and SD Holder P.C.B. (Fig. D7) (Fig. D6)
- Page 19 7.3.7. Removal of the Lens Angle Unit and TL Frame Unit (Fig. D8) 7.3.6. Removal of the ESD P.C.B. (HDC-TM40/TM41 only) (Fig. D10) (Fig. D9)
- Page 20 7.3.8. Removal of the MOS Unit and IR 7.3.9. Removal of the Focus Motor Filter (Fig. D11) (Fig. D12)
- Page 21 7.3.10. Removal of the Zoom Motor (Fig. D13)
-
Page 22: Measurements And Adjustments
8 Measurements and Adjustments 8.1. Electric Adjustment • Adjustment method is different from a conventional High definition video camera. • An exclusive jig and PC (including software for adjustment “Tatsujin”) are necessary for electric adjustment. • A USB driver for service is necessary to communication with PC. •... - Page 23 Adjustment Items • Adjustment item as follows. The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in "TSN System".
-
Page 24: Factory Setting
9 Factory Setting 9.1. How To Turn On The Factory Settings? (CAUTION) Performing the factory settings, the built-in memory is initialized and all of recorded data are deleted. (SD memory card is not initialized by the factory settings.) 1. Set the mode switch “Recording” mode. 2. - Page 25 High Definition Video Camera 3.The voltage being indicated on the schematic diagram is measured in "Standard-Playback" mode when there is no specify mode is mentioned. Model No. HDC-SD40P HDC-SD40EG HDC-SD41EB 4.Although the voltage and waveform available on here is measured with standard frame, it may be differ from actual measurement due to modification of circuit and so on.
-
Page 26: S2. Voltage Chart
S2. Voltage Chart Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard. Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester. S2.1. -
Page 27: S3. Block Diagram
S3. Block Diagram S3.1. Overall Block Diagram NOTE : VIDEO SIGNAL : AUDIO SIGNAL : CLK or CONTROL LINE LENS(F1.8-2.6 16.8x) IC201 ZOOM/ MOS IMAGE FOCUS IRIS SENSOR MOTOR/ COLOR LCD X3401 PANEL (48MHz) IC3751/3701 Analog VIDEO DAC/ MULTI Analog VIDEO DRIVER TERMINAL IC701... -
Page 28: S4. Schematic Diagram
S4. Schematic Diagram S4.1. Interconnection Diagram HDC-TM40/TM41 only ESD P.C.B. (FOIL SIDE) OPERATION SW MOS UNIT LENS UNIT BATTERY JK6701 ECM FPC FP6701 ESD FPC MOS FPC SIDE CASE R UNIT SIDE-R OP FPC OPERATION SW FP6702 POWER FPC PS6701 POWER FPC (FOIL SIDE) : (COMPONENT SIDE) -
Page 29: S4.2. Sd Holder Schematic Diagram
S4.2. SD Holder Schematic Diagram TO SPEAKER P6401 K1KA02BA0014 SPOUT1 SP_OUT1 SPOUT2 SP_OUT2 R3906 TO MAIN E_CARD_PRO PS6401 R3907 E_CARD_DET K1KB30AA0116 R3904 R3908 $[18] PW_SD3R2V_1 Q3901 CLK49_SDCARD SD CLK R3905 B1ADKB000015 R3910 RX3902 D_GND D1H81034A024 BUS24_SDDAT1 15[18] SD DATA1 BUS24_SDDAT0 SD DATA0 C3911 R3909... -
Page 30: S5. Print Circuit Board
S5. Print Circuit Board S5.1. SD Holder P.C.B. RL6402 QR6402 RX3901 R3907 C3901 C3911 R3905 R3908 C3903 C3904 C3902 CL6405 C3907 B6401 CL6401 C6405 RX3902 C6406 R3903 C6404 C3905 R3910 C3909 CL6404 Q3901 R6401 CL6402 CL6403 PS6401 RL6401 (Component Side) (Foil Side) HDC-SD40/TM40 SD Holder P.C.B. -
Page 31: S6. Replacement Parts List
S6. Replacement Parts List Note: 1.* Be sure to make your orders of replacement parts according to this list. 2. IMPORTANT SAFETY NOTICE Components identified with the mark have the special characteristics for safety. When replacing any of these components, use only the same type. 3. - Page 32 HDC-SD40EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VEP03J14BP MAIN P.C.B. UNIT 1 (RTL) E.S.D. SD40EG, EB,EC,EF,EP, SD41EB VEP03J14BQ MAIN P.C.B. UNIT 1 (RTL) E.S.D. SD40EE,GA,GC,GK,GN,GW VEP03J14BN MAIN P.C.B. UNIT 1 (RTL) E.S.D.
- Page 33 HDC-SD40EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks VYK4L96 TOP ORNAMENT UNIT 1 SD40EG-K,EB-K,EC-K,EE-K, VXW1230 LENS UNIT EF-K,EP-K,GA-K,GC-K, VXQ2055 MOS UNIT GK-K,GN-K,GW-K,P-K,PC-K, VMX3811 CUSHION PU-K, TM40EB-K,GD-K, VDL2467 IR FILTER GK-K,P-K,PC-K,PU-K L6HA66NC0015 ZOOM MOTOR VYK4V42 TOP ORNAMENT UNIT...
- Page 34 HDC-SD40EG-K vol.1 Ref.No. Part No. Part Name & Description Remarks Ref.No. Part No. Part Name & Description Remarks K2CA2CA00025 AC CORD W/PLUG 1 SD40P,PC,PU, TM40P,PC,PU, BATTERY PACK 1 SD40GK-K, TM40GK-K TM41P K2KYYYY00141 USB CABLE K2CJ29A00002 AC CORD W/PLUG 1 SD40GN K1HY12YY0008 MULTI D/RCA CABLE K2CQ29A00002 AC CORD W/PLUG 1 SD40EG,EC,EE,EF,EP,GA,GC,...
-
Page 35: S7. Exploded View
S7. Exploded View S7.1. Frame and Casing Section B201 B202 B206 B205 B204 B203 S-11... -
Page 36: S7.2. Packing Parts And Accessories Section
S7.2. Packing Parts and Accessories Section (HDC-SD40GN) (HDC-SD40EG/EC/EE/ EF/EP/GA/GC/GW) (HDC-SD40EB/GA/GC/GW, HDC-SD41EB, TM40EB) (HDC-TM40GD) (HDC-SD40GK, TM40GK) (HDC-SD40P/PC/PU/ TM40P/PC/PU, TM41P) S-12...
