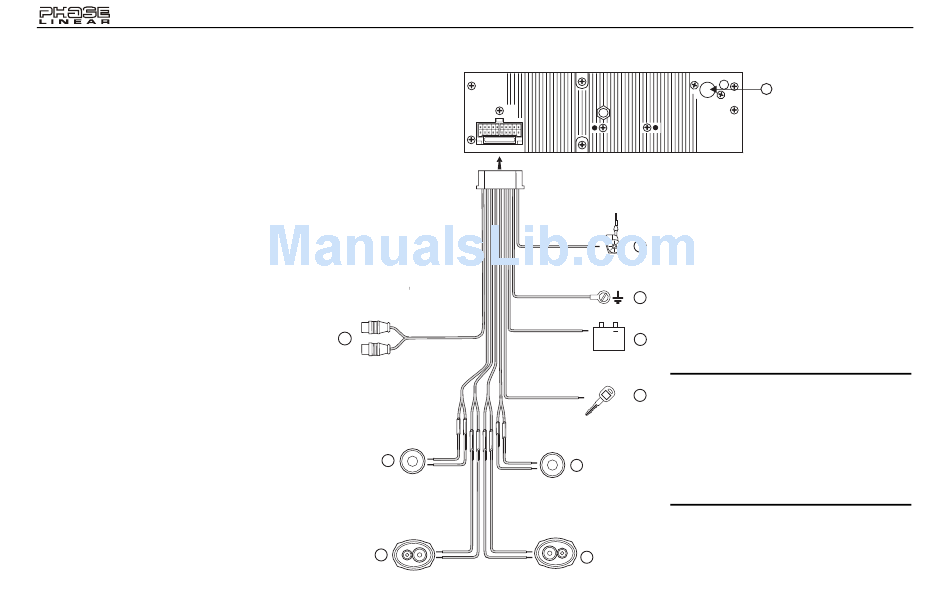

WIRING
1.
Power Antenna (dark blue wire) - Connect
to power antenna or amplifier. If not used,
tape bare end of wire.
2.
Accessory/Ignition (red wire) - Connect to
existing radio wire or radio fuse.
3.
Ground (black wire) - Connect to ground
terminal or clean, unpainted part of
chassis.
4.
Memory/Battery (yellow wire) - Connect to
battery or 12 volt power source that is
always live. The radio will not work if this
wire is not connected.
5.
Antenna Connector - Connect the antenna
plug from the existing antenna cable
(some vehicles require an adaptor).
6.
Outputs to Amplifier (gray RCA cables) -
Connect line out for optional external
amplifiers. The red connector is for the
right and the white connector is for the left.
7.
Left Front Speaker
8.
Right Front Speaker
9.
Left Rear Speaker
10. Right Rear Speaker
Fuses
When replacing a fuse, make sure the new fuse
is the correct type and amperage. Using an
incorrect fuse could damage the radio. The
MP1311 uses one 15 amp fuse located below
the wiring connector (15 amp fast blow ATO).
15
Gray
6
White/Black (-)
Gray/Black (-)
7
White (+)
Gray (+)
Green/Black (-)
Violet/Black (-)
9
Green (+)
Violet (+)
6
Dark Blue
1
Black
3
Yellow
+
4
NOTE: The amplifiers in this radio are
Red
2
only designed for use with four
speakers. Never combine (bridge)
outputs for use with two speakers.
Never ground negative speaker leads
to chassis ground. Failure to wire
8
exactly as shown may cause electrical
damage to the radio.
10
MP1311
5
