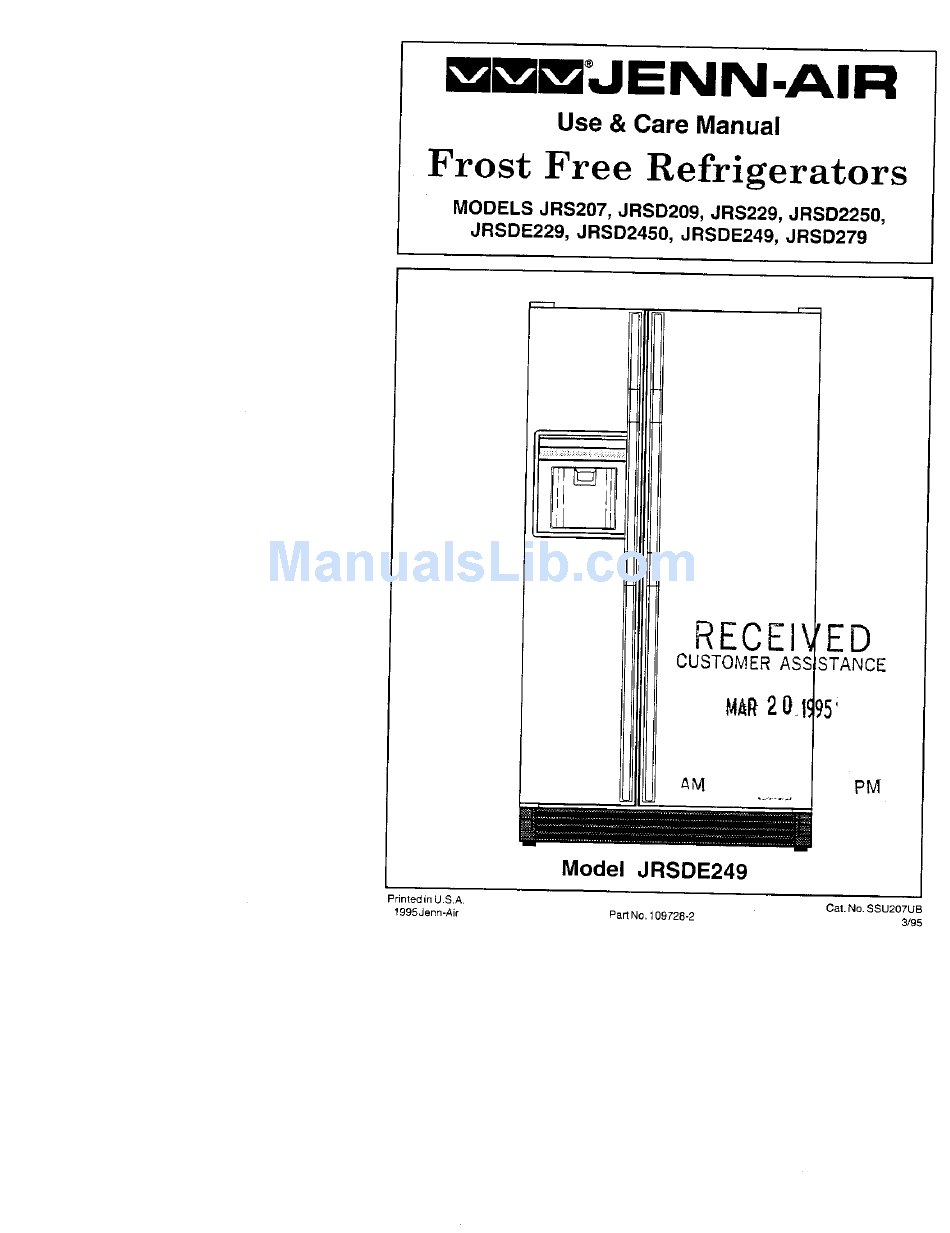

- Page 1 L'mJENN-AIR Use & Care Manual Frost Free Refrigerators MODELS JRS207, JRSD209, JRS229, JRSf12250, JRSDE229, JRSD2450, JRSDE249, JRSD279 RECE CUSTOMERASS 3TANCE M_R20 95' Model JRSDE249 Printed in U,S,A Cat. No. SSU207 19953er_n-Air Part No, 10972B-2...
-
Page 2: About Your
Jenn-Air refrigerator, instructions carefully. Should you have any questions about using your Jenn-Air appliance, write to us. Be sure to provide the model number of your appliance. Maytag Customer Service, PO Box 2370, Cleveland, TN 37320-2370... -
Page 3: Safety Precautions
7. Do not place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in. This will help protect you from possible injury, it will also prevent interference with moving parts of the ejector mechanism and the heating element that releases the cubes. - Page 4 Using a carpenter's level, ohec: refrigerator to make sure it is level front to back and side to side. The front wheel.' adjusted at the factory so the cabinet would be level. However, jarring in trar...
- Page 5 To turn off your refrigerator, set the refrigerator control on OFF. [ Warm Cabinet Surfaces ] At times, the front surfaces of your refrigerator cabinet may be warm to the touch. This is a normal function of you r refrigerator. This feature prevents moisture from condensing on the outside of your refrigerator during humid weather.
- Page 6 To remove a slide-out shelf, pull it toward you until it stol then lift the front edge slightly and putt completely out. I Temp Control Drawer (Model JRS207) I The Temp Control Drawer is locatedat the bottom of the compartment. The control le_ is loCatedalong the left side of the drawer.
- Page 7 The control knob is located near the refrigerator control. As the knob is turned from "Cool" setting toward the "Cold" setting, the temperature will get colder. Select the "C. setting for storage of luncheon meat and cheese. Select the "Cold" setting for stor of fresh meats.
- Page 8 6 inches of the cabinet. All doors also have magnetic c gaskets that cling to the cabinet front, once the doors are closed to within their magn range. It is important that your refrigerator be reasonably level for the door closure function properly•...
-
Page 9: Freezer Compartment Features
(2) lower the left side of the shelf and insert in oblong holes in the left side of the freezer wall. Make sure the shelf is secure before loading. [ Bulk Storage Drawer (Models JRS207,JRSD2250, JRSD2450) ] The slide-out Sulk Storage drawer can be removed by pulling it out as far as it will go, then lifting the front edge and pulling straight out. - Page 10 The colder the freezer section, the more ice is produced. We sugge start with your refrigerator and freezer controls at their mid settings. In most case is satisfactory.
- Page 11 Certain sounds may accompany the various cycles of the ice maker. Examples are: (1) the motor may have a slight hum, (2) the cubes will rattle asthey fall into an empty storage bin, and (3) the water valve may click or "buzz" occasionally. All of these sounds are normal and should be ignored.
- Page 12 Removing and Replacing the Automatic Ice Cube Dispenser Bin Lift the front of the Automatic Dispenser bin and pull it straight out. Wash the bin occasionally in mild soap and lukewarm water. To replace the bin, push it at1 the way back until the bottom of the bin is behind the raised edge at the front of the shelf it rests upon.
- Page 13 Ice should not be dispensed directly into thin glasses, fine china or delicate crystal -- t can crack or chip from the combined pressure of your hand pressing them against actuator pad and ice dropping into the container. Ice other than that produced by your ice maker should not be added to the ice ston bin - it may not crush and/or dispense properly.
- Page 14 Note: If you have an Automatic ice Maker installed, we recommend that you off the water suppty before moving the cabinet. After cleaning behind your refrigerator, push it back and turn the levelers clockwise_ they touch the floor end lock the cabinet in place.
- Page 15 To allow your refrigeratorto run more effi- ciently, the base grille and the area around twice a year. The area around the condens- er can be cleaned whenever the refrigerator is moved during routine house-cleaning. Unplug the refrigerator and move it away from the wall.
- Page 16 (2) unscrew bulb and replace wil a 40 watt appliance bulb (60 watt appliance bulb for Model JRS207, JRSD2250 ar JRSD2450); and (3) hook the light shield over the upper retainer lugs and press in ;...
- Page 17 • Frequent running provides more stable temperatures. • Too many door openings. • Prolonged door openings. Refrigerator runs too long. • Under normal conditions, d ue to larger size and colder temperatures,modern refrigeratorsrun a greater percentageof the time. • Prolonged or frequent door openings.
- Page 18 • Packages not wrapped or sealed properly. • Crisper not tightly closed. Fresh food compartment too cold. • Refrigerator control set too cold. Fresh food compartment too warm. • Refrigerator control set too warm. • Freezer control set at coldest position.
- Page 19 CustomerAssistance,e/o Maytag Customer Service, PO Box 2370, Cleveland, TN 37320-2370, 1-800-688-1100 (U.S. and Ontario) or 1-615-559-3646. • Use and care manuals, service manuals, and parts catalogsare availablefrom Jenn-Air Customer Assistance, c/o Maytag Customer Service. All specifications subjectto change by manufacturerwithoutnotice.
