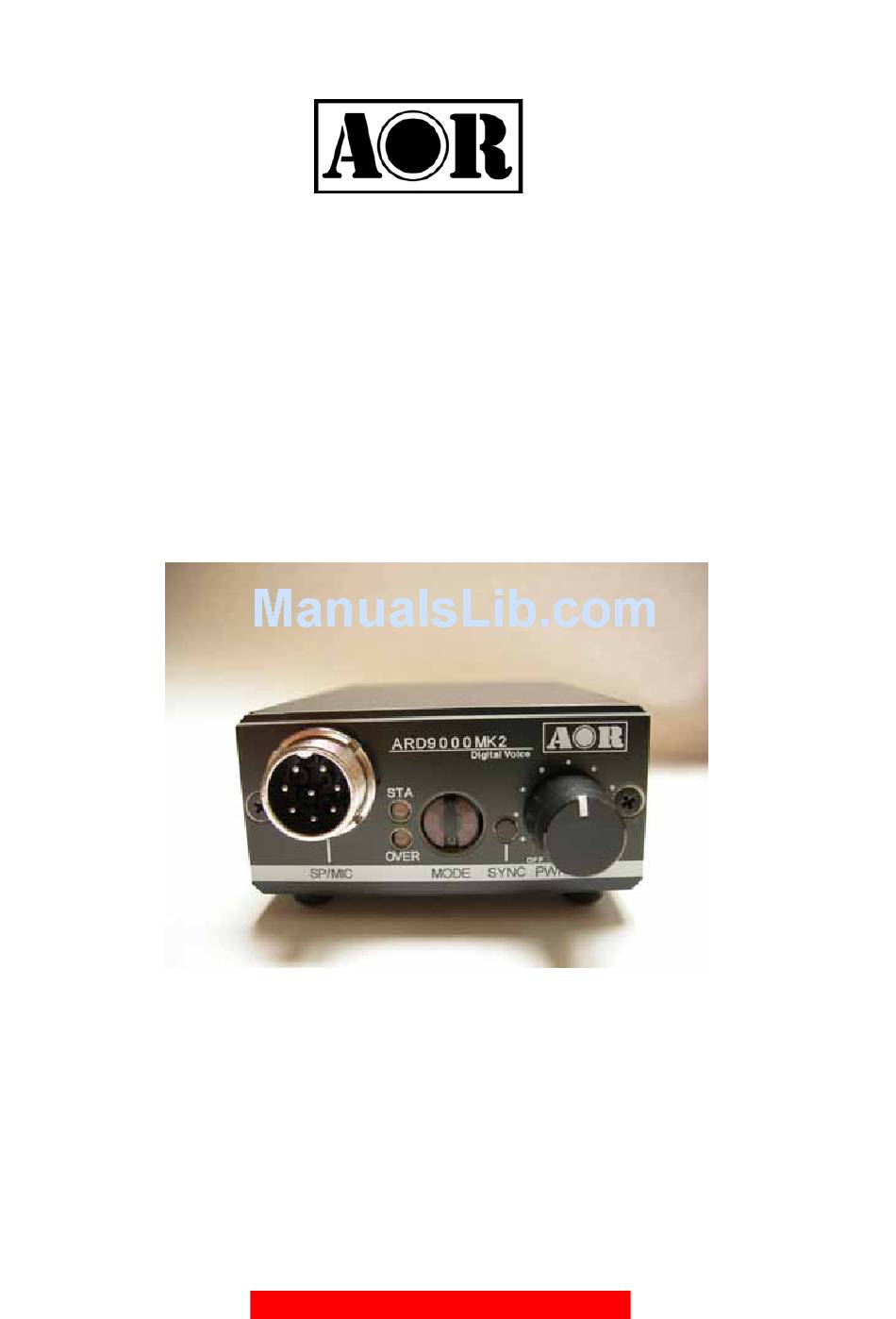

  • Page 1 ® Digital Voice Modem ARD9000MK2 Instruction Manual AOR, LTD. Authority On Radio Communications American Communication Systems Discover the Power of Communications ™ http://www.ameradio.com TO ORDER – VISIT...
  • Page 2 Please read through this instruction manual and familiarize yourself with the operation of the ARD9000MK2. We suggest you keep this instruction manual for future reference. We believe you will enjoy using the ARD9000MK2 as an enhancement to your enjoyment of amateur radio. AOR, LTD.
  • Page 3 Operates on 11 to 16V DC from an external power source. Utilizes a uniquely designed high performance DSP engine. Uses established G4GUO open protocol. The use of an open digital protocol means use of the ARD9000MK2 is permitted on US Amateur Radio Bands (non-USA users should check applicable regulations.) ARD9000MK2 vs.
  • Page 4 Do not place the unit in excessively dusty, humid or wet areas. AOR is not responsible for any damages to the radio equipment due to improper settings or interface. AOR is not responsible for any loss of communications due to an unexpected...
  • Page 5: Table Of Contents

    Table of Contents Page Supplied & optional accessories ---------------------------------------------------------- 5 Magnetic mount ------------------------------------------------------------------------------- 5 Controls and functions ------------------------------------------------------------------------ 6 Front panel ------------------------------------------------------------------------------------ 6 Microphone connector ---------------------------------------------------------------------- 6 Overload indicator -------------------------------------------------------------------------- 6 Status LED ----------------------------------------------------------------------------------- 7 Mode switch ----------------------------------------------------------------------------------7 Synchronization switch -------------------------------------------------------------------- 8 Speaker volume adjustment with the switch ----------------------------------------- 8 Rear panel ------------------------------------------------------------------------------------ 8...
  • Page 6: Supplied & Optional Accessories

    ICOM® transceiver with 8 pin metal microphone connector M-8MK for KENWOOD® transceiver with 8 pin metal microphone connector Magnetic mount The supplied magnetic mount base holds the ARD9000MK2 in place against a metal surface. Simply screw it to the bottom panel’s center hole.
  • Page 7: Controls And Functions

    However, you will need to use your own external speaker connecting to the SP OUT of the rear panel of the ARD9000MK2 as it does not have a built-in internal speaker. Below is a pin assignment of the speaker-microphone connector of the ARD9000MK2.
  • Page 8: Status Led

    PTT->B All digital Remarks: Header stands for the header tone length. The ARD9000MK2 synchronizes on the header tones at the initial contact with other users. PTT->A allows user to toggle between analog and digital transmission just by quickly pushing the PTT button. The second press opens the microphone and...
  • Page 9: Synchronization Switch

    PTT to open the microphone and talk. Voice squelch: Allows you to hear both analog and digital transmissions. All digital: The only audio you will hear is when the ARD9000MK2 detects and decodes a digital transmission.
  • Page 10: Speaker Out Connector

    LINE-OUT as those audio levels are insufficient to drive the ARD9000MK2. (4) RADIO Connector (RADIO) Using the supplied 8-pin connector, connect the ARD9000MK2 to your transceiver’s microphone input. The optional pre-wired microphone cable is available from AOR for your transceiver or you will need to prepare your own microphone connector and cable for your transceiver.
  • Page 11: Initial Setting

    If you wish to use your own microphone rather than the one included, you will need to rewire your microphone cable to match the pins of the ARD9000MK2 and then adjust the microphone level as described in the following steps: 1.
  • Page 12: Input Level From Radio

    5. Adjust the output level pot on the bottom side of the ARD9000MK2 when the microphone gain control on the radio transceiver does not adjust to provide a sufficient level.
  • Page 13: Installation

    Installation Connection of the speaker-microphone Connect the supplied speaker-microphone to the SP/MIC connector of the ARD9000MK2. If you wish to use your own microphone or a speaker-microphone, please refer to the wiring diagram shown below. Pin # Signal Details Speaker output...
  • Page 14: Connection To The Radio (For Microphone Input)

    RADIO Connection to the radio (for speaker input) Connect the SP IN located on the rear panel of the ARD9000MK2 to the speaker output (external speaker) of your transceiver with supplied speaker cable (with 3.5mm mono plug on each end).
  • Page 15: Operation

    2. Be sure your IF filters are about 3KHz or wider. 3. Don't "overdrive" your ARD9000MK2 with too much audio from your transceiver. 4. Don't transmit using "compression" (also known as a speech processor). 5. Be sure your ALC is within its specified operating region. If in doubt, lower audio output seems to work better than a higher setting.
  • Page 16: Operating Frequencies

    Remember, to receive SSB transmissions, you need to set the ARD9000MK2 to SSB mode, and in FM mode to receive FM transmissions. The operation modes can be selected with the MODE SWITCH, and described in the chapter, “Controls and Functions”.
  • Page 17: Limited Warranty

    LIMITED WARRANTY AOR USA, Inc. (AOR) warrants its products as described below: AOR will repair or exchange equipment as a result of defects in parts or workmanship for a period of one year from the date of original retail purchase from an authorized AOR dealer.
  • Page 18 AOR’s limits on warranty pertain only to the repair or, at its option, replacement of defective products. AOR shall not be liable for any other damages, including consequential, incidental or otherwise, arising from any defect.
  • Page 19 AOR, LTD. 2-6-4, Misuji, Taito-Ku Tokyo, 111-0055, Japan http://www.aorja.com AOR USA, INC. 20655 S. Western Ave. Suite 112 Torrance, CA 90501-1800 Copyright © 2006 Phone: 310-787-8615 Fax: 310-787-8619 e-mail: info@aorusa.com URL: http://www.aorusa.com All rights reserved Copyright © 2006...
