Avanti 3000 set User Manual

Telrad digital
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Avanti 3015 set
Avanti 3000 set

User guide

79-650-0010/A
Issue 1

Advertisement

Table of Contents
loading

Summary of Contents for Avanti 3000 set

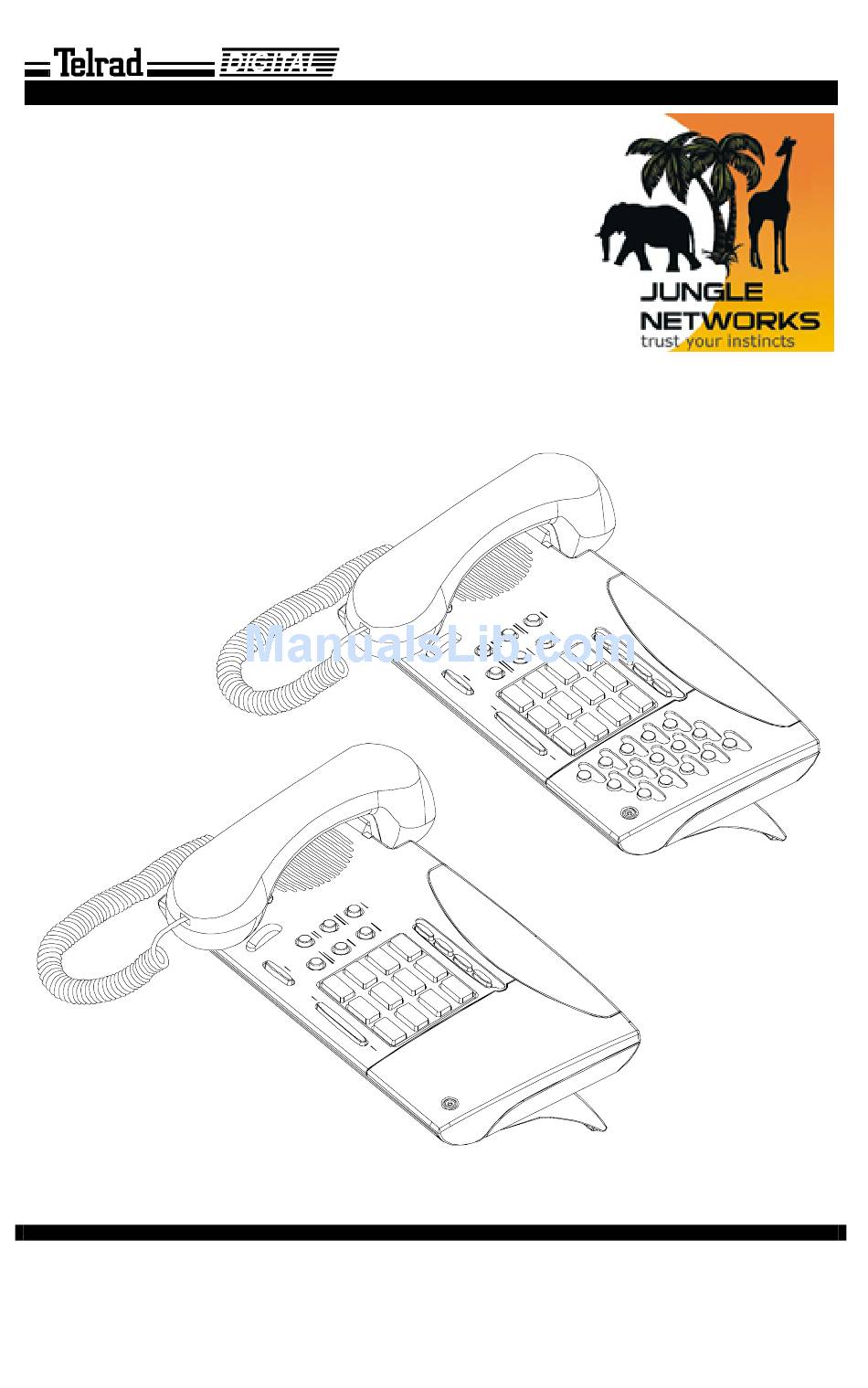

  • Page 1: User Guide

    Avanti 3015 set Avanti 3000 set User guide 79-650-0010/A Issue 1...
  • Page 2 0845 835 0521 79-650-0010/A, Issue 1...
  • Page 3 79-650-0010/A, Issue1 Avanti 3015 set Avanti 3000 set User guide Telrad Telecommunications Inc., Woodbury, New York...
  • Page 4 NOTICE This publication refers to Telrad's Avanti 3015 set and Avanti 3000 set connected to Telrad's DIGI- TAL KEY BX system, Release SB7, or Telrad's DIGITAL 400 system, Release DB7, or Telrad’s DIGITAL 1000 system, Release LB7, as of July, 1999.

  • Page 5: Table Of Contents

    CONTENTS ABOUT YOUR AVANTI TELEPHONE ..........1 TELEPHONE SET BUTTONS ............1 DISTINCTIVE RINGING ..............6 MUTE ....................7 HOT DIALPAD ..................8 INTERNAL CALLS ................9 BARGE INTO A CONVERSATION ........... 10 PAGE CALLS ..................10 ANSWERING CALLS ................ 11 CALL WAITING .................
  • Page 6 Figure 1 Avanti 3015 set faceplate...
  • Page 7 Figure 2 Avanti 3000 set faceplate...

  • Page 8: About Your Avanti Telephone

    ABOUT YOUR AVANTI TELEPHONE The Avanti 3000 set and the Avanti 3015 set are equipped with onhook dialing and hot dialpad capability, which enable you to dial or operate any feature by pressing the dialpad buttons. Only when you speak it is necessary to lift the handset.
  • Page 9 Press this button to pick up calls. [TRANSFER/CONFERENCE] Press this button to transfer calls and when establishing and exiting conference calls. NOTE The [TRANSFER/CONFERENCE] button is referred to as [TRANSFER] or [CONFER- ENCE], depending on the operation being described. Avanti 3015 and Avanti 3000 sets...
  • Page 10 Figure 1 at the beginning of this guide, consult your System Administrator. NOTE With the default configuration, the following fea- tures are programmed on the four buttons above the dialpad: [MSG], [DND], [MUTE] and [SPKR]. Avanti 3015 and Avanti 3000 sets...
  • Page 11 Not all telephone sets are programmed with DN buttons. The instructions in this manual often contain references to DN indicators and dis- plays of DN numbers. If your telephone set is not programmed with DN buttons, disregard these references. Avanti 3015 and Avanti 3000 sets...
  • Page 12 These buttons are called “floating” buttons. NOTE Some of the access codes in your system may be different from those indicated here. If so, see your system administrator for the correct codes. Avanti 3015 and Avanti 3000 sets...

  • Page 13: Distinctive Ringing

    When you hear the ring that you want: 3. Press [#]. 4. Lift and replace the handset. Your telephone set reinitializes and all telephone rings (internal, external, recall, etc.) sound with the distinctive ring selected. Avanti 3015 and Avanti 3000 sets...

  • Page 14: Mute

    1. Press [FEATURE]. 2. Press [SPKR]. The [SPKR] indicator turns on. Both you and the other party are heard via the speaker. Avanti 3015 and Avanti 3000 sets...

  • Page 15: Hot Dialpad

    HOT DIALPAD The hot dialpad enables you to dial and activate features without lifting the handset or pressing [SPKR] first. NOTE The instructions in this guide assume that you have hot dialpad capability. Avanti 3015 and Avanti 3000 sets...

  • Page 16: Internal Calls

    4. Then: Lift the handset. You hear the called extension ringing. To cancel Call back 1. Dial the CANCEL code [#]. 2. Press [FEATURE]. 3. Dial the CALLBACK/QUEUE access code ([2][2]). 4. Hang up. Avanti 3015 and Avanti 3000 sets...

  • Page 17: Barge Into A Conversation

    (MEET ME PAGE) You can call a page initiator during a page call: 1. Lift the handset. 2. Press [FEATURE]. 3. Dial the MEET ME PAGE access code ([6][6]). 4. Dial the PAGE zone access code. Avanti 3015 and Avanti 3000 sets...

  • Page 18: Answering Calls

    1. Press [HOLD]; the first call is put on hold. The indicator for that line flashes green. 2. Press the DN or outside line button that is flashing green; you receive the second call. Avanti 3015 and Avanti 3000 sets...
  • Page 19 This means that you cannot answer another arriving internal call without disconnecting the first internal call. In this case, you must hang up first. You can then answer the second call when it rings. Avanti 3015 and Avanti 3000 sets...

  • Page 20: Outside Calls

    1. Obtain an outside line. 2. Press [REDIAL]. To save a frequently dialed outside number (SAVE/REPEAT) After dialing the desired number, but before hanging up: 1. Press [FEATURE]. 2. Dial the SAVE/REPEAT access code ([7][7]). Avanti 3015 and Avanti 3000 sets...

  • Page 21: Automatic Redial

    ARD button. WAITING FOR AN AVAILABLE OUTSIDE LINE (TRUNK QUEUE) When you try to select an outside line and hear busy tone: 1. Press [FEATURE]. 2. Dial the CALLBACK/QUEUE access code ([2][2]). Avanti 3015 and Avanti 3000 sets...

  • Page 22: Circumventing Extension Restrictions

    3. Dial your ECC authorization code or a Global COS code. The [TC] indicator (if defined) lights. The Travel COS feature is active for a predefined period. 4. Access an outside line and place a call. Avanti 3015 and Avanti 3000 sets...

  • Page 23: Obtaining Special Services Via Lines Defined As Behind An Exchange

    VIA LINES DEFINED AS BEHIND AN EXCHANGE (CENTREX OR PBX) You may be able to access special services provided by a CENTREX or PBX exchange. To access services while connected to the outside line 1. Press [FEATURE]. 2. Press [FLASH]. Avanti 3015 and Avanti 3000 sets...

  • Page 24: Hold

    Inclusive hold, and the second press, Exclusive hold. See your System Administrator. To pick up a call from hold • Press the flashing button of the call on hold. 1. Press [PICK UP]. 2. Press [HOLD]. Avanti 3015 and Avanti 3000 sets...

  • Page 25: Transferring Calls

    If you have not yet hung up and the other party has not yet answered the transferred call, you may retrieve the trans- ferred call. • Press the line button associated with the call. Avanti 3015 and Avanti 3000 sets...

  • Page 26: Conference Calls

    1. Make the first call. 2. Press [CONFERENCE]. 3. Make the next call. After the call is answered: 4. Press [CONFERENCE] again. 5. Repeat steps 2 through 4 to add up to five more parties to the conference. Avanti 3015 and Avanti 3000 sets...

  • Page 27: Pickup

    To pick up a call ringing in your pickup group • Press a MEMORY button programmed with GROUP PICK UP. 1. Press [PICK UP]. 2. Press [ See ABBREVIATED DIALING for instructions on how to program MEMORY buttons. Avanti 3015 and Avanti 3000 sets...

  • Page 28: Messages

    To call the message sender 1. Press [SPKR]. 2. Press [MSG]. DELETING ALL MESSAGES To delete all messages left at your telephone 1. Press [#]. 2. Press [MSG]. 3. Hang up. Avanti 3015 and Avanti 3000 sets...

  • Page 29: Do Not Disturb (Dnd)

    DND message, if programmed. If your set is pro- grammed for DND call forwarding or for Call Forward, calls are forwarded. To cancel DND mode • Press [DND]. The DND indicator goes off and calls ring at your set. Avanti 3015 and Avanti 3000 sets...

  • Page 30: Dnd Messages

    DND messages table at the end of this guide for a com- plete list of available messages). 5. Hang up. To cancel your DND message 1. Press [#]. 2. Press [PROGRAM]. 3. Press [DND]. 4. Hang up. Avanti 3015 and Avanti 3000 sets...

  • Page 31: Forwarding Calls

    Call forward no answer 4. Dial the code designating the calls you want forwarded: In order to program Dial All calls [A] or [2] External calls [E] or [3] Internal calls [I] or [4] Avanti 3015 and Avanti 3000 sets...
  • Page 32 4. Dial the code that designates which of your calls are currently forwarded and for which you want to cancel the call forwarding programming: [2], [3], or [4]. If you want to cancel call forwarding for all DNs, press [*]. 5. Hang up. Avanti 3015 and Avanti 3000 sets...

  • Page 33: Canceling Call Forward To Me

    4. Dial [8]. 5. Dial the extension number whose calls you no longer want forwarded to your set Press [ ] if you wish to cancel all Call Forward to me, from all sets. Avanti 3015 and Avanti 3000 sets...

  • Page 34: Abbreviated Dialing

    Press the SPEED DIAL button to be programmed. 4. Dial an outside line access code followed by the num- ber you want to store. 5. Hang up. NOTE Pauses may be entered in a speed dial sequence by pressing [REDIAL/PAUSE]. Avanti 3015 and Avanti 3000 sets...

  • Page 35: Memory Buttons

    3. Press the MEMORY button to be programmed. 4. Dial the desired extension number (up to four digits) Press [FEATURE] and then dial the desired feature code. See the Feature codes table at the end of this guide. 5. Hang up. Avanti 3015 and Avanti 3000 sets...

  • Page 36: Alarm

    Before the alarm rings: 1. Press [#]. 2. Press [FEATURE]. 3. Dial the TIME ALARM access code ([8][2]). 4. Hang up. To stop the alarm ring • Press [SPKR] twice or lift and replace the handset. Avanti 3015 and Avanti 3000 sets...

  • Page 37: Telephone Lock

    2. Dial your Executive Credit Code (see your System Administrator). 3. Hang up. The telephone lock dialing restrictions are in effect. The [LOCK] button, if defined, lights. To unlock your telephone • Repeat the above procedure. Avanti 3015 and Avanti 3000 sets...

  • Page 38: Door Unit

    Press the flashing [DOOR] button, if defined. You can now speak with the person at the door. Opening the electric door latch While connected to the door unit: • Press [ The door latch opens. Avanti 3015 and Avanti 3000 sets...

  • Page 39: Note Pad

    4. Enter up to 16 digits. 5. Press [PROGRAM]. To dial the number saved, do a regular Speed Dial using the Speed Dial memory code or button you used to save the number (see Abbreviated dialing). Avanti 3015 and Avanti 3000 sets...

  • Page 40: Advanced Features

    External Call Forward; • Floating buttons; • Hot line; • Intrusion; • Meet me conference; • Pick up; • Last hold; • Page transfer; • System speed dial; • Trunk patch - Retrieve trunk patch. Avanti 3015 and Avanti 3000 sets...

  • Page 41: Feature Codes

    BI (Barge In). That is, FEATURE The feature codes in your system may have been changed. If so, enter the updated feature access codes in the “Access method” column of the Feature codes table. Avanti 3015 and Avanti 3000 sets...
  • Page 42 (2) Only available on ISDN PRI calls. (3) In the DIGITAL 400 up to eight; in the DIGITAL 1000 up to 24. Not all of the above features are available on every type of telephone set. Avanti 3015 and Avanti 3000 sets...
  • Page 43 (2) Only available on ISDN PRI calls. (3) In the DIGITAL 400 up to eight; in the DIGITAL 1000 up to 24. Not all of the above features are available on every type of telephone set. Avanti 3015 and Avanti 3000 sets...
  • Page 44 WITH A CLIENT WITH A GUEST WITH A PATIENT UNAVAILABLE LEAVE MSG AT * * * TAKE MSG AT * * * * (1) When editing messages, enter digits in place of the asterisks. Avanti 3015 and Avanti 3000 sets...

  • Page 45: System Messages

    REPORT DUE COME HERE MEET. NOW MEMO READY TYPE LETTR WELL DONE (1) When editing messages, enter digits in place of the asterisks. (2) Messages 22 to 30 are to be defined by the customer. Avanti 3015 and Avanti 3000 sets...
  • Page 46 Your speed dial codes Name Number Code Avanti 3015 and Avanti 3000 sets...
