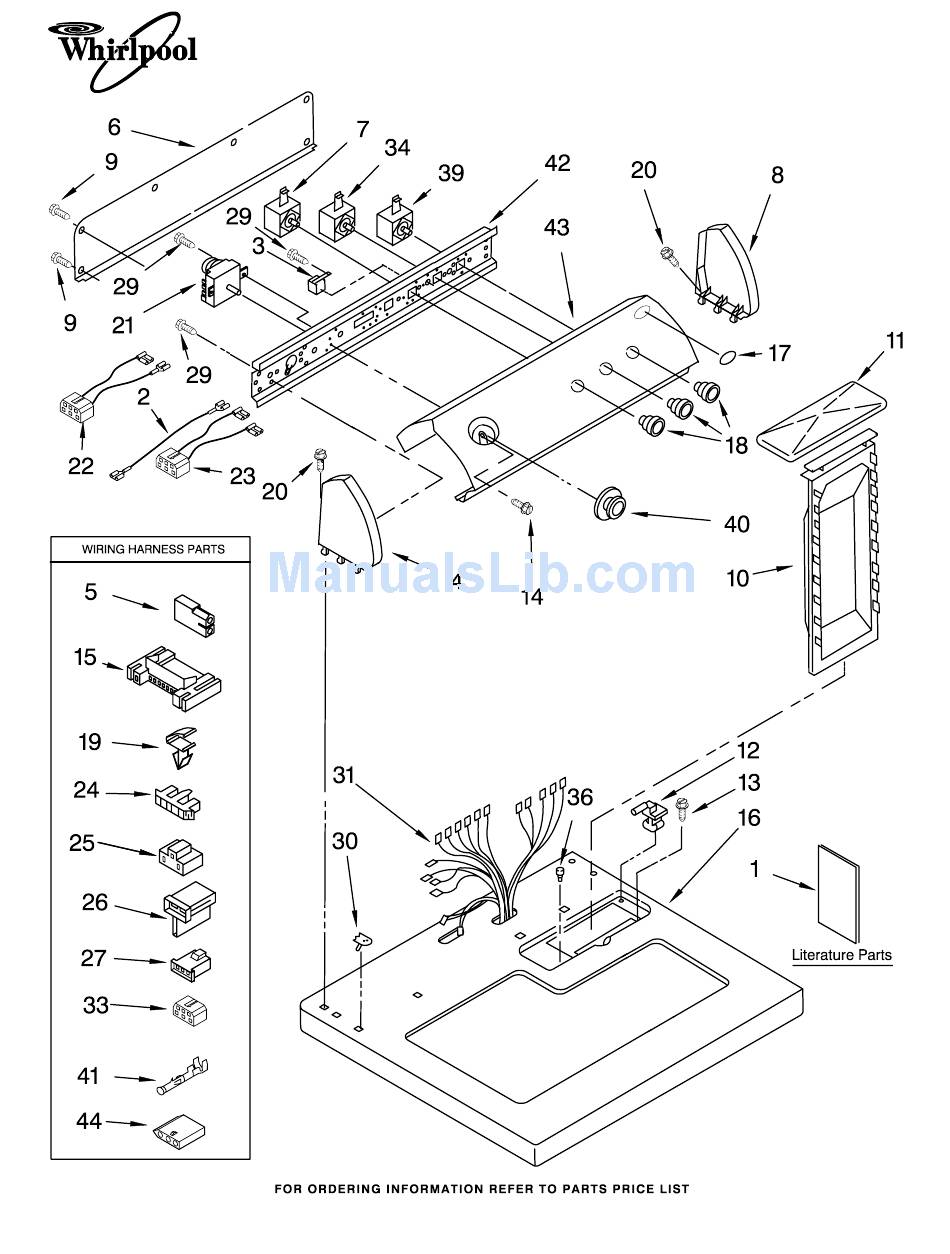

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) 10−02 Litho in U.S.A. (djc) Part No. 8179902...
- Page 2 TOP AND CONSOLE PARTS For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 693995 Screw, Hex Literature Parts 3403499 Connector, Washer Head LIT8535830 Instructions, 2−Position 349639 Handle & Lint Installation (Gas Valve) Screen Assembly LIT8522243 Use &...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) 8179902... - Page 4 CABINET PARTS For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3406129 Seal & Bearing 697776 Screw, 10−32 x 5/8 Cabinet Assembly (External Ground) 8530603 White Plug, Front Panel 343641 Screw, 10−16 x 1/2...
- Page 5 BULKHEAD PARTS For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) 8179902...
- Page 6 BULKHEAD PARTS For Models: LGR7620LQ0, LGR7620LW0, LGR7620LG0 (Designer White) (White/Grey) (Biscuit/Gold) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Fuse, Thermal...
-
